CMT TMP Flexible template

CMT TMP Flexible template

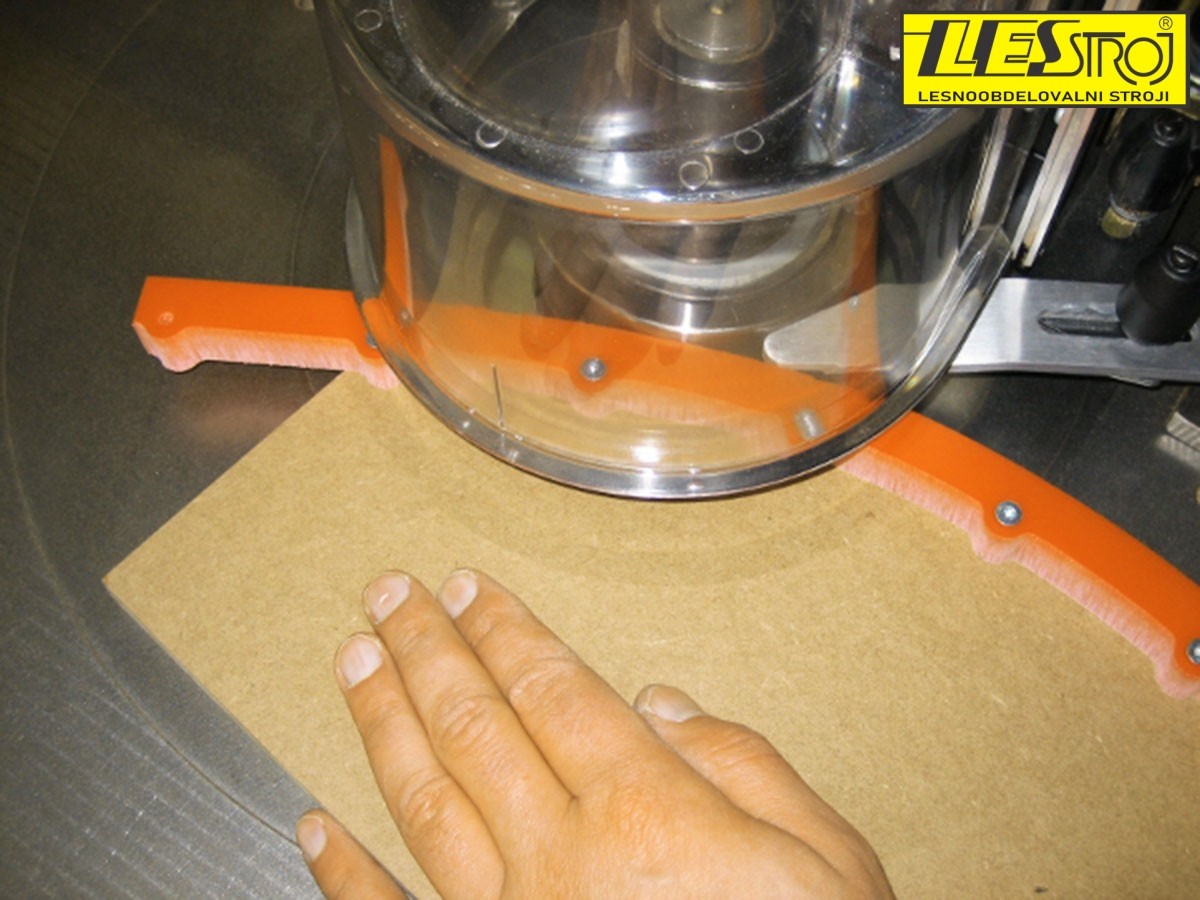

CMT TMP is a very flexible guide made in Germany. It is used by screwing it with wood screws to the desired shape or line, and then using a table cutter with a copy bearing to cut the desired shape.

Limited time offer:
€107.54 €113.20 -5%
Request for more information

Product inquiry

I want contact by: *

Contact details:

Tot. leng. (L-mm)
There are not enough products in stock
Reference:
001763
Description

It is easy to screw the CMT flexible guide using the wood screws to any wood panel, MDF, chipboard and other.

It is used for easy, quick creation of shapes, arches and curved elements. If you are not happy with the produced shape, you simply modify it without any long procedures. The guide is made of very resistant flexible plastic that can be tied into knots without impairing or reducing the flexibility in the process.

The guide is suitable for manual feeding on conventional table routers and hand-held routers.

During the cutting with copy bearing, pay attention to the safety distance between the hands and the router.

Two different profiles in three lengths are available. Take into account that the smallest profile has a short radius, while the large profile has large openings in case of flat and long curves.

Technical data of the CMT TMP guide:

⎻    with the dimension of 1,000 mm: 18 × 18 mm,

⎻    with the dimension of 1,200 mm: 12 × 12 mm,

⎻    with the dimension of 2,000 mm: 18 × 18 mm.

Product Details
001763

Specific References

Other product combination
Model Tot. leng. (L-mm) Unit price Buy
CMT TMP 1000 1000
€113.20
– 5%
€107.54
Call us
CMT TMP 1200 1200
€80.20
– 5%
€76.19
CMT TMP 2000 2000
€222.30
– 5%
€211.18
Call us
