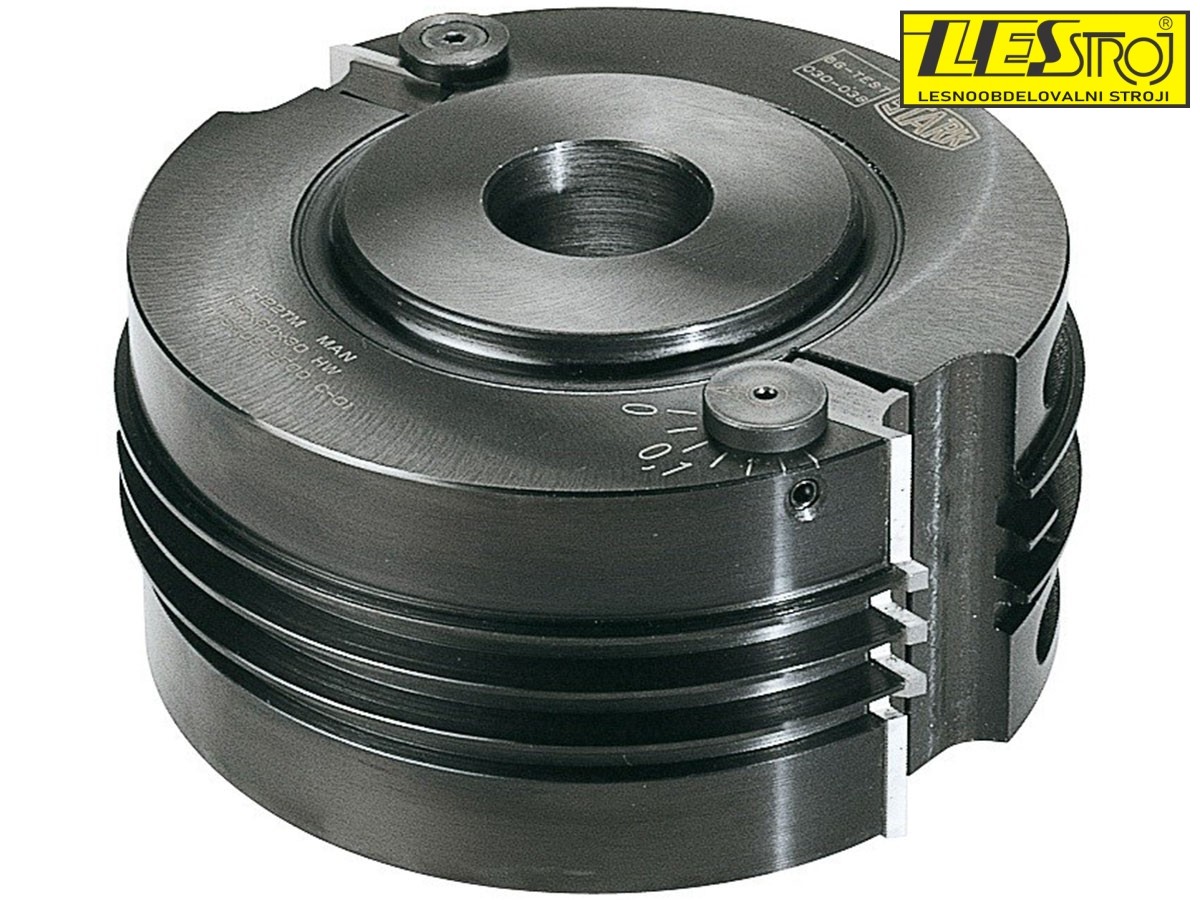

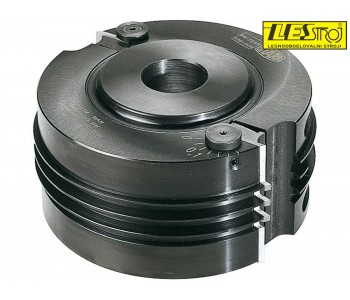

STARK Edge glue joint cutter head TH22TM

The STARK TH22TM cutter head is used for making profile for edge gluing of solid wood with thickness ranging from 16 to 60 mm.

Limited time offer:
€342.00 €360.00 -5%
Request for more information

Product inquiry

I want contact by: *

Contact details:

Diameter (D-mm)
Bore dia. (B/d-mm)
Width (H-mm)
There are not enough products in stock
Condition
New product
Reference:
008685
Description

The STARK TH22TM cutter head is made of STEEL, and it is intended for making a profile for edge gluing of solid wood with thickness ranging from 16 to 50 mm or from 24 to 60 mm.

In edge gluing, the produced profile helps in the positioning of workpieces itself (they do not move) and increases the gluing surface for us, so that the joint quality is even higher.

The steel cutter head is equipped with two adjustable blades, with which it is possible to adjust the joint looseness. The cutter head allows the shank diameters of 30 and 35 mm, and it is suitable for machine and manual feeding of the workpiece.

The TH22TM21 set includes:
⎻    cutter head,
⎻    two HW blades 50 × 25 × 2 mm (602001),
⎻    tools.

Technical data of TH22TM21:
⎻    cutter diameter: 135 mm;
⎻    maximum working height: 50 mm;
⎻    minimum working height: 16 mm;
⎻    borehole diameter: 30 or 35 mm.

The TH22TM22 set includes:
⎻    cutter head,
⎻    two HW blades 60 × 25 × 2 mm (602203),
⎻    tools.

Technical data of TH22TM22:
⎻    cutter diameter: 135 mm;
⎻    maximum working height: 60 mm;
⎻    minimum working height: 24 mm;
⎻    borehole diameter: 30 or 35 mm.

Product Details
008685

Specific References

Images

Width joint blade dimensions


Adjusting the joint


Adjusting the looseness of the joint


Other product combination
Model Diameter (D-mm) Bore dia. (B/d-mm) Width (H-mm) Unit price Buy
TH22TM21030 135 30 16-50
€360.00
– 5%
€342.00
Call us
TH22TM21035 135 35 16-50
€380.60
– 5%
€361.57
Call us
TH22TM22030 135 30 24-60
€540.00
– 5%
€513.00
