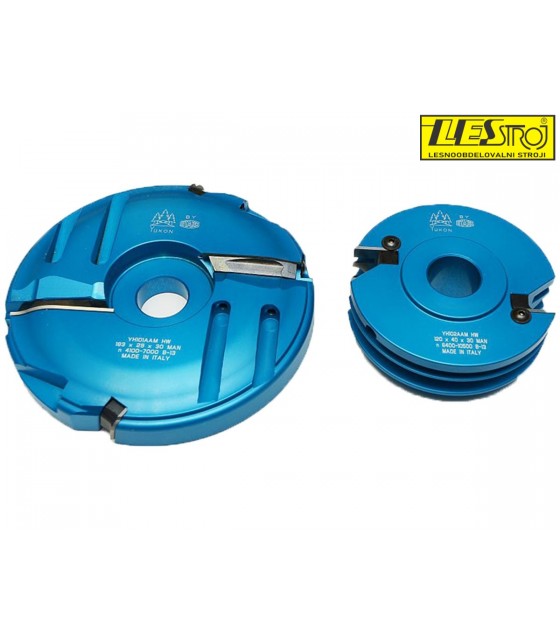

STARK YS101 Cutter head set for cabinet doors

The STARK YS101 cutter head set is used for making cabinet doors with thickness ranging from 22 to 25 mm.

Limited special offer
€342.00 €360.00 -5%
Bore diameter (B/d)
Product available with different options
Condition
New product
Reference:
009117
Brand:
Description

Both cutter heads are made od aluminium alloy. The small cutter head is intended for making cabinet door frames and drawers with thickness ranging from 22 to 25 mm, and the large cutter head is intended for making fillers of both small and large doors.

You may choose between the sets with a borehole for clamping with the diameters of 30 and 35 mm. The cutter heads are suitable for machine and manual feeding of workpieces.

The set includes two cutter heads.

The cutter head 1 includes:
⎻    cutter head,
⎻    two HWM blades of type A, 40 × 24.5 × 2 mm (602075).

Technical data for cutter head 1:
⎻    cutter diameter: 120 mm;
⎻    working height: 40 mm;
⎻    maximum working depth: 12 mm;
⎻    borehole diameter: 30 and 35 mm.

Optional accessories (option to buy):
⎻    two HWM blades of type B, 40 × 24.5 × 2 mm (602076),
⎻    two HWM blades of type C, 40 × 24.5 × 2 mm (602077),
⎻    two HWM blades of type D, 40 × 24.5 × 2 mm (602078).

The cutter head 2 includes:
⎻    cutter head,
⎻    two HWM blades of type A, 19.8 × 11.9 × 1.5 mm (601097),
⎻    two HWM blades of type B, 60 × 11.9 × 1.5 mm (601050).

Technical data for cutter head 2:
⎻    cutter diameter: 183 mm;
⎻    working height: 25 mm;
⎻    maximum working depth: 61 mm;
⎻    borehole diameter: 30 or 35 mm.

Product Details
009117

Specific References

Images

Sketch of cutter head for fillers with dimensions

The workpiece profile is determined by the height of the cutter head on the workpiece.

An example of processing - a cabinet door


Sketch of the profile of the cutter head for the profile...
