Cutter head set CMT with interchangeable HSS knives and limiters 693.013.01 and 693.013.02

The CMT 693 cutter head set with interchangeable HSS blades is intended for processing solid wood for manual and machine feeding. The router has a diameter of 100 mm, the height of 40 mm and a borehole diameter of 30 or 35 mm.

Limited special offer
€344.66 €362.80 -5%
Bore diameter (B/d)
Last items in stock
Condition
New product
Reference:
003729
Brand:
Description

The CMT 693 cutter head set is made of lightweight aluminium alloy with interchangeable HSS blades and limiters that prevent the kickback during processing. The set includes a head with pins which enable the automatic adjustment of knives, two straight profile knives, six additional profile knives and six limiters. The knives with height of 50 mm may also be used on the cutter head. It is intended for cutting in hard and soft solid wood. The cutter head diameter without the inserted knives is 100 mm, while the diameter with inserted knives is approximately 140 mm.

The cutter head is suitable for use on conventional table router machines and allows the shank diameters of 30 and 35 mm.

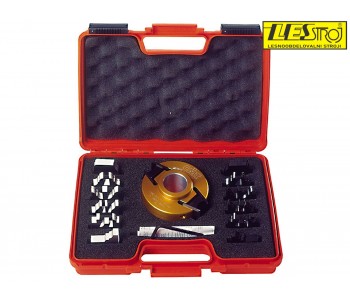

The cutter head is delivered in a strong plastic case with additional compartments for the blades and limiters.

The set includes:
⎻    aluminium cutter head,
⎻    seven 40 mm blades,
⎻    seven 40 mm limiters,
⎻    two wedges (693.999.01),
⎻    blade changing tool (991.064.00).

Technical data:
⎻    cutter head diameter 100 mm,
⎻    working height 40 mm,
⎻    borehole diameter 30 or 35.

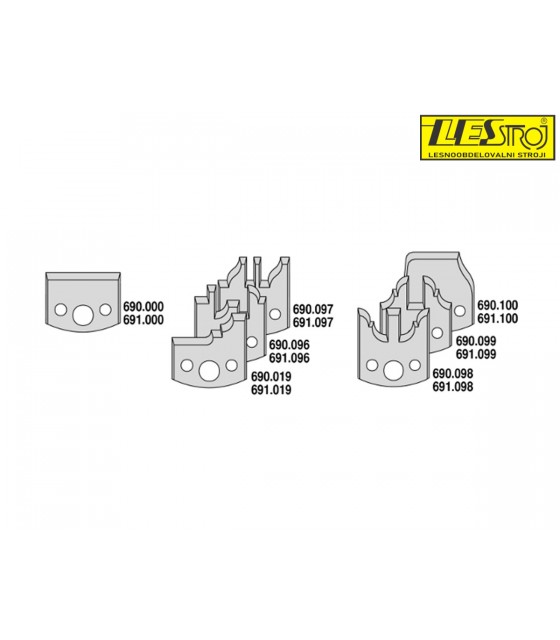

Additional HSS blades (option to buy):
⎻    blades (order number 690),
⎻    limiters (order number 691).

Product Details
003729

Data sheet

Working height (mm)
40
Diameter (mm)
100
Rotational speed (rpm)
5500-8400

Specific References

Images

cmt693.rezkar

cmz693.garnitura

Other product combination
Model Bore diameter (B/d) Unit price Buy Avail.
693.013.01 30 mm
€362.80
– 5%
€344.66
693.013.02 35 mm
€362.80
– 5%
€344.66
 Product is available
 Product is no longer in stock
 Product is no in stock, but is allowed to be back-ordered
