FREUD Cutter head TD60M for making door frames with round profile

The FREUD TD60M cutter head is used for making door frames with rounded profile.

Limited time offer:
€529.15 €557.00 -5%
Last items in stock
Condition
New product
Reference:
008573
Brand:
Description

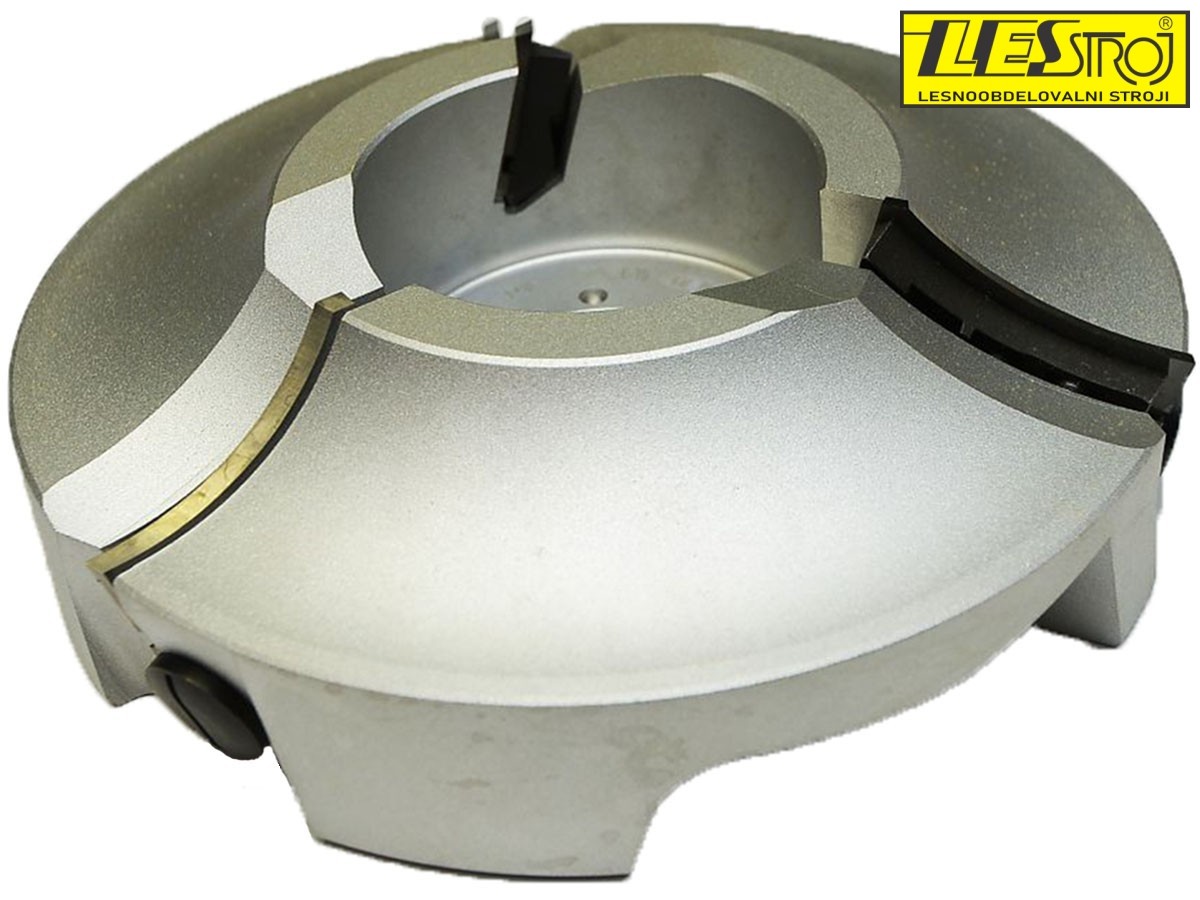

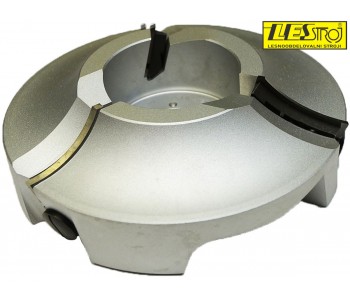

The FREUD TD60M cutter head is made of aluminium alloy, and it is intended for making solid door frames with rounded profile. The cutter head is especially suitable for processing hard, exotic types of wood.

For superior results, the processing in two passes is recommended. The maximum decorative cutout is 46 × 22.7 mm. The cutter head allows the shank diameter of 35 mm, and it is suitable for machine and manual feeding of the workpiece.

The FREUD TD60M cutter head is delivered in a strong plastic case.

The set includes:
⎻    cutter head,
⎻    two HW blades.

Technical data:
⎻    cutter diameter: 200 mm;
⎻    working height: 22.7 mm;
⎻    maximum working depth: 46 mm;
⎻    borehole diameter: 35 mm.

Product Details
008573

Data sheet

Diameter (mm)
200
Inner diameter (d/B) (mm)
35(40)
Cut thickness (mm)
60
Images

Primer obdelave okroglih podbojev

Skica profila v treh korakih
