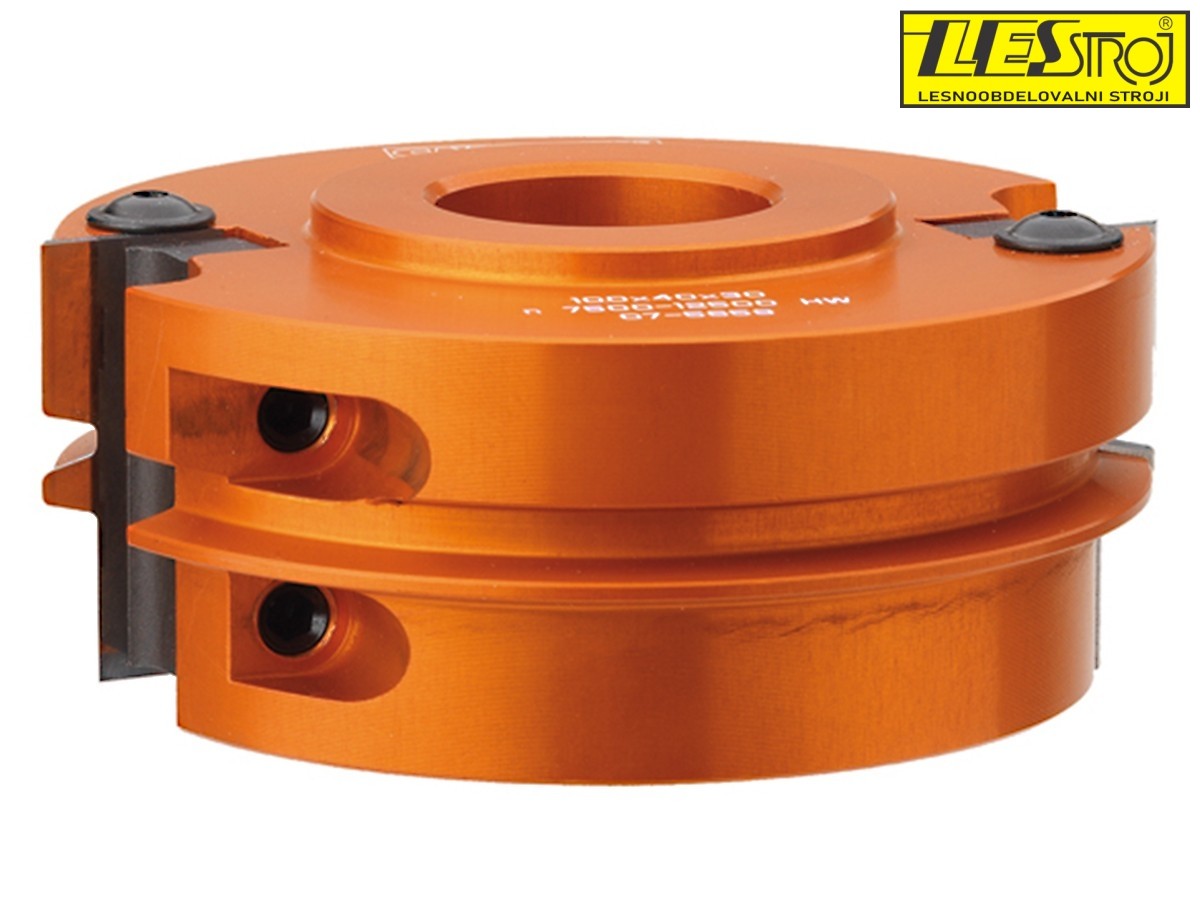

Reverse glue joint cutter head up to the height 40 mm CMT 694.009 D100 mm

Reverse glue joint cutter head up to the height 40 mm CMT 694.009 D100 mm

The CMT 694.009 cutter head is used for making a profile for edge gluing of solid wood with thickness ranging from 15 to 38 mm.

Limited time offer:
€212.42 €223.60 -5%
Request for more information

Product inquiry

I want contact by: *

Contact details:

Bore dia. (B/d-mm)
There are not enough products in stock
Condition
New product
Reference:
009112
Description

The CMT 694.009 cutter head is made of aluminium alloy. The cutter head is intended for making a profile for edge gluing of solid wood with thickness ranging from 15 to 38 mm.

When it comes to edge gluing, the produced profile helps in the positioning of workpieces itself (they do not move) and increases the gluing surface, so that the joint quality is even higher.

The cutter head allows the shank diameters of 30 and 35 mm, and it is suitable for machine and manual feeding of the workpiece.

The CMT 694.009 cutter head is delivered in a strong plastic case.

The set includes:
⎻    cutter head,
⎻    two HWM blades 40 × 18 × 2 mm (695.009.01),
⎻    blade changing tool.

Technical data:
⎻    cutter diameter: 100 mm;
⎻    working height: 38 mm;
⎻    borehole diameter: 30 or 35 mm.

Product Details
009112

Data sheet

No. of blades
2
Rotational speed (rpm)
7500-12500
Diameter (D) (mm)
100

Specific References

UPC
2330
Other product combination
Model Bore dia. (B/d-mm) Unit price Buy
694.009.30 30
€223.60
– 5%
€212.42
Call us
694.009.35 35
€223.60
– 5%
€212.42
