GRAULE crosscut saw with a maximum cutting width of 410 mm and a maximum cutting height of 170 mm.

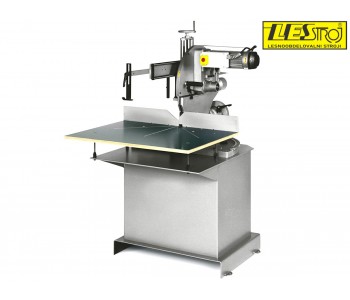

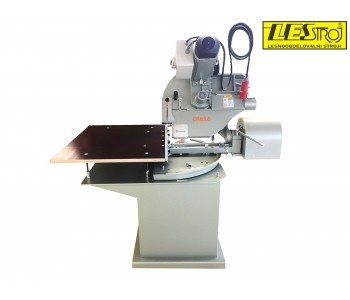

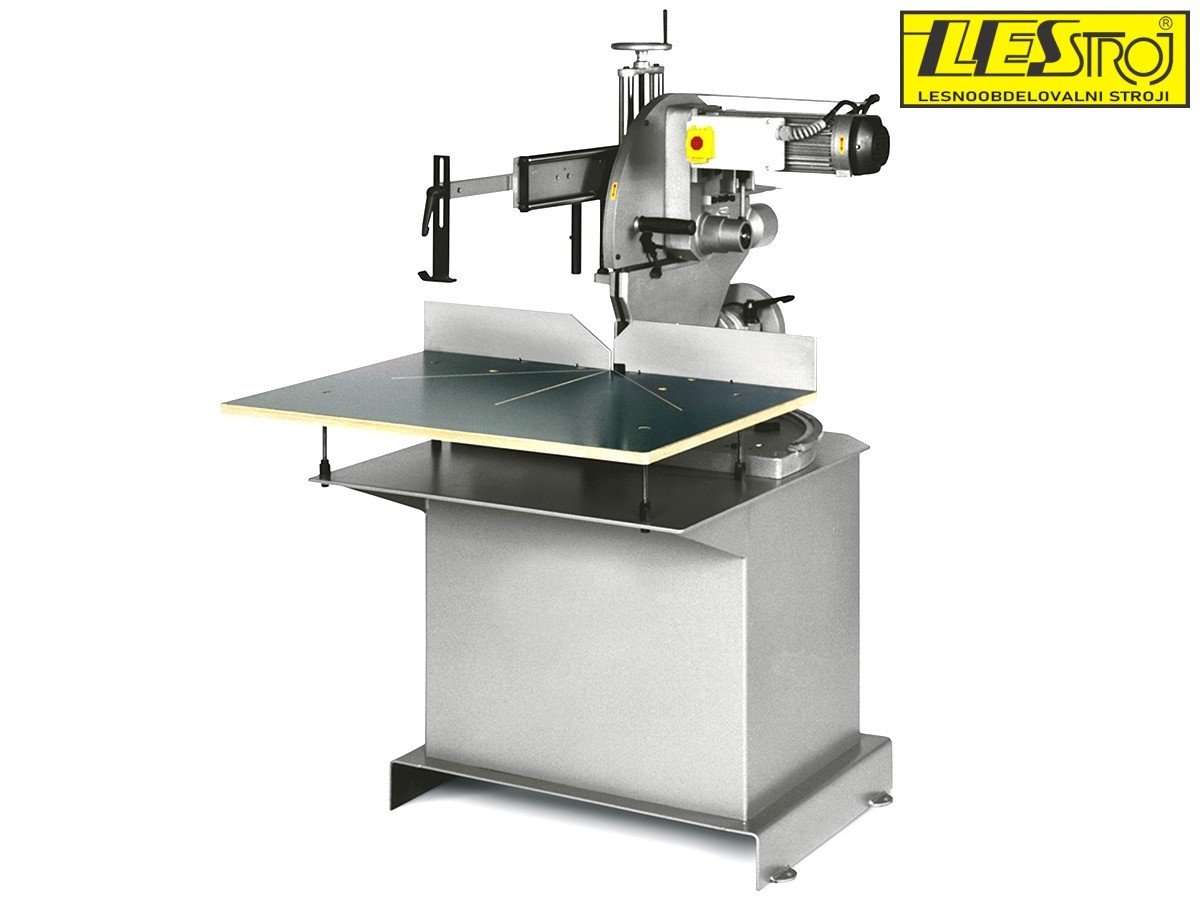

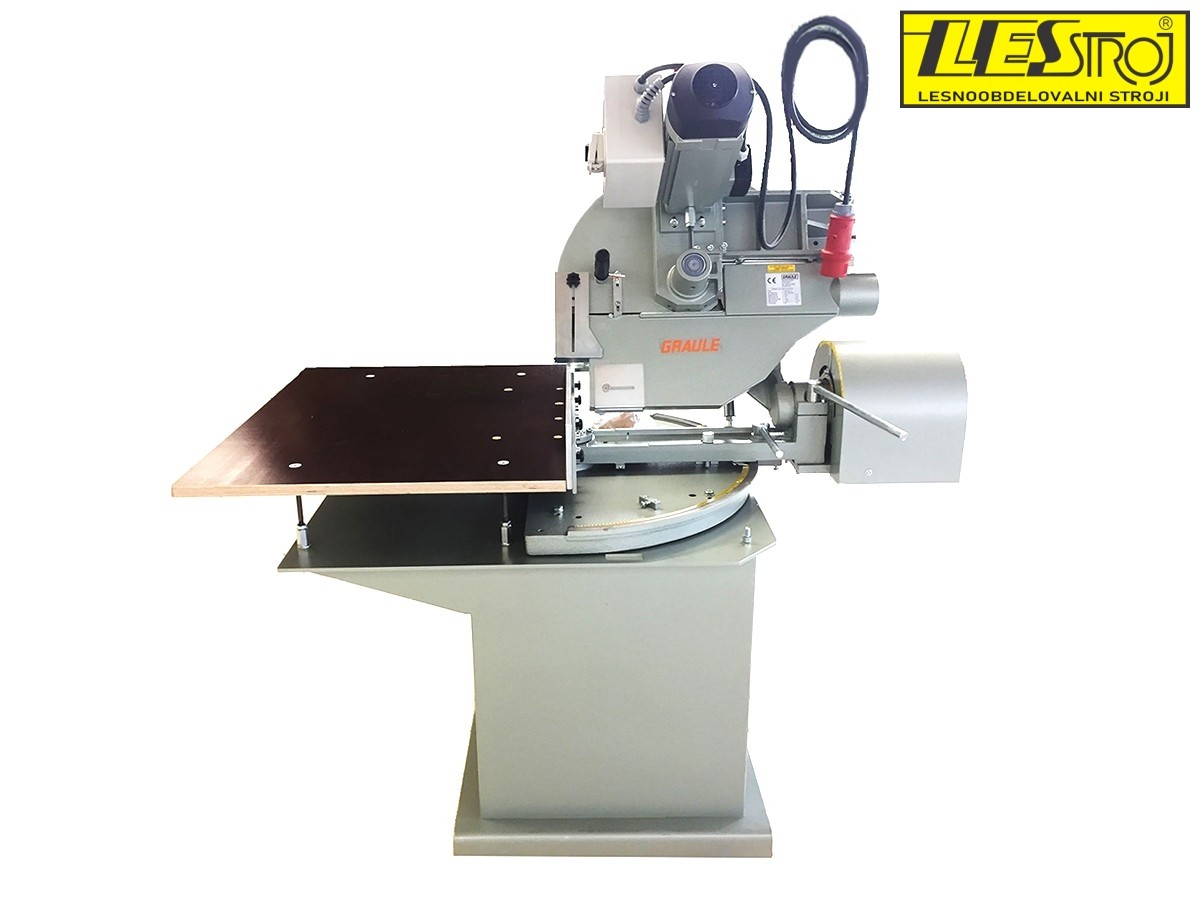

Crosscut saw GRAULE ZS 200 N
Brand:
GRAULE crosscut saw for sawing solid wood and wood-based materials. The maximum cutting width is 420 mm and the maximum cutting height 200 mm.
Graule ZS 200 N is a larger radial arm circular saw from the German crosscut saw manufacturer Graule. Graule machines are known for their high quality and precision.
The saw is made entirely of metal and protected with industrial "effect" paint.
The maximum cutting height is 200 mm; when the saw is tilted to 45°, its maximum cutting height is 140 mm.
The saw can be set to cut at angles from –45° to +25° horizontally and from 60° to 30° (tilt to the left and right) vertically.
Ball bearings running on hardened steel guides ensure easy movement of the saw unit. A roller conveyor 3 m, 4 m or 5 m long can also be purchased for easier work.
The main advantages of the machine are that it is simple and easy to use and very durable.
The Graule ZS 200 N radial arm saw will satisfy any customer who needs a quality, precise and simple crosscut saw.
Data sheet
- Saw blade diameter (mm)
- 520
- Cut-off height (mm)
- 200
- Maximum sawing width
- 420 mm
- Motor power (kW)
- 3
- Saw rotation speed (rpm)
- 2800
- Extraction nozzles (mm)
- 100
- Weight (kg)
- 310
