GRAULE crosscut saw for sawing solid wood and wood-based materials. The maximum cutting width is 420 mm and the maximum cutting height 200 mm.

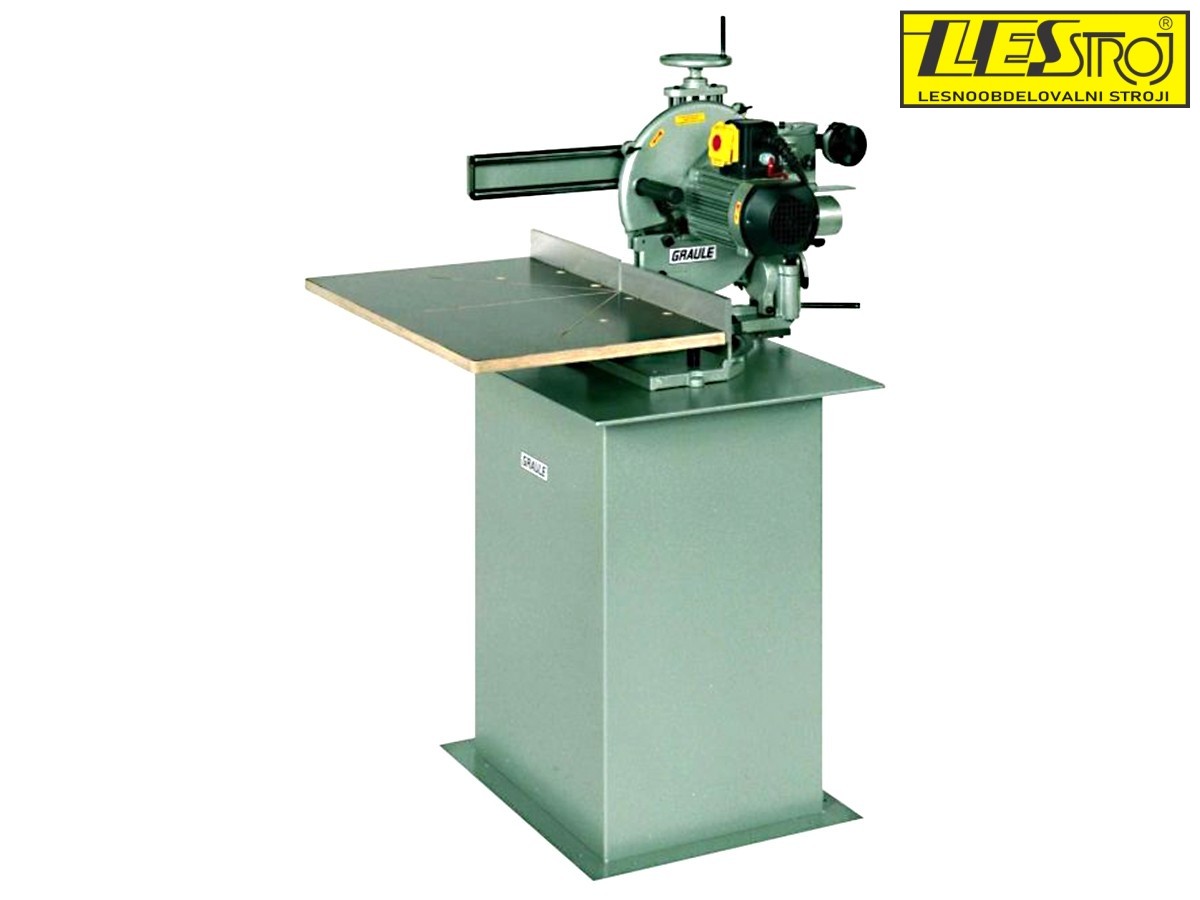

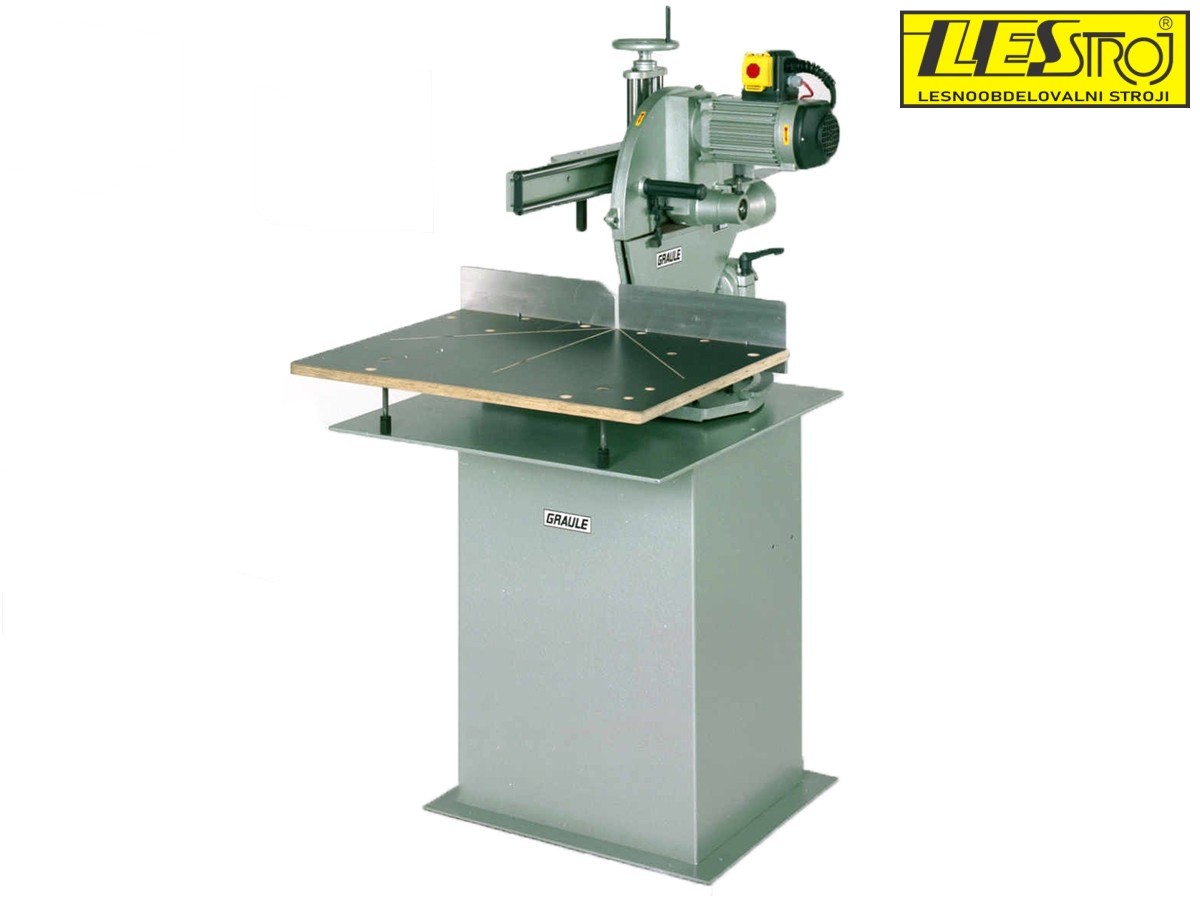

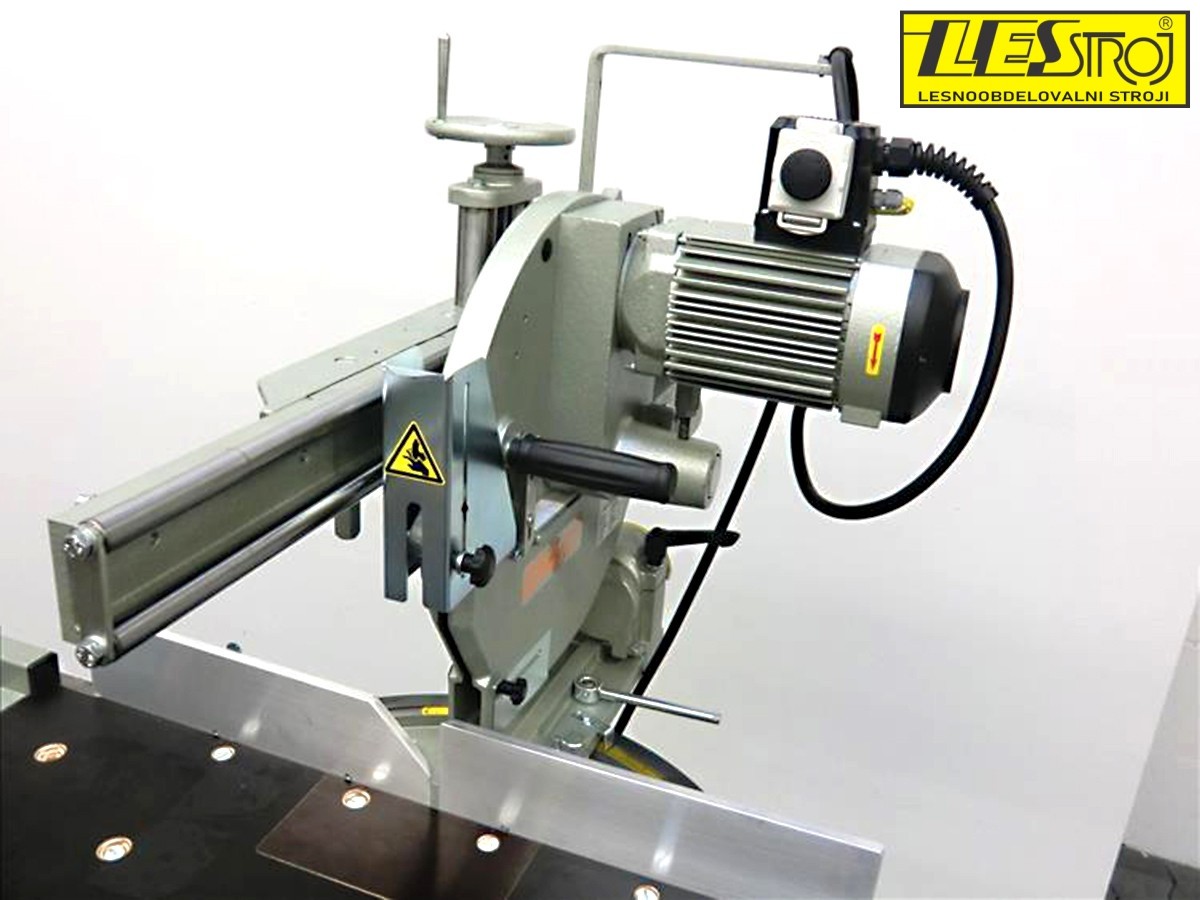

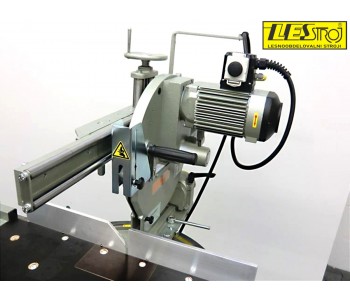

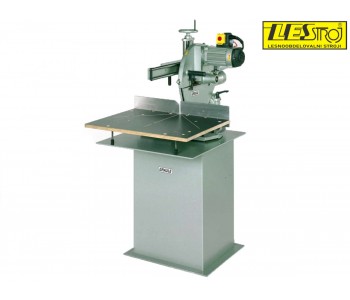

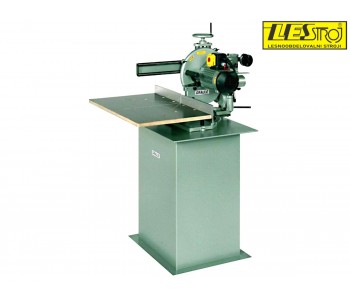

Crosscut saw GRAULE ZS 135 N
Brand:
GRAULE crosscut saw with a maximum cutting width of 430 mm and a maximum cutting height of 135 mm.
Graule ZS 135 N is one of the smaller radial arm saws from the German crosscut saw manufacturer Graule. Graule machines are known for their high quality and precision.
The saw is made entirely of metal and protected with industrial "effect" paint.
The maximum cutting height is 135 mm; when the saw is tilted to 45°, its maximum cutting height is 92 mm.
The saw can be set to cut at angles from –45° to +25° horizontally and from 90° to 45° (tilt to the left) vertically.
Ball bearings running on hardened steel guides ensure easy movement of the saw unit. A roller conveyor 3 m long can also be purchased for easier work.
The main advantages of the machine are that it is simple and easy to use, and thanks to its size very manoeuvrable and extremely durable.
The Graule ZS 135 N radial arm saw will satisfy any customer who needs a quality, precise and simple crosscut saw.
Data sheet
- Saw blade diameter (mm)
- 350
- Cut-off height (mm)
- 135
- Maximum sawing width
- 430 mm
- Motor power (kW)
- 2
- Saw rotation speed (rpm)
- 3800
- Extraction nozzles (mm)
- 100
- Weight (kg)
- 100
