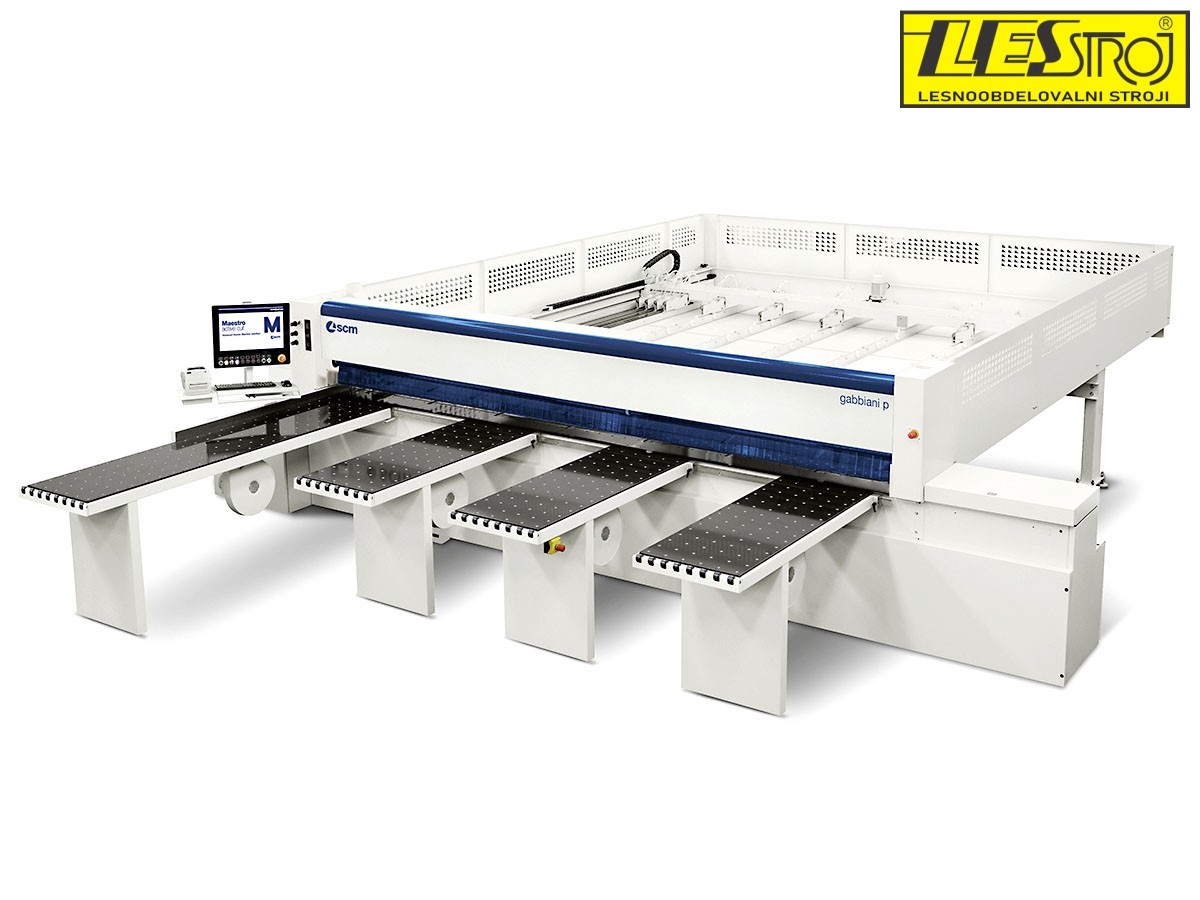

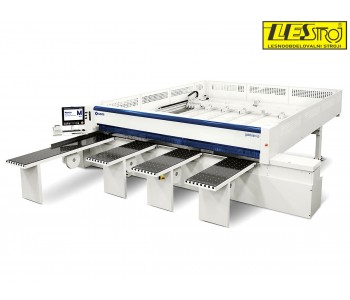

Automatic Beam Saw SCM SIGMA PRIMA 67



Ideal solution for the advanced woodworker and small woodworking companies.
Single-blade beam saw controlled by PC/PLC control system, designed to cut to size solid wood panels, chipboards, MDF panels, multilayer panels, plywood panels and fiber panels.



ADVANTAGES:

- Cost-effective, an automatic machine for everybody.
- Simple and easy of use thanks to a modern/advanced and effective PC/PLC control system.
- Integration in the NetLine process which manages the Design, the Programming and the furniture automatic production in all machining phases: sizing, edge banding, boring-routing.



SOFTWARE:

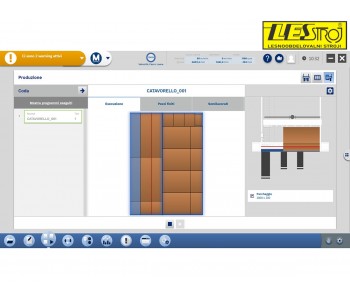

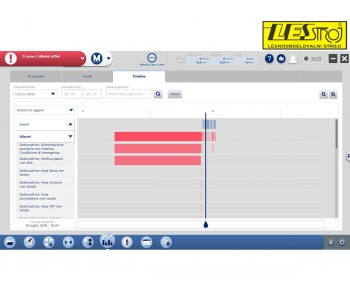

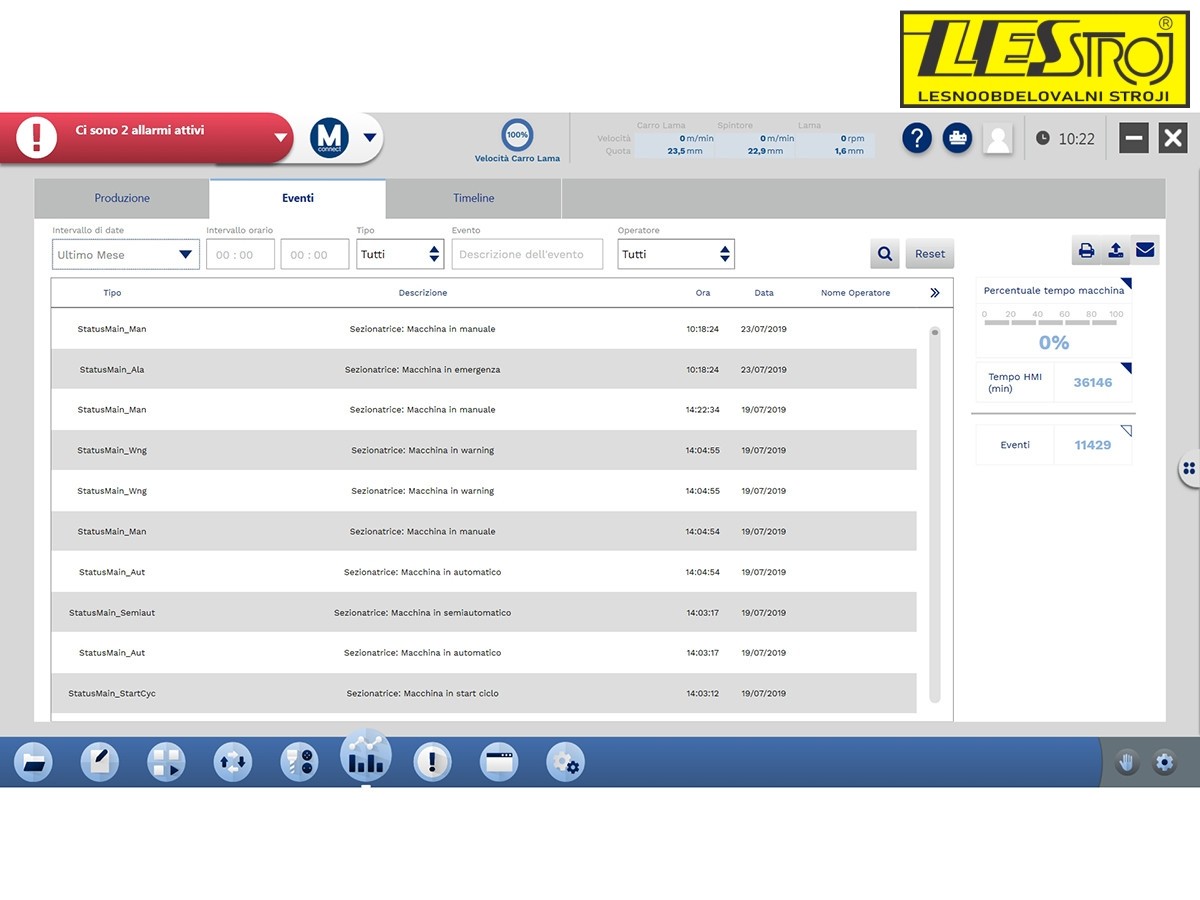

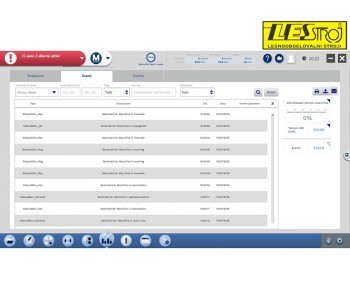

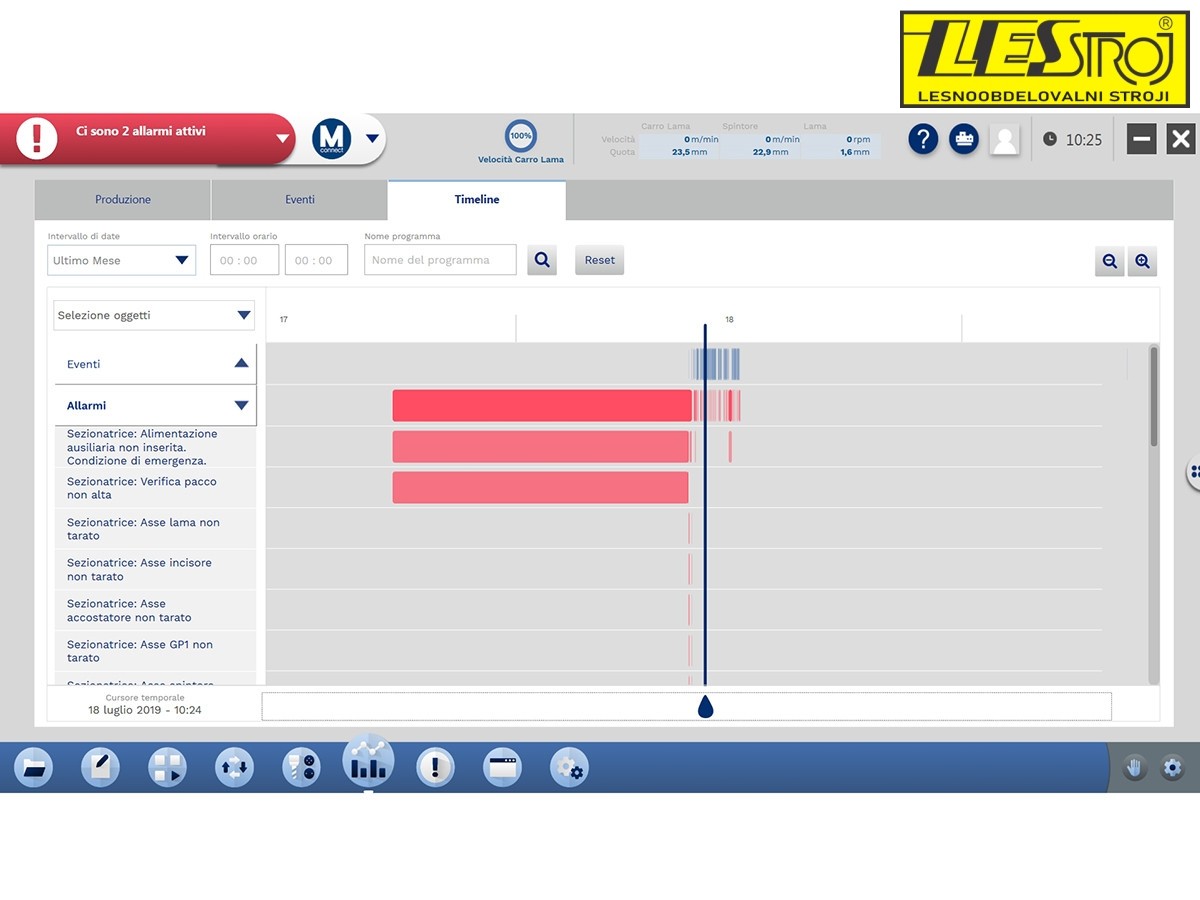

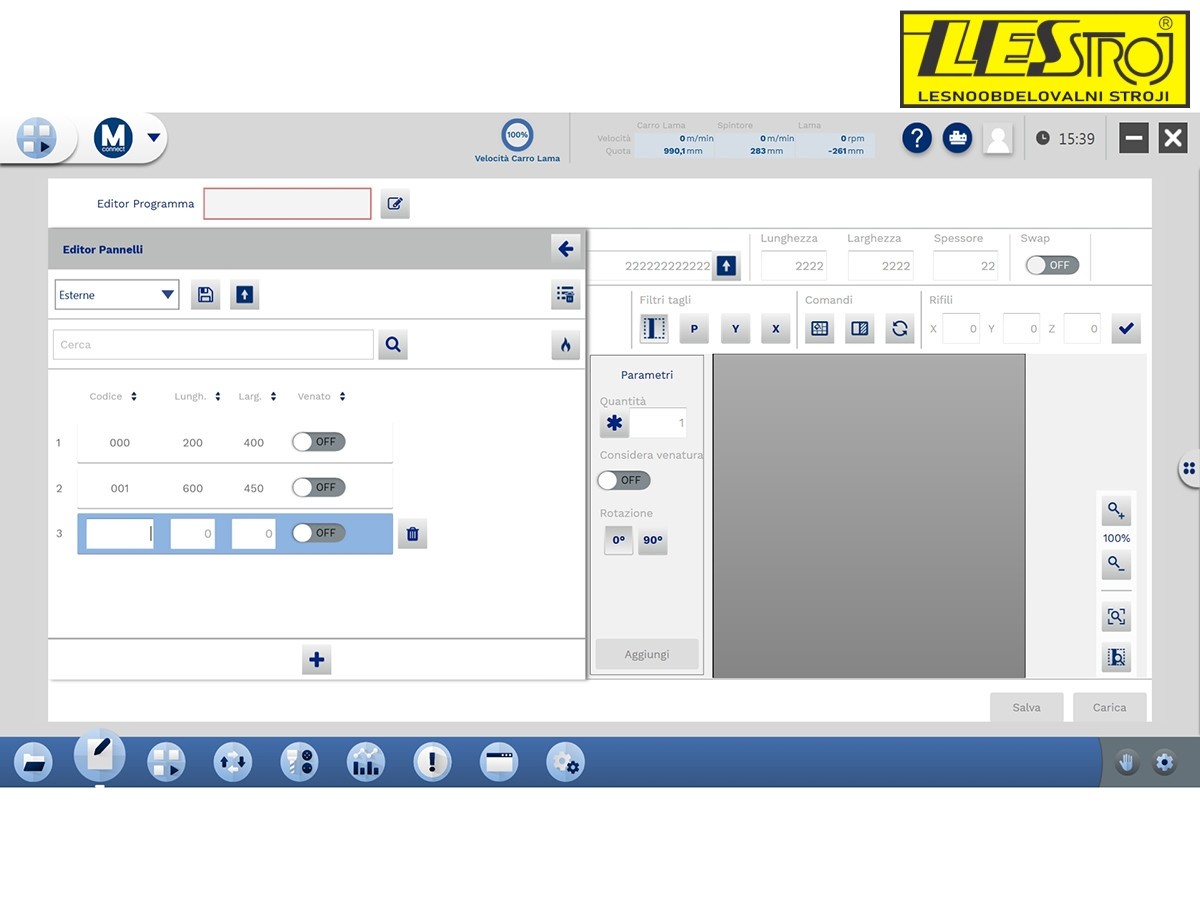

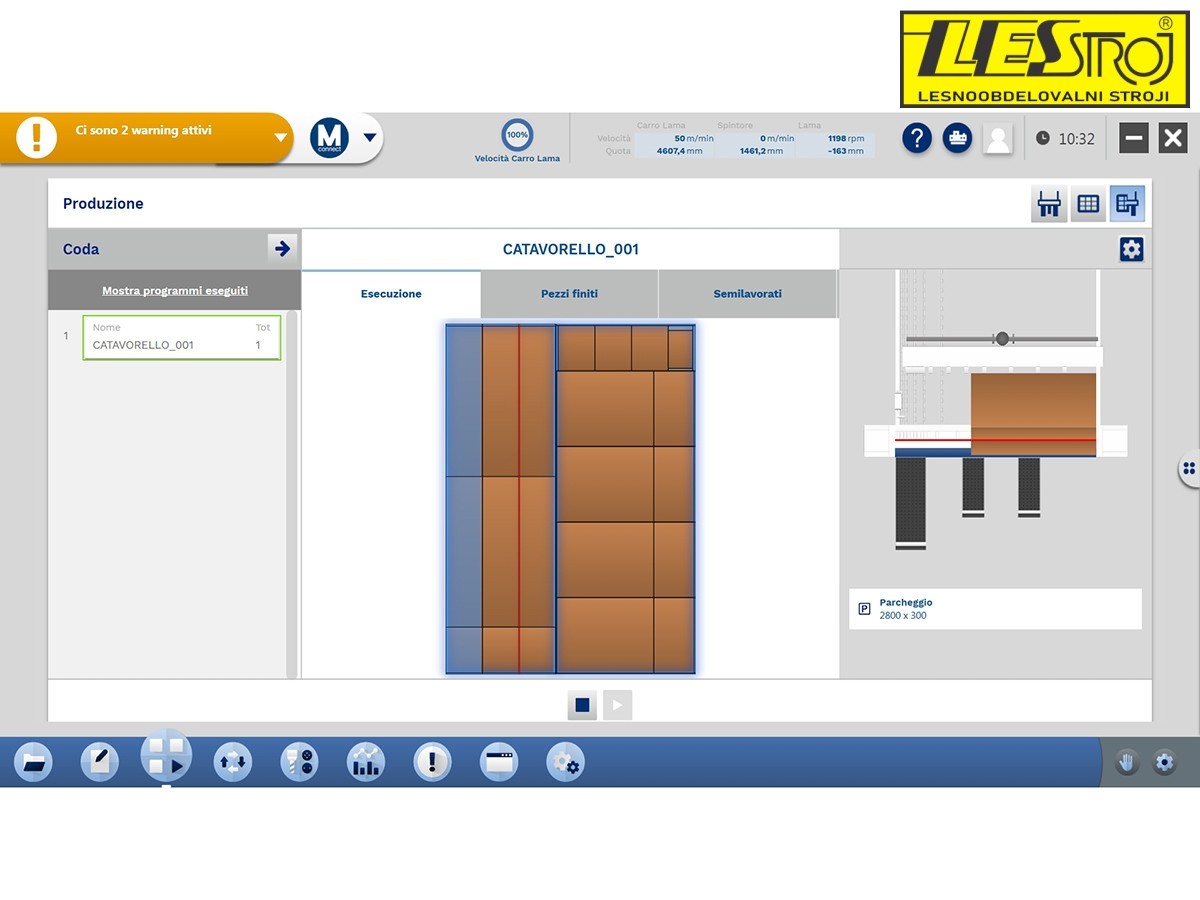

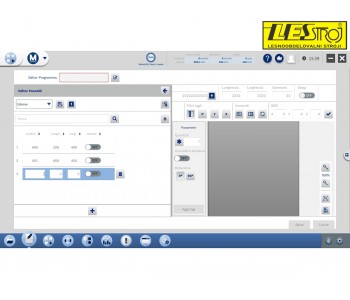

- Wincut (PC/PLC operator's interface),
- Cutty (1st level cutting optimiser program) 3D Simulator, Labels printing,
- Ottimo Perfect Cut (optimiser defined to be used in office).

Product Details

Data sheet

Feed speed
6 - 30 (6-60 / 0-100 opc.)
Main engine power
7

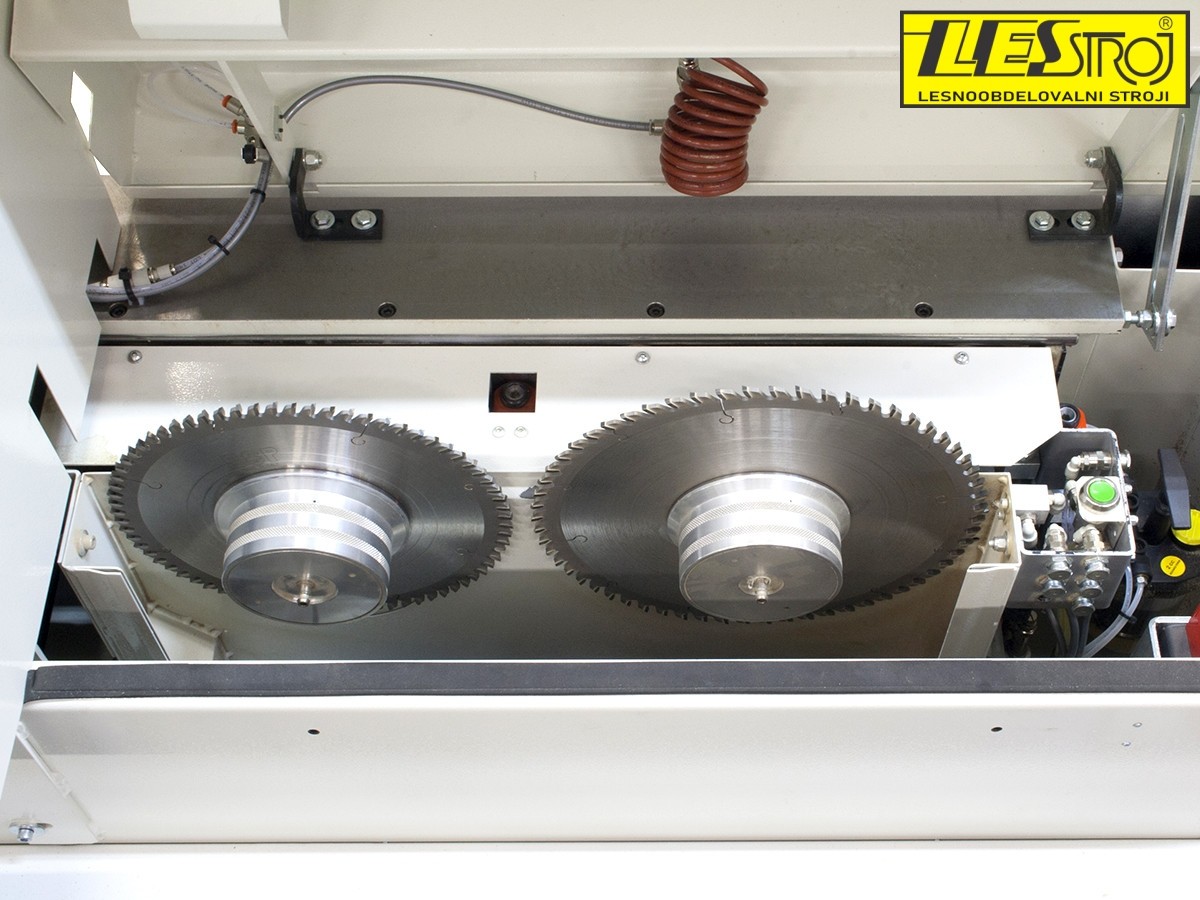

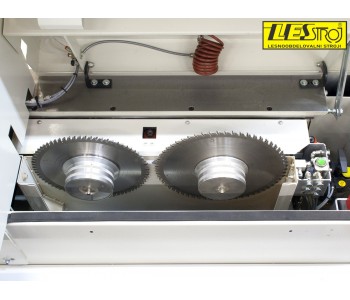

Scoring saw blade (mm)
160
Motor power (kW)
5,5 (7,5 opc.)
Saw blade diameter (mm)
320

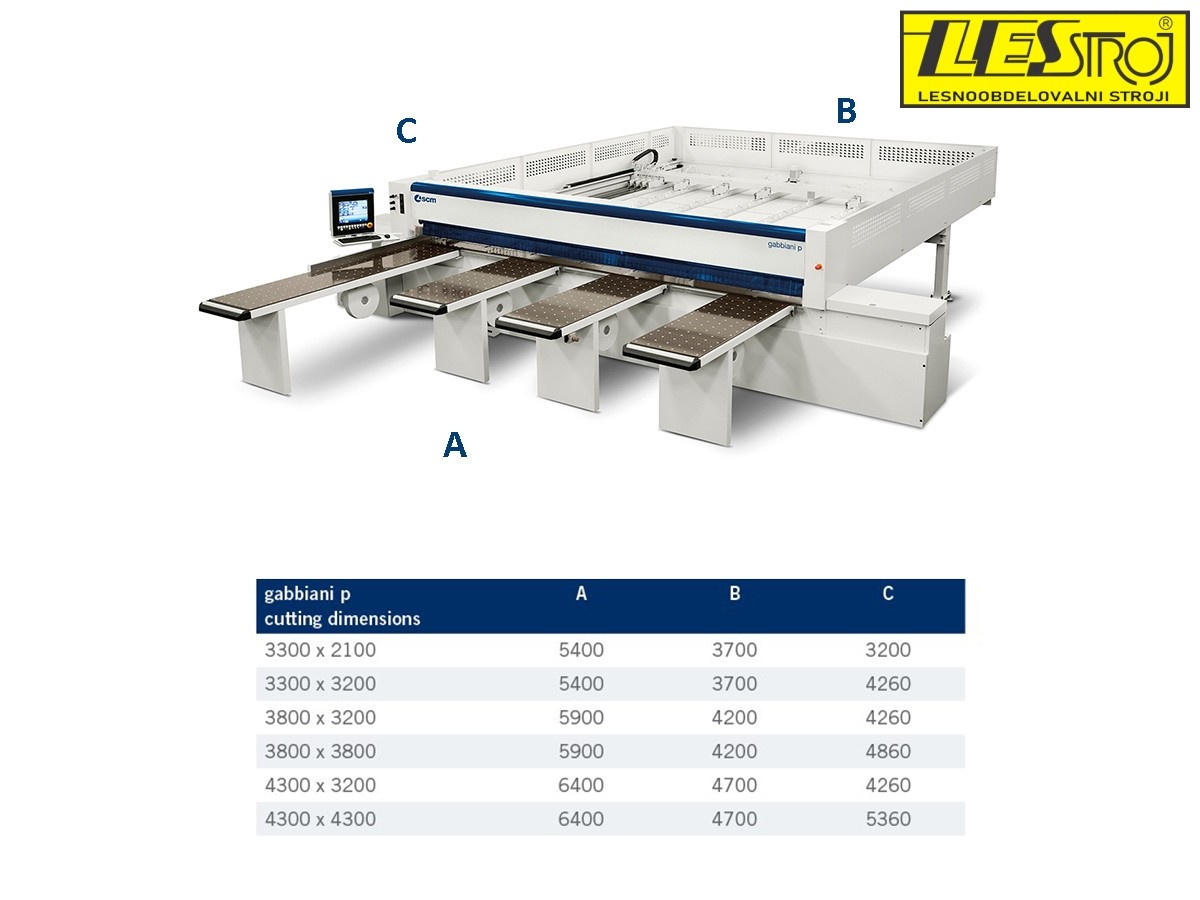

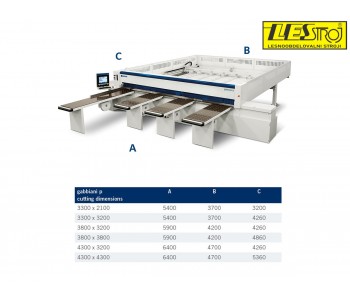

Cut length (mm)
3300 / 3800 / 4300
