Vertical saw GMC KGS 400 E

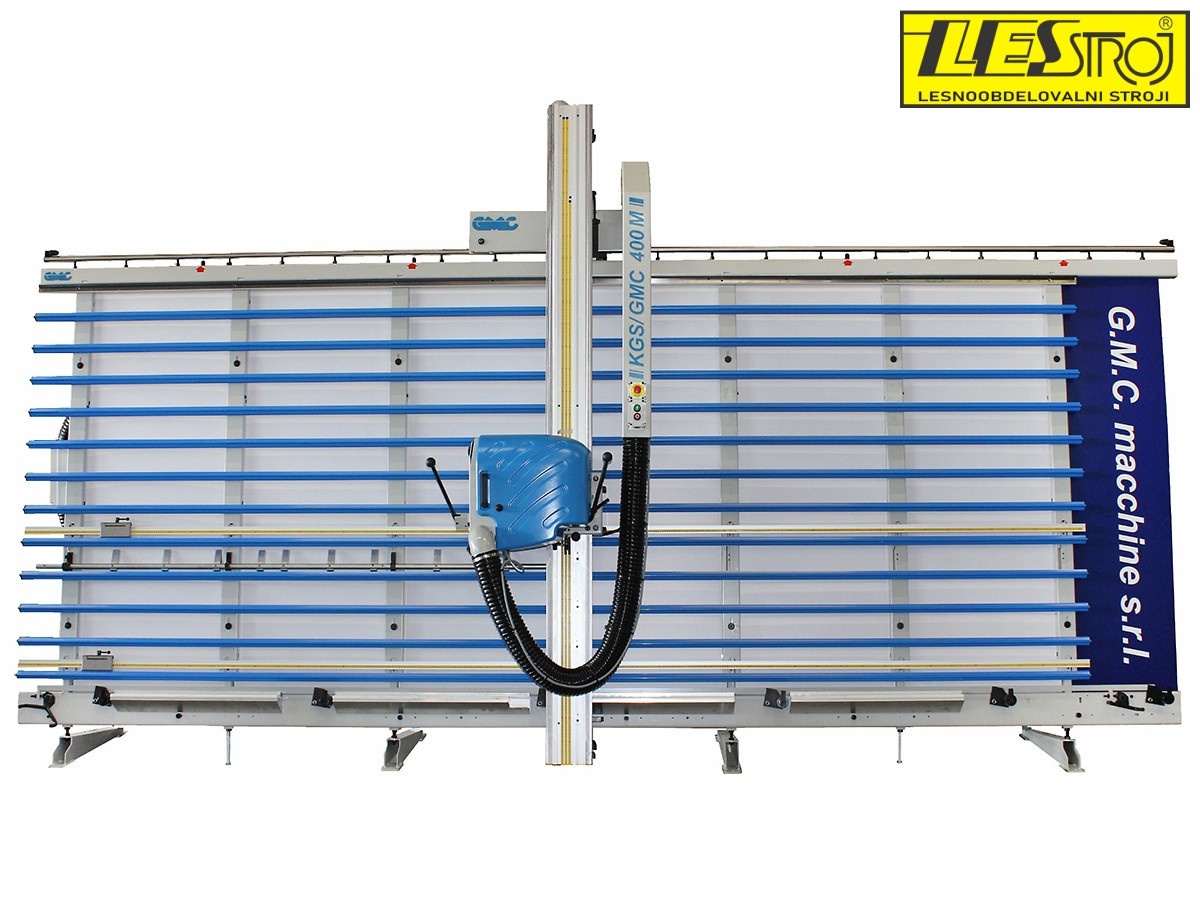

Vertical panel saw G.M.C. KGS 400M

A vertical panel saw is the optimal solution for cutting full-size boards. GMC is a renowned Italian machine manufacturer specialising in vertical saw technology, ranging from classic mechanical to fully automatic industrial machines.

Reliable quality, a wide range of accessories and a good price/quality ratio.

Example offer/configuration of the KGS400 vertical saw:

- cutting dimension: 4200 x 2200 mm

- cutting depth: 60 mm

- scoring unit, mobile bridge with guides for saw travel

- aluminium and plastic board support profiles

- 10 m of 70 mm extraction hose

- 1 TCT saw blade z=40

- 2 stop positions for vertical cutting

- guide for repeating the same dimension in horizontal cutting

- 4 positions for repeated horizontal cuts

- 2 metric scales for vertical cutting

AVAILABLE MACHINE SIZES:

- 3200 x 2200 x 60 mm

- 4200 x 2200 x 60 mm

- 5200 x 2200 x 60 mm

ACCESSORIES AND OPTIONS AVAILABLE ON ORDER:

- Scoring unit

- Scoring unit (adjustable)

- Motor power: 4.5 kW

- Wheels for easier board movement at the bottom of the machine

- DPS extraction system

- Device for cutting small pieces

- Device for angle cutting

- Electronic readout (vertical)

- Electronic readout (horizontal)
