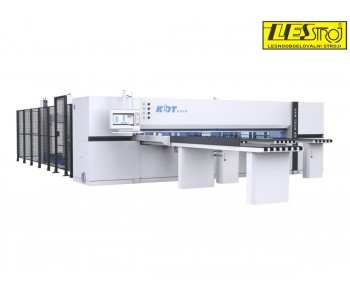

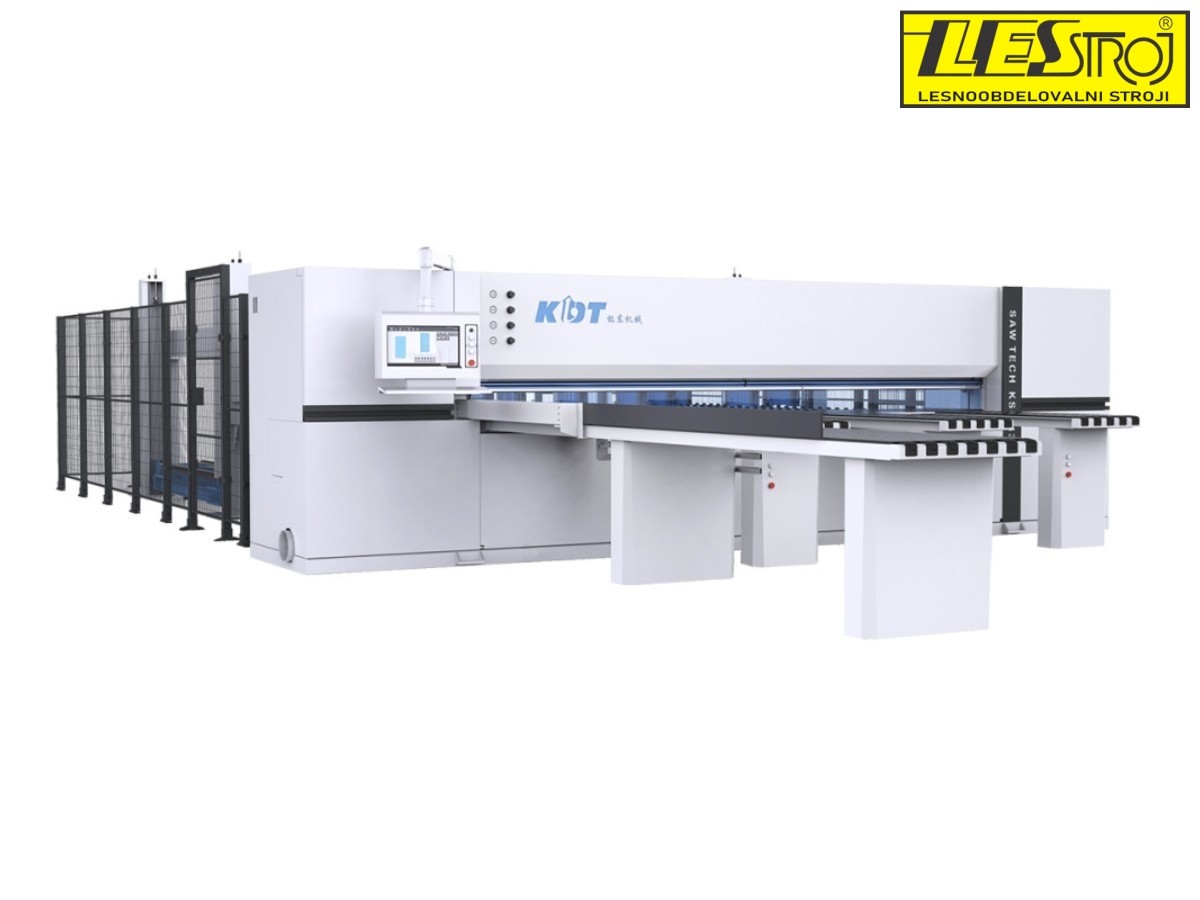

Automatic panel saw KDT KS-843HLM

Industrial power, smart technology

Step into the future of cutting with the automatic panel saws of the KDT Series 8. These are not compromises, but industrial machines designed for maximum productivity, flawless precision, and exceptional reliability. KDT offers an unmatched price/performance ratio, delivering extremely high performance and all the features of significantly more expensive industrial panel saws on the market.

The foundation is industrial robustness

Every KDT saw is built on a no-compromise base that ensures long-term precision:

• Massive frame: heavy, rib-reinforced and welded steel structure weighing between 4,800 and 6,000 kg.
• Premium machining: the entire frame is thermally treated after welding to relieve internal stresses and then precisely machined on 5-axis CNC machining centers. This process ensures perfect geometry and stability without vibration, which is the foundation for every precise cut.

Application purpose

The CNC panel saw KDT KS-843HLM with rear loading table and dual pusher system (panel size for cutting with front loading is 4300 × 4300 mm, and with rear loading 2100 × 4000 mm) is designed for cutting various sheet materials (particle board, MDF, wood fiber boards, etc.), both finished and unfinished.

It is used in facilities for serial and mass production of carcass furniture, furniture panels, and other sheet-based products. The rear loading platform simplifies material logistics and reduces operator workload.

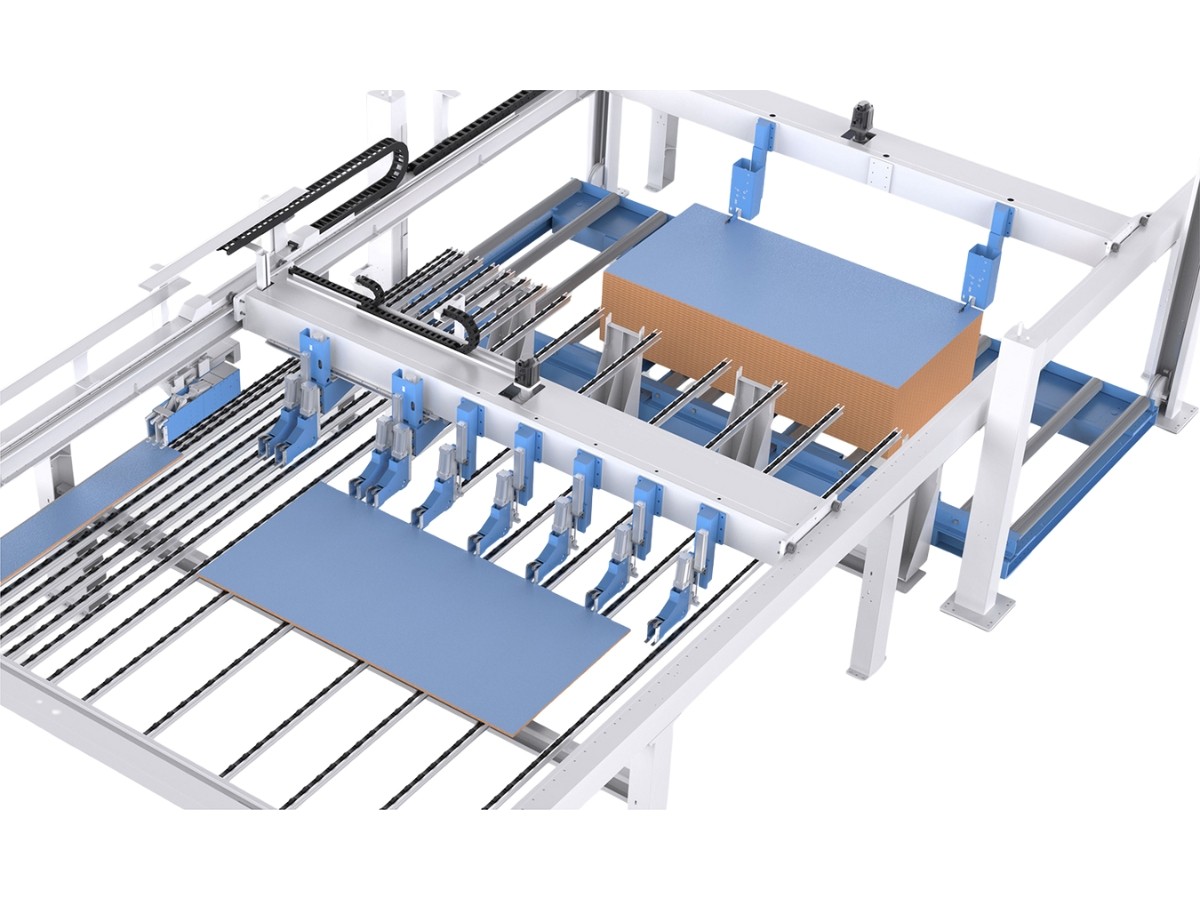

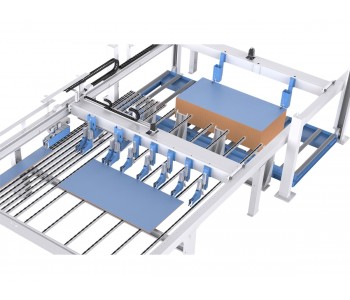

Process diagram

Main machine features

• Operation with cutting optimization software (file import, label printing).

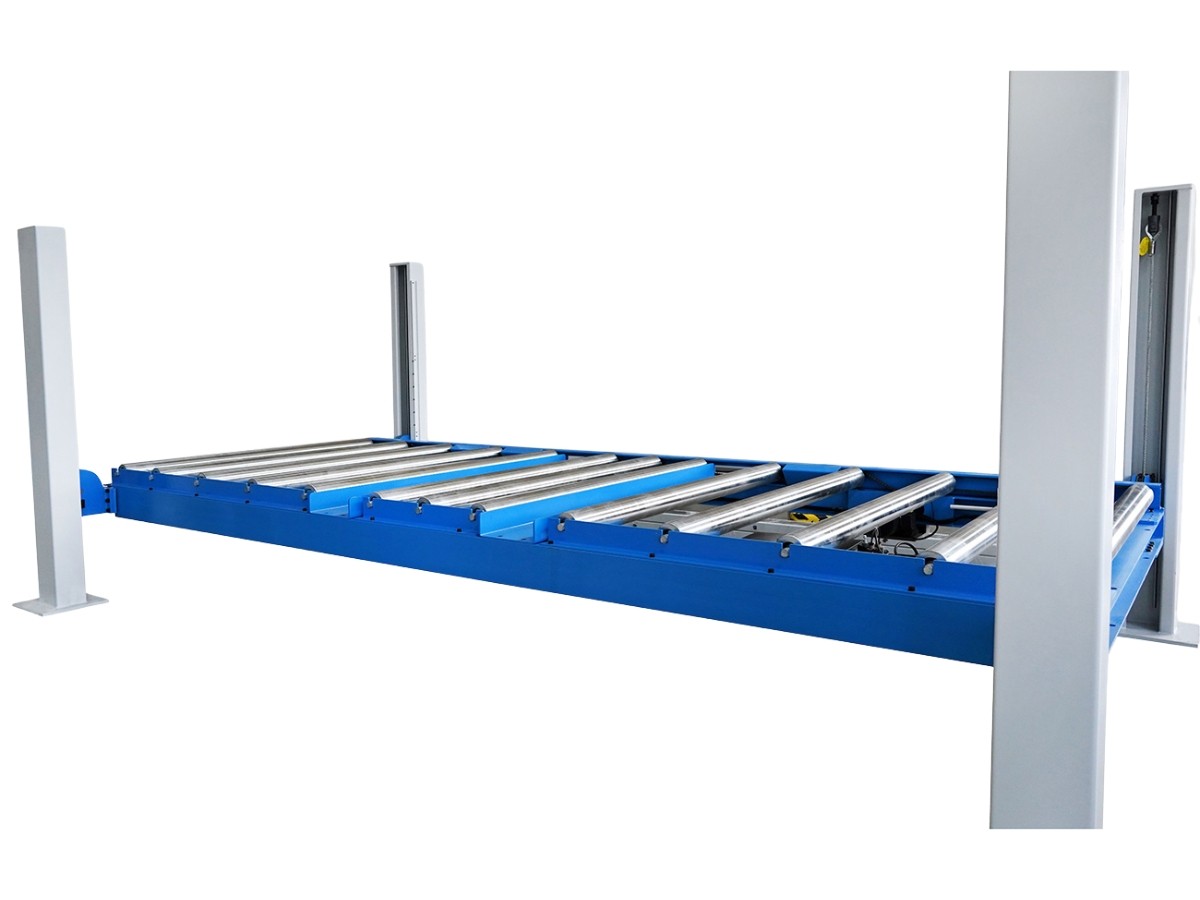

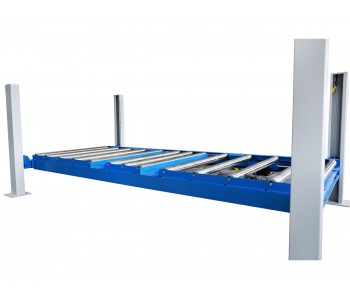

• Automatic rear material loading for panels up to 2100 × 4000 mm.
• Two independent pushers for higher productivity with different formats.
• Two left clamps for stable material positioning.
• Magnetic positioning system (minimum thickness 8 mm).
• Maximum stack height: 120 mm.
• Saw carriage driven by a servo motor for high precision.
• Minimum workpiece size: 34 × 45 mm.
• Working speed up to 120 m/min, idle speed up to 150 m/min.
• Pusher speed up to 95 m/min.

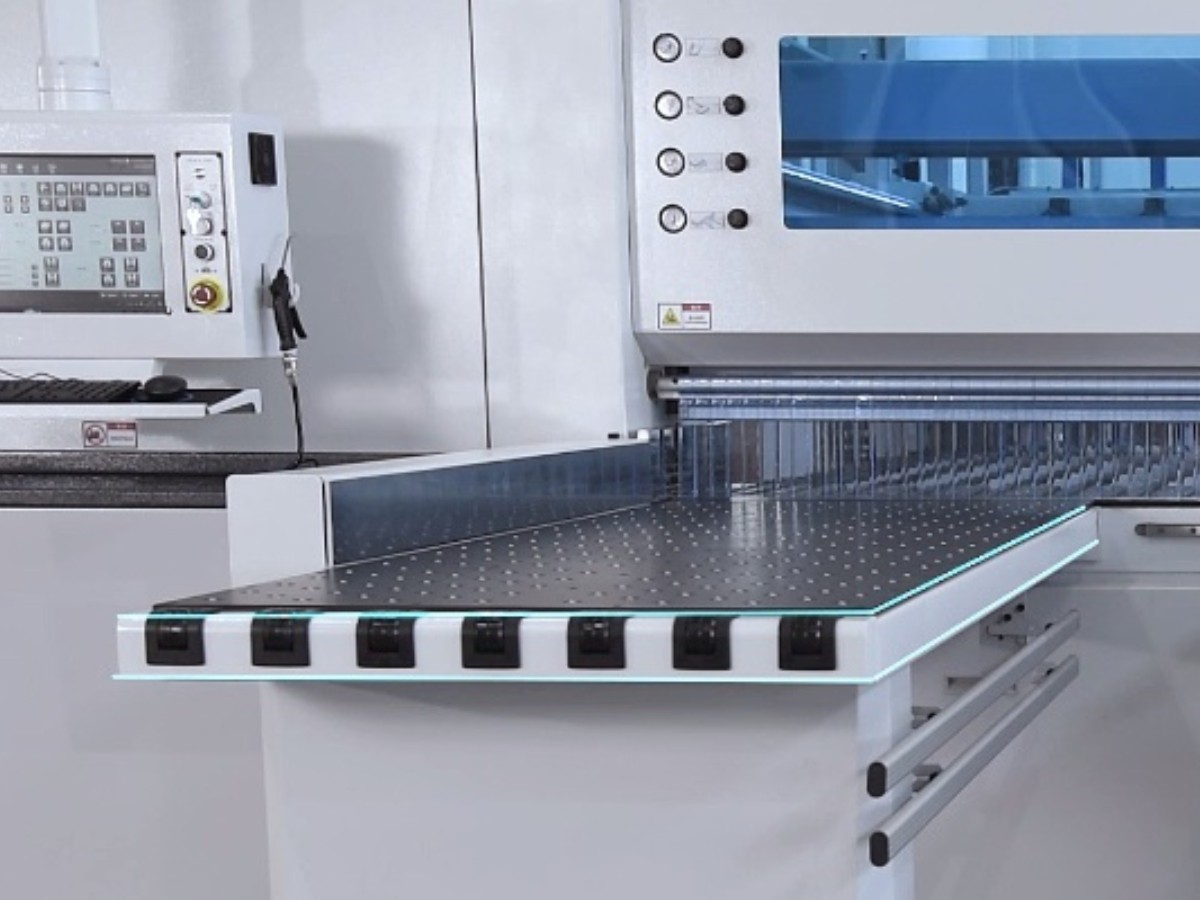

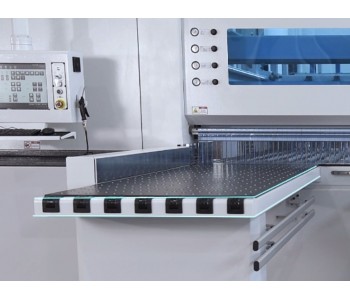

• Air-cushioned worktable for easier panel handling.
• Industrial computer for stable CNC control.
• Automatic blade height adjustment and cut length detection.
• Quick tool change system.
• Pneumatic double-grip clamps for secure and stable panel holding.
