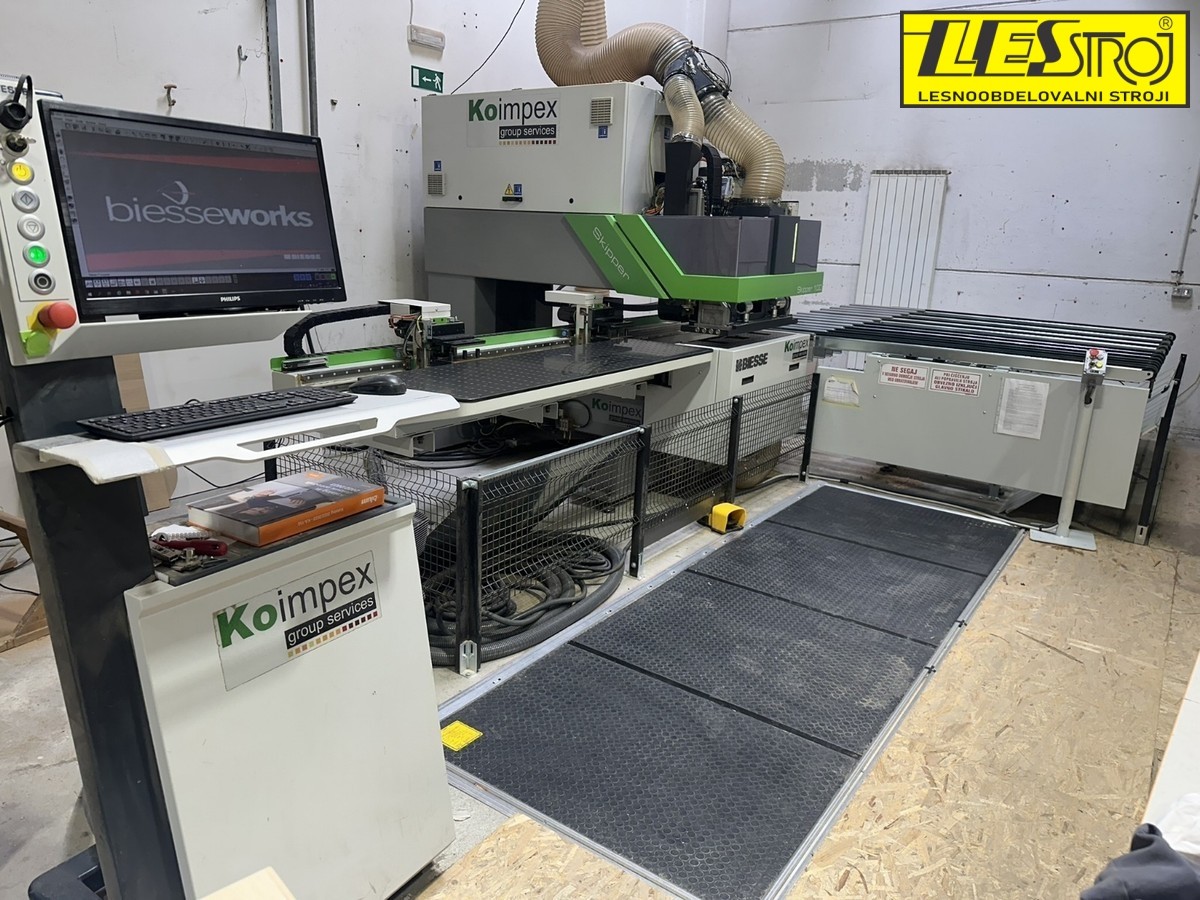

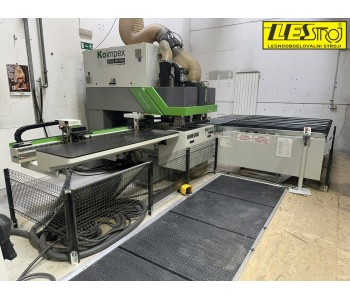

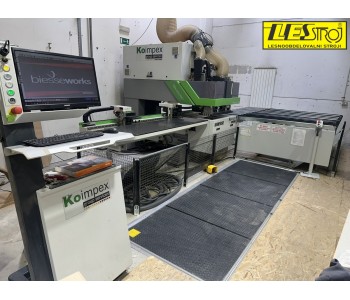

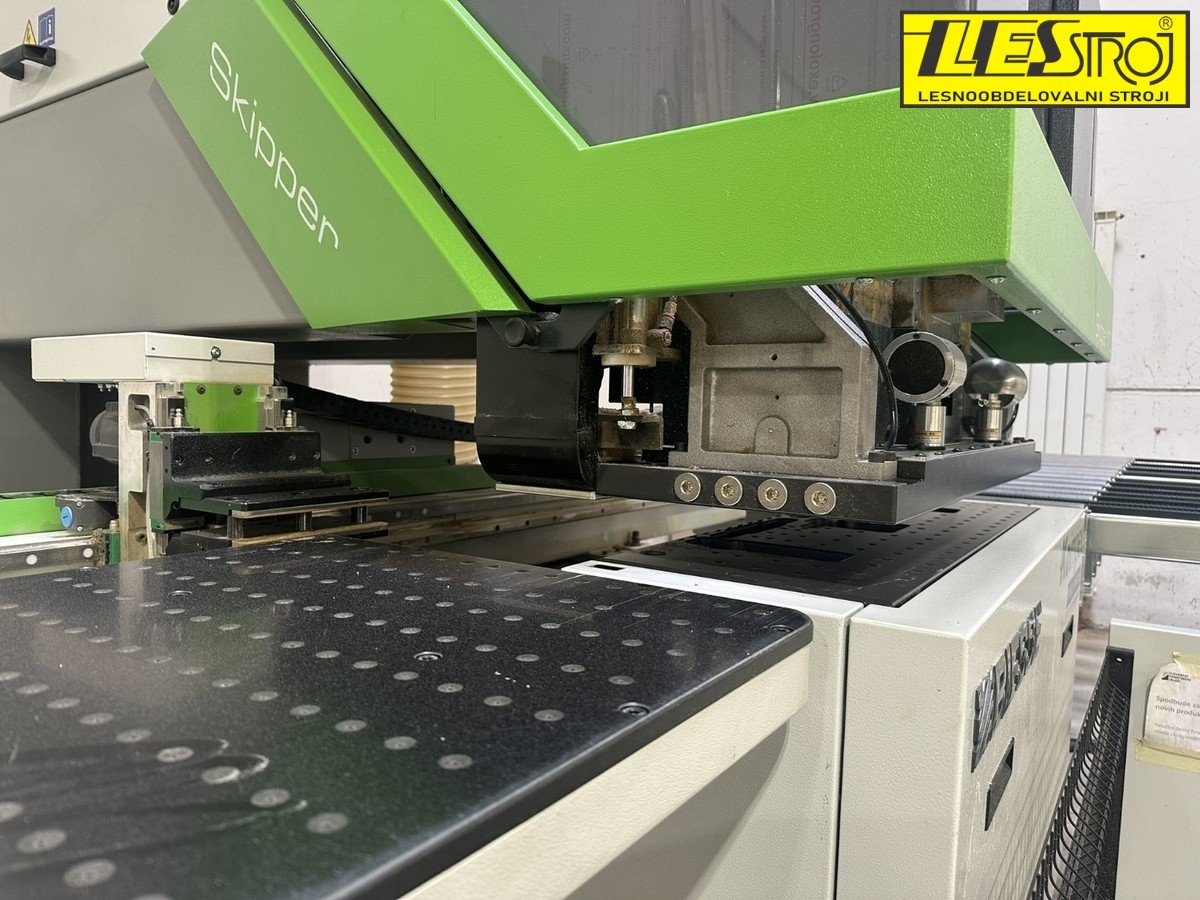

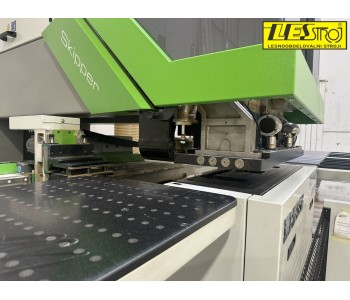

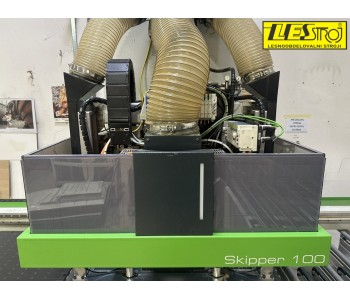

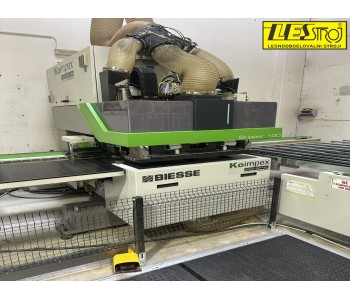

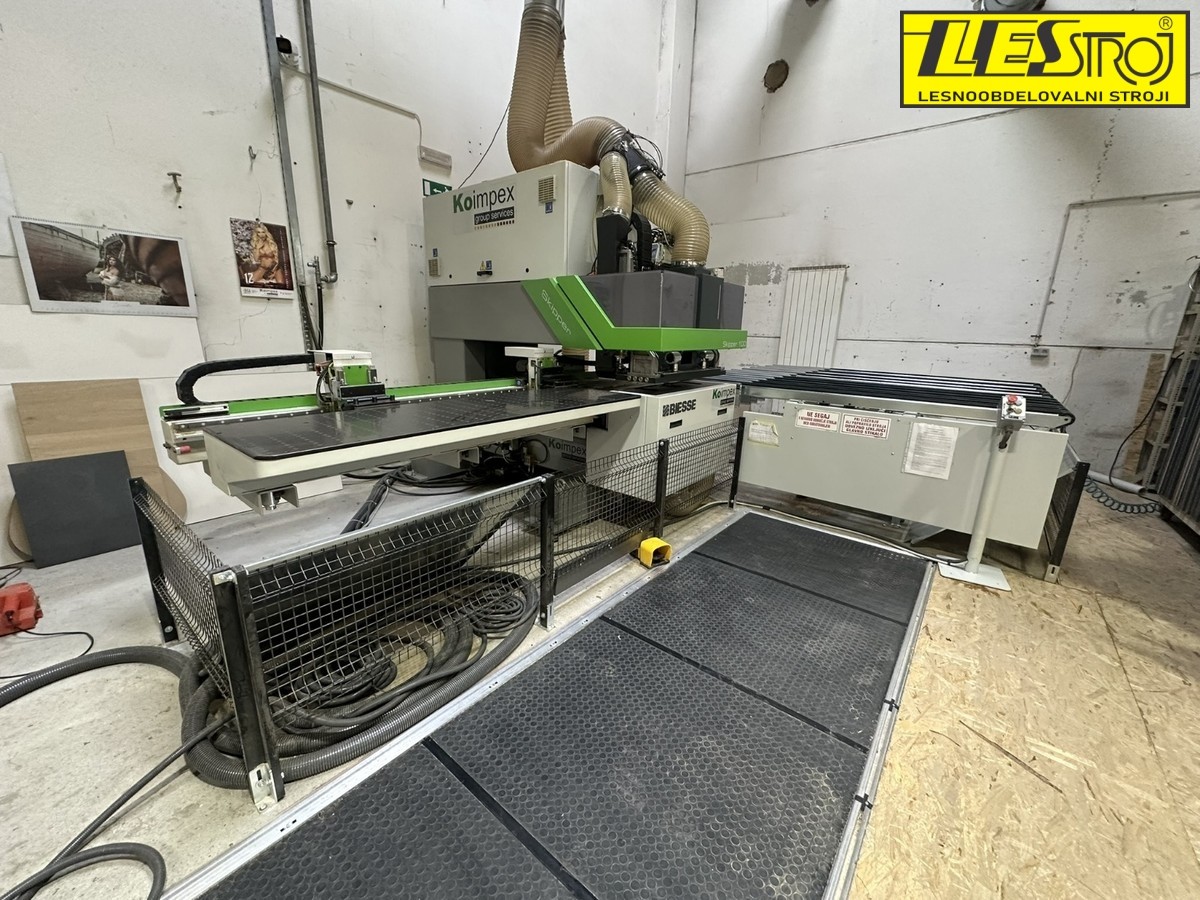

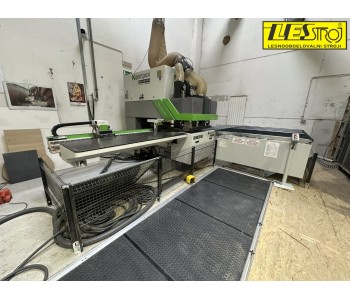

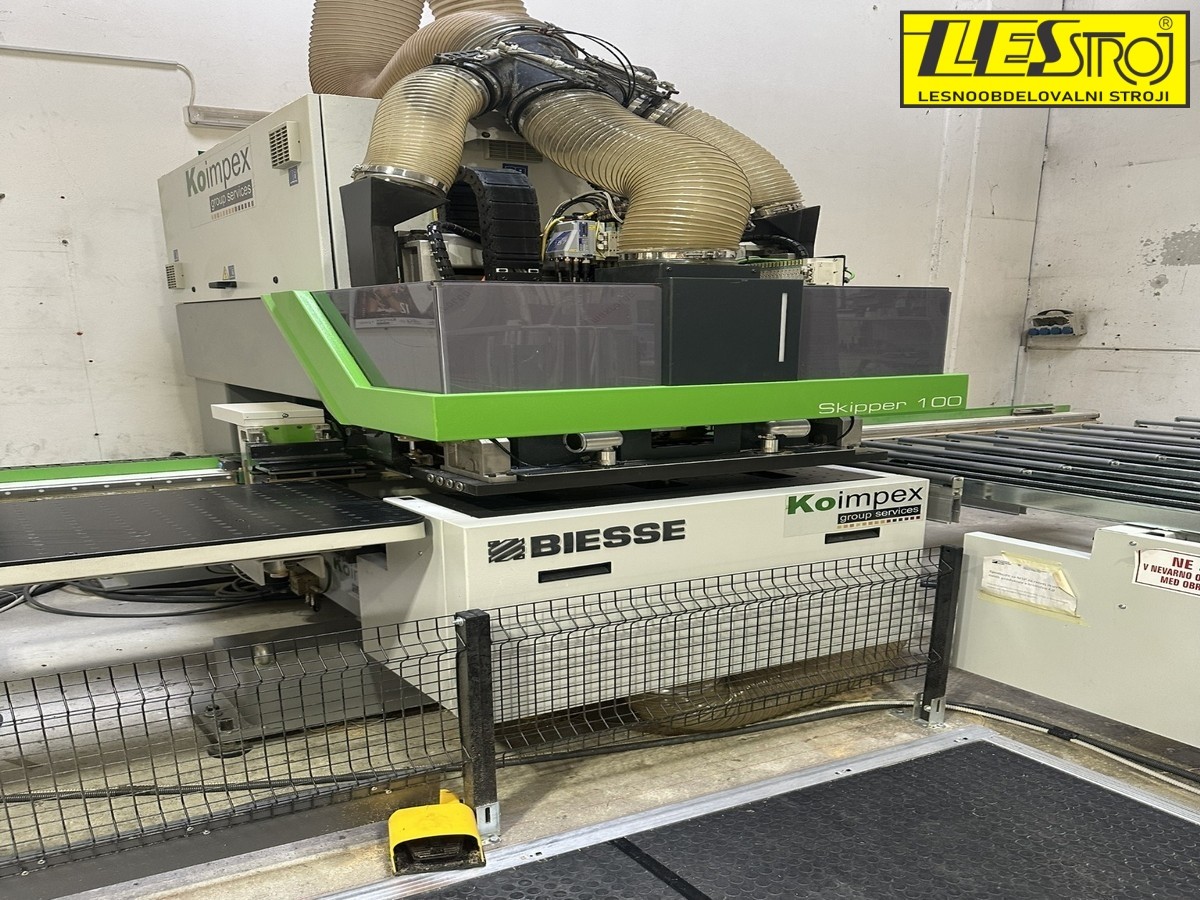

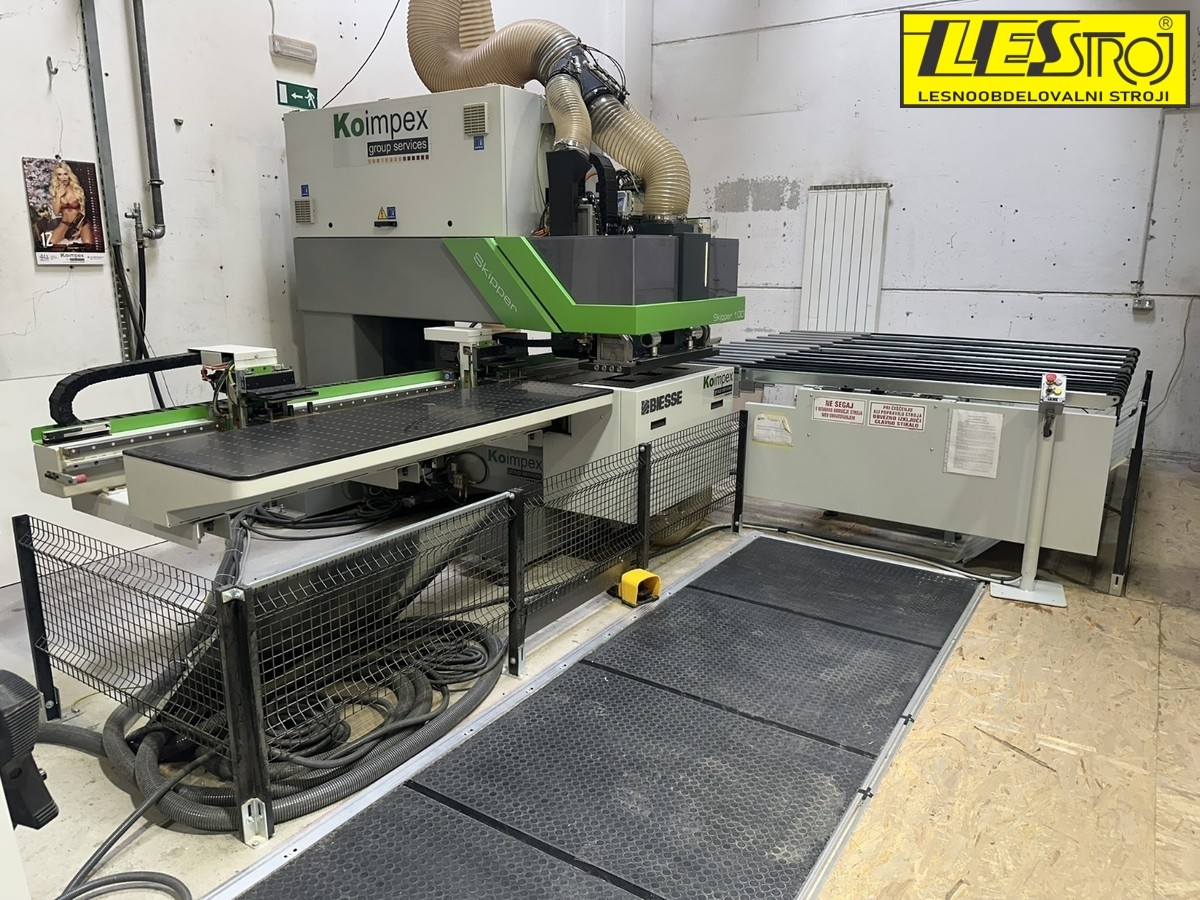

Drilling machine Biesse Skipper 100 (2021)
Biesse Skipper 100 drilling machine (2021) – a high-performance machine for drilling, milling, and grooving panel materials.
It allows processing of panels with lengths from 90 to 3000 mm and thicknesses up to 60 mm. The machine is equipped with 78 drills (39 top + 39 bottom), an upper and lower 3.5 kW milling unit, and saw blades Ø150 and Ø160 mm.
It is distinguished by high productivity, precision, and a robust construction.
The Biesse Skipper 100 drilling machine (2021) is a precise and powerful machine for vertical and horizontal drilling and milling. Designed for serial and flexible production.
Technical specifications:
- Panel processing length: 90–3000 mm
- Panel thickness: 8–60 mm
- Vertical spindles (top + bottom): 29 + 29
- Horizontal spindles in X (top + bottom): 8 + 8
- Horizontal spindles in Y (top + bottom): 2 + 2
- Drilling unit: 3.5 kW (1 top + 1 bottom)
- Speed: 7000–18000 rpm
Workpiece dimensions:
- Length: 90–3000 mm
- Width: 70–1000 mm
- Thickness: 8–60 mm
Tool working area:
Along the length (X):
- Vertical holes: 0–3000 mm
- Horizontal holes in X: 0–3000 mm
- Horizontal holes in Y: 0–3000 mm
- Continuous milling (electrospindles): 0–2500 mm
- Partial milling (electrospindles): 0–3000 mm
- Grooves with saw blade in X direction: up to 3000 mm
Along the width (Y):
- Vertical holes in Y: 0–1000 mm
- Vertical holes “System 32”: 32–1000 mm
- Horizontal holes in X: 0–1000 mm
- Horizontal holes in Y: 90–1000 mm
- Milling: 0–950 mm
- Grooves with saw blade in X direction: 112–1000 mm
Machine description:
- Massive, monolithic construction made of electro-welded steel sheets, internally reinforced.
- 78 independent spindles (39 top + 39 bottom) – System 32 supported.
- Air-cushion surfaces for easy workpiece movement without damage.
- Upper pressure table ensures perfect grip even with slightly curved panels.

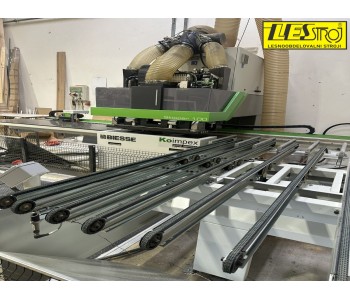

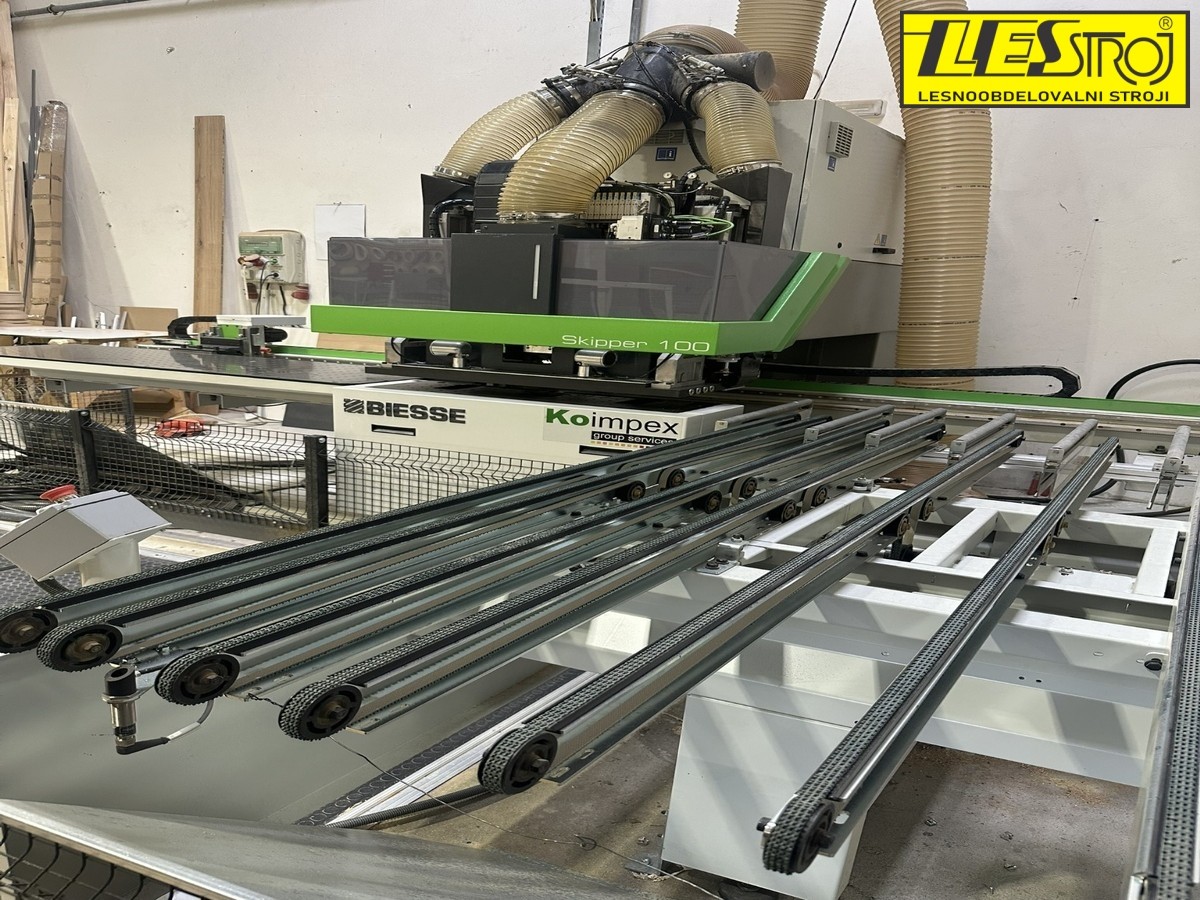

- X-Y panel movement with double grippers and linear guides.
- Centralized automatic lubrication system for guides and spindles.

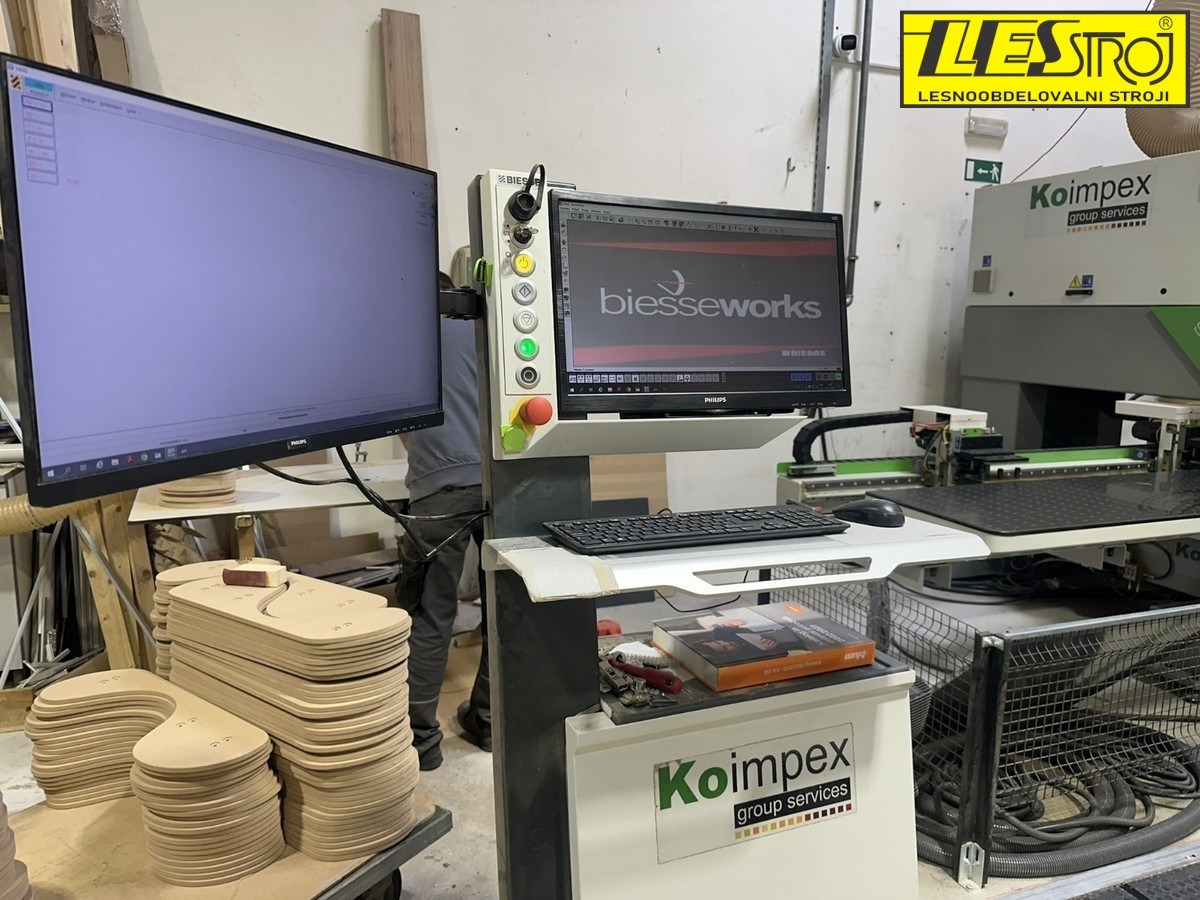

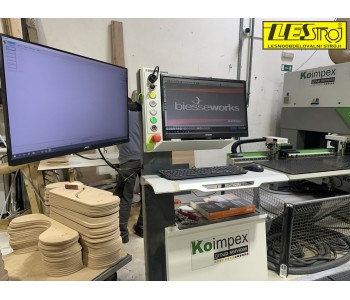

- Operated via PC system, 15" LCD screen, graphic display of 6 workpiece sides.
Power supply:
- 380–415 V (±10%), 50/60 Hz
Safety:
- Protective mesh and doors with safety switch
- Front sensitive safety mats

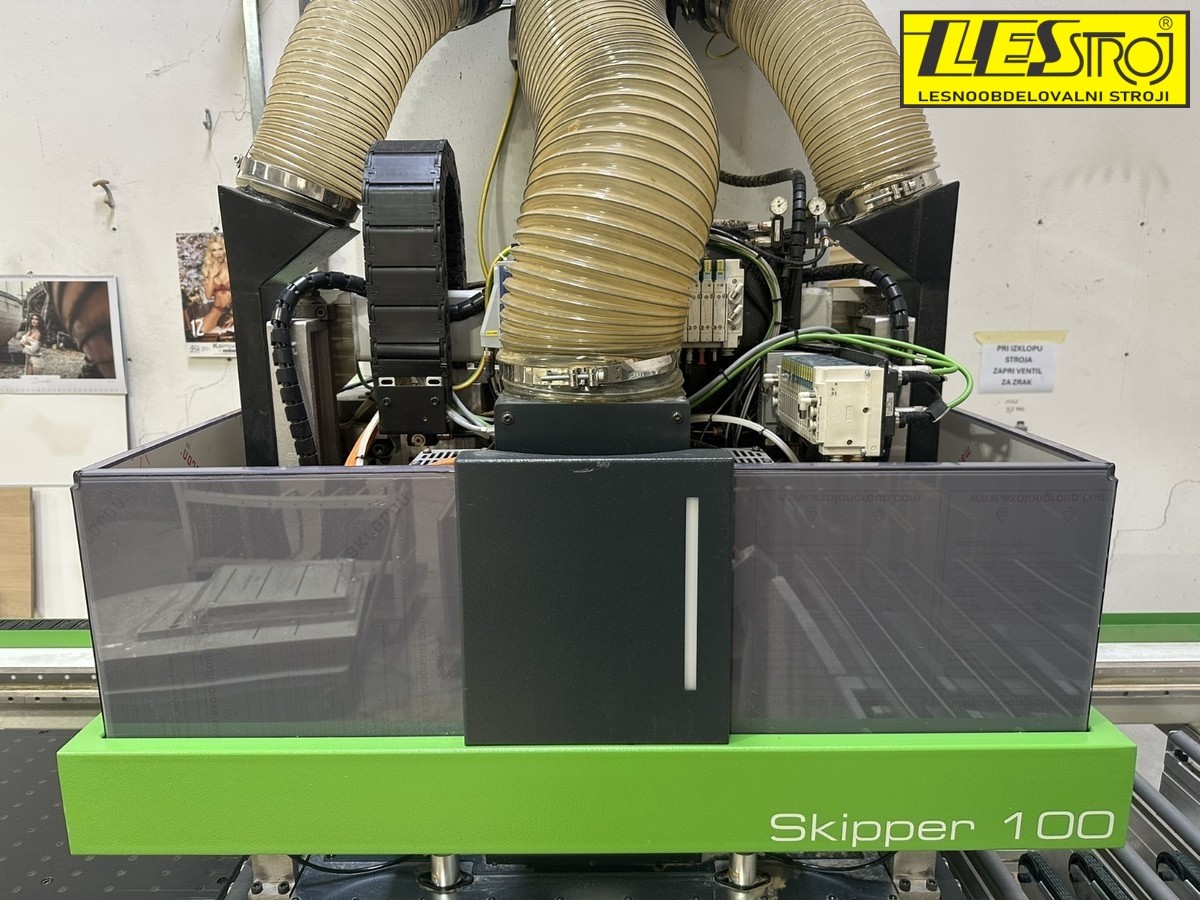

- Soundproof cover with protective curtains and built-in dust extraction
- Complies with European Directive 98/37/CE
