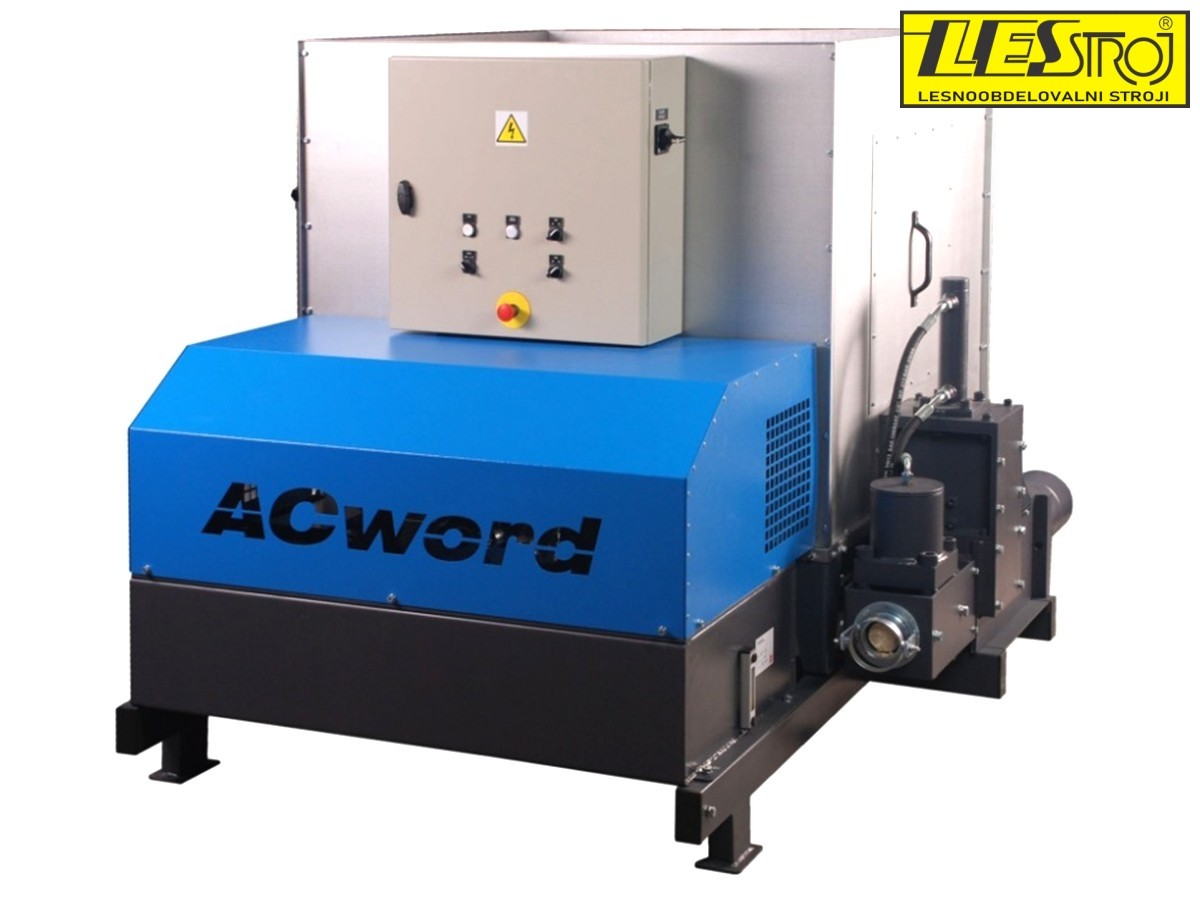

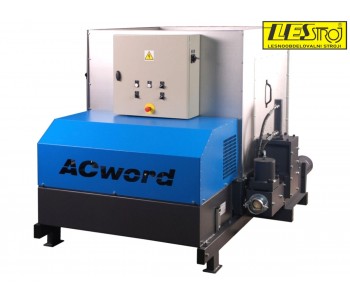

Briquetting machine ACWORD AECO
Brand:
AECO briquetting presses with motors from 4.4 kW to 9.3 kW. Four models are available with output of 30, 50, 70 and 100 kg/h.
AECO briquetting presses are modern and fully automatic. The computer in the control unit together with the mechanism ensures consistent briquette quality and automatic operation. All presses are equipped with a sensor monitoring the amount of material being pressed.
TECHNICAL DATA:
- Pressing capacity: 20 – 120 kg/h
- Briquette diameter: 65 mm
- Motor power 4.4 – 9.5 kW
- Hopper volume: 1.7 m3
- External dimensions: 1556 x 1542 x 1967 mm
- Machine weight: 800 – 1200 kg
- Even material dosing via screw
- Adjustable briquette length
The hopper is designed for easy connection to a dust extraction system, allowing immediate processing of production waste.
The press is suitable for compressing shredded biomass, paper, wood, impregnated material (MDF, etc.), sawdust, dust …
ADVANTAGES OF THE AECO BRIQUETTING PRESS:
- high briquette quality,
- reliability in long-term operation,
- easy to use,
- low operating costs,
- left or right mounting of the pressing mechanism,
- can be installed outdoors (operates at temperatures down to -25 °C),
- hopper level sensor (the press switches off automatically when the amount of waste drops).
| Model | Pressing capacity [kg/h] | Briquette diameter [mm] | Motor power [kW] | Weight [kg] | Hopper volume [m³] | Oil cooler | Height [mm] | Width [mm] | Length [mm] |
|---|---|---|---|---|---|---|---|---|---|
| AECO 30 | 20-40* | 65 | 4,4 | 880 | 1,7 | Optional | 1556 | 1542 | 1967 |
| AECO 50 | 40-60* | 65 | 5,4 | 890 | 1,7 | Optional | 1556 | 1542 | 1967 |
| AECO 70 | 50-80* | 65 | 6,9 | 945 | 1,7 | Optional | 1556 | 1542 | 1967 |
| AECO 100 | 90-120* | 65 | 9,3 | 1205 | 1,7 | Standard | 1556 | 1542 | 1967 |
