Edge Bander Stefani XD

Due to its versatility and useful lengths up to 9 metres, every production demand can be achieved with cost-effective solutions. How? By customising performance requirements, finish quality, flexibility and every other aspect connected to the production of market needs.

For intensive use beyond single daily shifts and suitable for the industrial production of standard and non-standard panels.

Technologies to optimise the quality of the glue line.

Corner rounding up to 30 m/min for high productivity.

Request for more information

Product inquiry

I want contact by: *

Contact details:

Description

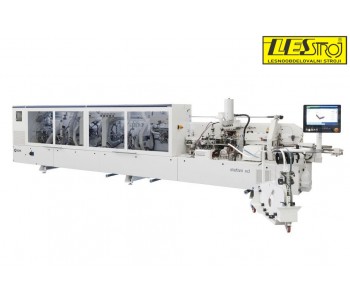

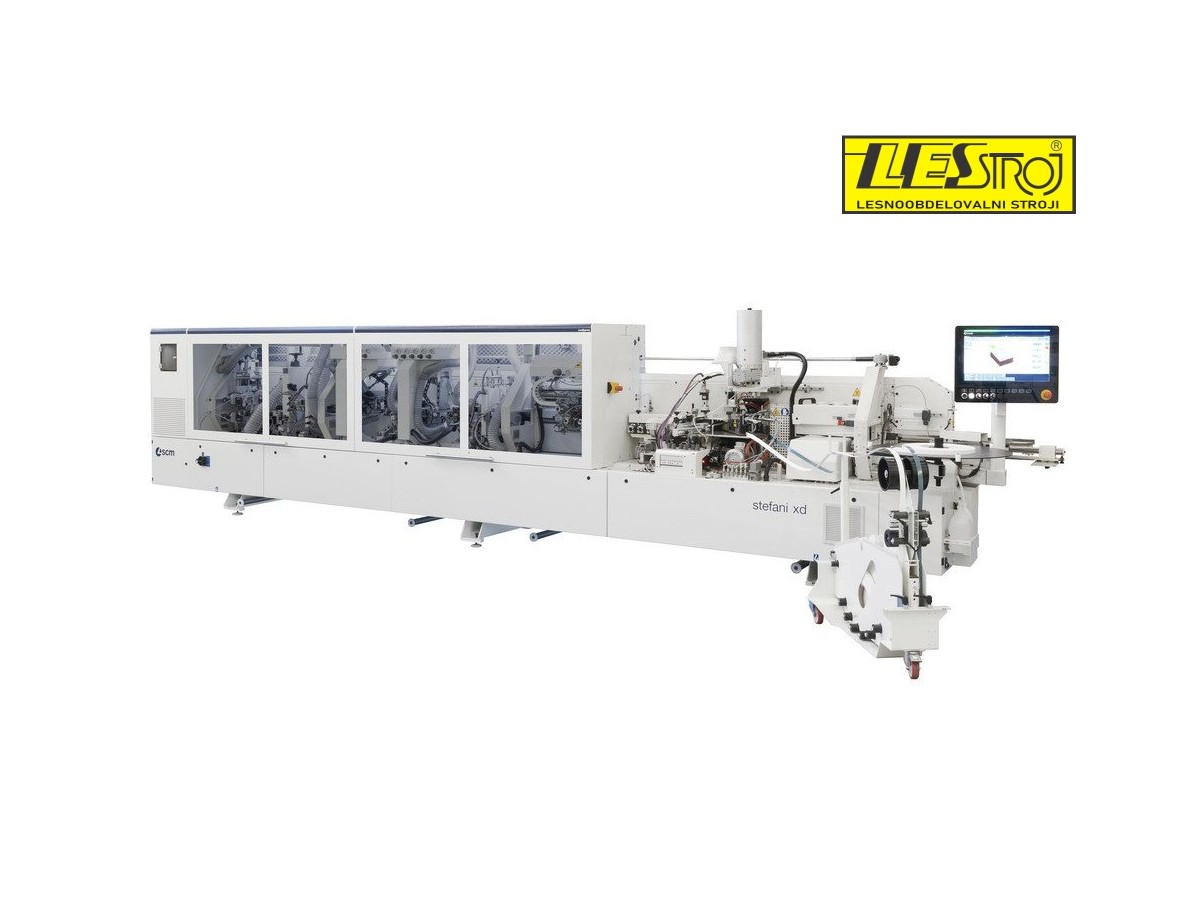

STEFANI XD

HEAVY-DUTY AUTOMATIC EDGE BANDER

HIGH QUALITY

Optional groups, devices, technical details all oriented to high quality finsihing, in all respects and without compromise, for unmistakable production.

POWERFUL AND REACTIVE

Maximum productivity with each production mix and batch size meeded, combined with one constant repeatability at the program change, allows for efficient and profitable production.

INTEGRATED PRODUCTION

Industry 4.0 ready, stefani xd allows you to get the maximum benefits of integrated production. Supervision, set up, reporting, al at the speed of a touch.

Product Details
Images

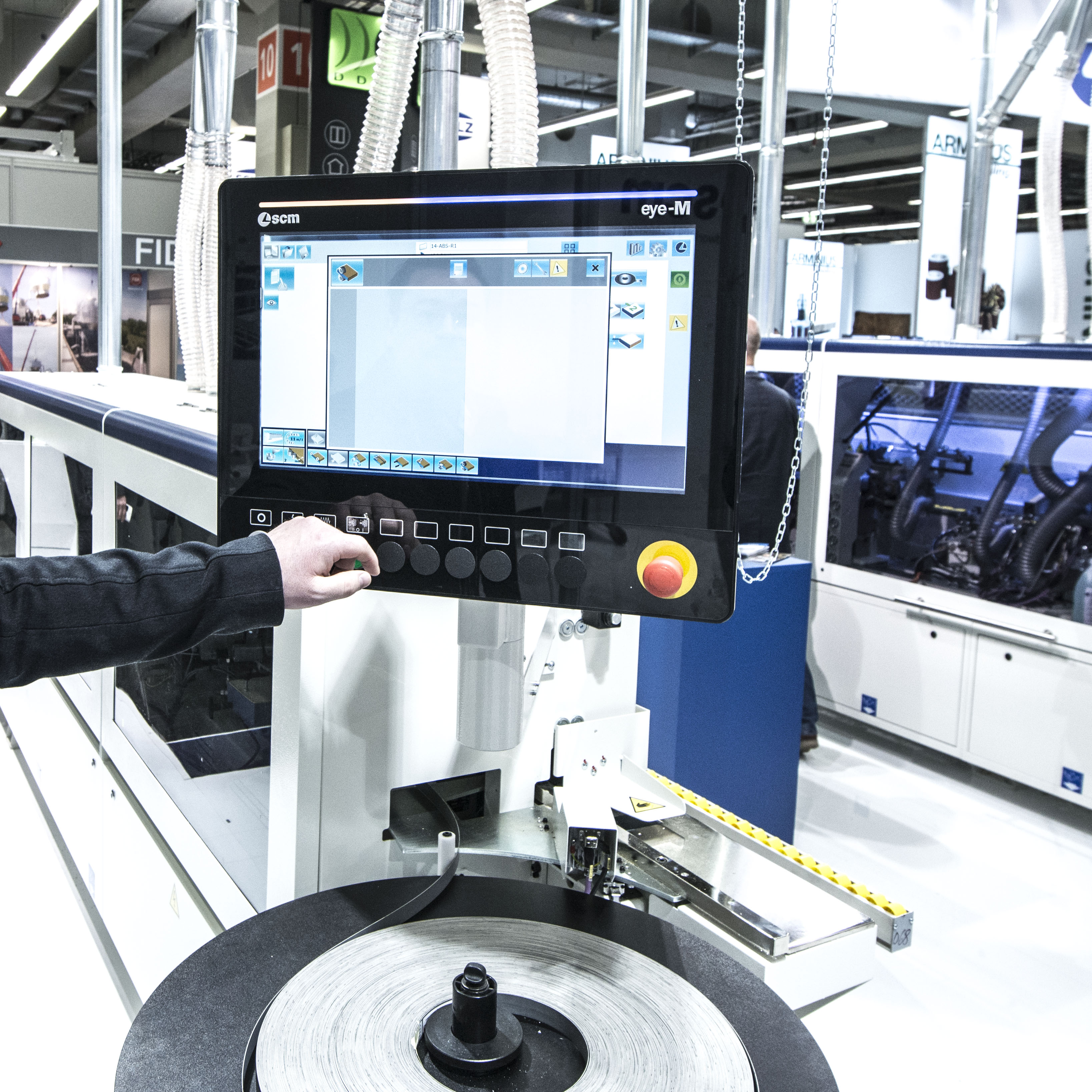

Maestro Pro Edge on new consolle EYE-M with

"Just in time" programs.
Connectivity with Industry 4.0.
Multi-touch 21.5-inch display.
3-dimensional virtual overview.
Maestro Pro Edge software, compatible with other Maestro modules. F
or complete control and management of all aggregates and functions, statistics and diagnostics
Designed for industrial conditions (dust protection, grade protection IP53).

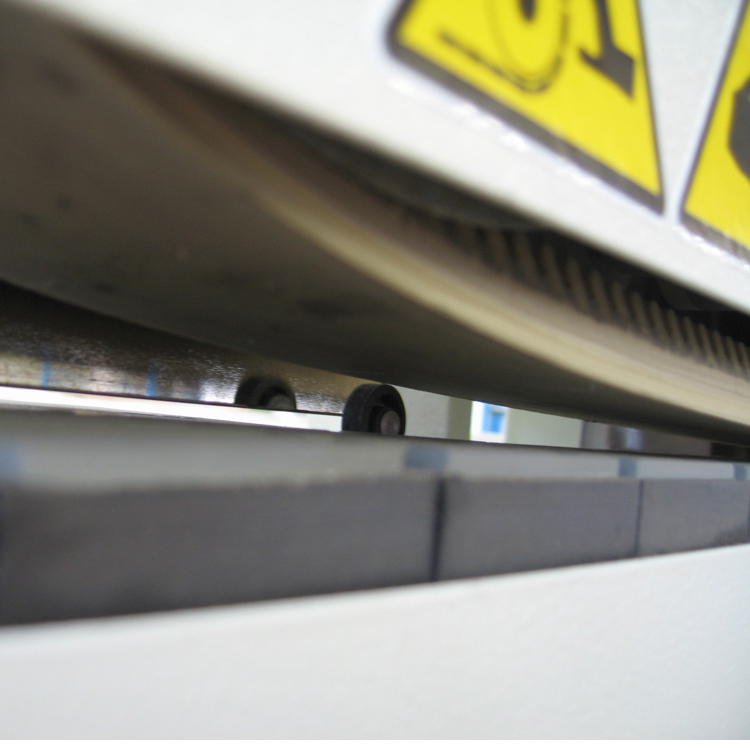

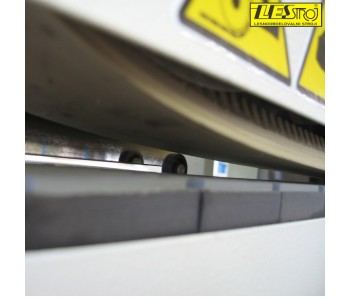

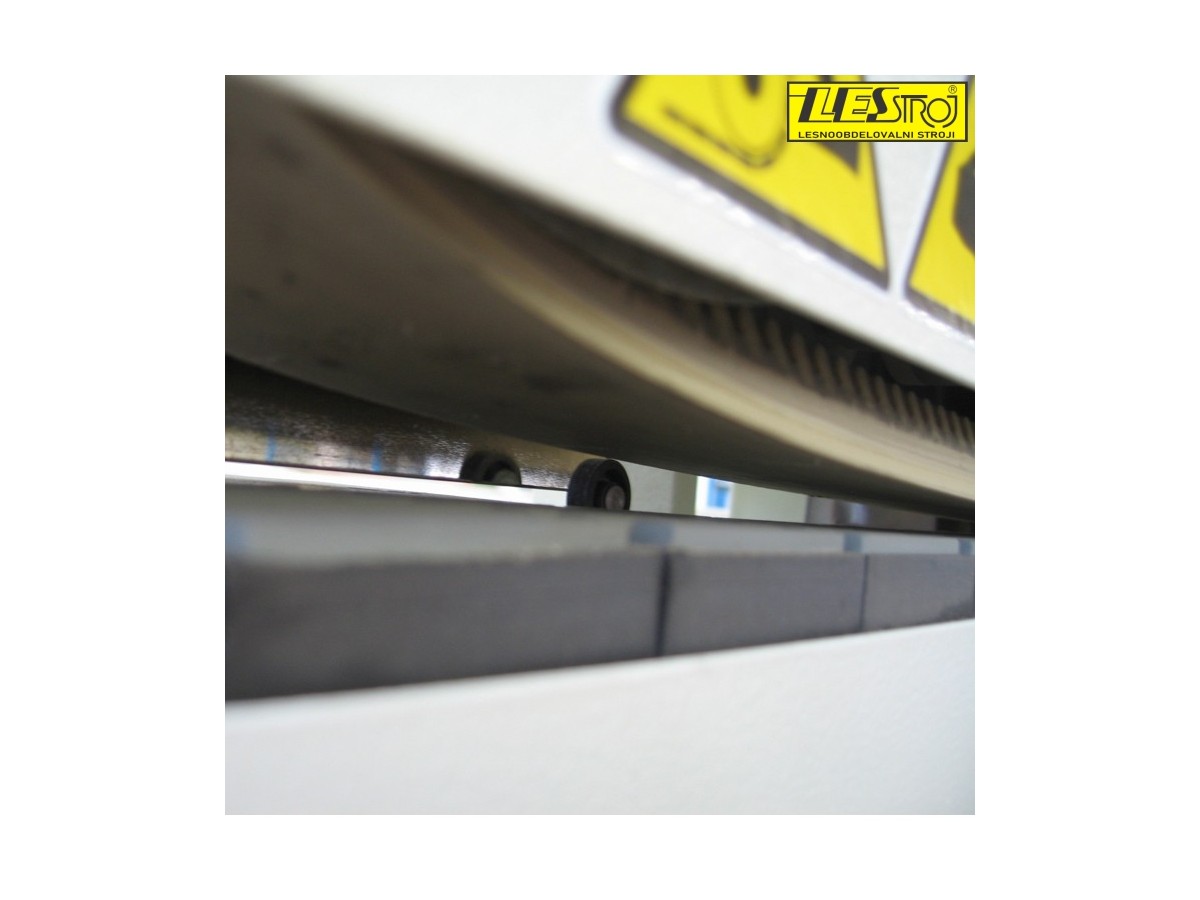

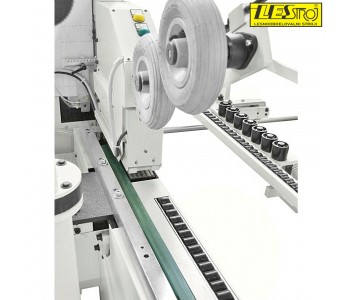

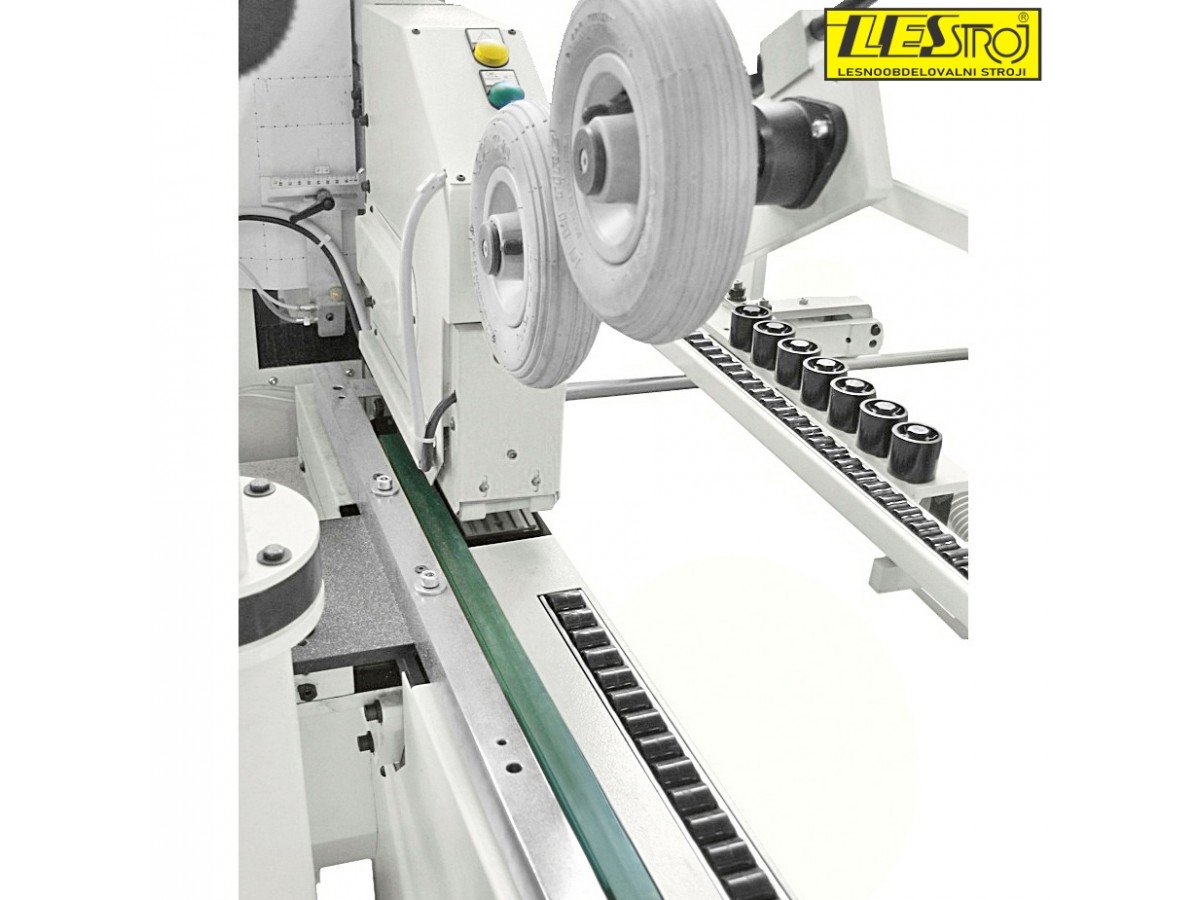

Transport belt

Designed for high speed moving of 25 m/min and more.
Dust protection of workpieces.

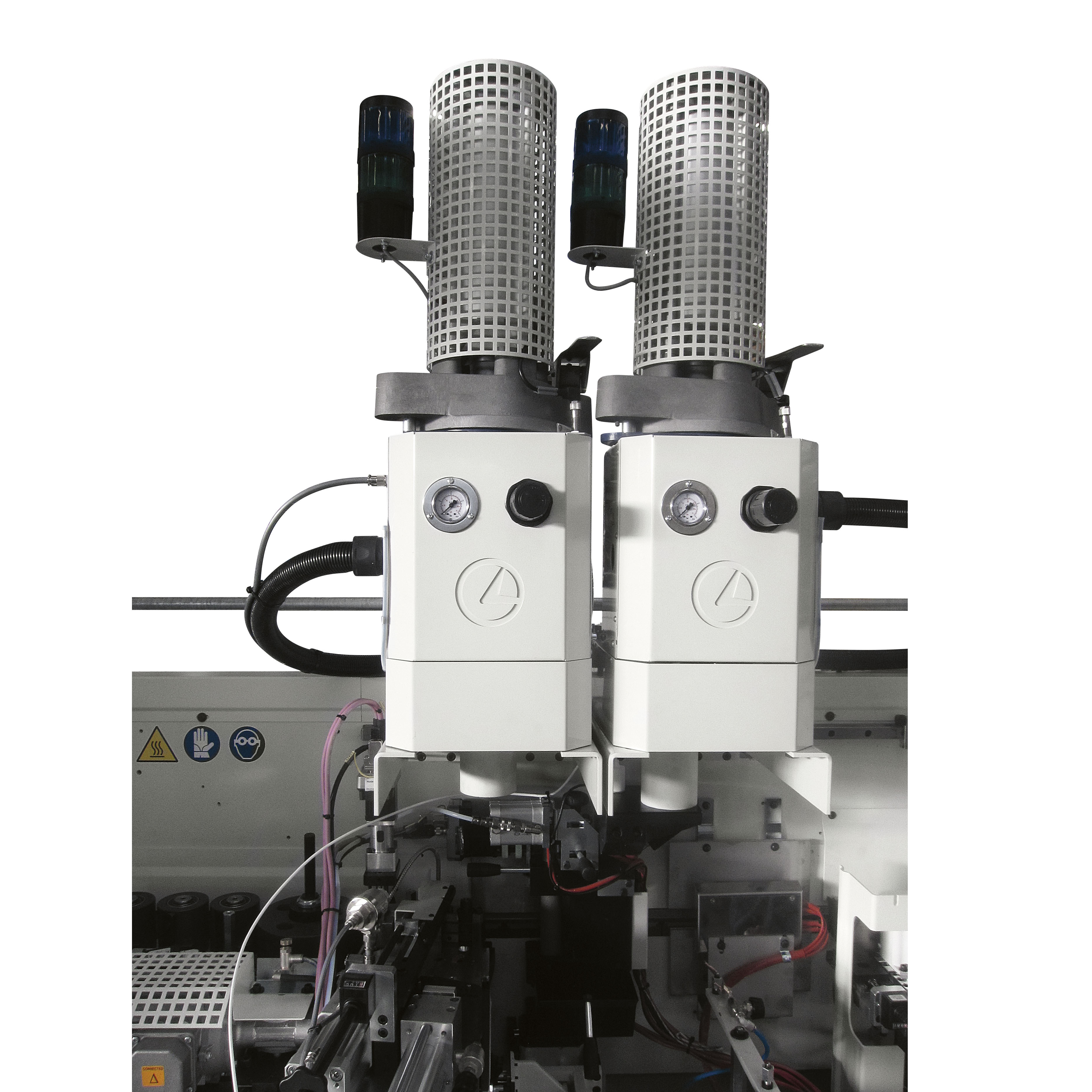

PU BOX L: GLUE ONLY WHEN NEEDED, NO WASTE

Integrated pre-melting device to melt polyurethane glues in 2 kg cartridges. High versatility thanks to flexible changeover with EVA glue.

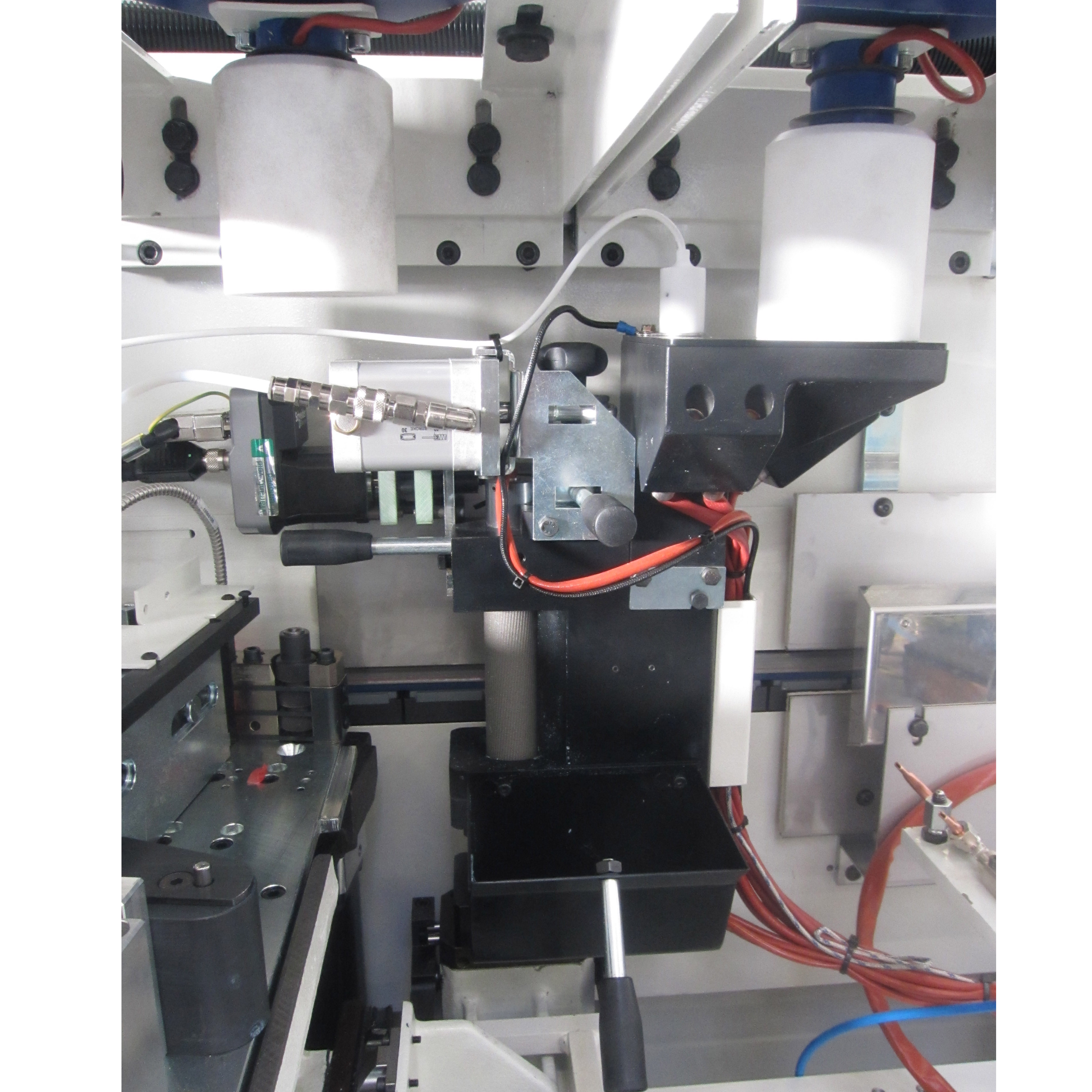

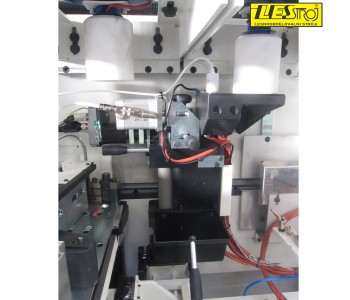

SGP glue system

SGP - the minimum amount of glue, the automatic setting of the amount of glue, the automatic cleaning cycle

- Especially unique design reduces the minimum required amount of glue before application in order to keep the glue as fresh as possible. - Spreading roller with improved granulation/profile for ultra-thin bonds. - Improved intangible of the roller with plasma surface processing for easier cleaning of PU glue. - AUTOMATIC cleaning cycle with collecting excess glue in a special container. - Automatic glue blockade. - Patent - NC setting the amount of glue dosing through the computer. - L-D rotation. - The possibility of a fast change of the glue pot. - Quick and easy access to the inside of the glue pot; the glue pot can be completely dismantled. - Faster heating of the glue due to the smaller glue pot. - Double working temperature EVA/PU. Technical characteristics: - Heating time to operating temperature is approximately 8 minutes. - The heating time with preheating of the glue is approximately 5 minutes. - Glue capacity: 0,5 kg. - Installed power 2,05 kW.

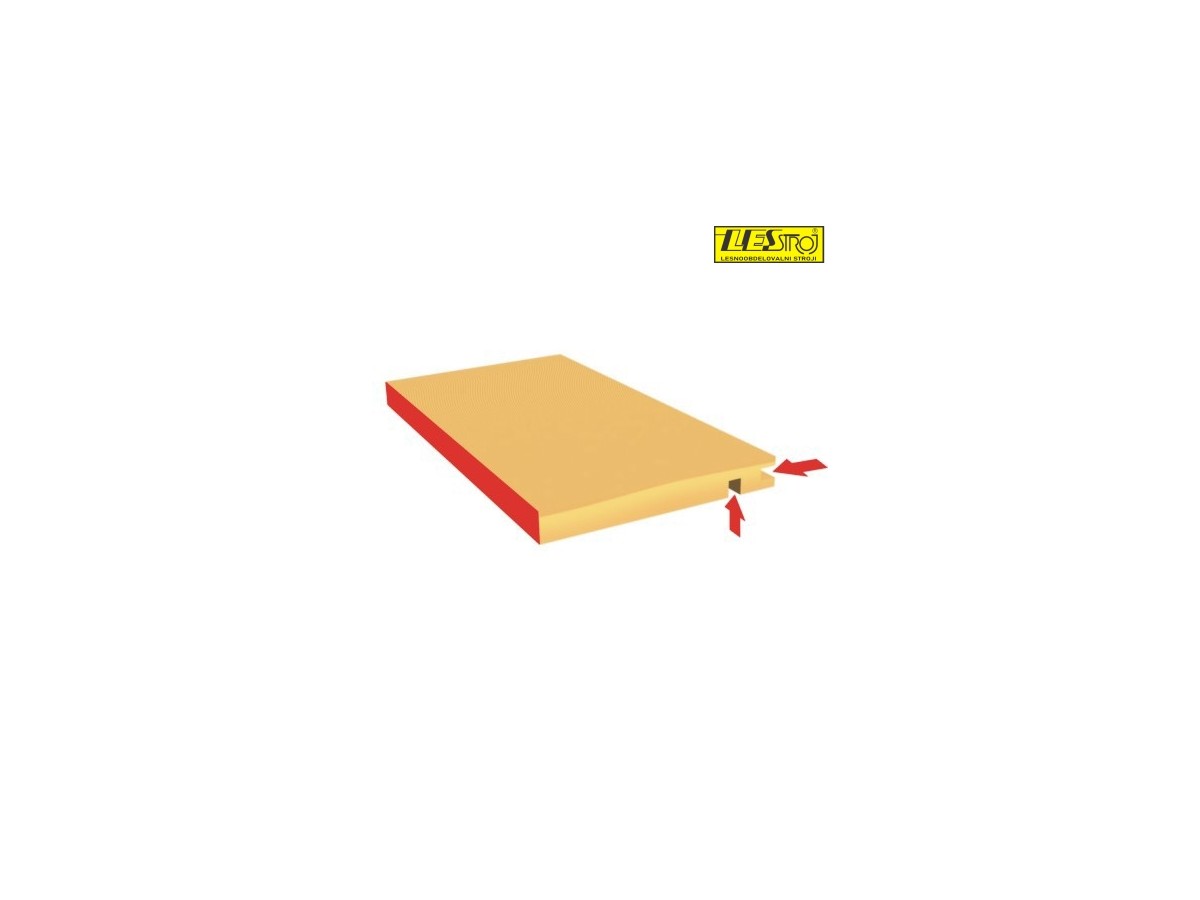

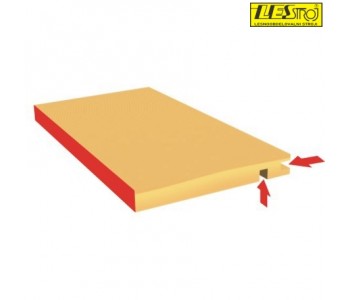

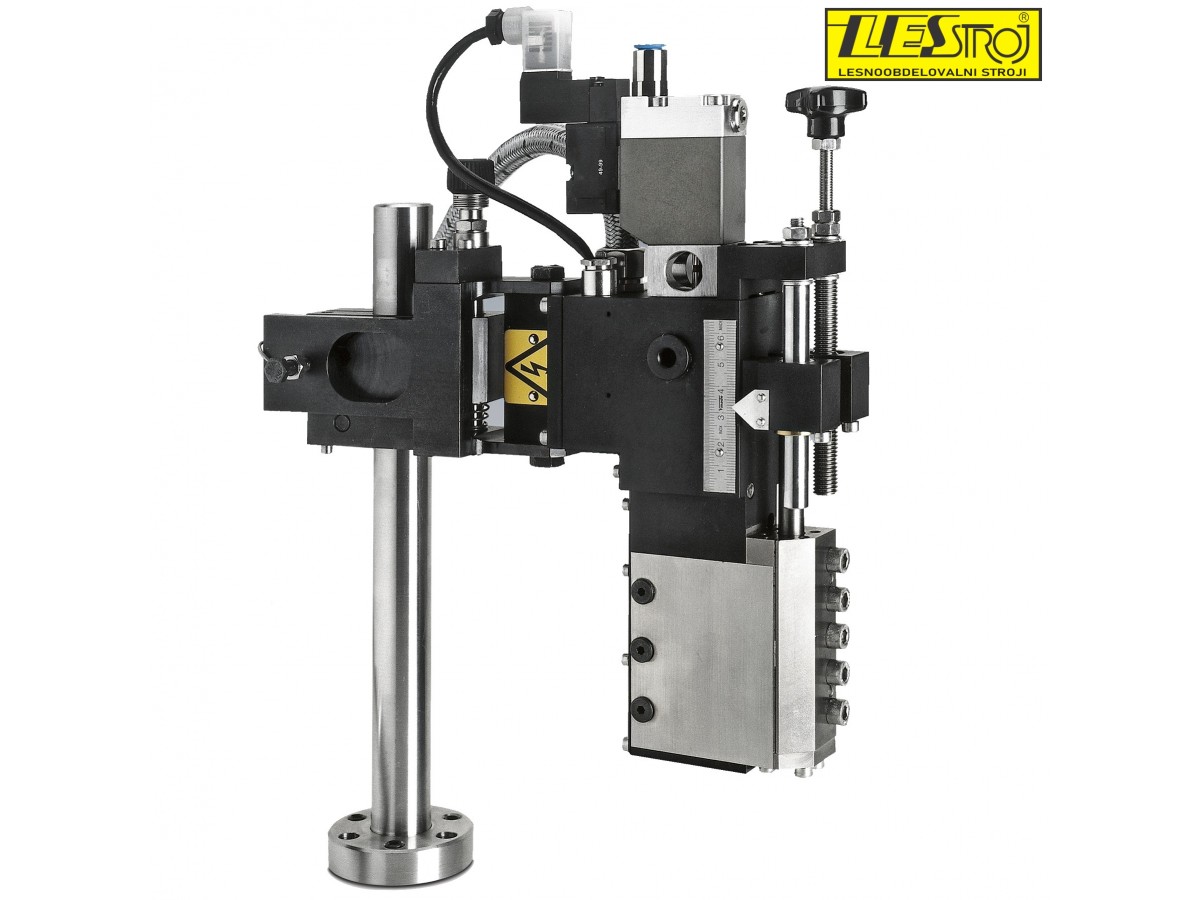

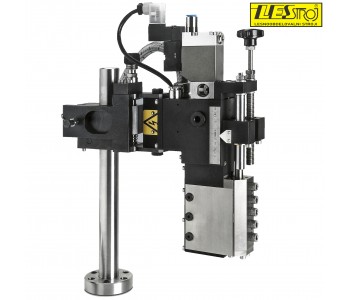

SLOT EB60


Slot for the glue application on the edge of the panel.

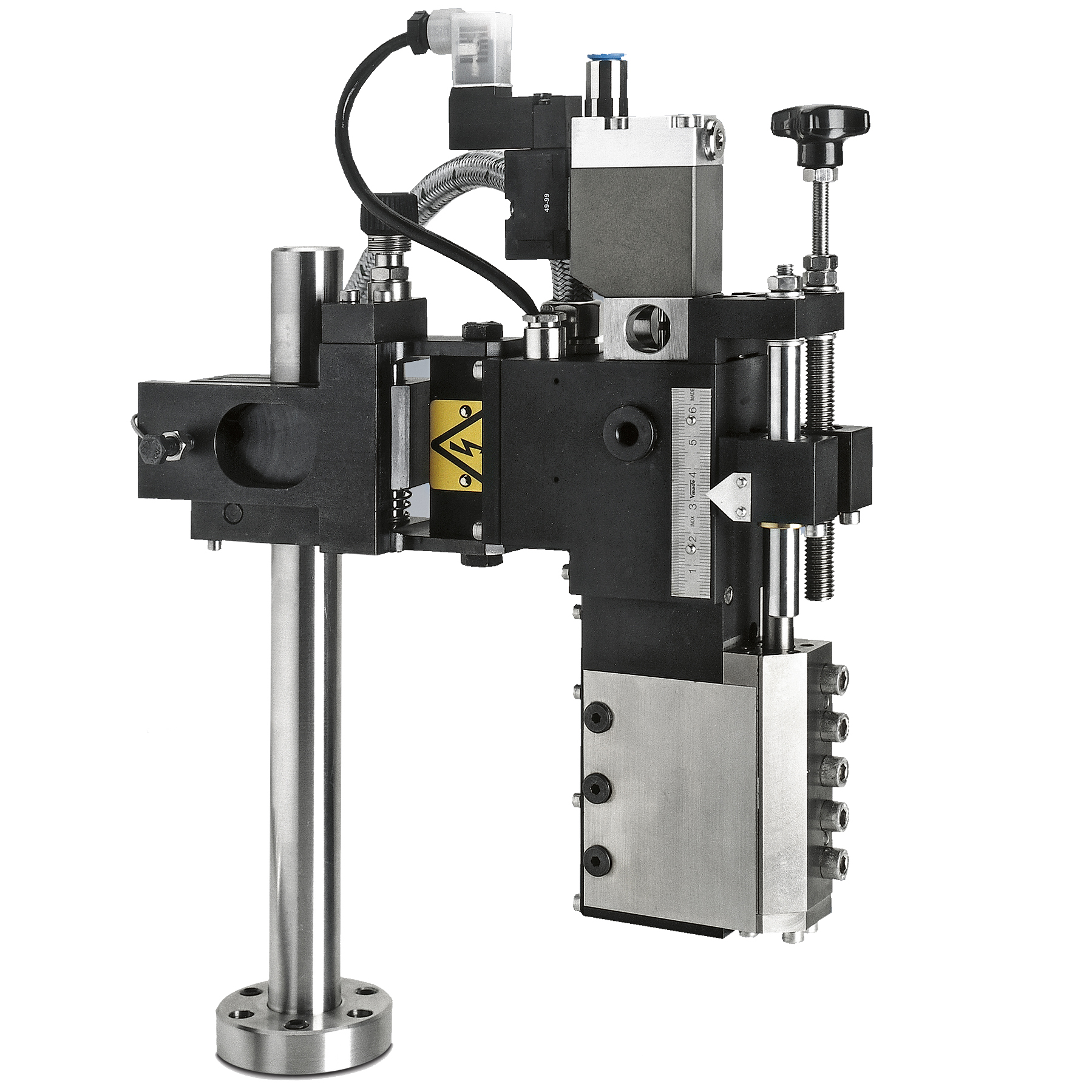

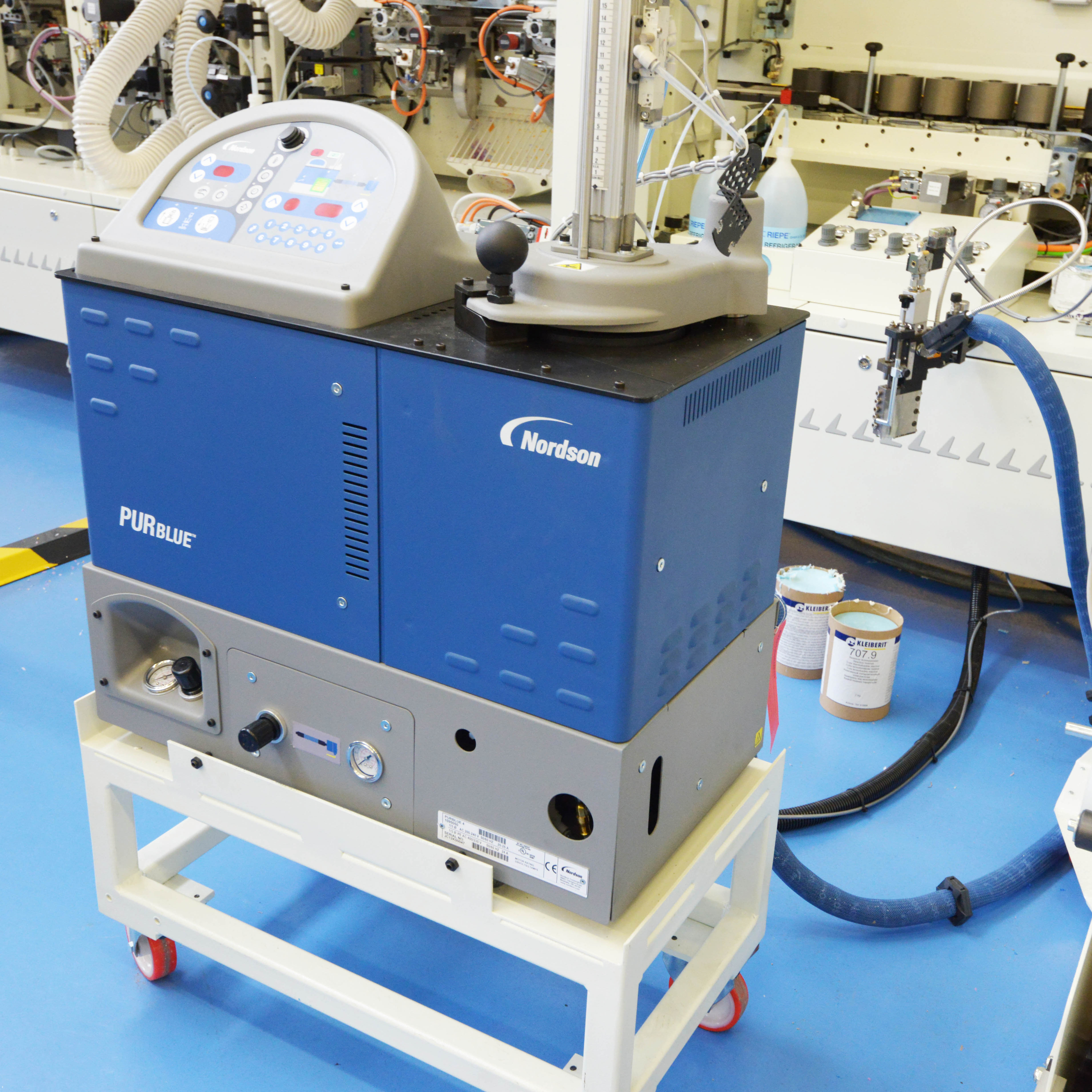

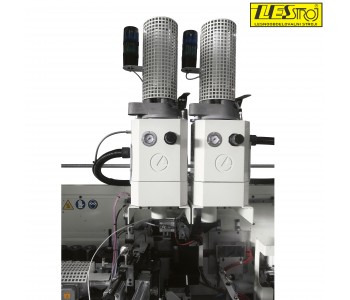

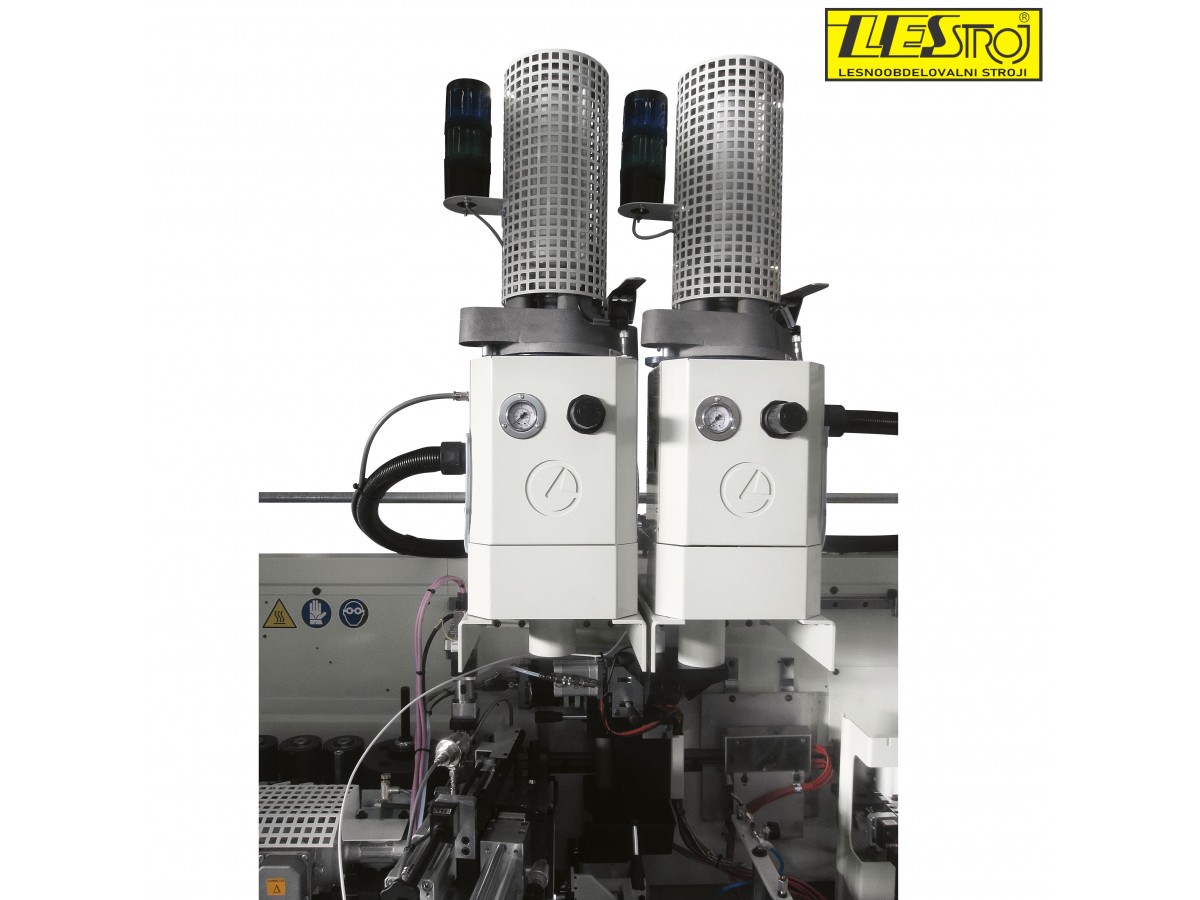

NORDSON PUR BLUE 4

Use of PUR glue over Nordson melting unit PUR BLUE 4.

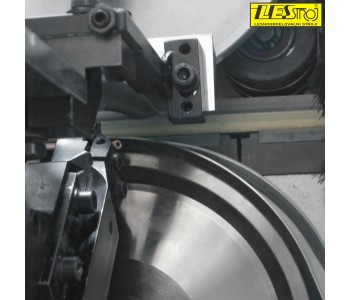

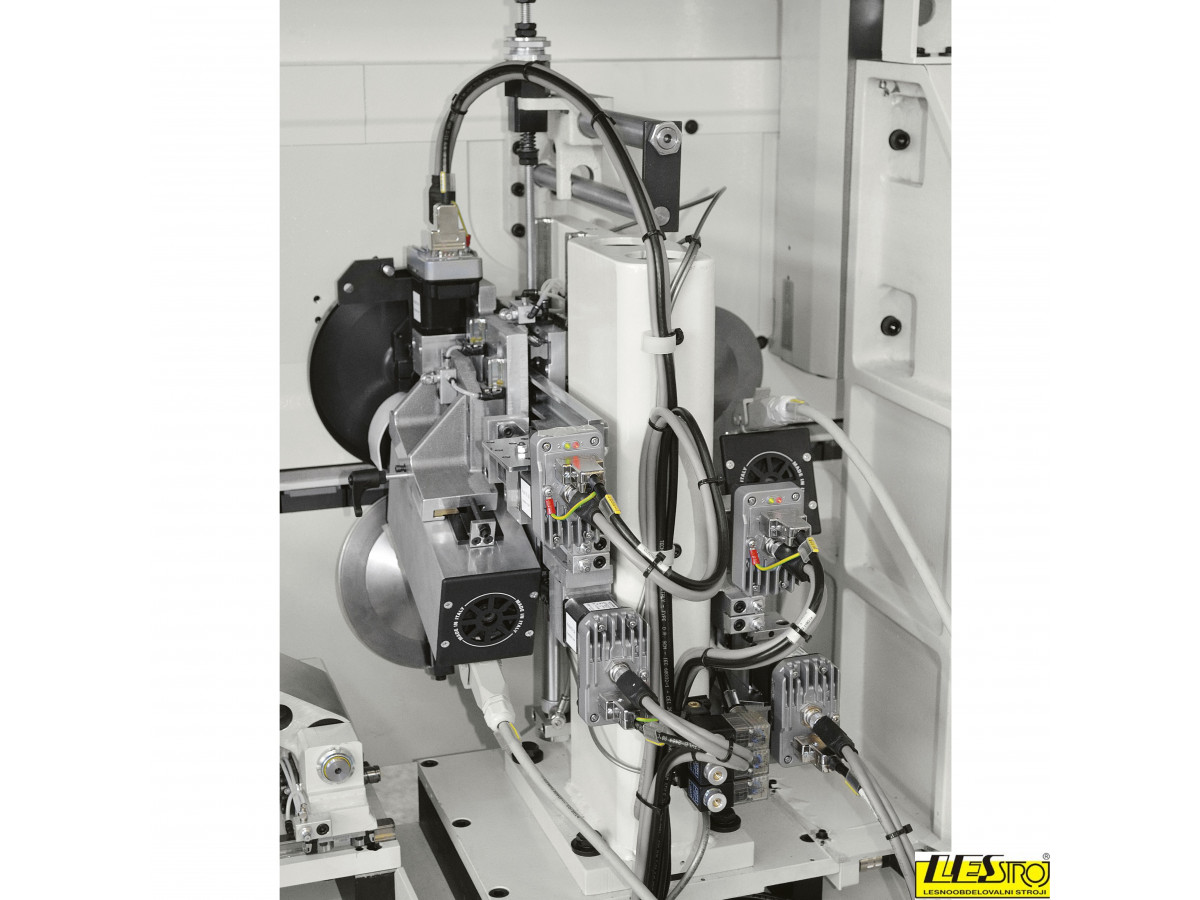

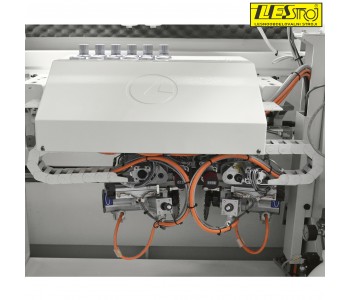

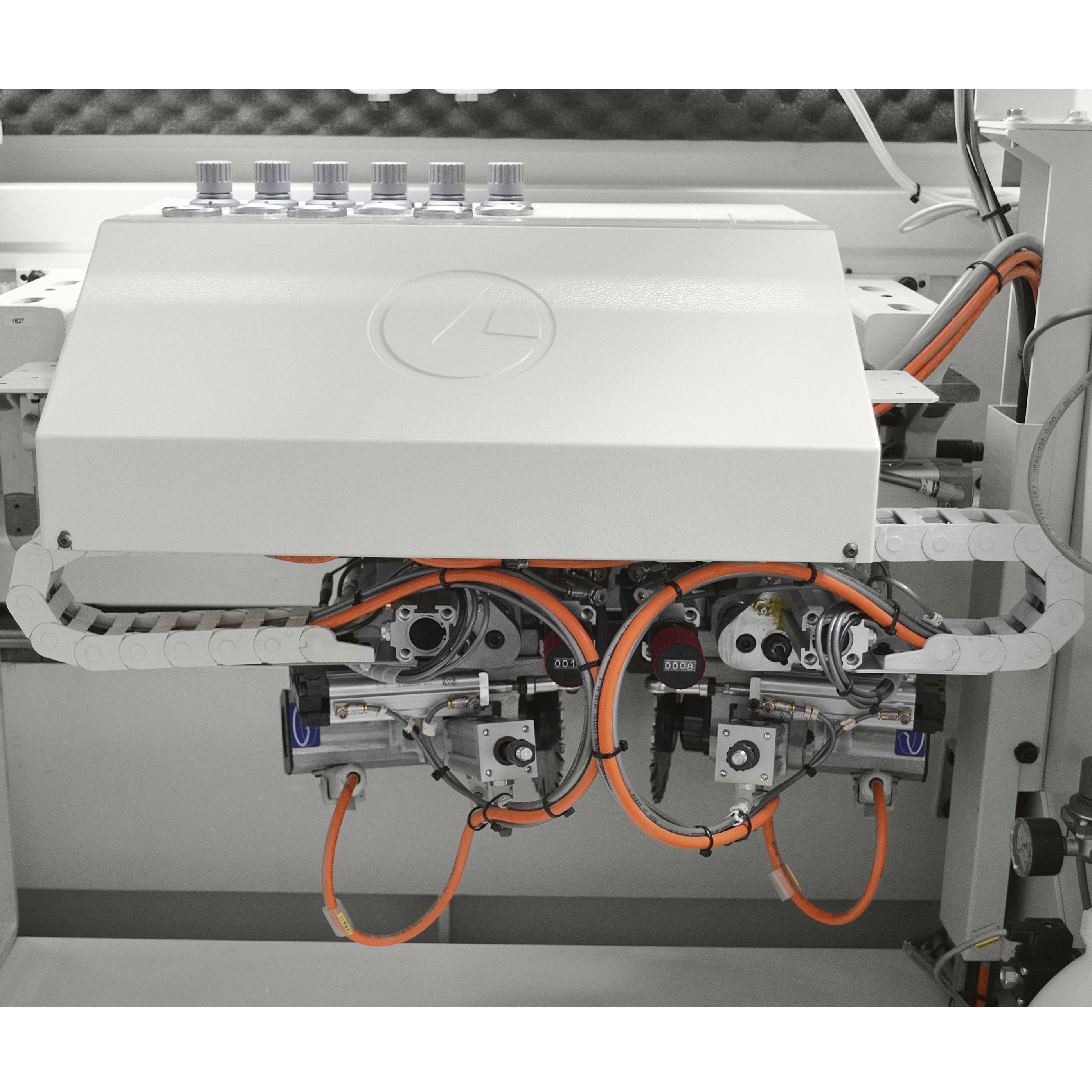

YU/SP 750 UPPER END CUTTING UNIT

It carries out the cutting of the front and rear exceeding edge (also for post/soft formed panels). Automatic exclusion of the side copying devices for max. 25 mm thick solid wood.

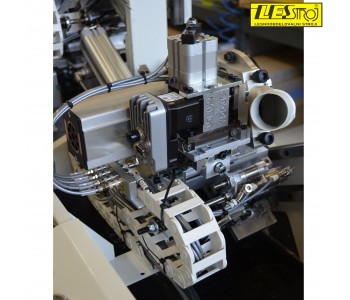

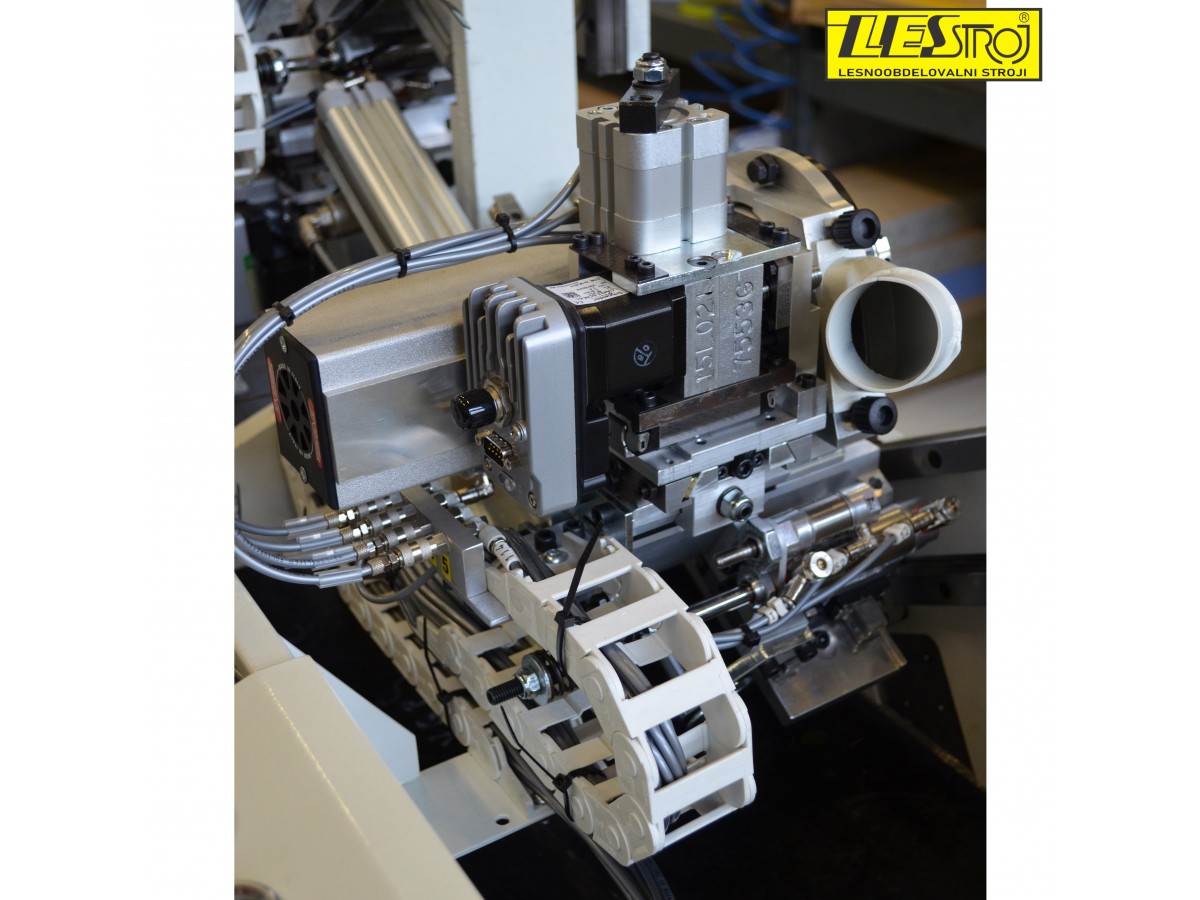

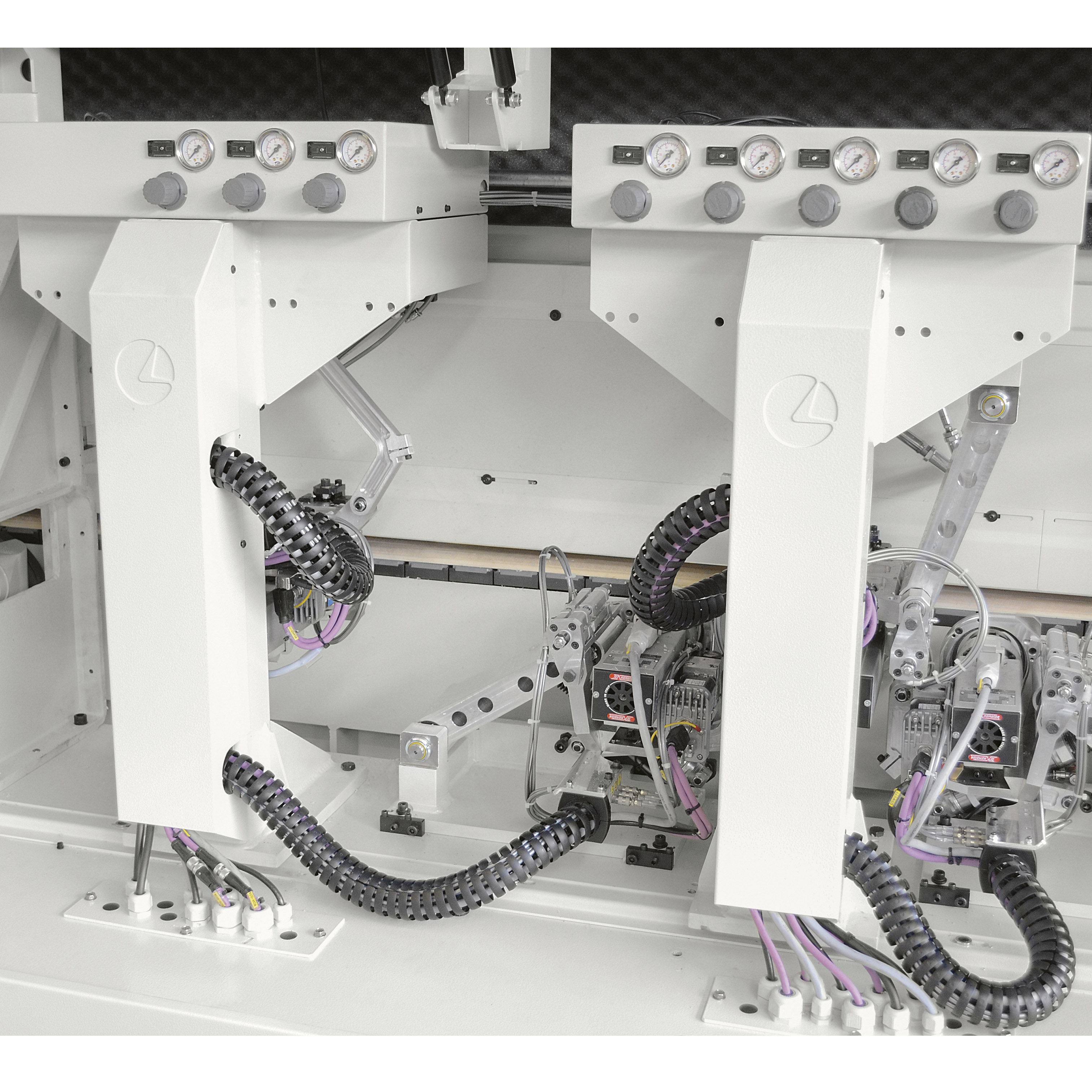

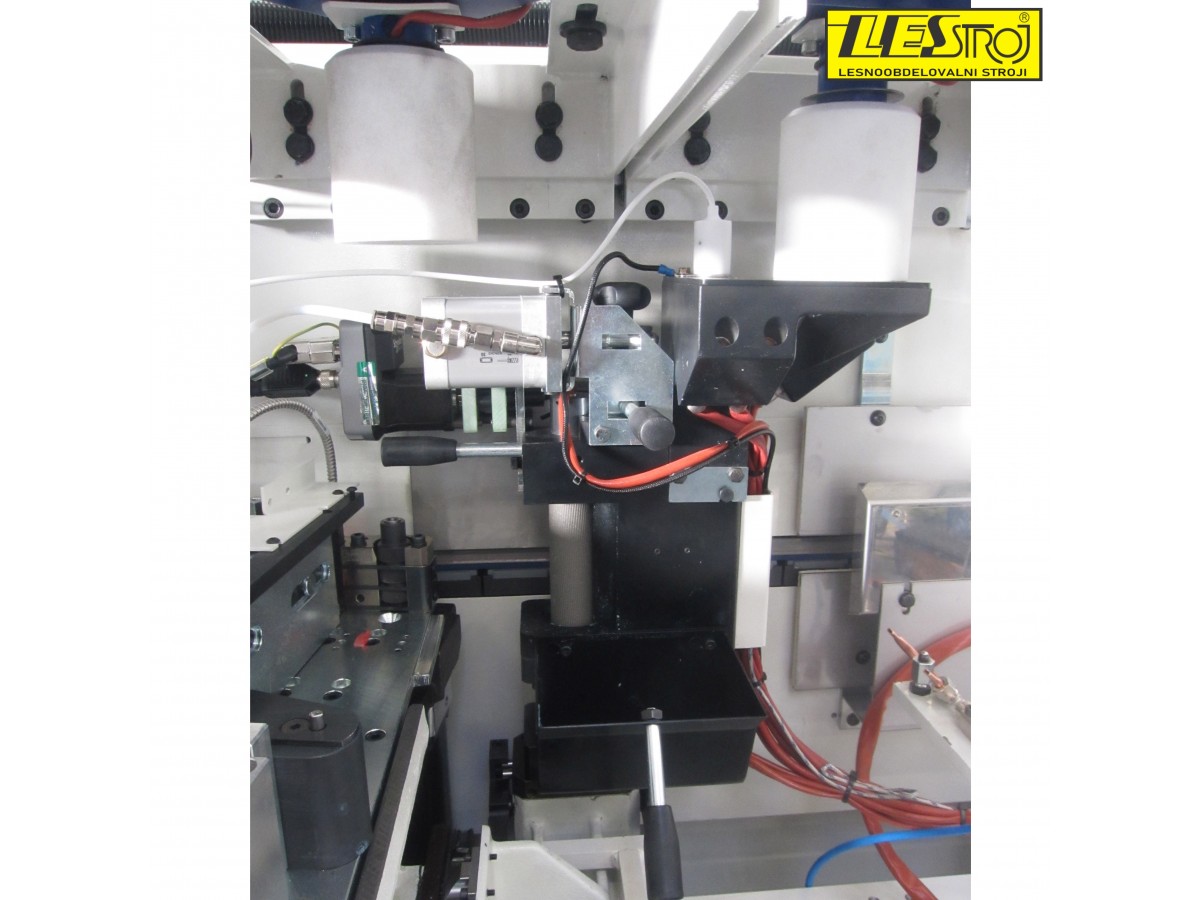

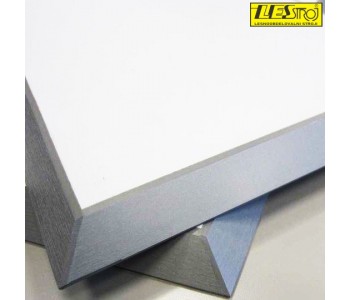

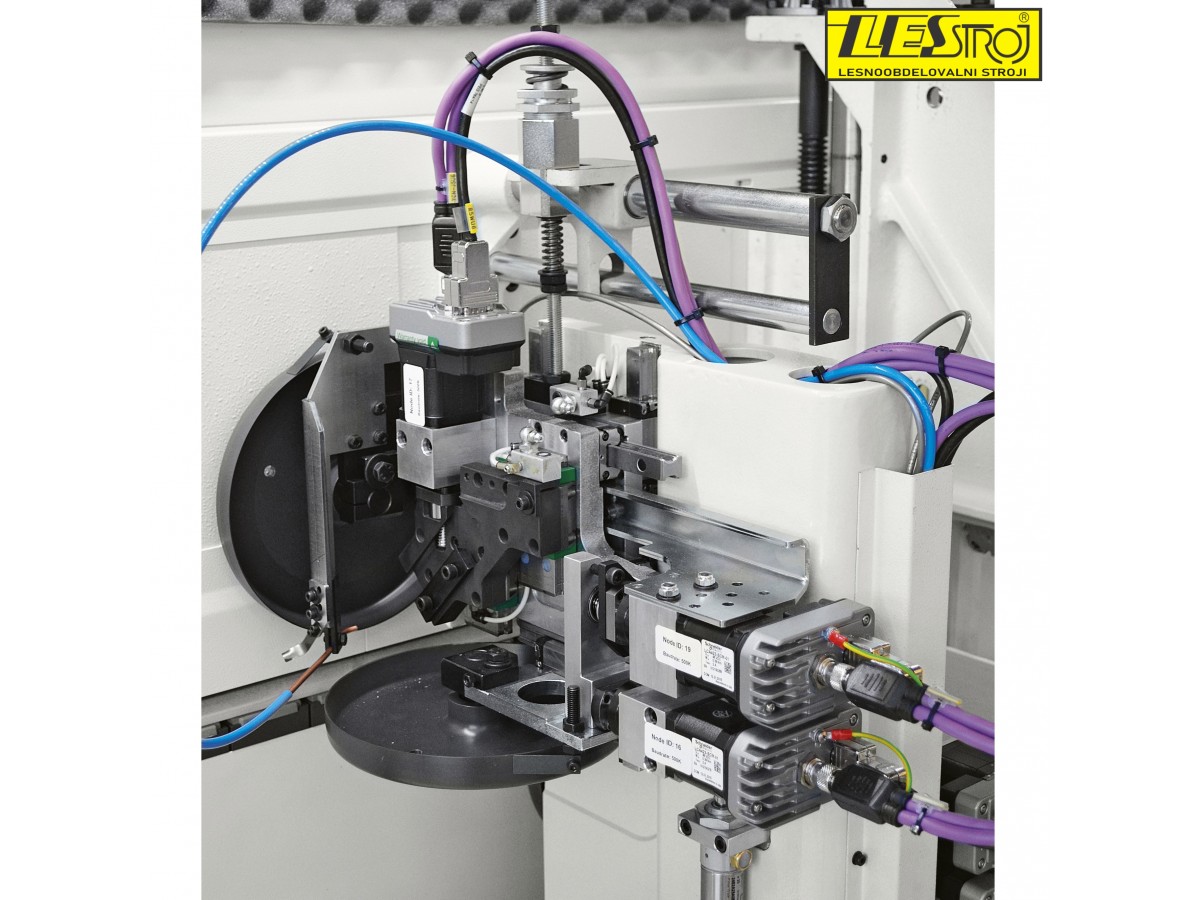

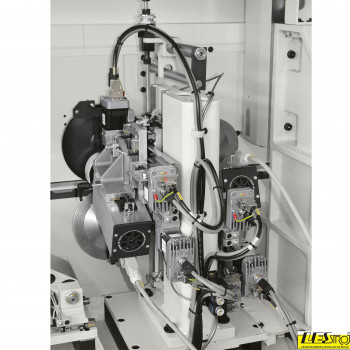

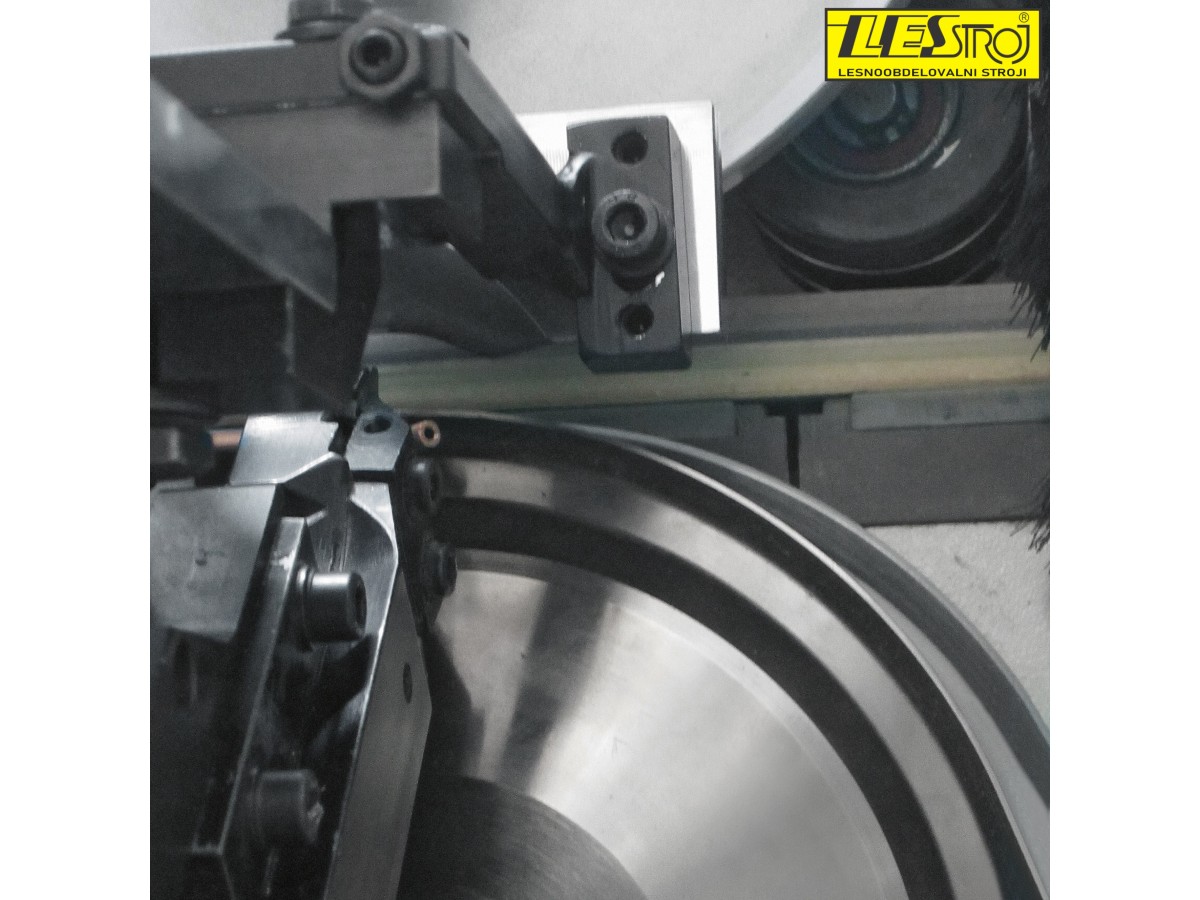

Rounding unit ROUND 4 SERVO

The top rounding unit with 4 motors enables moving speed from 25 to 30 m/min.

Possibility of up to 3 different radii over LEUCO tool with NC setting.

Round 4M also provides optimum rounding of already veneered workpieces.

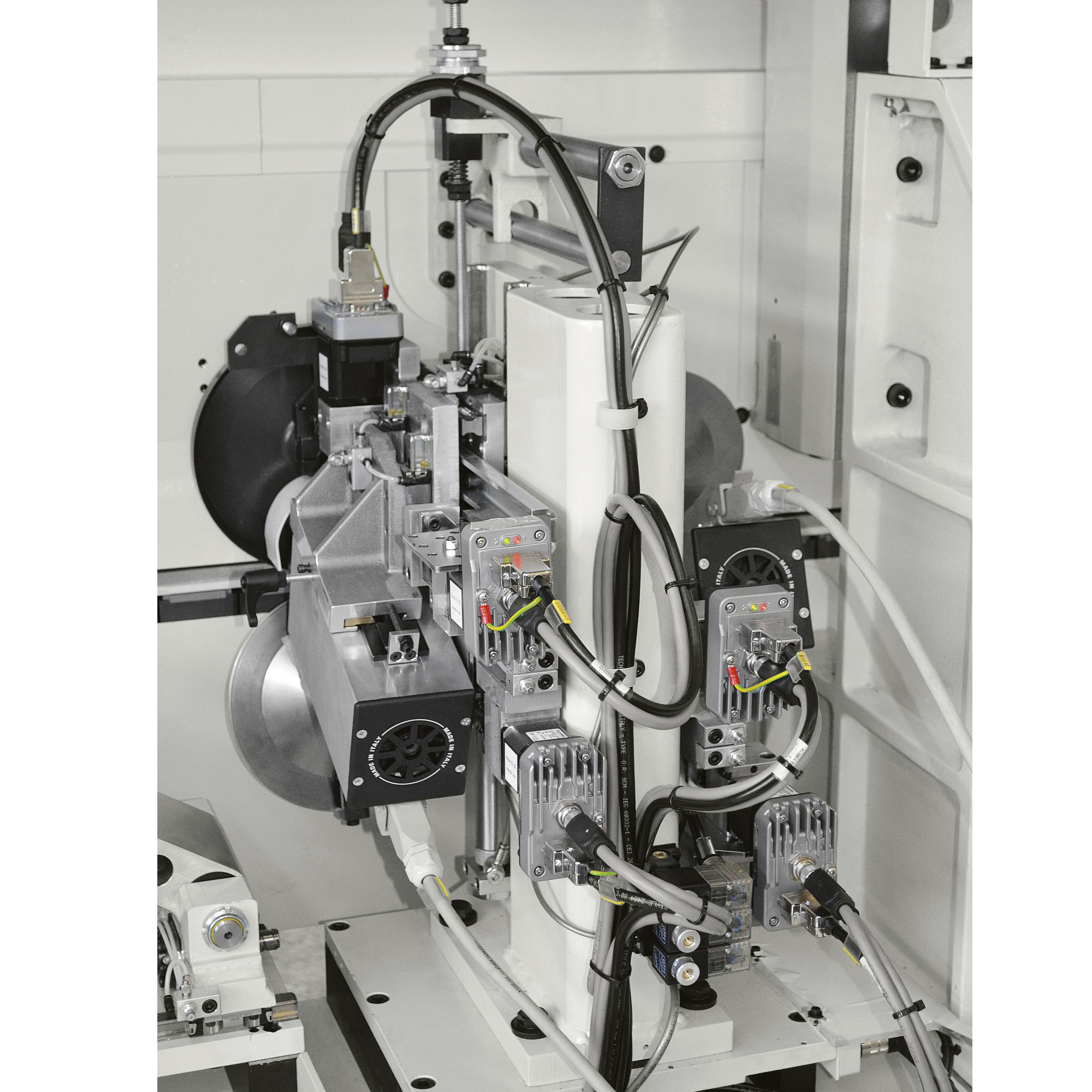

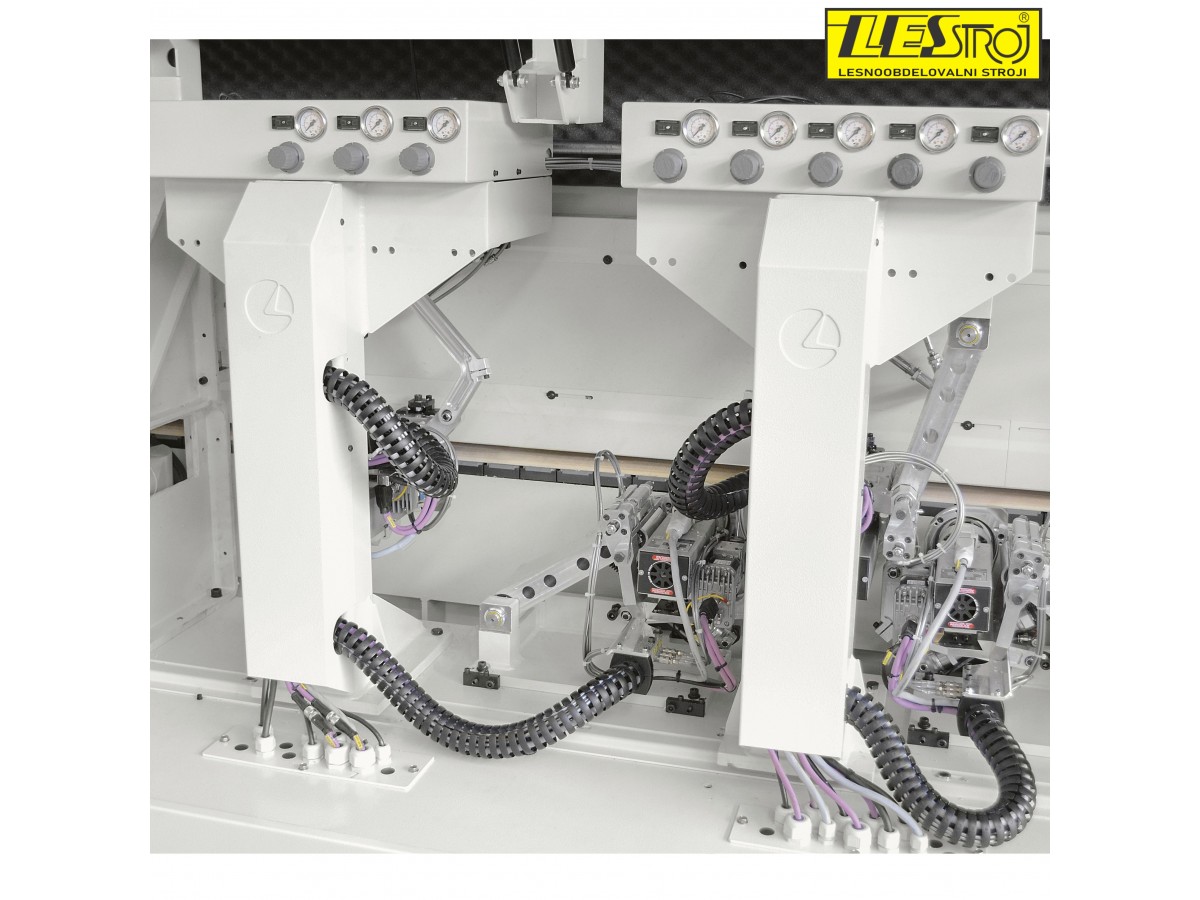

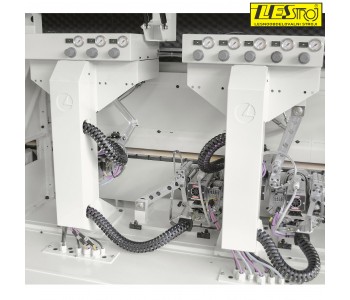

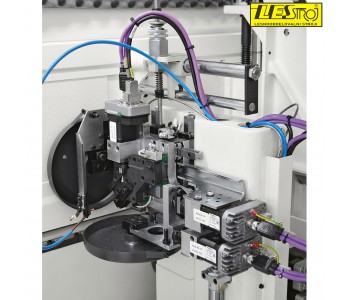

RSU-E

Minimum interaction with the panel due to movements on linear guides with recirculating balls.

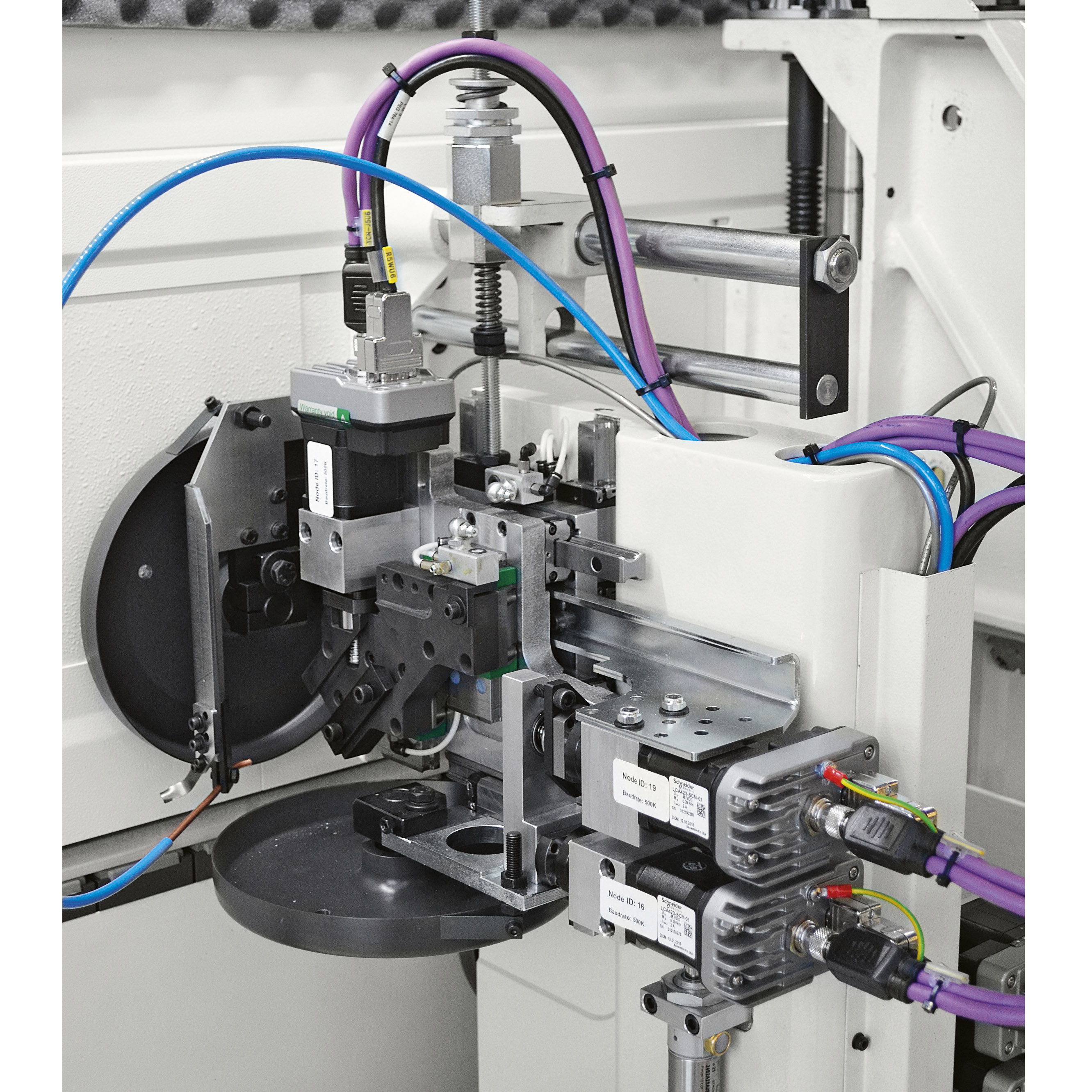

RCS-E

Ideal for delicate materials. Minimum interaction eith the panel due to the linear movements on guides with recirculating balls.

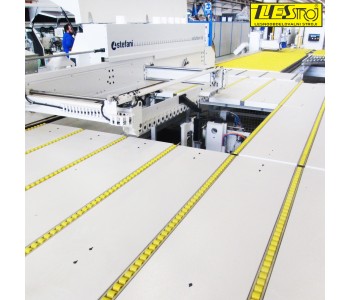

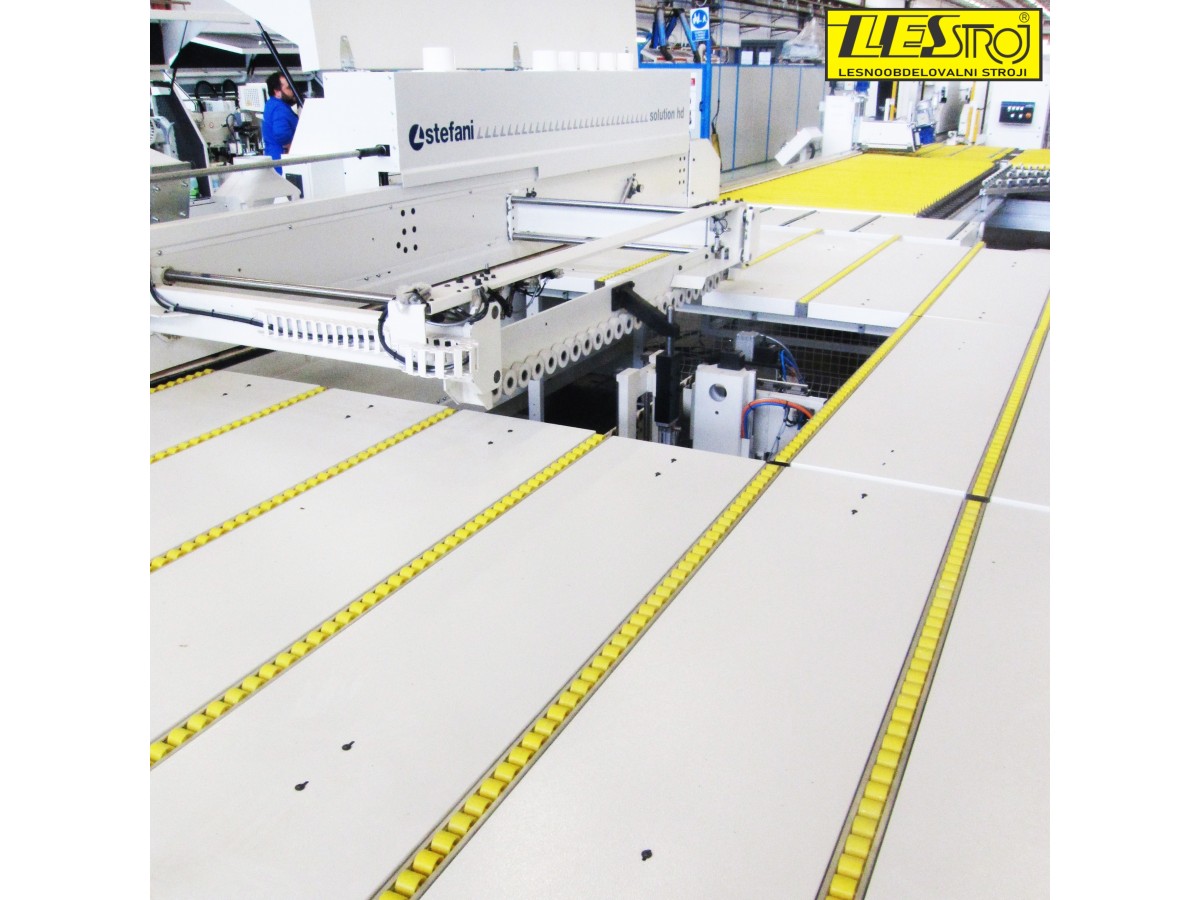

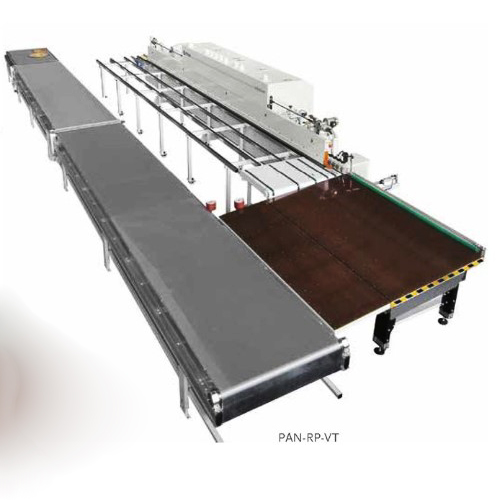

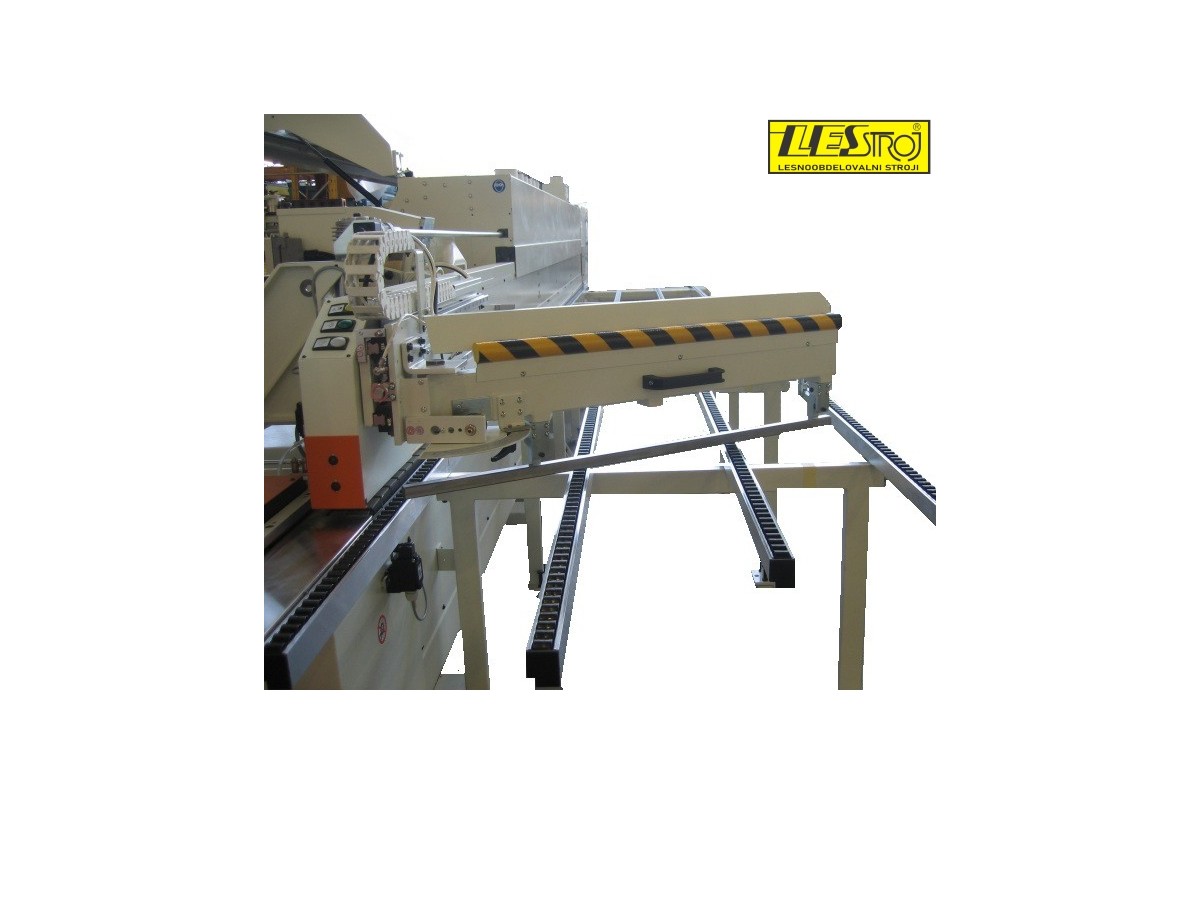

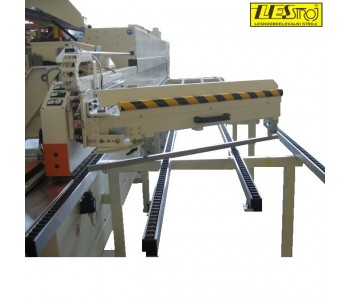

DEVICE FOR THE RETURN OF THE PANEL TO THE OPERATOR

SPINNER and PAN-RP-VT panel return devices allow an increase in daily productivity with a single operator in a simple and reliable way, by means of the automatic return of the panel to the loading area of the edge bander.
