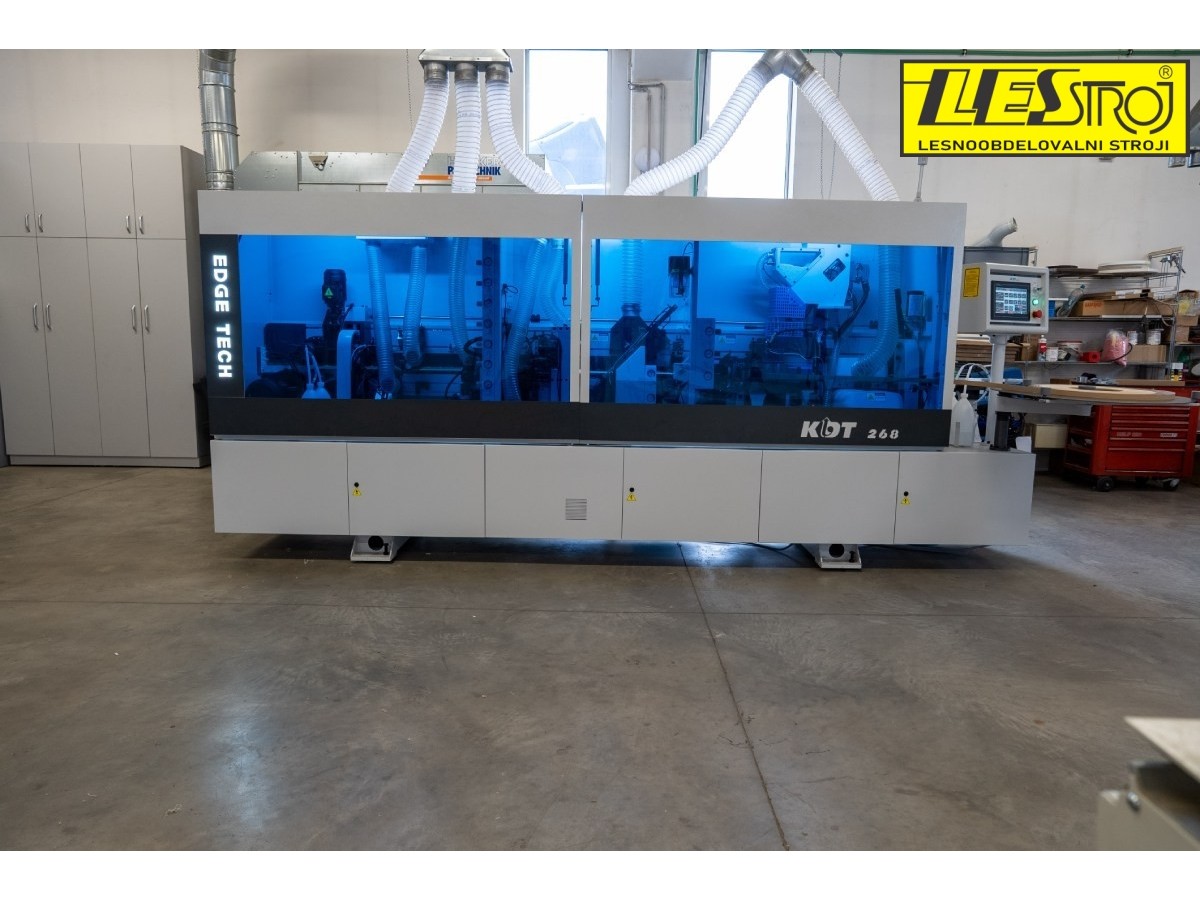

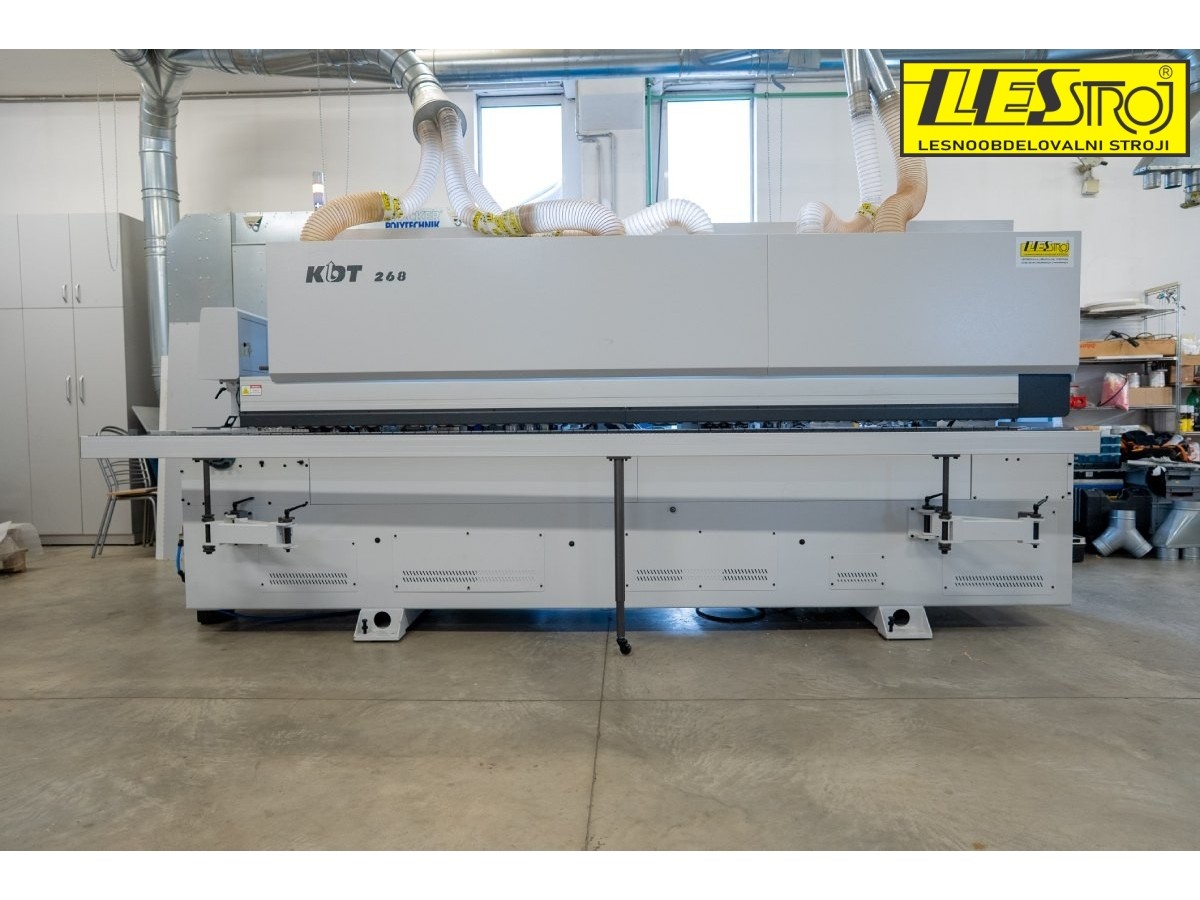

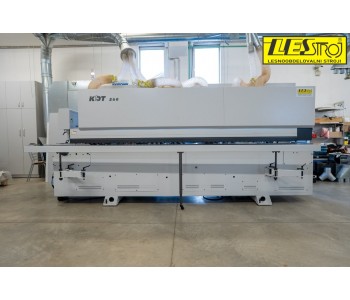

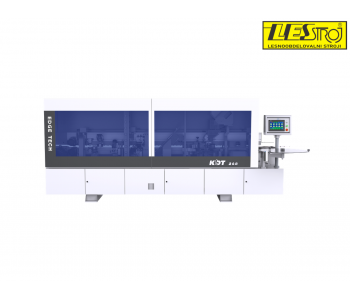

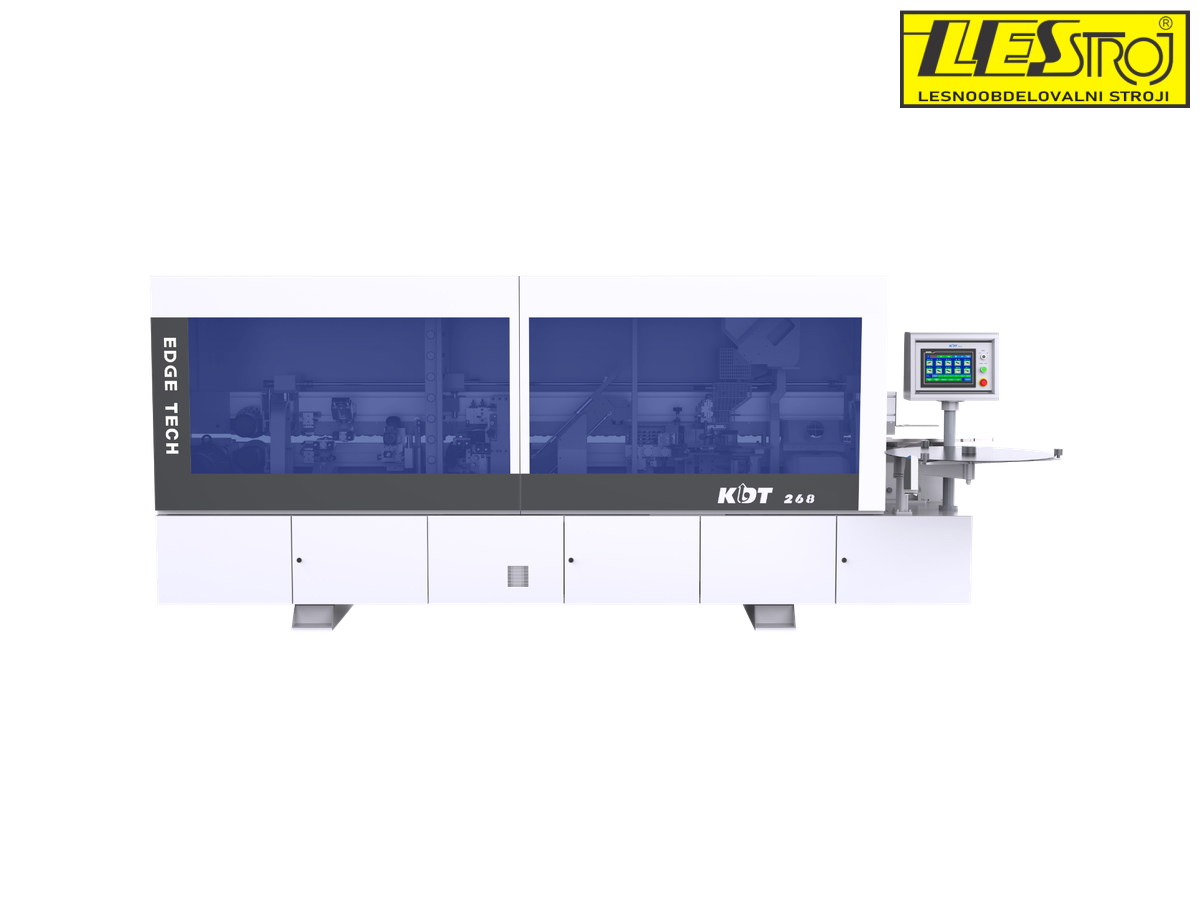

KDT EdgebanderKE‑268JSA

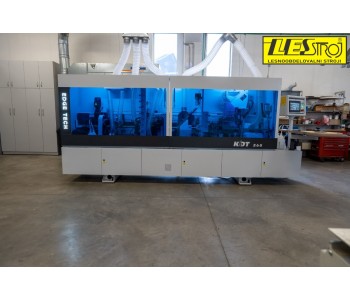

Compact length 4.23 m, industrial performance

The KE‑268JSA combines high‑end precision with hassle‑free daily operation. It is short enough to fit into smaller workshops, yet engineered for heavier‑duty production. All that, without compromising on edge‑joint quality.

Request for more information

Product inquiry

I want contact by: *

Contact details:

Description

Why choose the KE‑268JSA?

Advantage

What it means in practice

Optimal price‑to‑performance ratio

Industrial‑grade quality in a small footprint, affordable even for compact workshops.

Automatic settings

Faster change‑overs via pneumatics, less manual intervention, higher throughput.

EVA / PUR ready

Flexible gluing system with swappable gluepot or automatic pot‑emptying.

Accurate pre‑milling

DIA cutters + 2 × 2 kW motors for perfect edge alignment.

Smart control

10‑inch touchscreen: program storage, diagnostics, real‑time temperature monitoring.

Low maintenance

Automatic central lubrication and roller self‑cleaning extend component life.

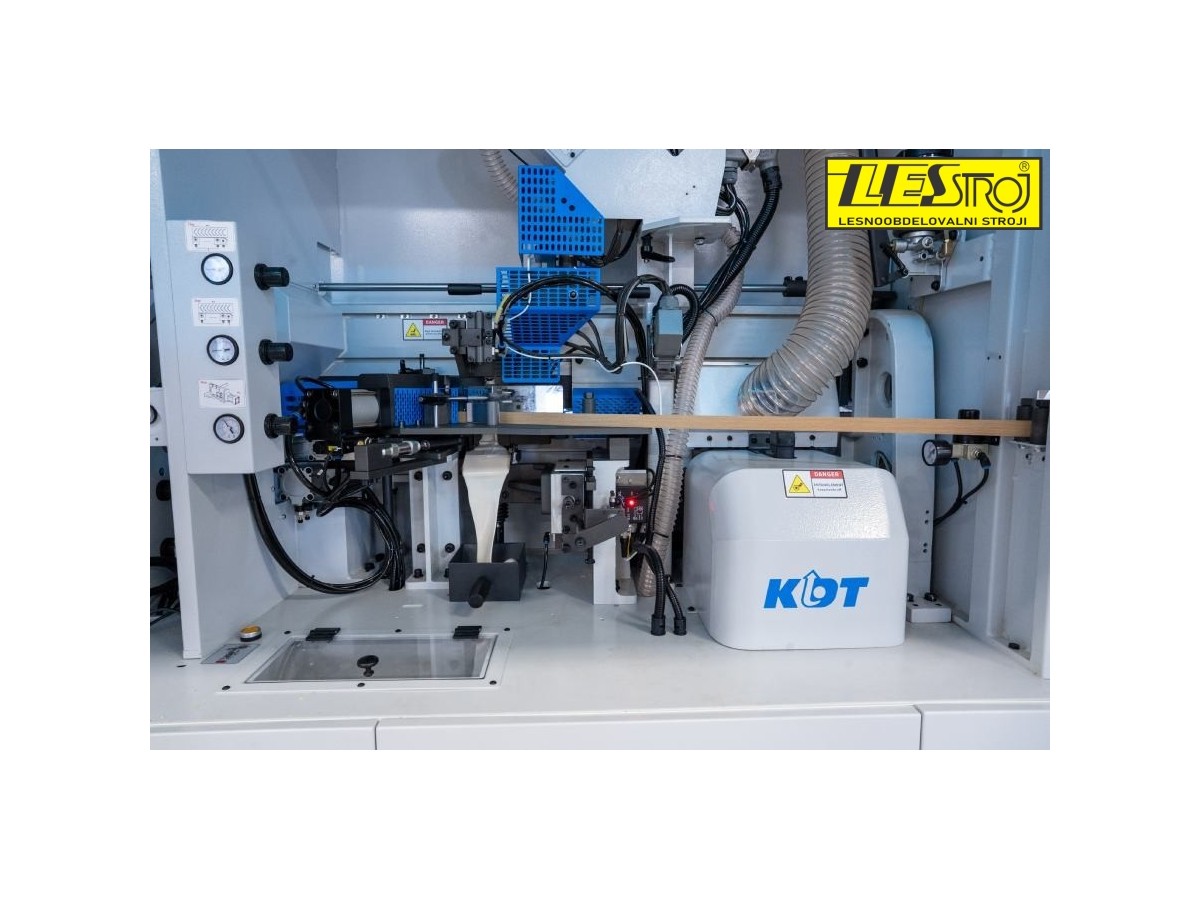

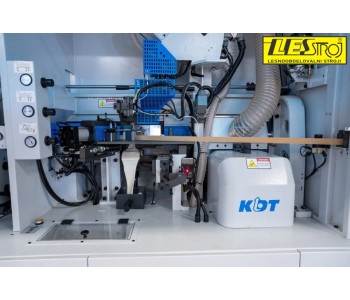

Key technology units

  • Industrial aggregates
    Factory‑set and locked—settings stay stable for a long time.
  • Pre‑milling unit (DIA cutters, 2 × 2 kW)
    Long tool life and perfect edge preparation before gluing.
  • IR lamp for panel pre‑heat
    Warms the surface to boost adhesion—crucial in cooler shops.
  • Premium “SMART” gluepot (EVA/PUR)
    • Background glue pre‑heat
    • Automatic roller cleaning
    • EVA ↔ PUR change in minutes with automatic pot emptying
  • Pneumatically‑controlled units
    One‑touch switch between two tape thicknesses (e.g. 0.4 mm ↔ 2 mm).

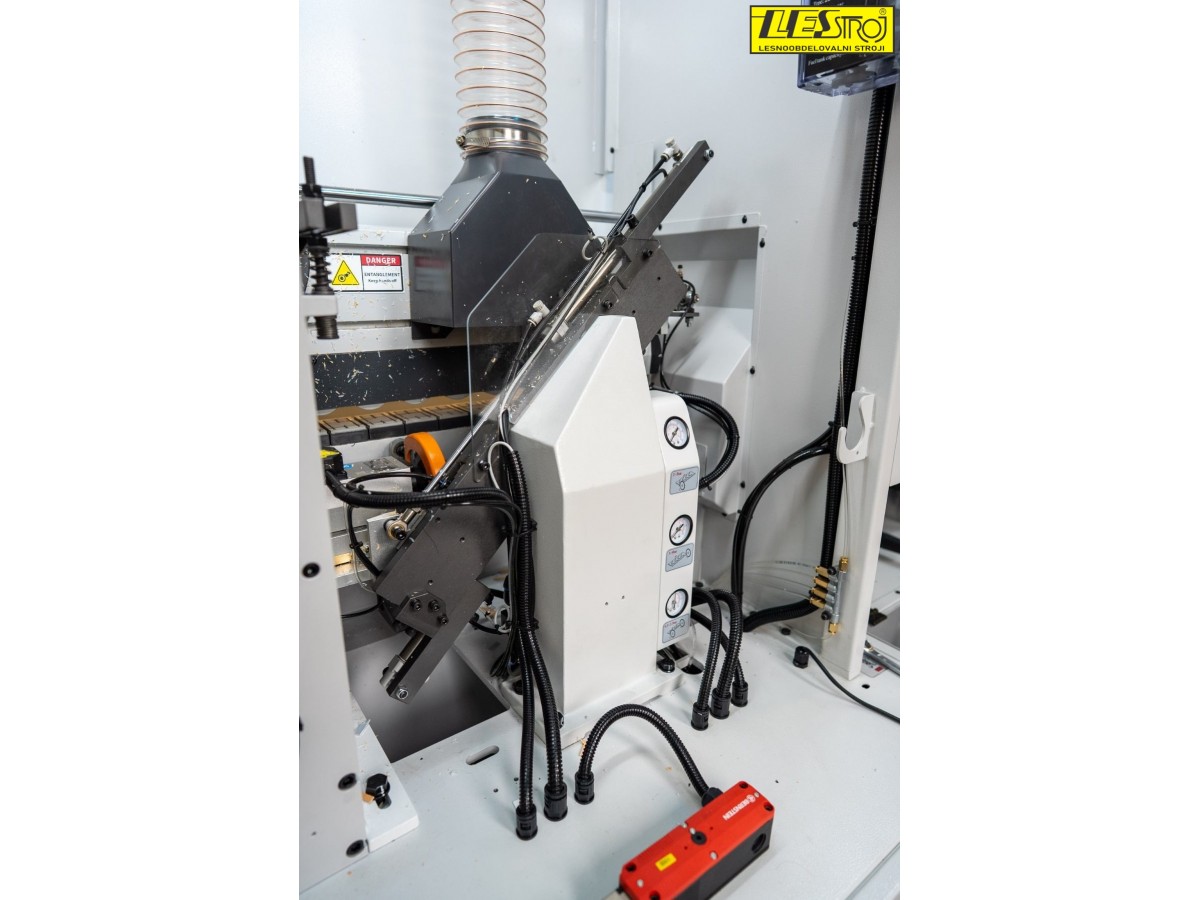

  • Tilting copy cutter with “nesting” wheels
    No punch marks on pre‑drilled panels.

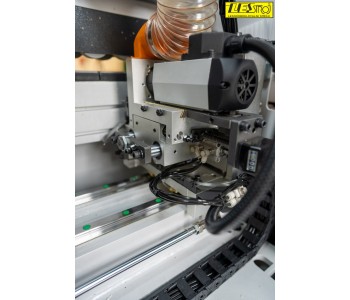

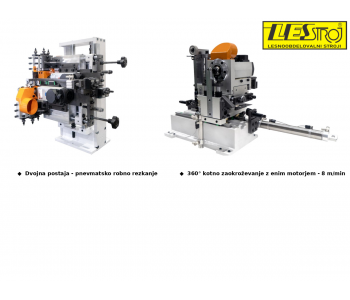

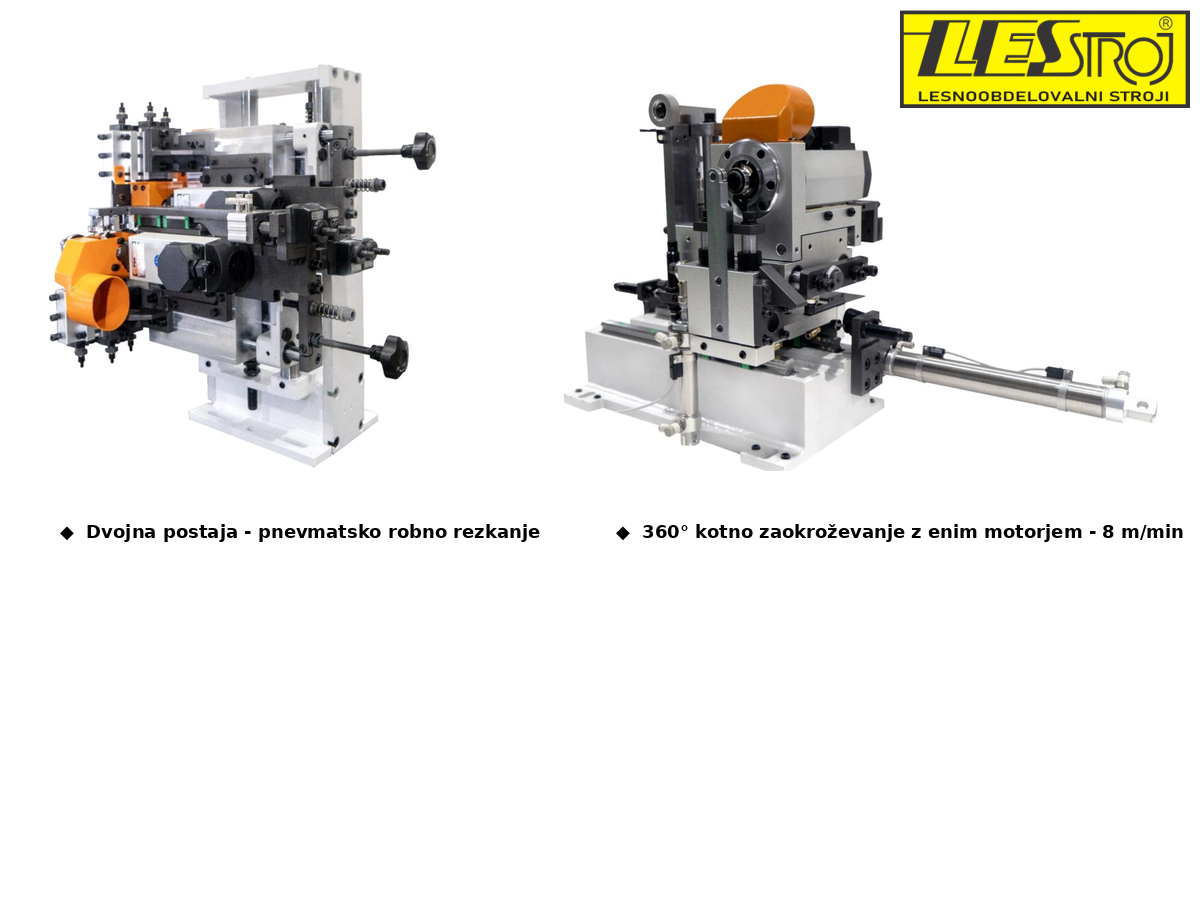

  • Rondomat on dual prismatic guides
    Extremely reliable and above‑average finish for this type of unit.

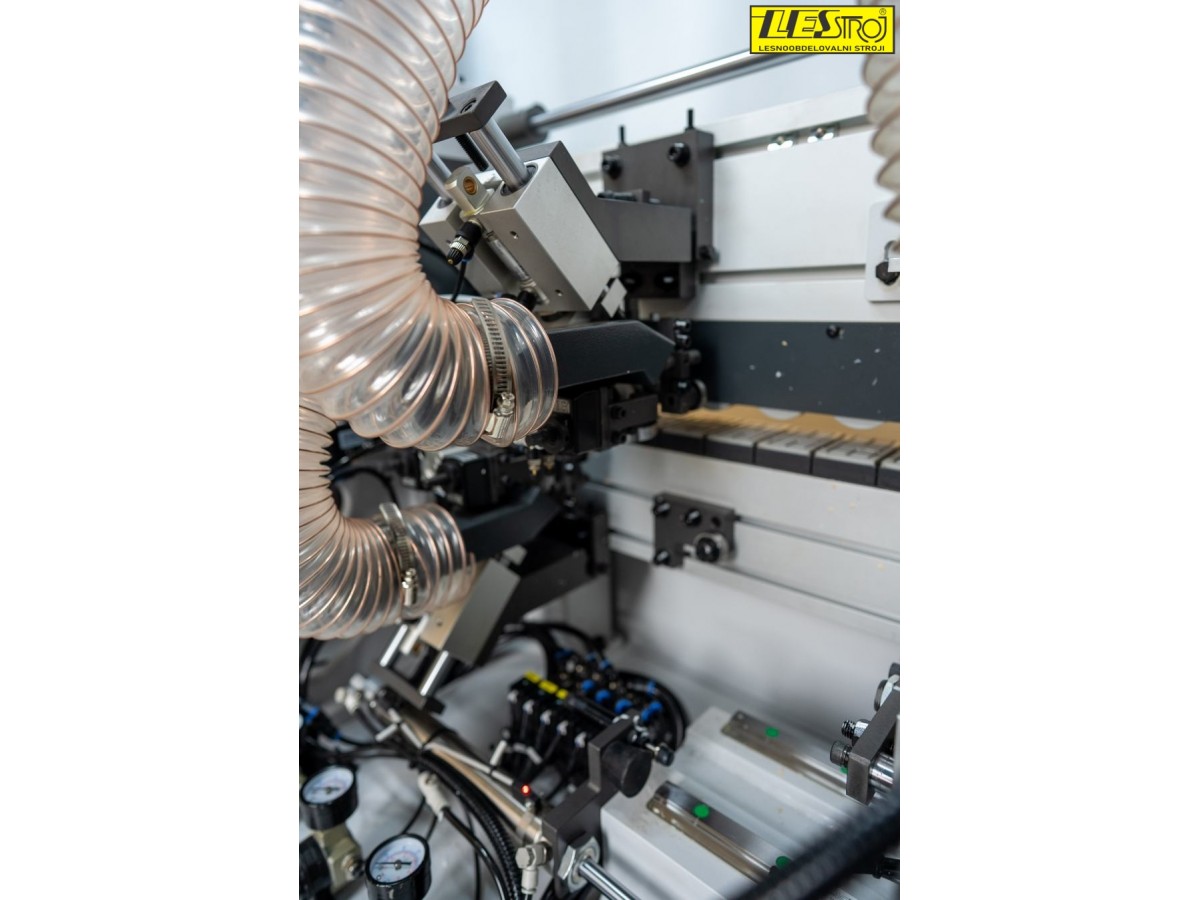

  • Flat and radius scrapers
    Robust design, excellent extraction, smooth surface—no hand touch‑ups.

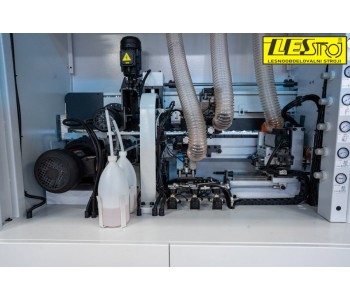

  • Dual fluid system (separator + cleaner)
    Edges stay clean, glue doesn’t smear, finish looks identical on both sides.

Technical data – KDT 268JSA edgebander

Feed speed 8 – 12 m/min
Working height 10 – 60 mm
Min. panel size 90 × 120 mm (no corner rounding)
9 – 30 mm thick: min 120 mm for Rondomat
30 – 60 mm thick: min 250 mm for Rondomat
Total power 15 kW
Extraction volume 5 860 m³/h
Machine dimensions 4 230 × 830 × 1 730 mm
Weight ≈ 1 750 kg

The KE‑268JSA is a compact “workhorse” that delivers an industrial‑quality edge without the industrial price tag—or the maintenance hassle. If you need a machine that—just like your team—works fast, precisely, and without excuses, this is the one.

Product Details

Data sheet

Feed speed
8-12 m/min
Radius (R)
1 in 1,5 mm ali 1 in 2 mm
Workpiece thickness
10-60 mm
Connection capacity
15
Machine dimensions
4230 x 830 x 1730
Weight (kg)
1800
