The machine offers two modes of operation: processing flat surfaces or processing curved parts, using natural strips and synthetic roll material. Automated feeding of edge material to the gluing area from the...

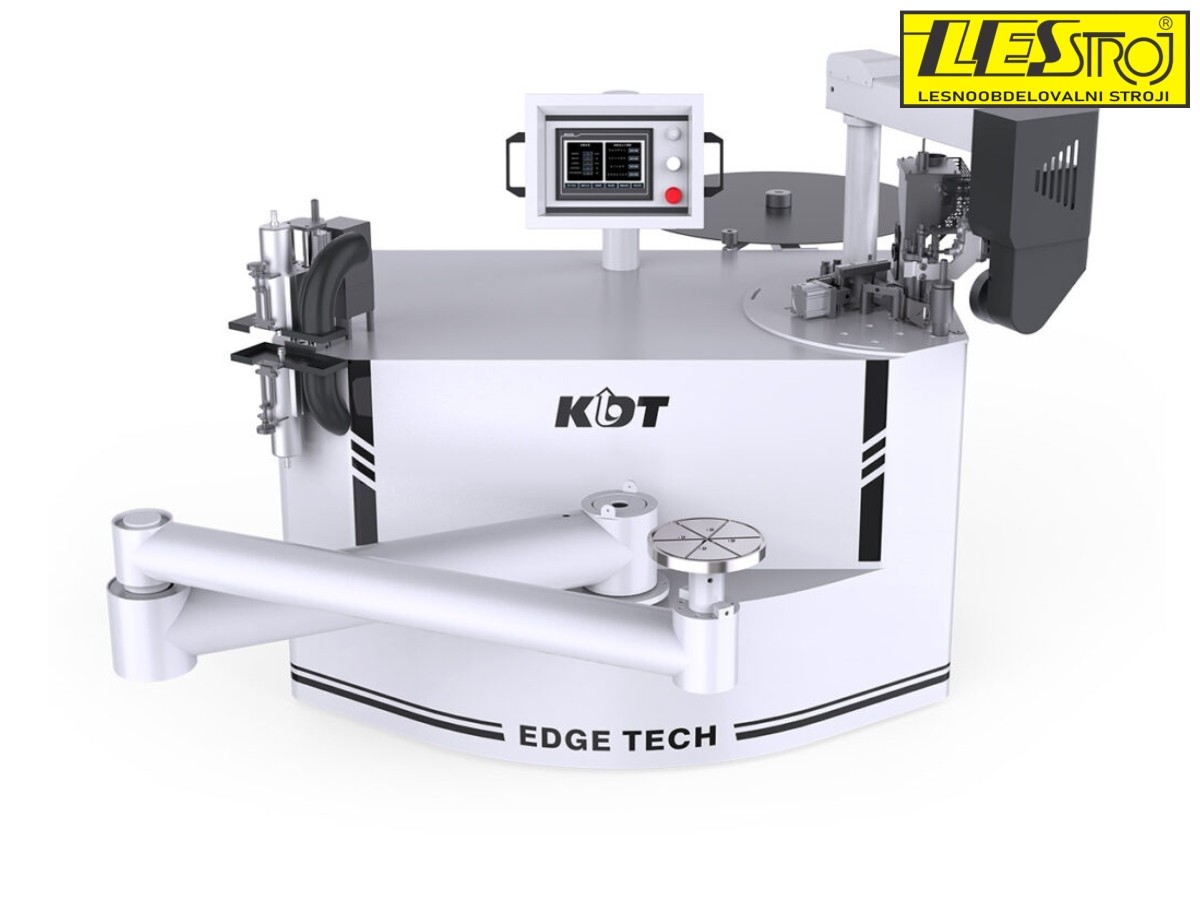

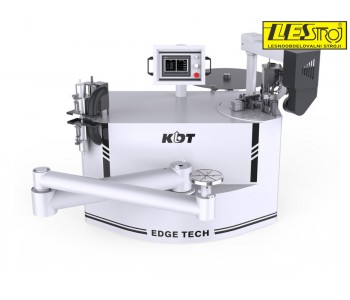

KDT-305MT – new generation of contour edge bander machines
Brand:
The KDT-305MT is a smart contour edge bander that, with advanced technology, precision, and ease of use, delivers superior processing of irregular edges on round, oval, and curved panels. Its compact design, automation, and innovative solutions ensure that every piece of furniture shines with perfect aesthetics – reliably, efficiently, and without compromise.
KDT understands customer needs and delivers top-tier solutions with the new KDT-305MT edgebander for processing irregular edges. Ideal for corner shelves, oval tables and panels…
The compact design, space-saving footprint and adjustable rotating arm enable easy handling of edge banding on round, oval and rounded rectangular panels.
The result? Flawless aesthetics that turn every piece of furniture into a one-of-a-kind!
Precision and automation at the highest level

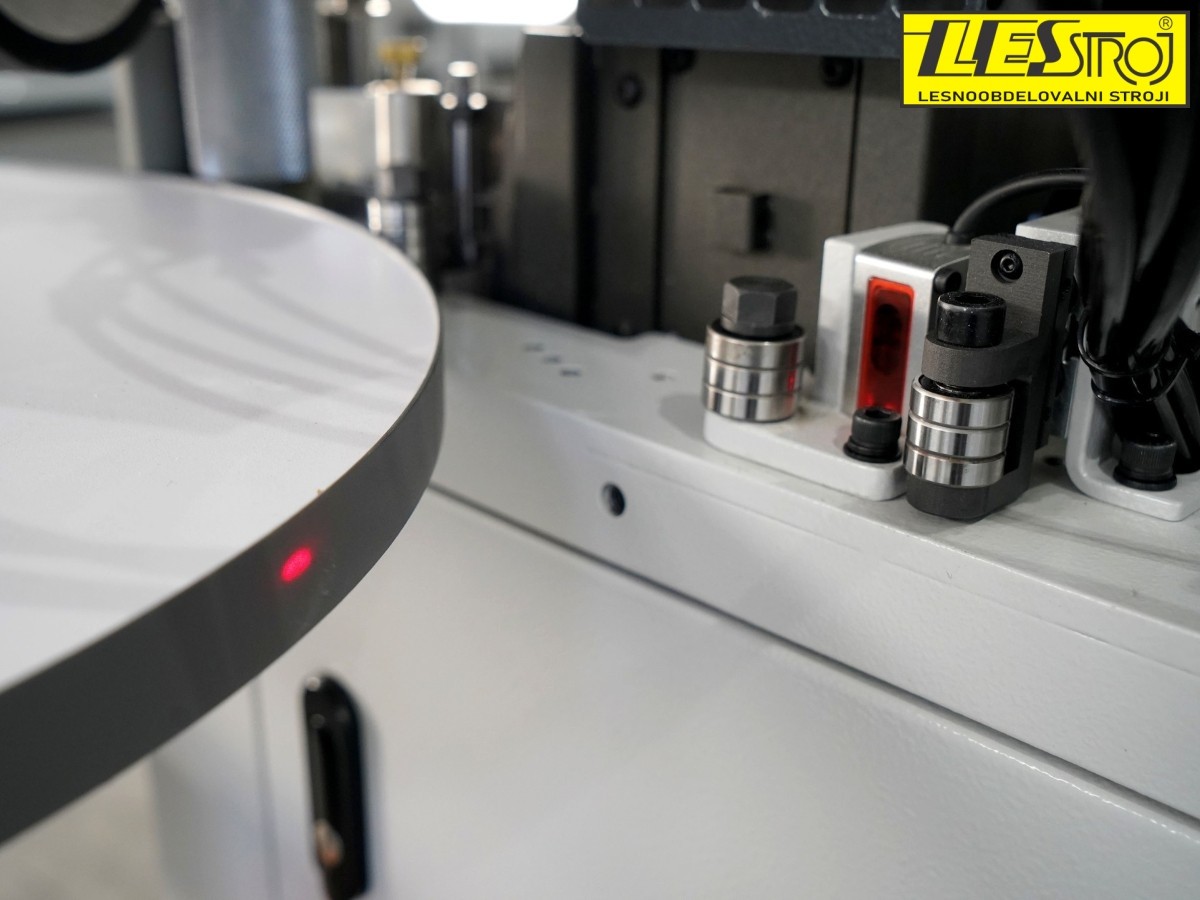

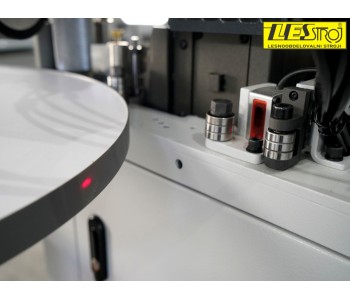

The KDT-305MT is equipped with an advanced laser sensor that automatically detects the remaining board length for edge processing.
With a tolerance of just ±0.3 mm (for straight edges up to 400 mm in length), it ensures exceptional accuracy and seamless bonding.
Performance, stability and ease of use
- Powerful vacuum clamping ensures stable holding of the panel for smooth and precise gluing.
- A foot pedal provides simple activation of the clamp and tape feed.
- Automatic panel feeding adapts to different thicknesses, boosting productivity.

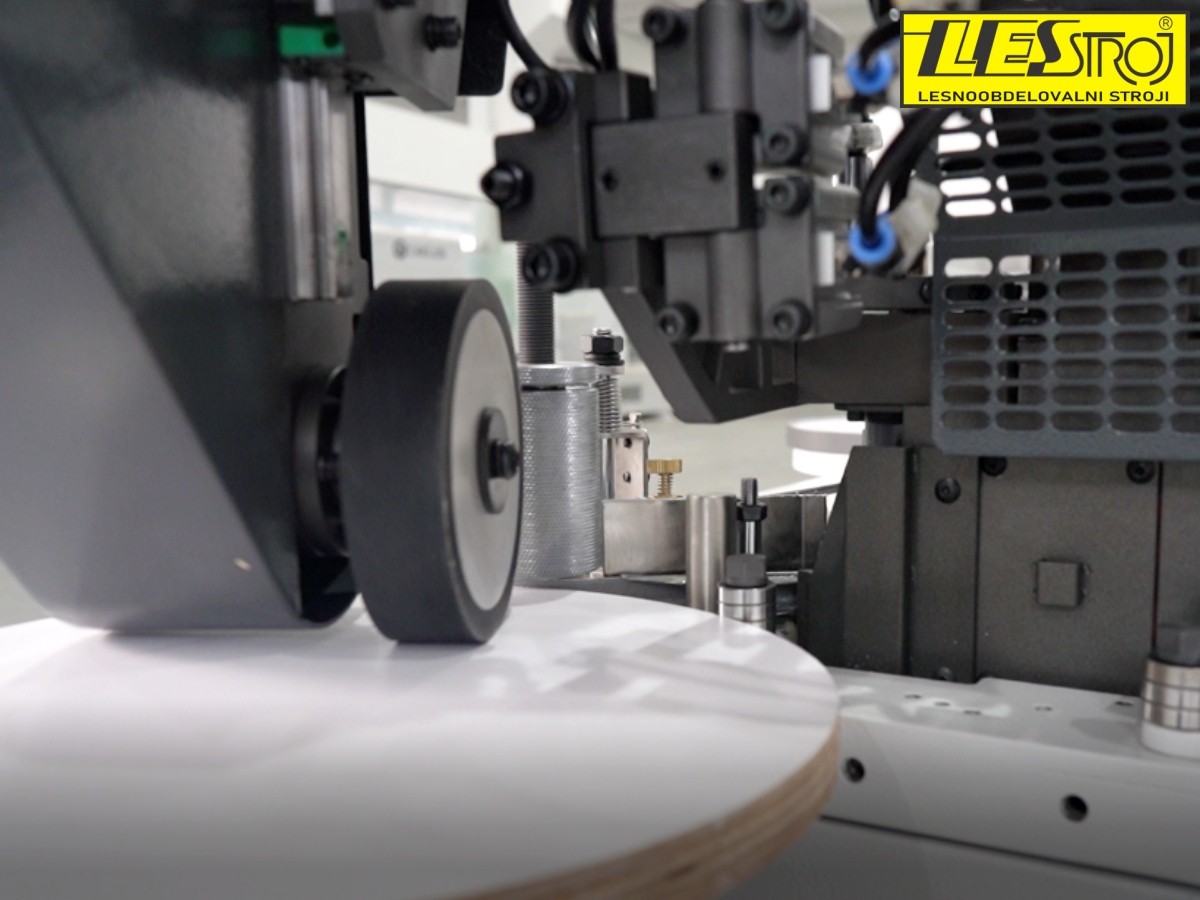

- Two-stage post-bonding pressing secures a firm adhesion of the tape to the workpiece.
Smart technology for perfect results

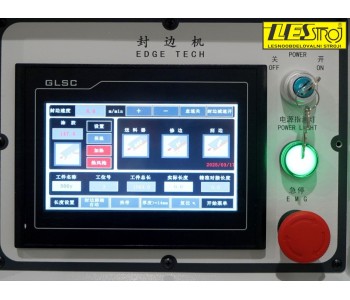

- An intuitive user interface enables quick and easy machine setup.
- Automatic adjustment to panel thickness provides flexibility in operation.

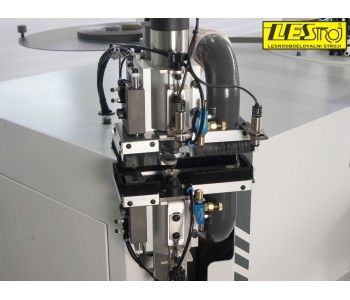

- Simultaneous top and bottom trimming delivers a seamless finish in a single pass.
- Innovative glue pot suitable for both EVA and PUR adhesives.
- The glue pot is identical to those on other KDT edgebanders – advantage: the same pot can be used across all KDT machines.
Technical specifications
- Band width: 14–70 mm
- Band thickness: 0.4–3 mm
- Edgebanding speed: 0–18 m/min
- Minimum radius: R20
