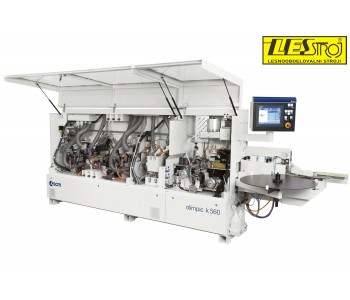

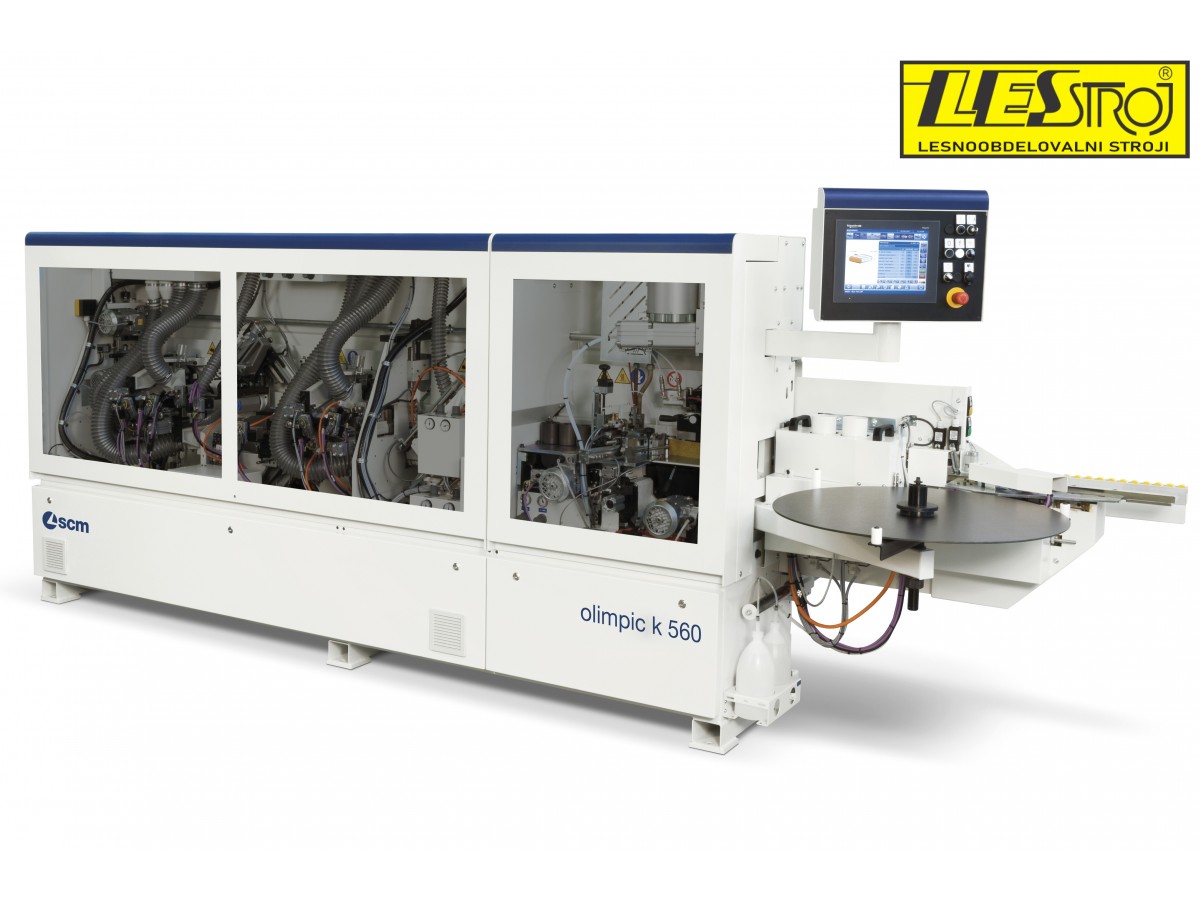

Edge Bander OLIMPIC K560

Versatile and with high performance. Olimpic K560 is now improved with many solutions that guarantee always the best machining on any panel type.

FEED SPEED up to 18 m/min and a 600 mm distance between panels also during rounding operation.

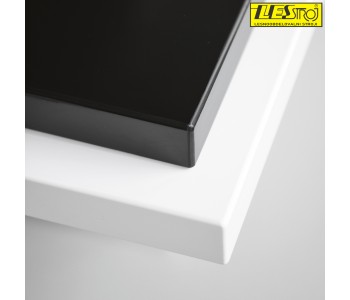

VERY HIGH PANEL QUALITY because of the simultaneous edge trimming operation thanks to the 2 MOTORS ROUNDING UNIT

RAPID WORK CHANGEOVER BETWEEN 2 DIFFERENT RADII, thanks to the Multiedge devices with NC controlles axes for endless thin edges and solid wood edges

TOUCH 7 and STARTOUCH controls with Touch-Screen colour display for error free machining and optimum visualisation of information.

Request for more information

Product inquiry

I want contact by: *

Contact details:

Condition
New product
Brand:
Add to wishlist
Description

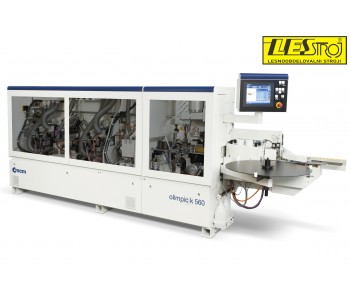

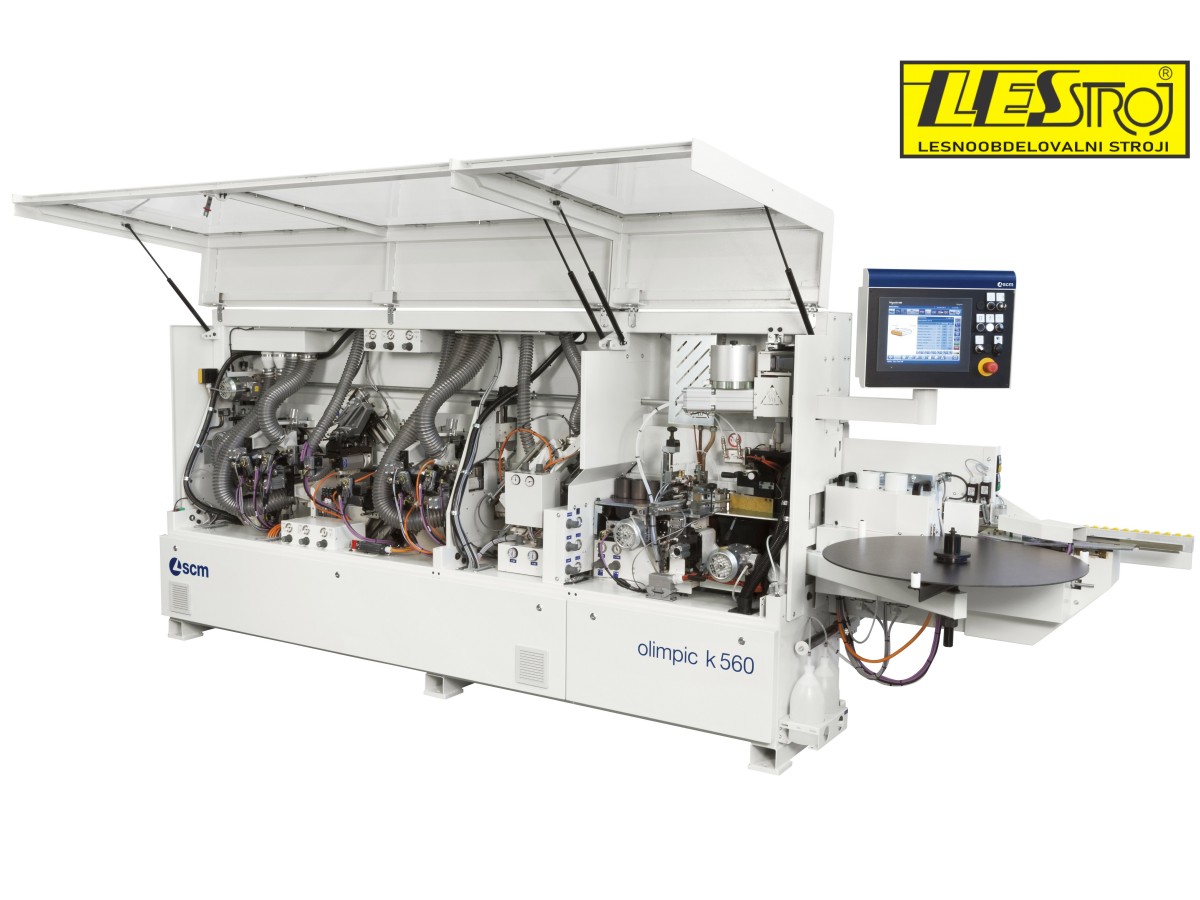

Edge Bender OLIMPIC K560



Olimpic K560 compact and productive edge bander. It is designed to operate many hours on daily bases. It has a feed speed of 18 m/min. It is the ideal solution for all companies that require high productivity when machining a large number of panels at the same time.

ADVANTAGES:

- ''Round X'' rounding unit

- ''R-K'' trimming unit with 3 differenct machining methodes

- ''Touch 7'' screen

Product Details

Data sheet

Workpiece thickness
8 - 60
Min./max. edge strips thickness
0,4 - 6
Compressed air (bar)
6
Images

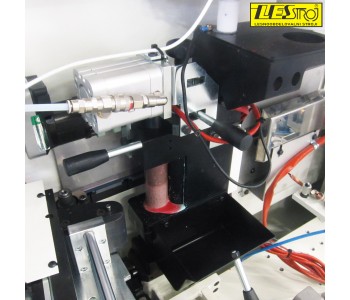

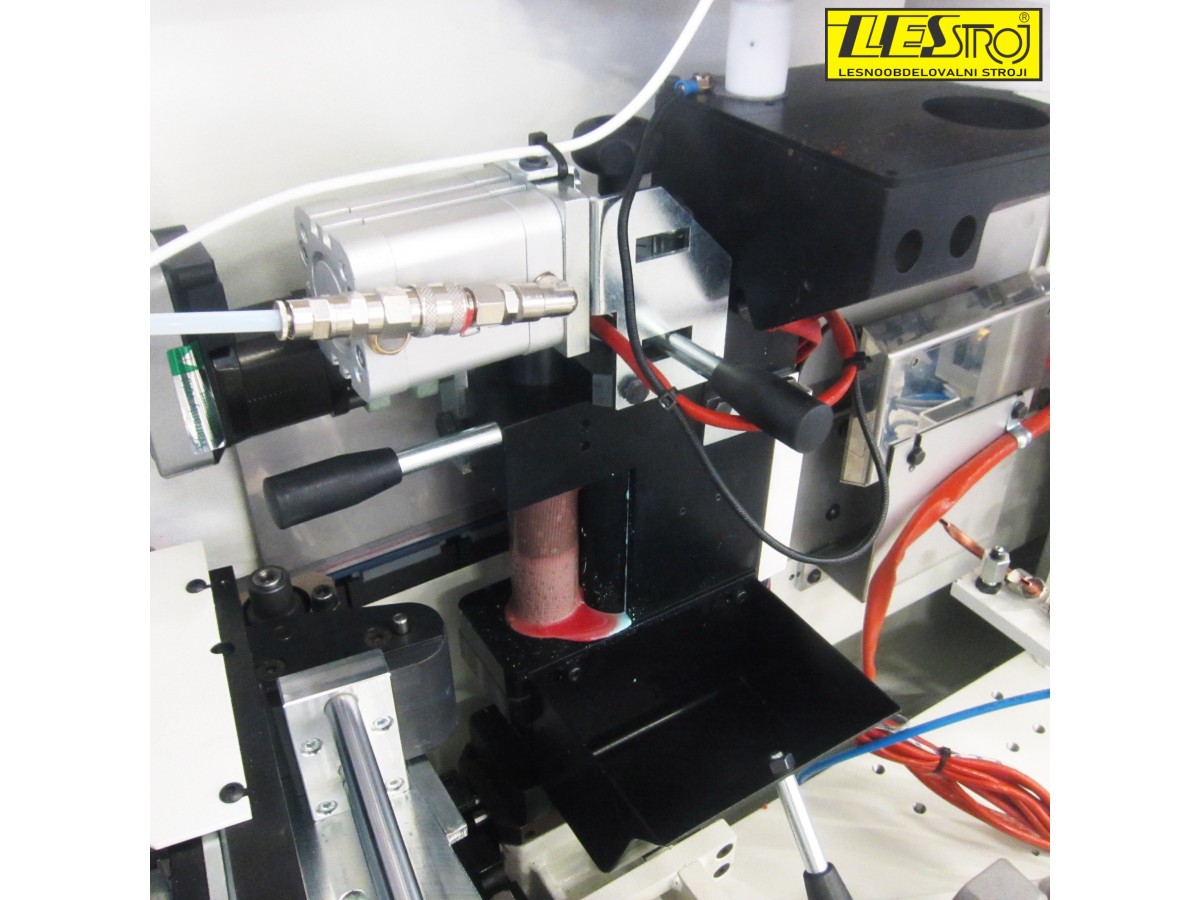

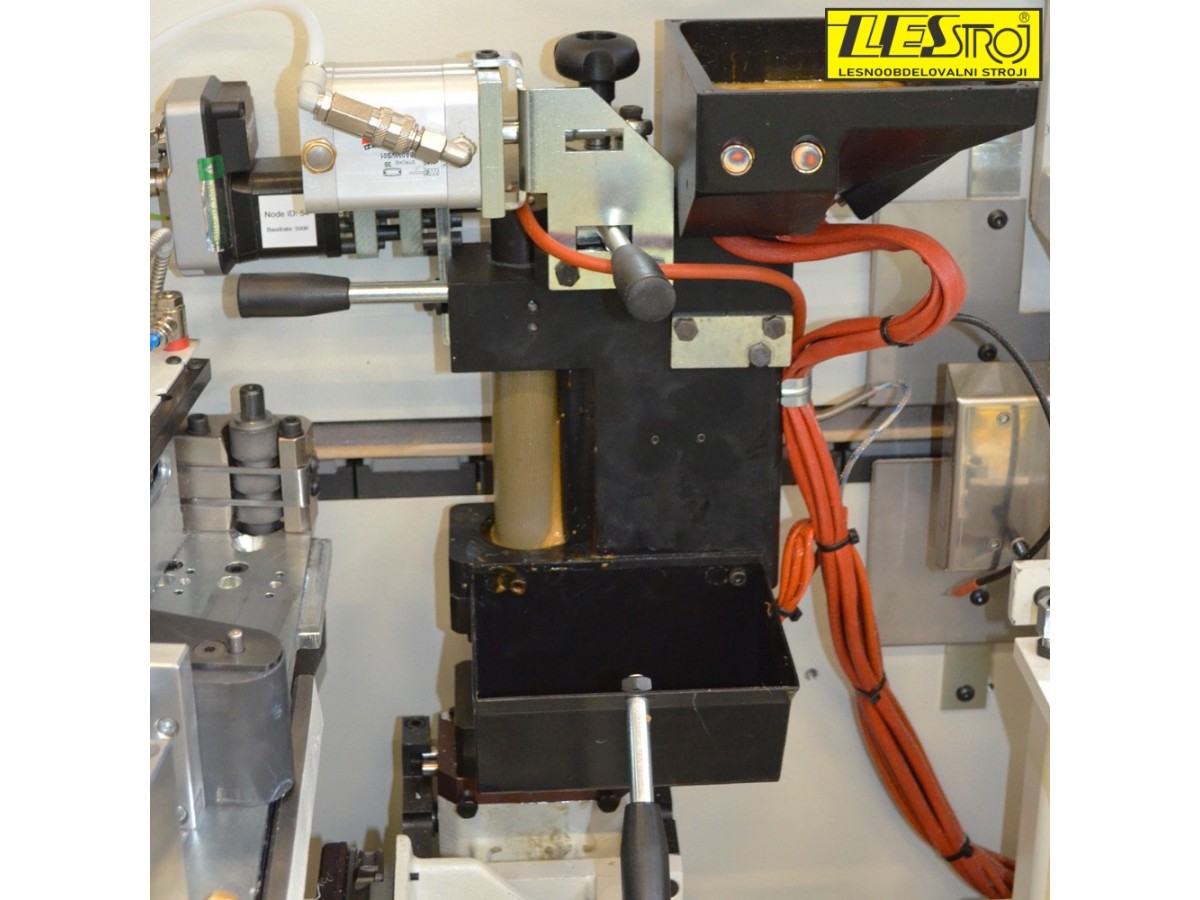

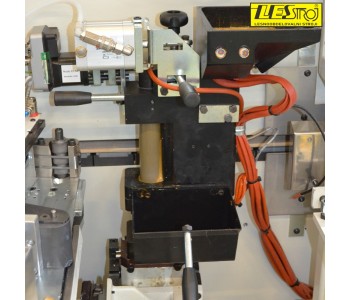

"SGP" glue pot with automatic dosing by NC in...

It allows a quick changeover of the used glue type / color. The glue pot is supplied in place of the standard one with manual feeding or by the standard pre-melting system
Features: - specific compact design that reduces to a minimum the melted glue before application in order to maintain the best quality characteristics, - spreading roller with optimized graining and PLASMA anti-adherent treatment, - automatic emptying cycle with the collection of the residual glue on a removable tank, - automatic locking of glue loss with a stopped machine (SCM GROUP patent), - automatic adjustment of the dosage adjustment by NC according to the used glue and / or the panel type and finish quality, - quick release device for removal and easy replacement of the glue pot, - simple and quick access for internal cleaning with the possibility to disassemble all parts, - short time of heating of the glue during the start of the machine thanks to its small dimensions, - double thermo-regulation system for a simple use of two types of glue with different melting temperature
Technical data: - heating time from environment T °: <10 min, - heating time from pre-heating T °: <5min - glue capacity: 0,5 Kg with pre-melting system or 1,5 Kg with Manual feeding, - installed power: 2.63 kW
N.B. - it is necessary to select the "Touch 7" or "Startouch" control systems in case they are not present, - not available with "AirFusion" or "AirFusion prearrangement".

RT-V pre-milling unit - adjustable in height

Olimpic K560 enables automatic removal of material according to the thickness of the edge strip. This avoids unnecessary errors in cutting material.

Alignment of the edges before application of the glue for better bonding. Problems with cutting the chipboard with help of the pre-milling unit are no longer a problem!

R-HP Multiedge 2R trimming unit

Multifunctional blade with two different radii and processing of thin strips and massive edge strips up to 8 mm.

4-axes NC position
controlling of the trimming unit.

The possibility of direct longitudinal rounding of non-edged workpieces (i.e. MDF to be painted subsequently).

Differentiated machining between upper and lower side (i.e. trimming with upper radius and lower straight trimming).

Large diameter roating copying discs for maximum positioning accuracy.

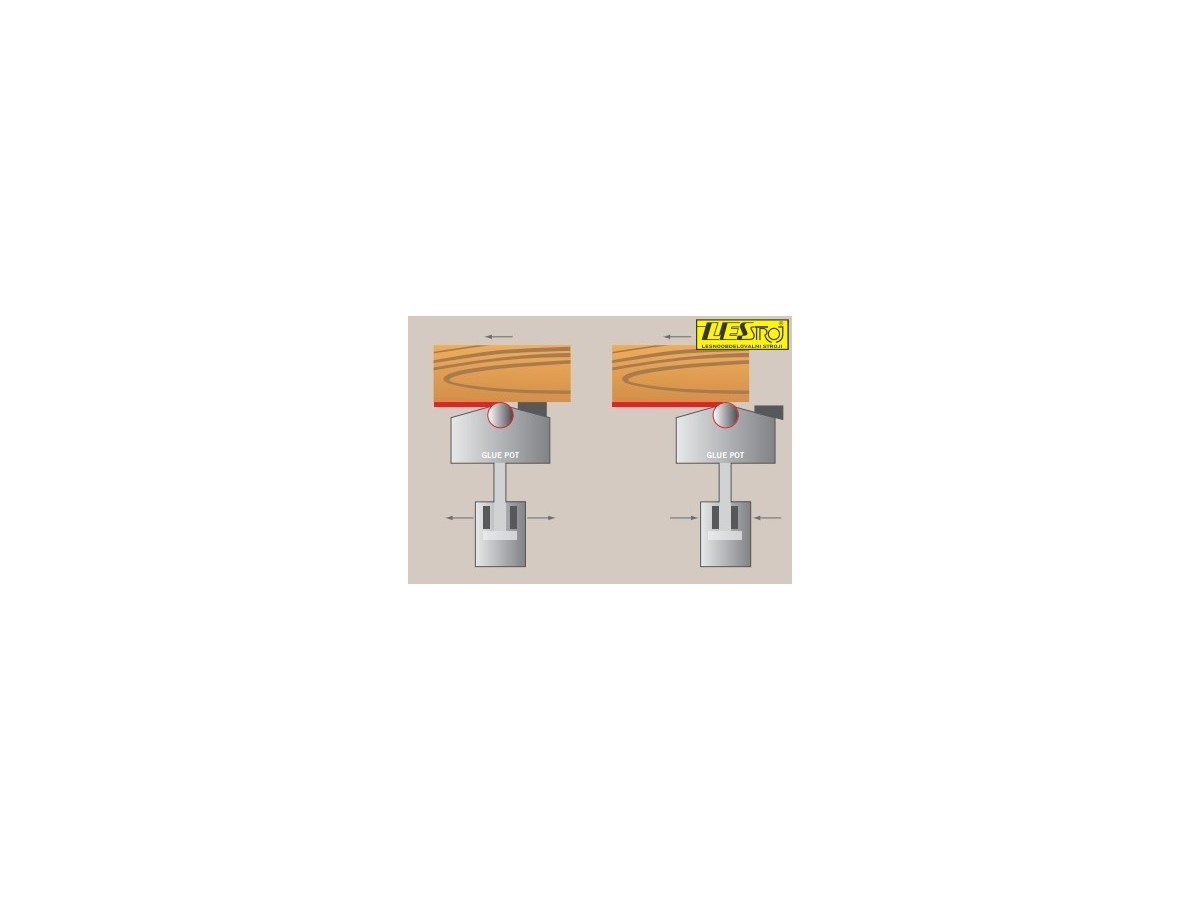

Innovative Solution IGLUE

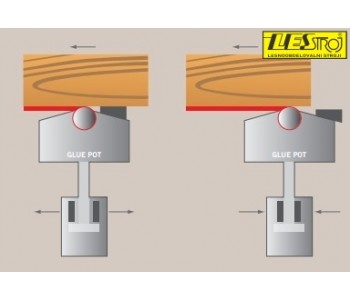

IGLUE prevents the possible outflow of excess glue on the corners.

Rotating copying discs

Processing of delicate materials such as matte and high gloss as well as high static material require an ideal guiding of the workpiece through the machine. Olimpic K560 has bearings on all aggregates which enables the high quality processing also with modern sensitive materials.

Manage the glue pot over the computer

The NC dosing of the glue and the automatic cleaning cycle are controlled just by pressing a button.

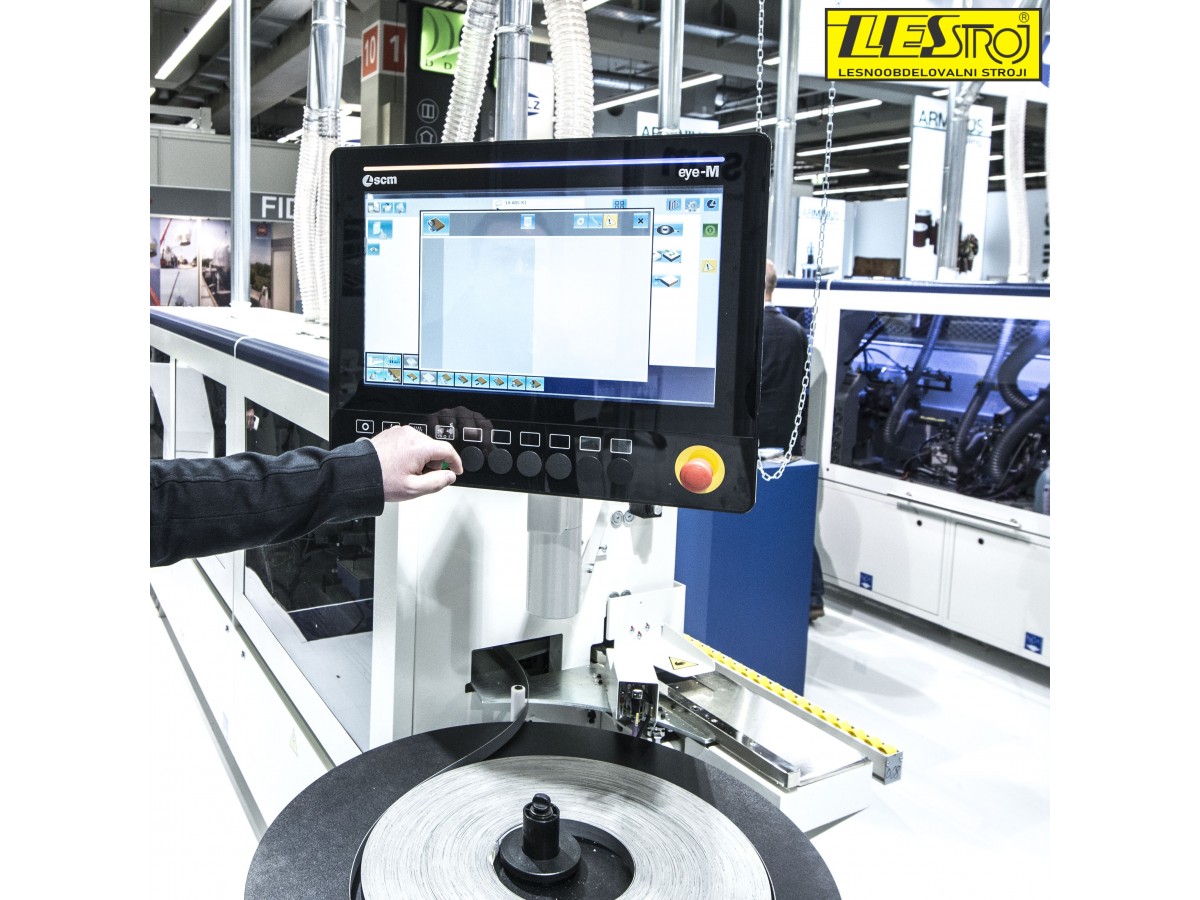

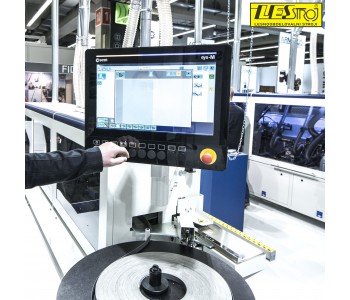

New control consolle EYE-M with 21.5-inch display

"Just in time" programs.

Connectivity with Industry 4.0.

Multi-touch 21.5-inch display.

3-dimensional virtual overview.

Maestro Pro Edge software, compatible with other Maestro modules.

Designed for industrial conditions (dust protection, grade protection IP53).

"SAV€NERGY" Kit

It allows to optimisation of the machine's energy consumption in order to eliminate any wastage. The device includes the following functions:

- machine in stand-by in case of temporary non-usage

- optimised exhaust system for the operating units

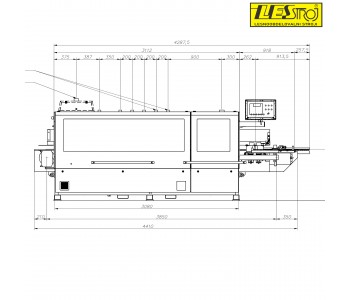

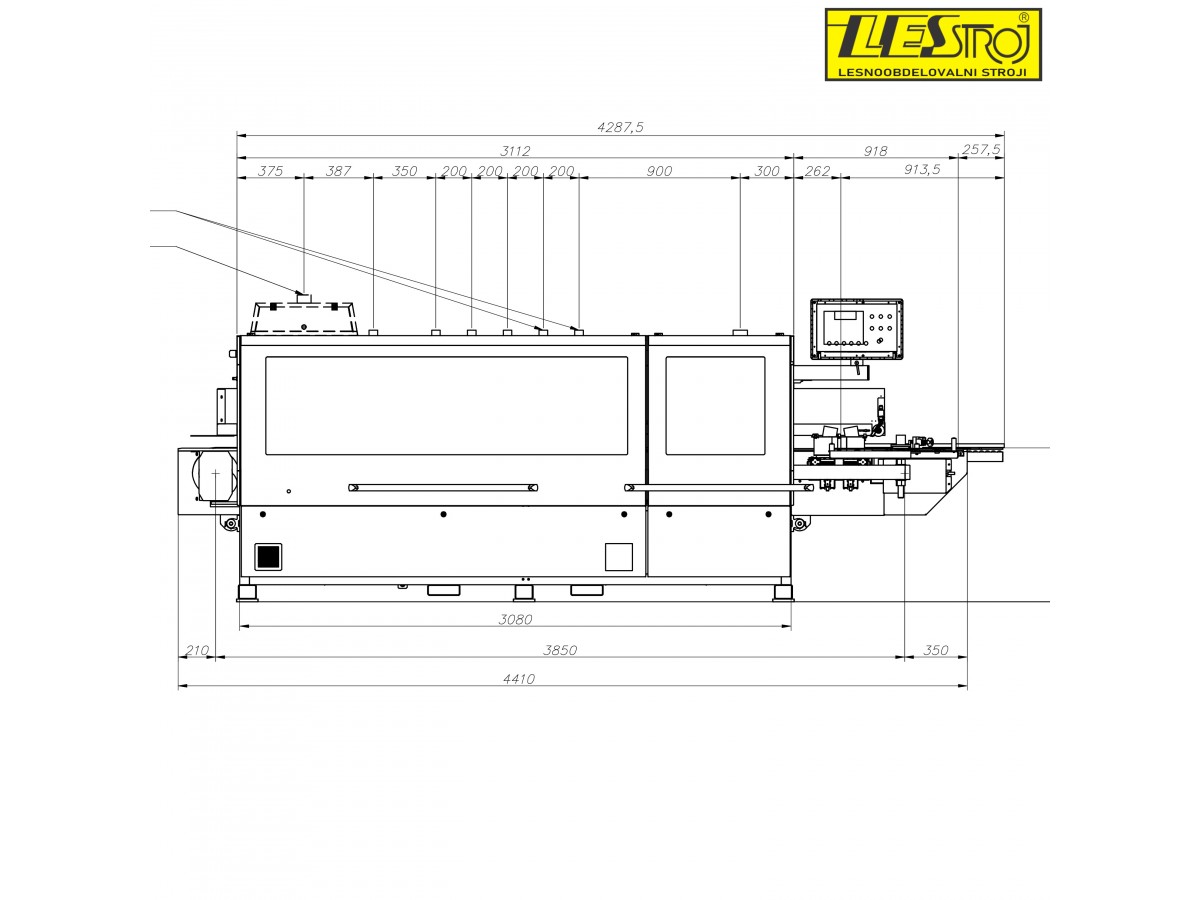

Dimensions Olimpic K560 T-ERL

The total length of the machine is only 4280 mm!

The distance between the entry and the exit of the workpiece is only 3110 mm!

The usage of PU glue is simplier than ever

The usage of the PU glue is very simple. Adjusting the amount of the glue can be automatically controlled over a computer. Cleaning is done automatically with a cleaning granulate.

Automatic dosing of the glue in the SGP glue pot

The 4 kg glue container automatically doses the minimum dosage of the glue in the SGP glue pot. This way the optimum quality of the glue is achieved and consequently excellent bonds are made.

Statistics, diagnostics, controlling and settings of all...


RAS-HP 2R edge scraping unit

4-axes NC scraping unit moving with 2 different radii (example 1 and 2 mm). All settings are made over the computer.

Cleaning the SGP glue pot just by pressing a button!


NESTING wheels

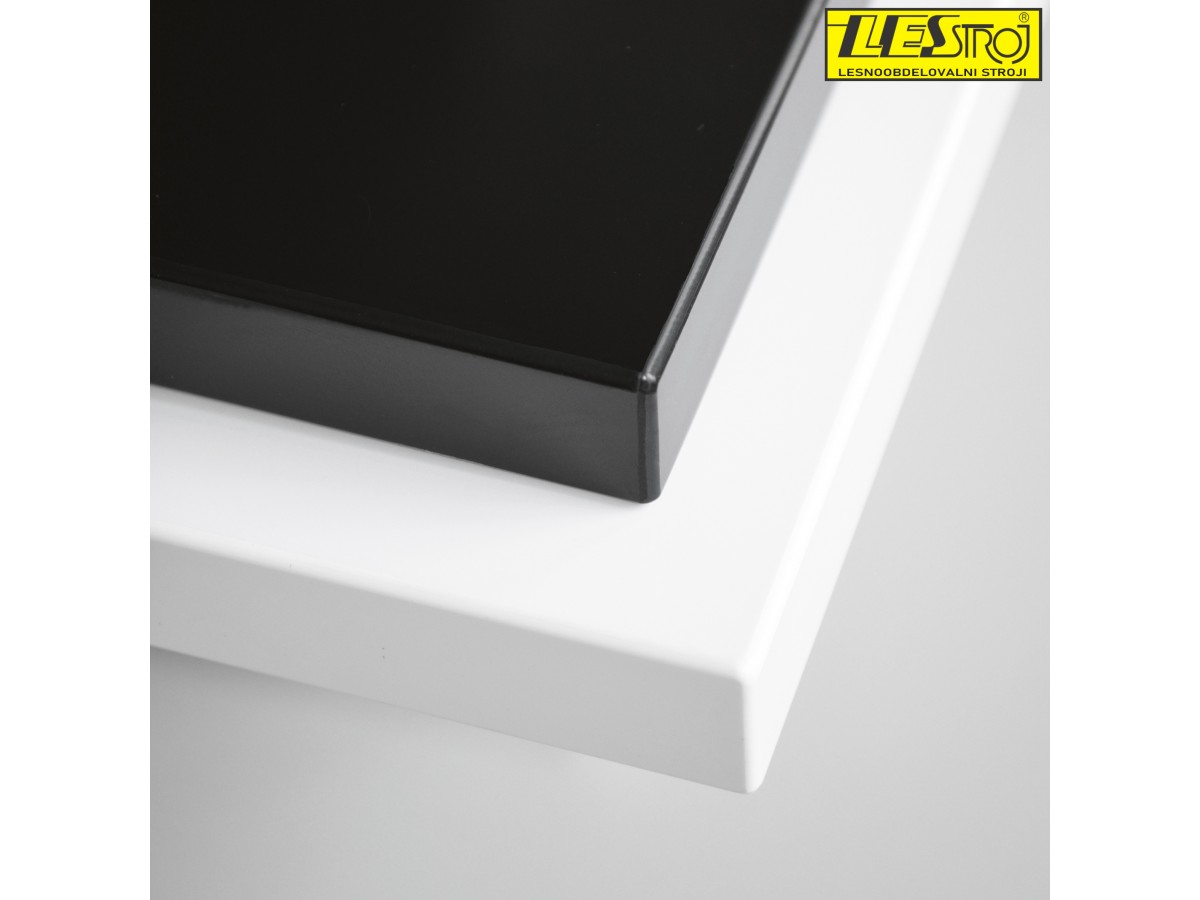

With using PU glue to the maximum corner quality

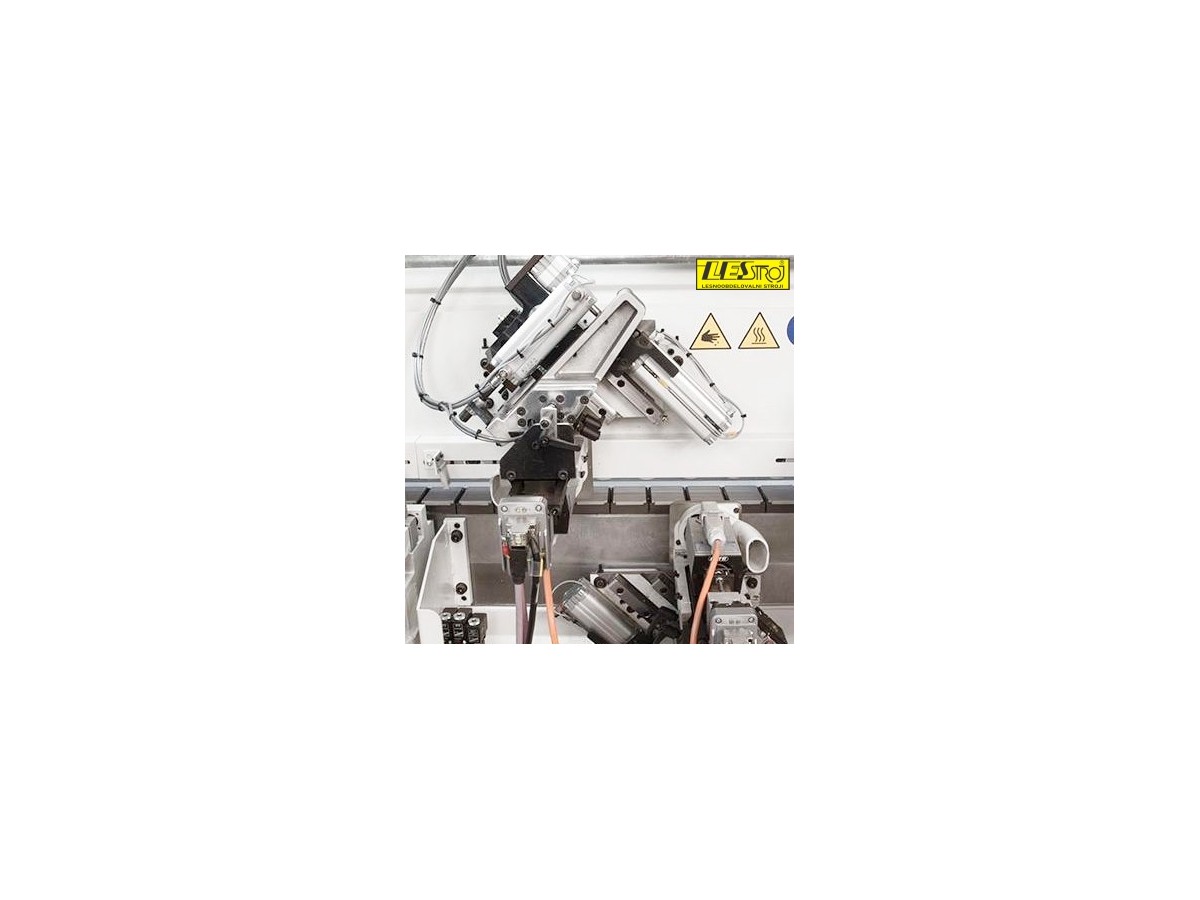

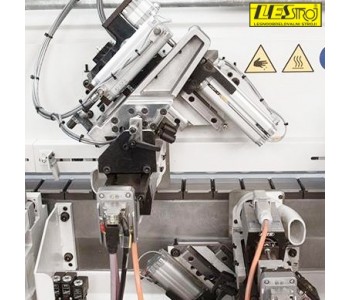

Round X rounding unit - with two motors - NEW

Multifunctional rounding unit - longitudinal processing and rounding the corners.

2 exchangeable motors on prismatic guideways.

2-axes NC setting of the aggregate position.

Possibility of different processing settings: flat, rounding.

With the combination of the trimming unit and the multifunctional rounding unit the double processing of the tape for optimal finishing is possible.

Adjustable pressure rollers

The pneumatic pressure of 3 edge pressure rollers can be easily and quickly regulated to achieve optimum pressure for various materials.

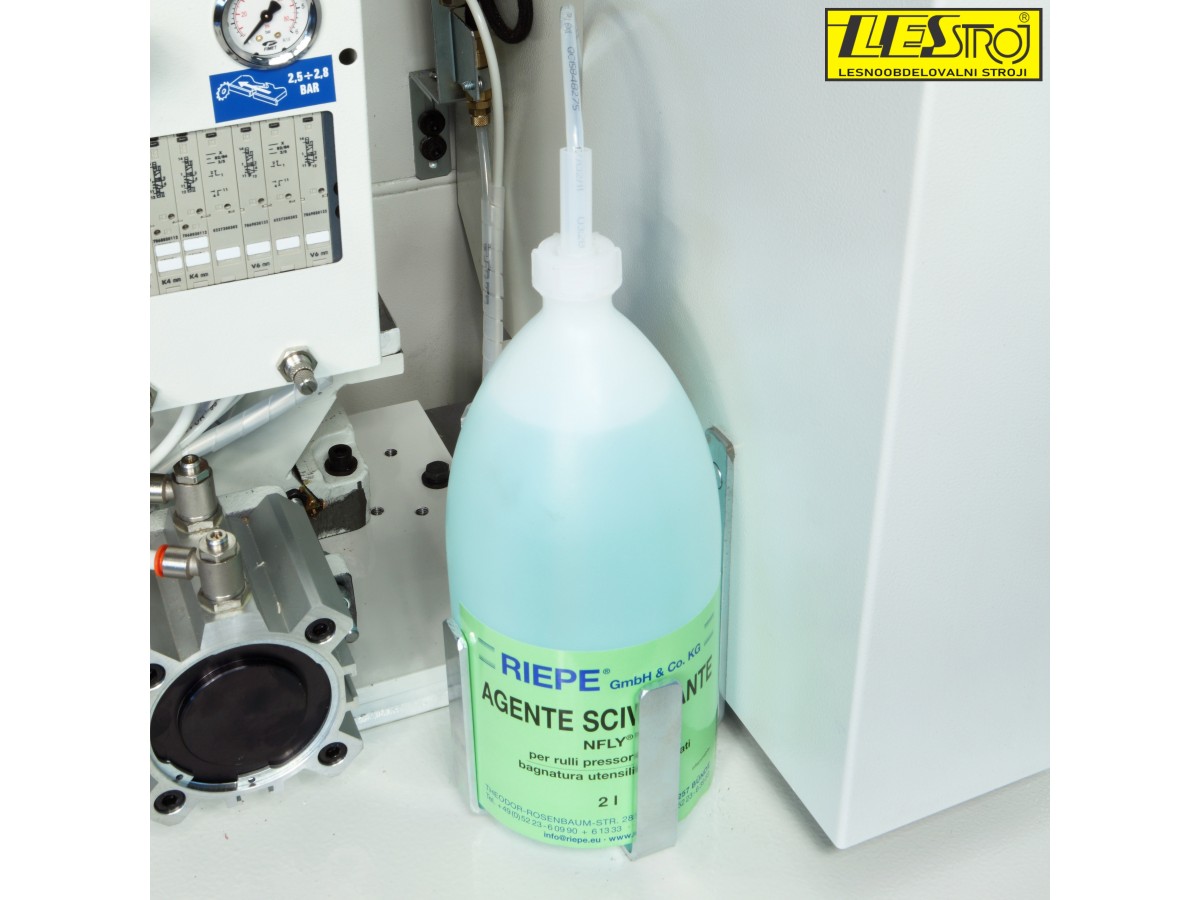

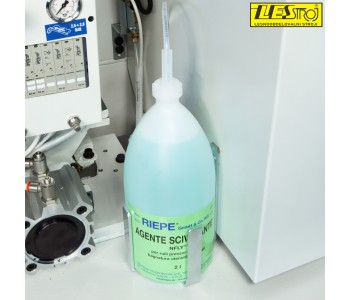

3 units of Riepe liquid application

Anti-adhesive unit in the machine entrance.

Spray-mist device for edge finishing is positioned before the glue scraper and/or brushes.

AIRFUSION+E device for edge application

Application of the co-extruded and pre-glued edge by means of a high temperature compressed air blower which allows to melt the specific functional layer of the edge and the following gluing to the panel. The device consists of: - two-stage air-heating unit with double electronic temperature control (for optimum melting temperature control of the functional edge layer, both temperatures can be set from the machine control), - air blower head, applied before the first edge pressure roller, - opening and closing adjustment of the head borings when varying the edge thickness, through knob and numerical indicator, carried out in a single operation together with the top edge guide, - air blower on the edge, activated only when the panel is present; in this way the compressed air consumption is optimized, - the spray-mist device for the edge cooling (Riepe liquid LP289 / 99) positioned to the end of the edge pressure roller prevents adhesion of the chips on the tools and improves the panel finishing.
