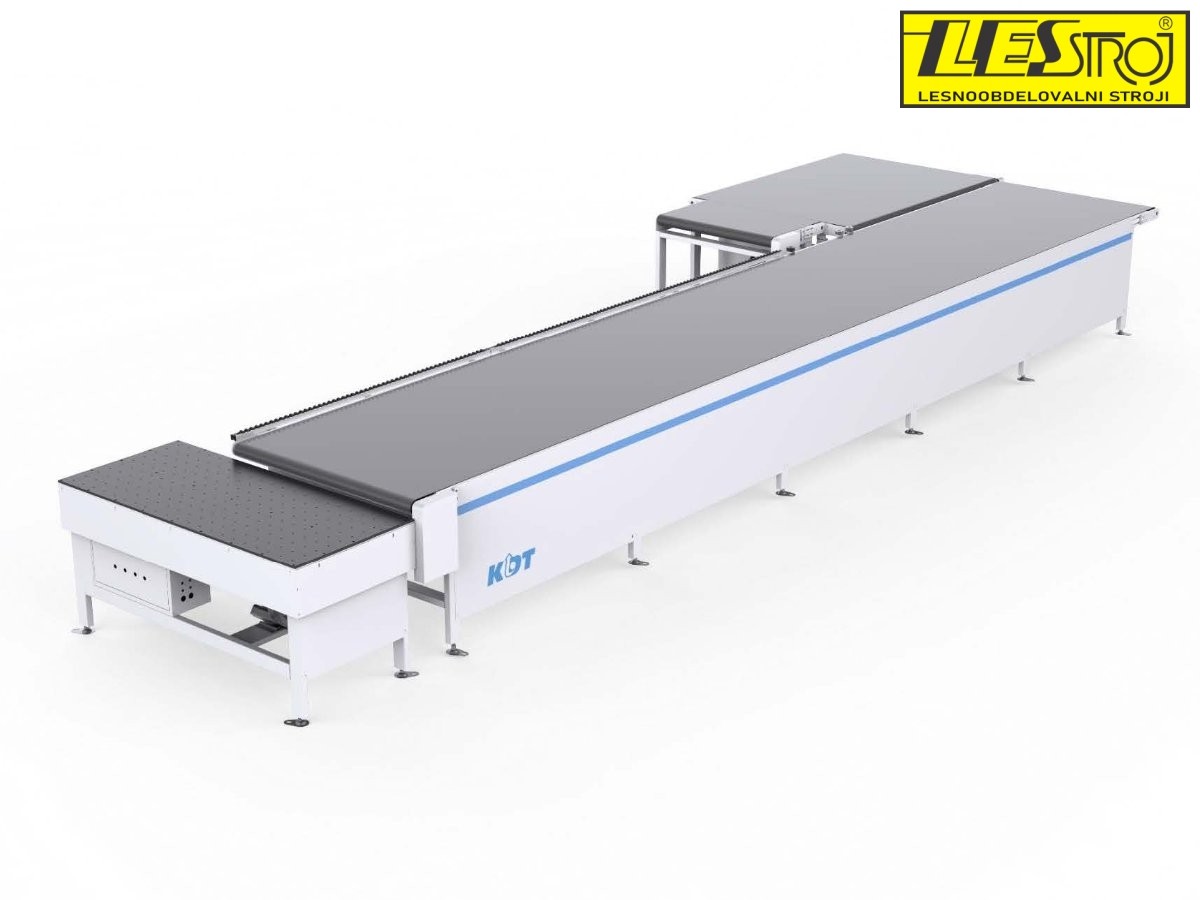

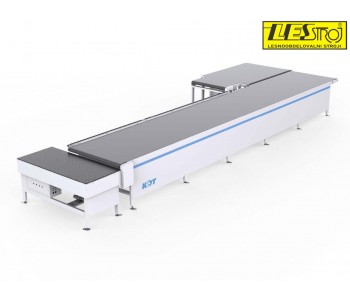

KDT KHF-530 return system for edge banding workpieces

Features:
• Adjustable speed from 13 to 18 m/min via frequency inverter; synchronized with edge bander
• Max workpiece dimensions: 2400 × 1200 mm (L × W), thickness 10–60 mm
• Min workpiece dimensions: 350 × 100 mm (L × W)
• Transport surface: 3 parallel belts + air table to avoid scratches
• Machine dimensions: 8860 × 2950 × 900 mm (L × W × H)
• Power: 2.3 kW total installed power

Practical advantages:
1. One worker can handle full cycle – no extra operator required
2. Quick thickness and size adjustments without mechanical settings
3. Surface protection with air cushion and rubber belts
4. Compact layout – stays in-line, no space for receiving tables needed
5. Synchronized return speed – eliminates jams, keeps production flow

KDT KHF-530 is the perfect choice for: CNC Nesting Machines, NC Drilling/Routing Machines, Universal CNC Machines, Edge Banders, Beam Saws, Sliding Table Saws, Automation, Door Production, Automatic plate storage
