Adjustable chamfer cutter 663.201.11 –45°/+90°

Adjustable chamfer cutter 663.201.11 –45°/+90°

The CMT adjustable chamfer cutter with two interchangeable HW blades for cutting workpieces at an angle ranging from 45° to ± +90°. It is possible to adjust the blade angle at intervals of 7.5 degrees.

€638.10
Last items in stock
Condition
New product
Reference:
007083
Description

The cutter head is made of steel, and it enables fast and accurate processing of material at different angles ranging from 45° to ± +90°.
The blades can be adjusted to the desired angle at intervals of 7.5°. The blade width is 39.5 mm.
The router bit is suitable for processing solid wood, wood composite materials and similar material.



The 663.201.11 set includes:
–    cutter head,
–    two blades – 39.5 × 12 × 1.5 mm (790.395.12),
–    shank diameter: 20 mm.

Product Details
007083

Data sheet

Shank diameter (mm)
20
Total length (mm)
92
Diameter (D) (mm)
85
Processing height (mm)
39,5
Images

Processing dimensions at different angles


Chamfer cutter at -45°


Chamfer cutter at +45°

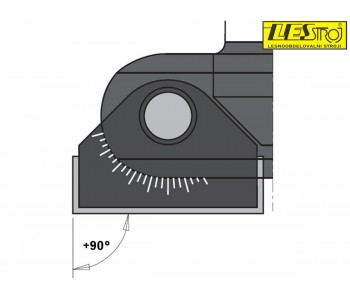

Chamfer cutter at +90°
