Professional adjustable chamfer cutter heads with gear box CMT 694.017 +90/-90°

Professional adjustable chamfer cutter heads with gear box CMT 694.017 +90/-90°

The professional adjustable chamfer cutter head with gear box with two interchangeable HW blades for cutting workpieces at an angle ranging from 0° to ± 90°. The blades can be rotated at intervals of 7.5°.

Limited time offer:
€561.45 €591.00 -5%
Request for more information

Product inquiry

I want contact by: *

Contact details:

Bore dia. (B/d-mm)
There are not enough products in stock
Condition
New product
Reference:
011562
Description

The cutter head is made of aluminium alloy, and it enables fast and accurate processing of material at different angles ranging from 0° to ± 90°. The blades can be rotated in intervals of 7.5°.

The blade width is 50 mm. It is suitable for use on conventional router machine and CNC machine.

The cutter head is delivered in a strong plastic case.

The 694.017 set includes:
⎻    cutter head,
⎻    two blades 50 × 12 × 1.5 mm (790.500.00),
⎻    blade changing tool.

Technical data of 694.017:
⎻    cutter diameter: 160 mm;
⎻    blade width: 50 mm;
⎻    borehole diameter: 30 or 35 mm.

Product Details
011562

Data sheet

No. of blades
2
Cut-out width
50
Diameter (mm)
160

Specific References

UPC
2345
Other product combination
Model Bore dia. (B/d-mm) Unit price Buy
694.017.30 30
€591.00
– 5%
€561.45
Call us
694.017.35 35
€591.00
– 5%
€561.45
Related products

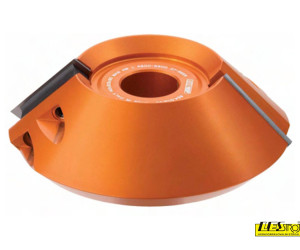

Cutter head CMT 694.002 45° D150 H35 mm Cutter head CMT 694.002 45° D150 H35 mm
