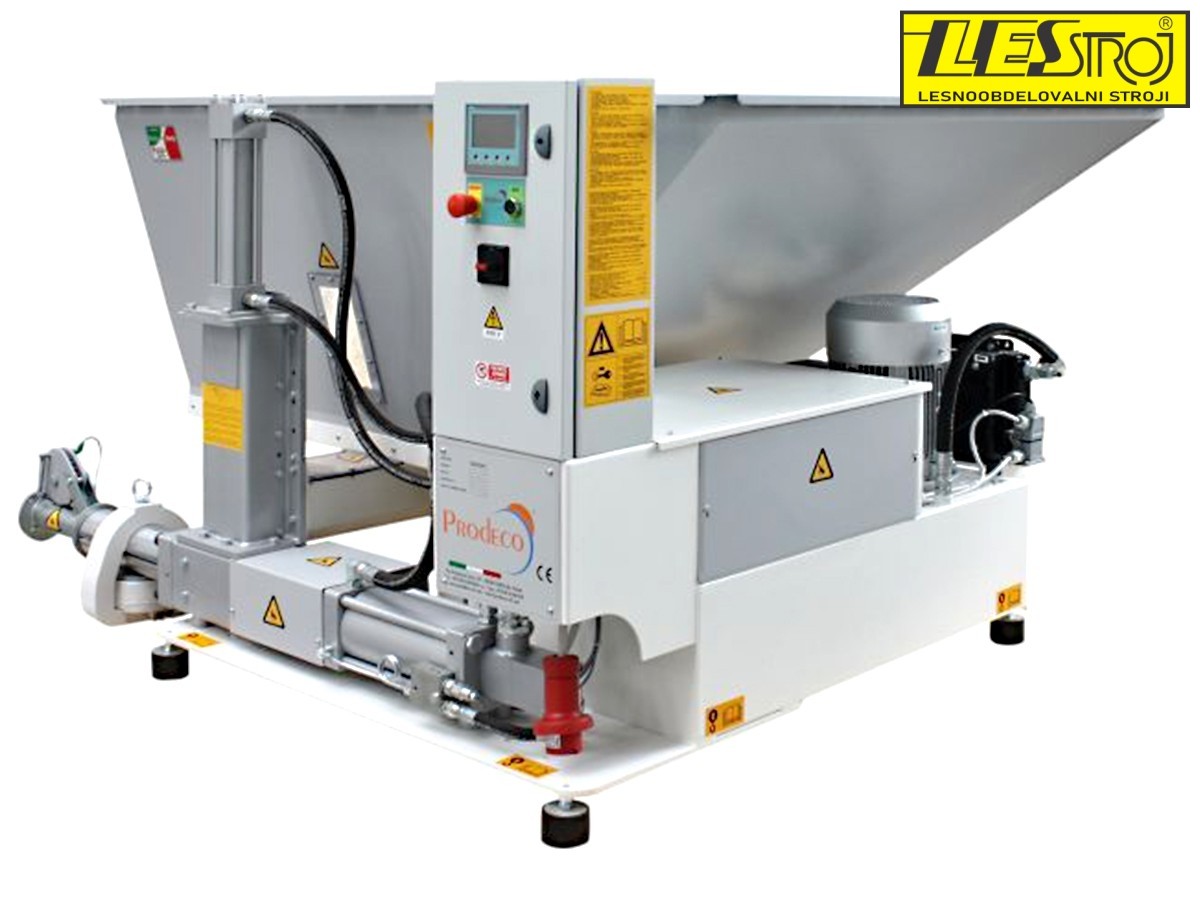

Briquetting machine Prodeco E80 Vertical
Brand:
Prodeco E80 Vertical briquetting press with an 11 kW motor, 80 mm briquette diameter and output from 90 to 220 kg/h.
The Vertical series hydraulic briquetting press suits several solutions: it can be placed under a dust collector or under a wood waste silo. The hopper can be modified to the customer’s wishes.
The E80 Vertical has hopper dimensions of 1200 x 1200 mm at the bottom and 1880 x 1880 mm at the top, with a height of 1030 mm.
Material is fed from the hopper to the press by a screw conveyor.
Briquette quality and output depend on the type of material and its moisture.
Machine features:
- 7 pressing cycles per minute at full load,
- 3 hydraulic cylinders,
- maximum length of each stroke 70 mm,
- hopper dimensions 1200 x 1200 mm at the bottom, 1880 x 1880 mm at the top, height 1030 mm,
- hopper base equipped with a flap for loading material into the screw,
- automatic adjustment of material loading,
- automatic shut-off when all material is used,
- electronic pressure gauges on the pump and cylinders,
- Siemens touch screen,
- preheating system,
- oil temperature and level probe,
- flat head,
- maximum recommended material moisture 15%.
Data sheet
- Motor power (kW)
- 11
- Briquette diameter (mm)
- 80
- Weight (kg)
- 1500
- Machine external dimensions (LxWxH)
- 2000 x 1500 x 1600 mm
