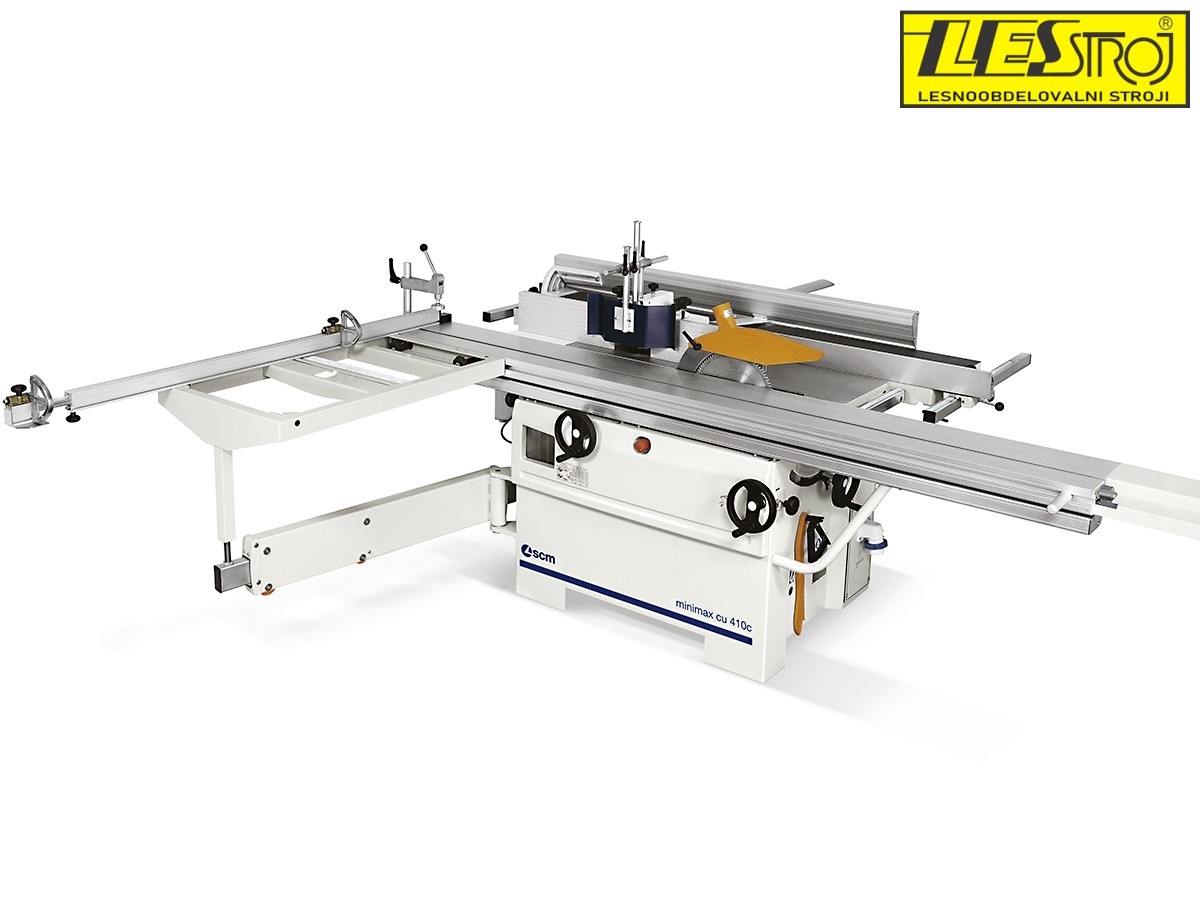

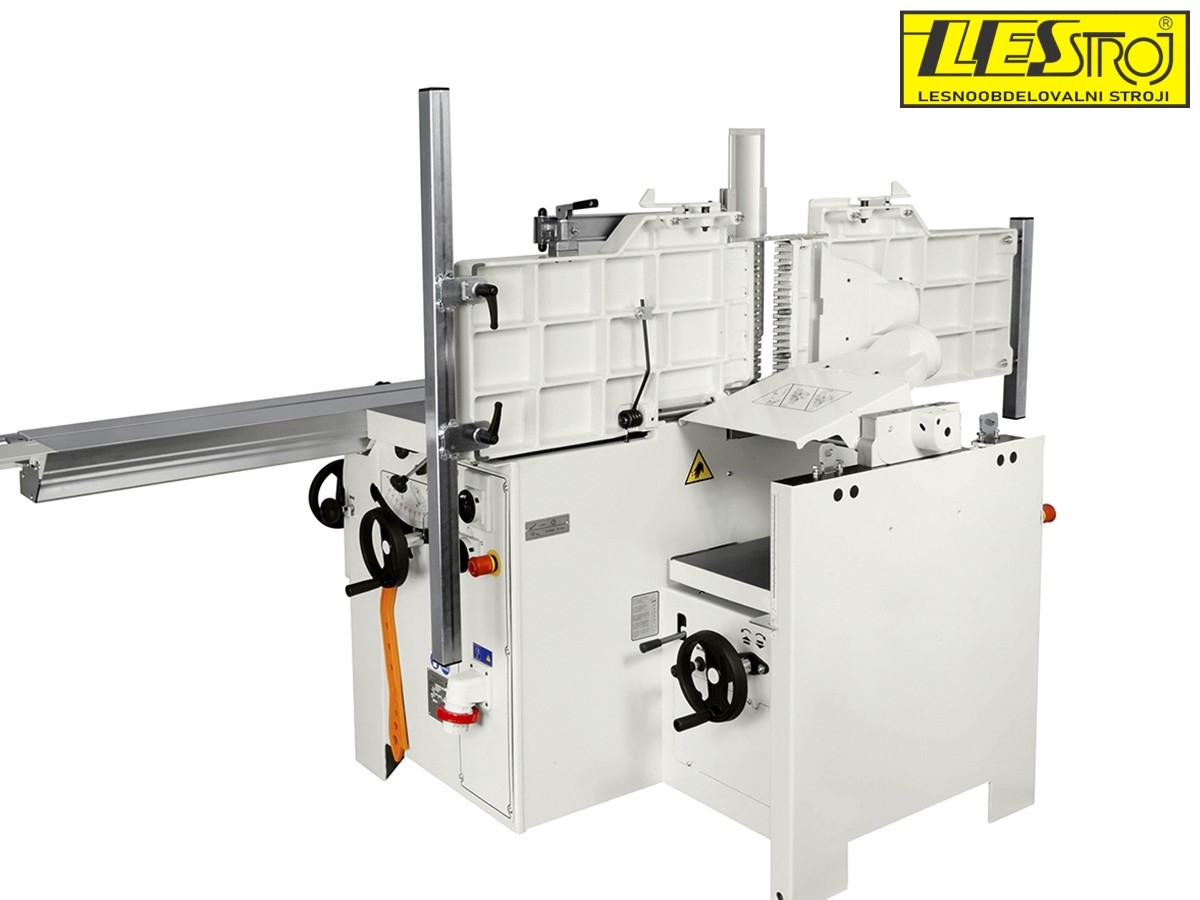

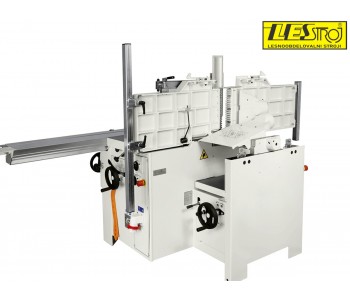

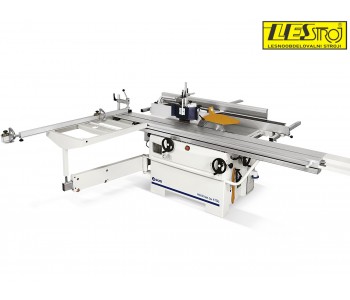

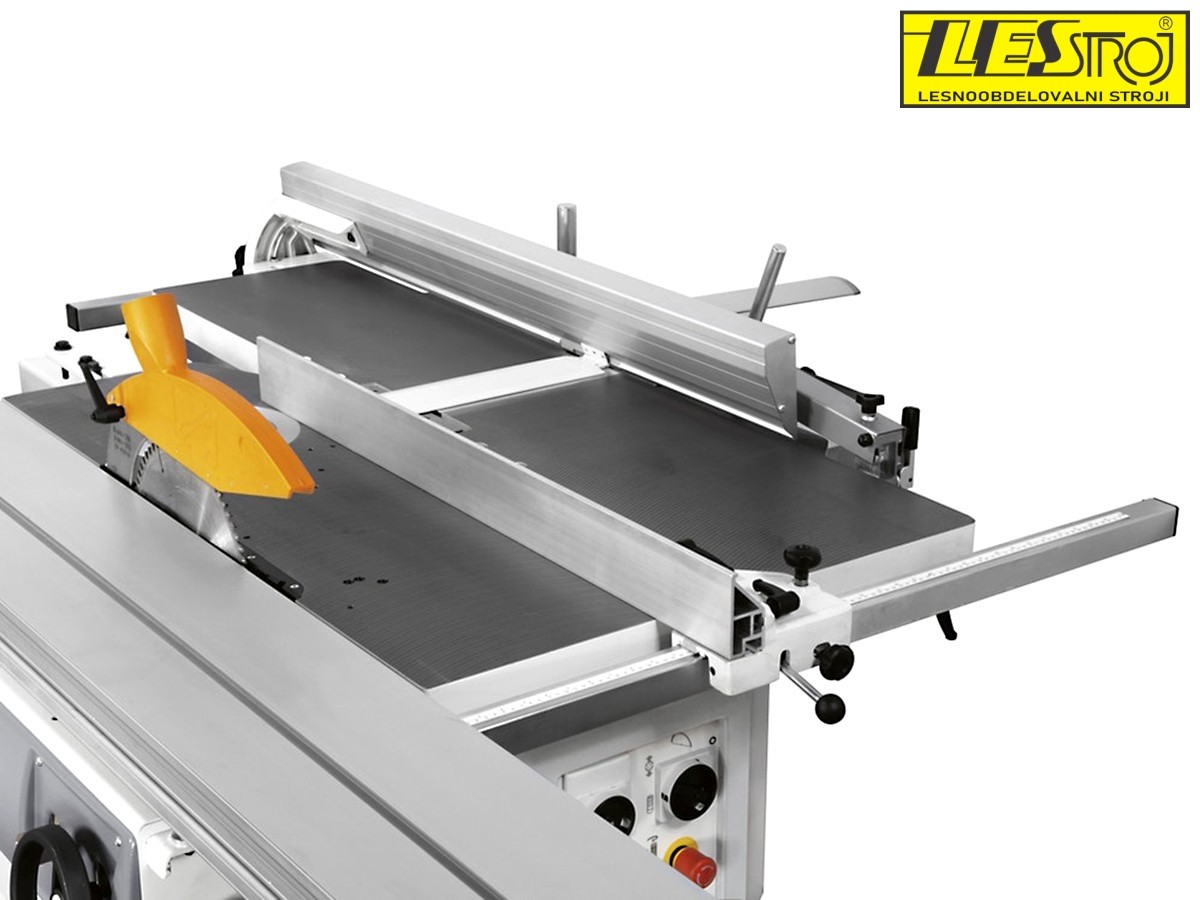

Universal combined machine Minimax CU410c

Data sheet

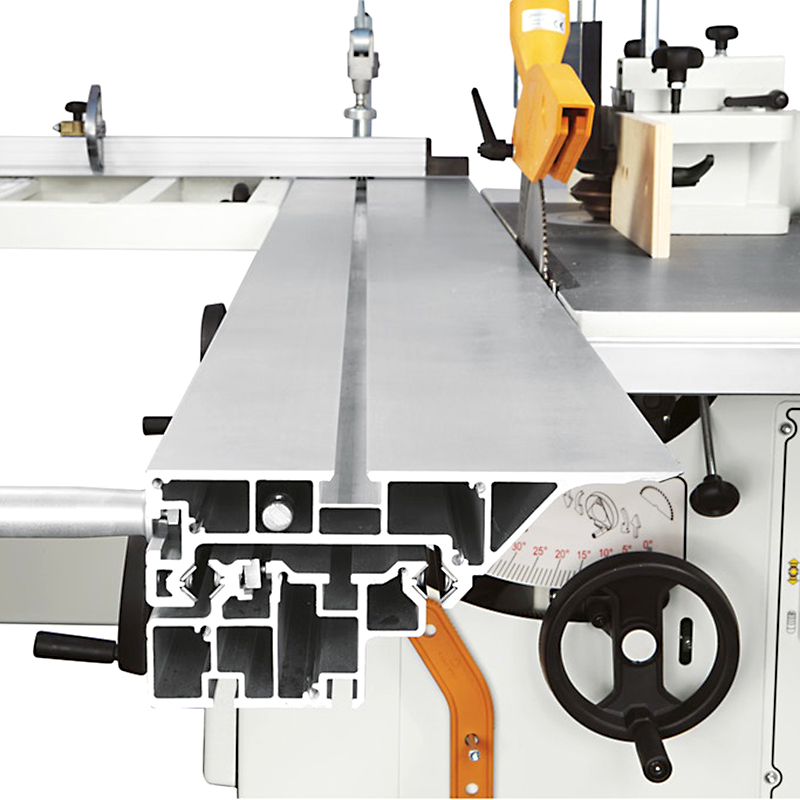

Saw carriage length

2310 mm (2660 mm opc.)

Working width (mm)

410

Worktable length

410x1800

Feed speed

7

Cutter rotation speed (rpm)

3500/7000/10.000

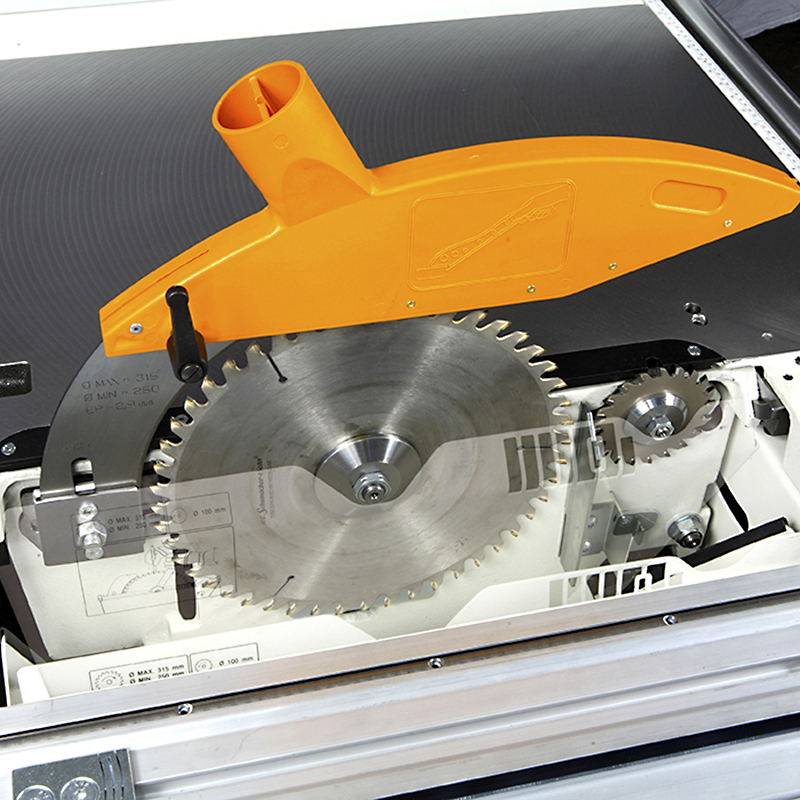

Max. saw blade diameter (mm)

315

Max. working height (mm)

230

Parallel cut-off width (mm)

900

Min. working height (mm)

3

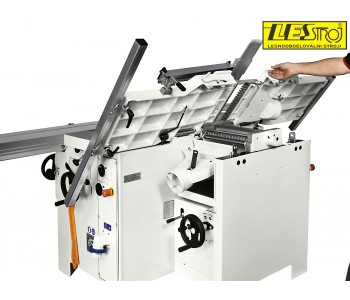

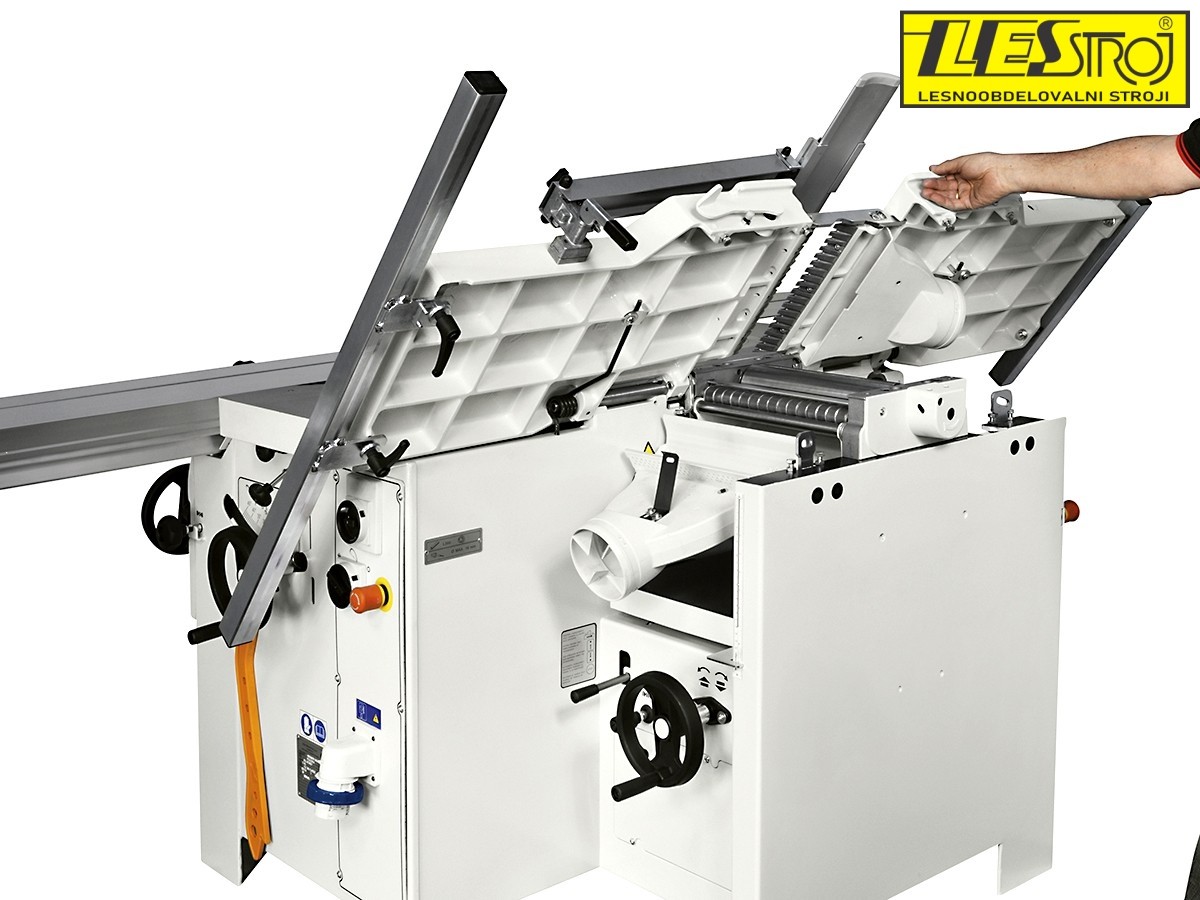

SURFACE PLANER:

-

THICKNESSER

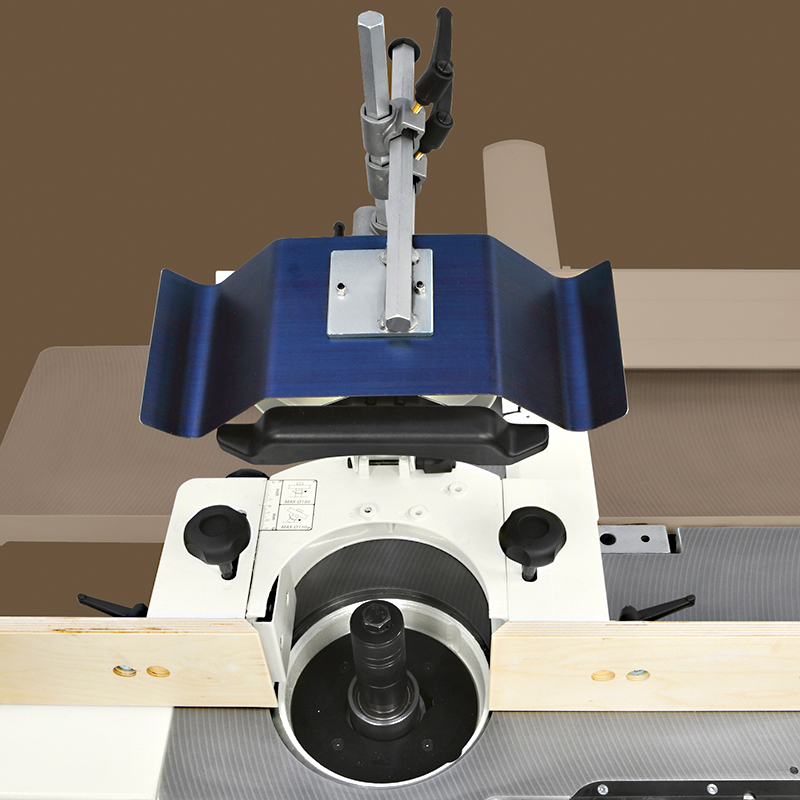

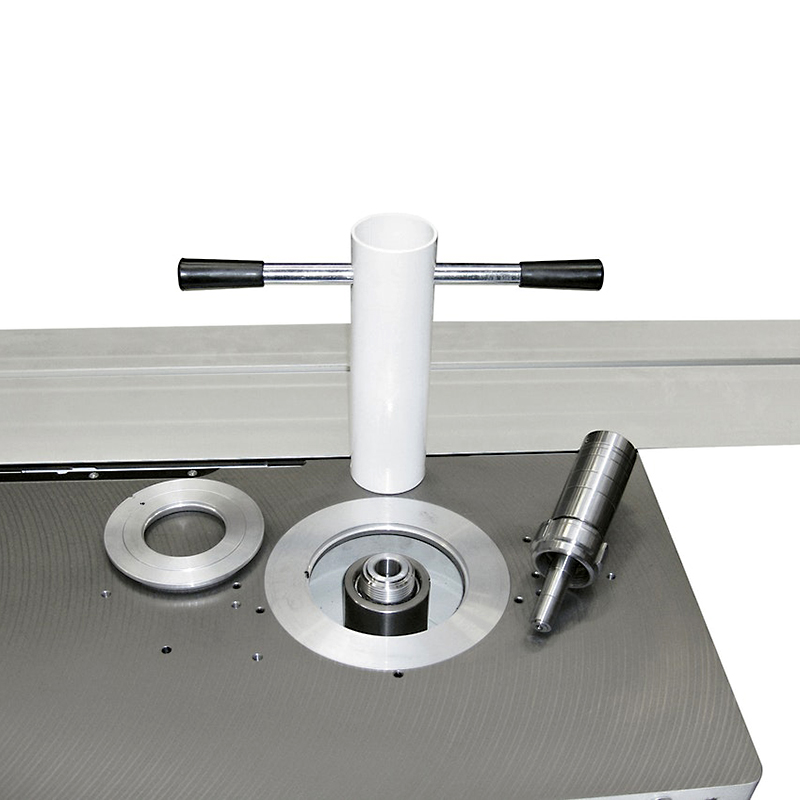

SPINDLE MOULDER:

Spindle height above the table

125

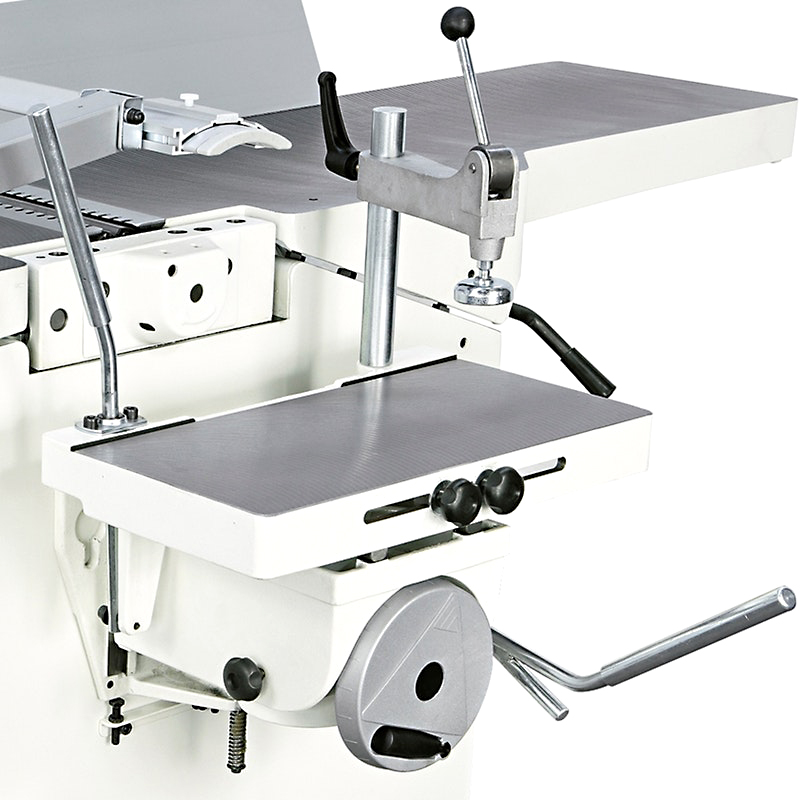

HORIZONTAL MORTISER:

Engines

3 x 5 kW (6,6 KM) - trofazni

Guide frame tilt (°)

90-45

Saw blade tilting (°)

45

Spindle turns

5100

Shank diameter (mm)

16 (opc. 0 - 16)

Worktable dimension (mm)

1100x339

OTHER TECHNICAL DETAILS:

-

Max. spindle diameter under the drilling unit

210

Extraction nozzles (mm)

3x120 / 1x80

Weight (kg)

780
