Edge Sander HB1000


HB1000 is multipurpose edge grinder with belt oscillation and height adjustable grinding unit designed for demanding works with large dimension parts. The machine can be used for grinding veneer edges, grinding the edges on the propeller roller or by means of grinding rollers of various diameters.


USAGE:

- sanding of perpendicular and bevelled edges of smaller workpieces placed on height adjustable worktop with the option of using the support rotary ruler forming a part of optional equipment

- sanding surfaces of minor parts on tilted desk at the grinding unit with the option of using the longitudinal shifting ruler attached on the worktop

- sanding round and radius edges and surfaces of small parts by means of the grinding ruler using the height adjustable, auxiliary desk



Product Details

Data sheet

Sanding belt width (mm)
200
Table tilt (°)
0 - 45
Motor power (kW)
3
Sanding belt length (mm)
3200
Worktable dimension (mm)
1000 x 400
Extraction nozzles (mm)
1 x 120
Sanding belt speed (m/s)
13
Weight (kg)
380
Machine gross dimensions
1850 x 1150 x 1350
Images

Kotni prislon na delovni mizi

Dodatna miza za brušenje okroglin.

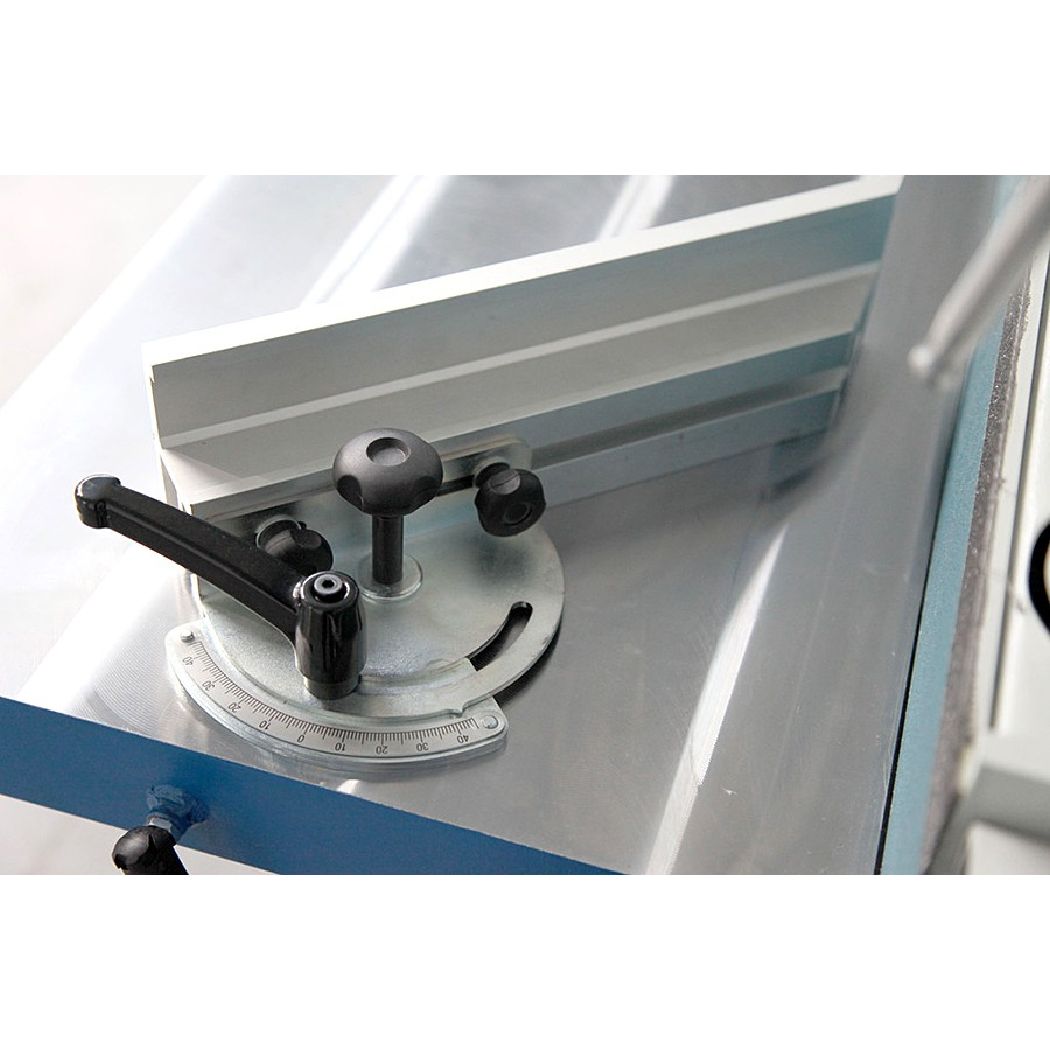

Nagib delovne mize s kotnim merilom

Kotno merilo pod delovno mizo

možnost doplačila za izvlečno/podaljšano delovno mizo.

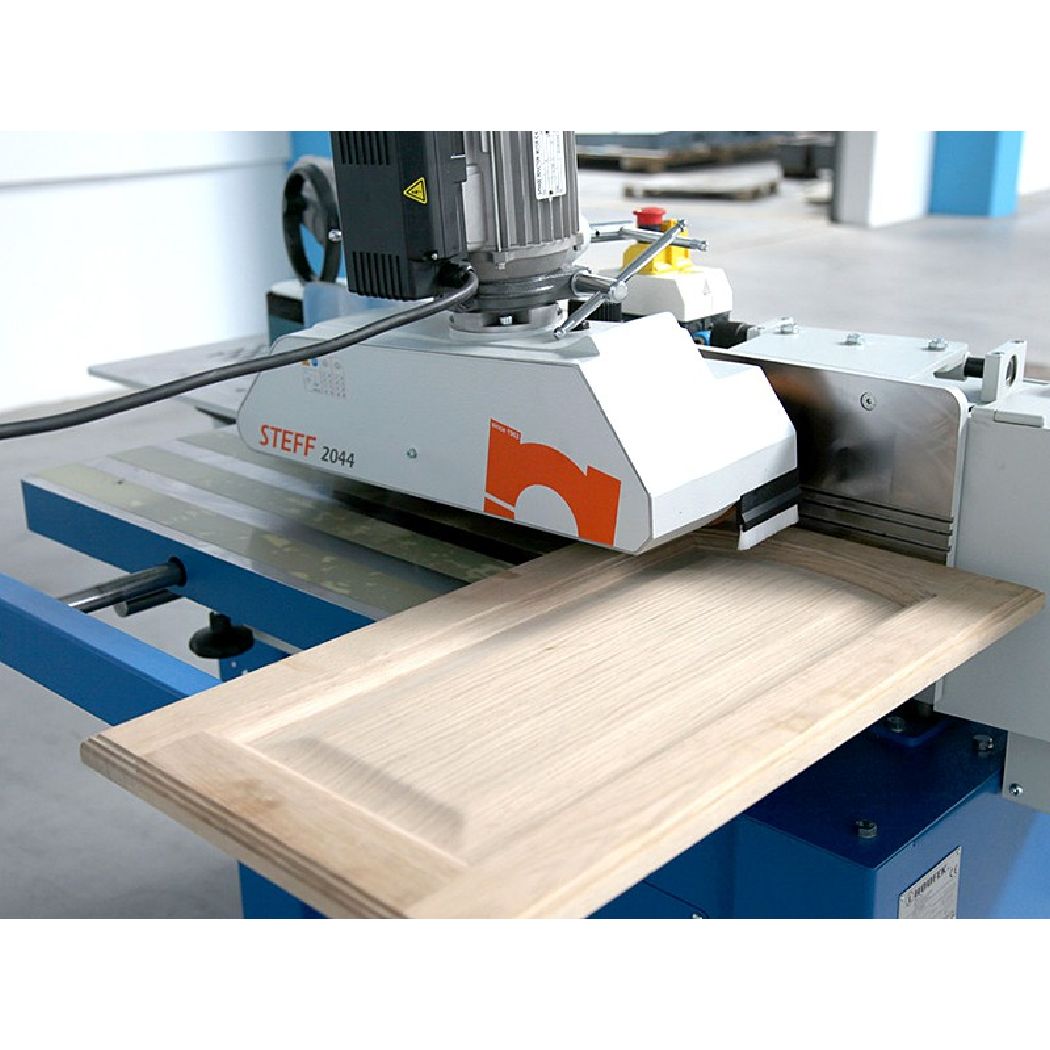

Uporaba podajalne naprave pri brušenju s tamponom.
