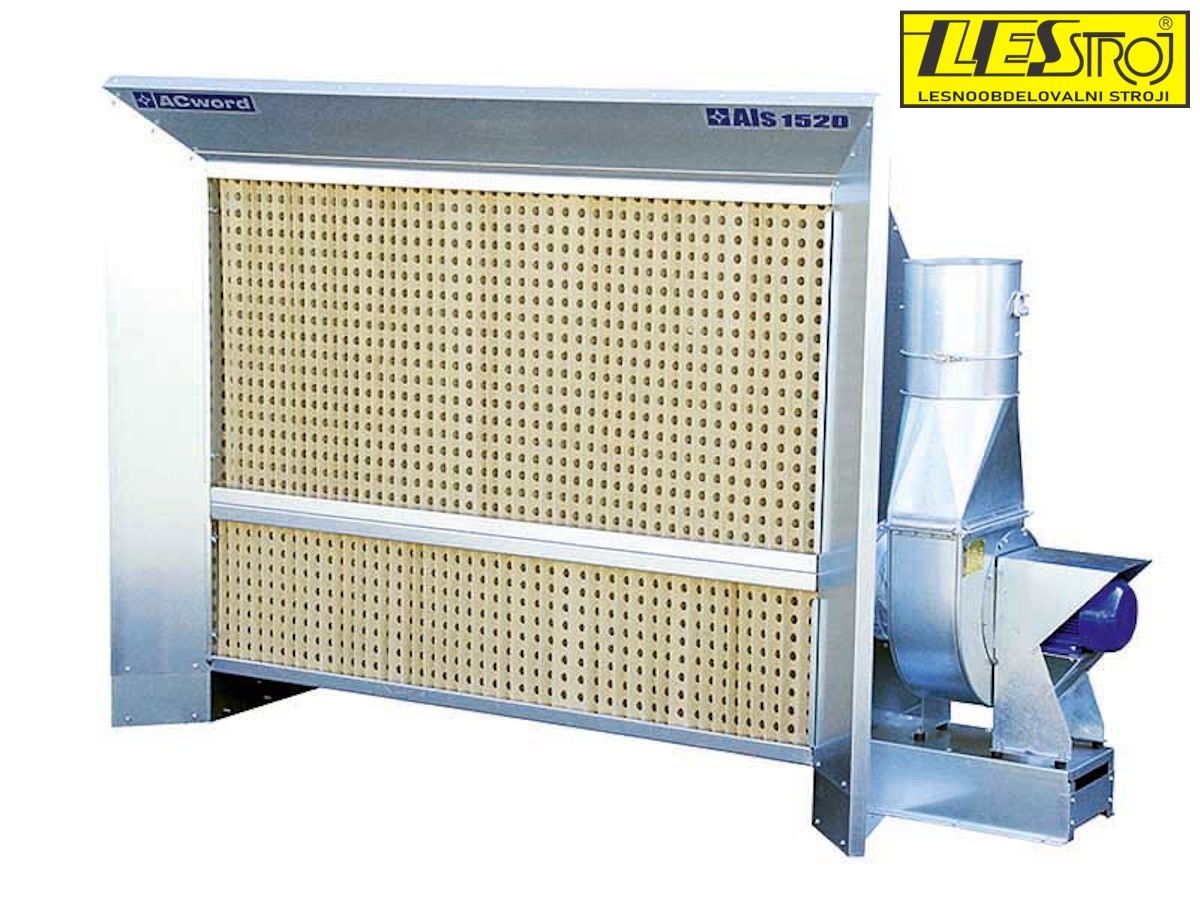

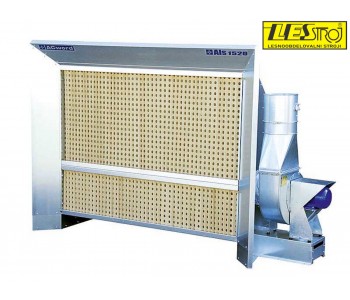

Extracting wall for painting ACWORD ALS

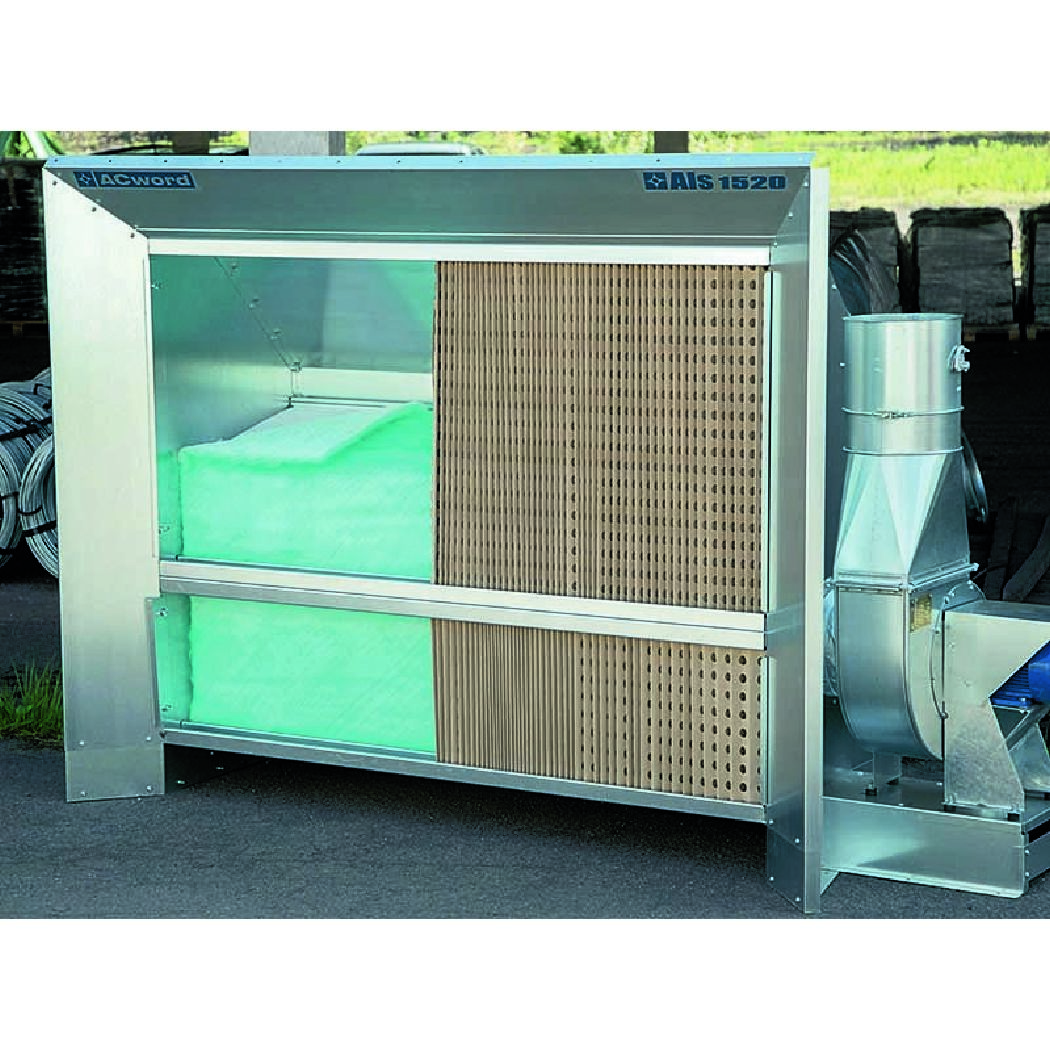

ACword ALS dry spray booths are very easy to use and install and take up little space. On order, the extraction motor can be mounted on the left or right side of the booth. Triple filters ensure quality filtration.

OPTIONAL ACCESSORIES:

- movable spraying table in front of the booth,

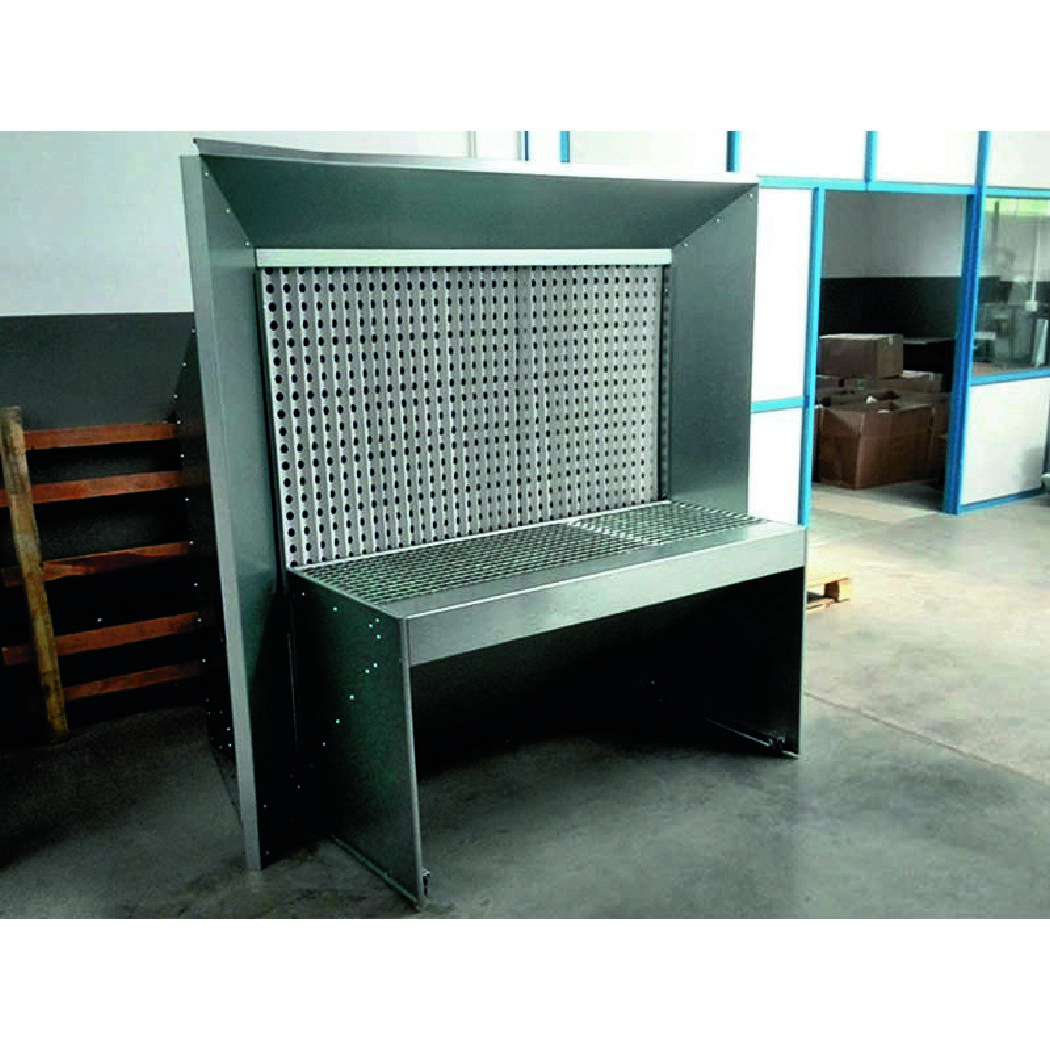

- metal work surface,

- extraction motor mounted on the left or right side of the machine,

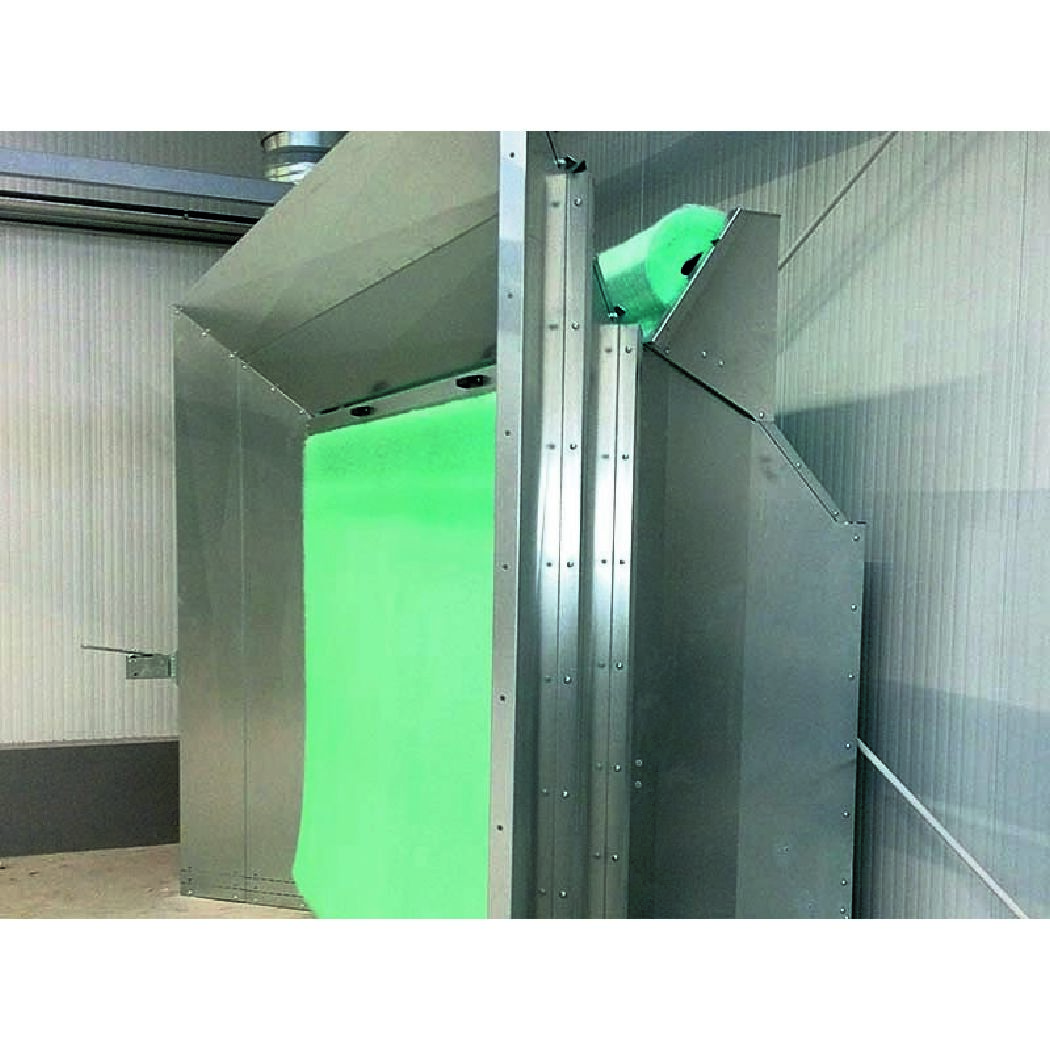

- quick-change filter curtain,

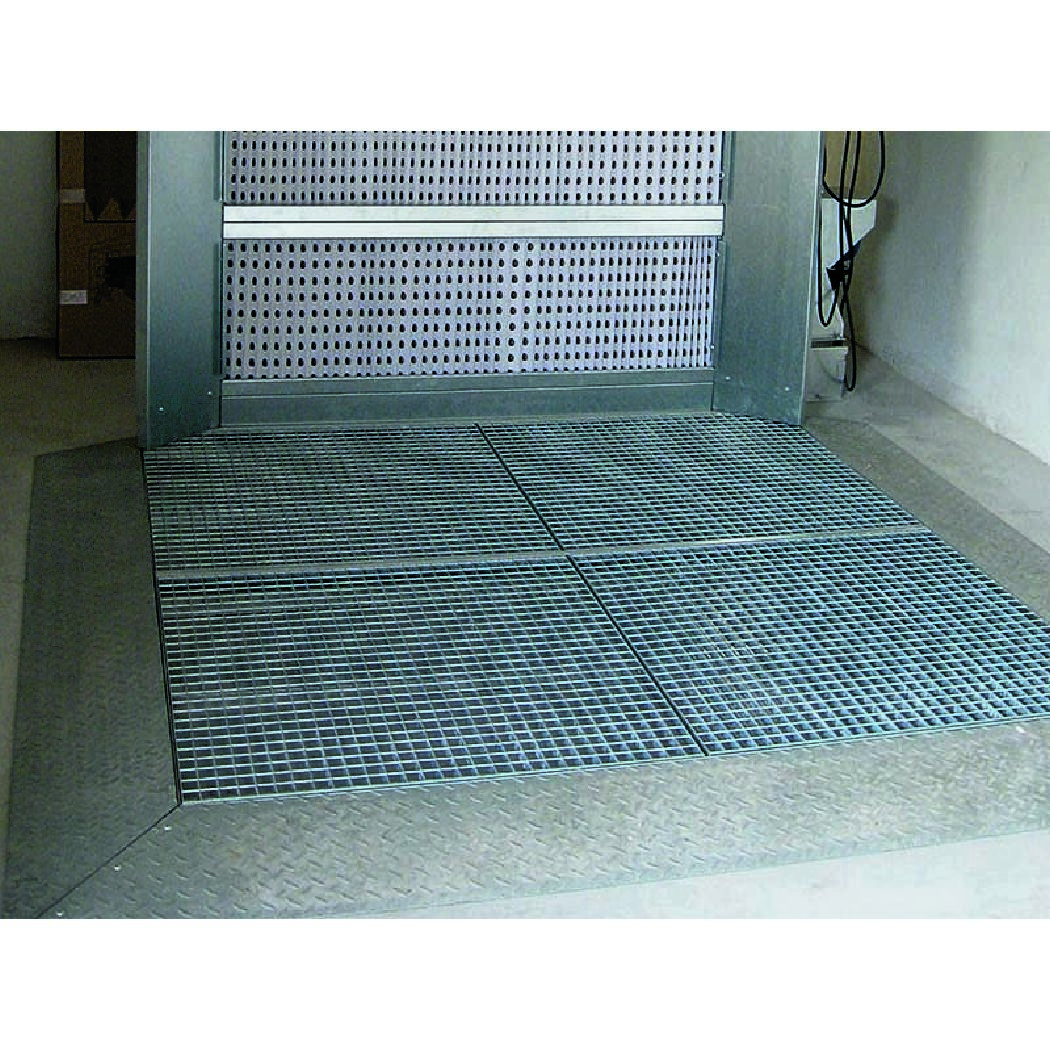

- perforated metal floor.

10 different booth models (sizes) are available, with filter areas from 1 m2 to 6 m2.

VERSIONS AND TECHNICAL DATA:

TYPE: MOTOR POWER: WORK AREA: DIMENSIONS: AIR FLOW: DUCT DIAMETER:
ALS 1010 1.5 kW 1000 x 1000 mm 1850 x 1650 x 810 1800 m3/h 200 mm
ALS 1020 1.5 kW 2000 x 1000 mm 2950 x 1650 x 810 3500 m3/h 300 mm
ALS 1025 3.0 kW 2500 x 1000 mm 3450 x 1650 x 810 4500 m3/h 300 mm
ALS 1030 3.0 kW 3000 x 1000 mm 3750 x 1650 x 960 5500 m3/h 300 mm
ALS 1515 1.5 kW 1500 x 1500 mm 2450 x 1950 x 810 4000 m3/h 300 mm
ALS 1520 3.0 kW 2000 x 1500 mm 2950 x 1950 x 810 5500 m3/h 300 mm
ALS 1530 4.0 kW 3000 x 1500 mm 3750 x 1950 x 960 8000 m3/h 350 mm
ALS 2020 4.0 kW 2000 x 2000 mm 3095 x 2450 x 960 7200 m3/h 350 mm
ALS 2025 4.0 kW 2500 x 2000 mm 3250 x 2450 x 960 9000 m3/h 400 mm
ALS 2030 4.0 kW 3000 x 2000 mm 3750 x 2450 x 960 10800 m3/h 450 mm
