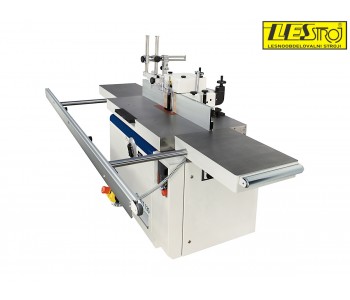

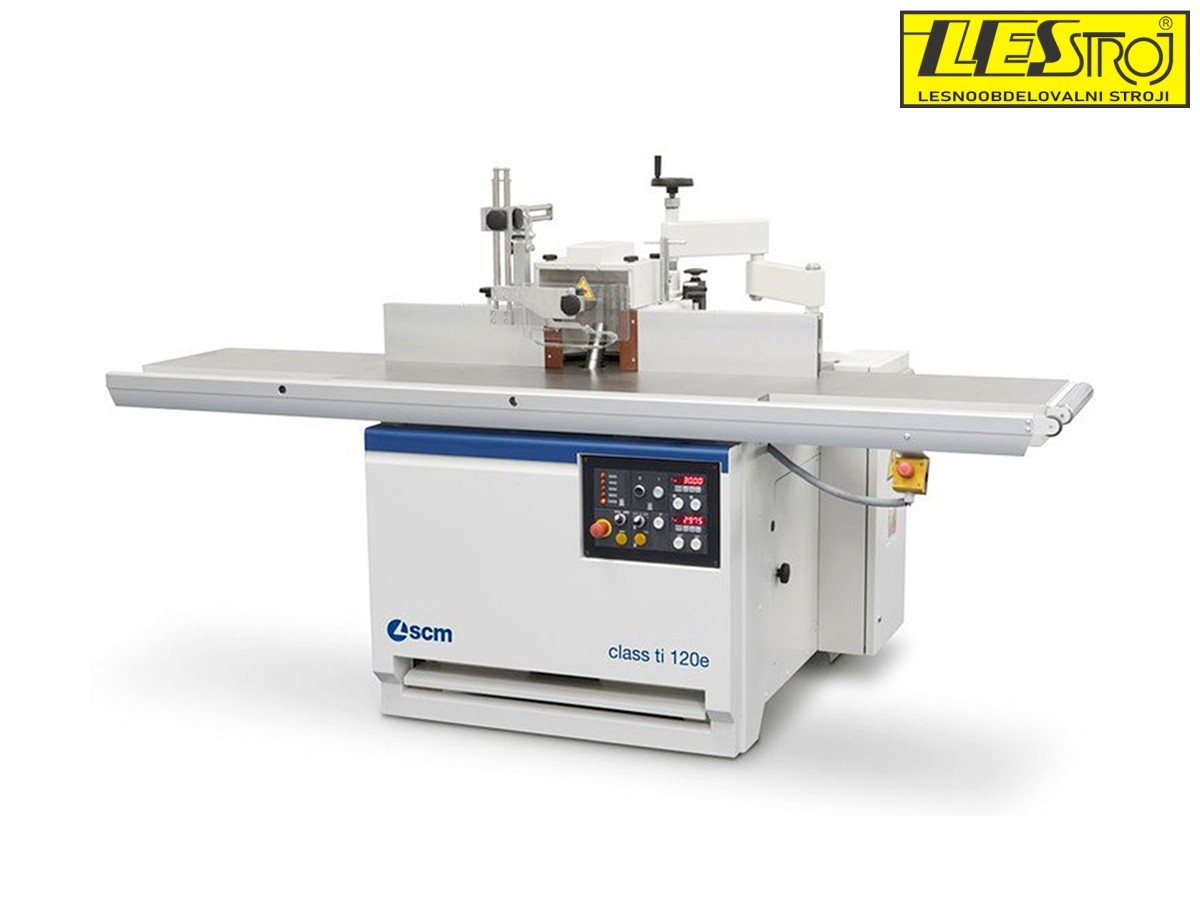

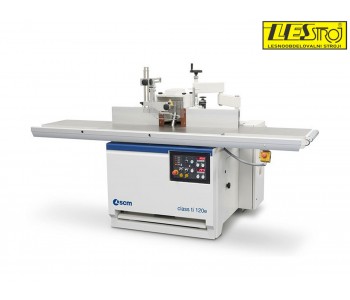

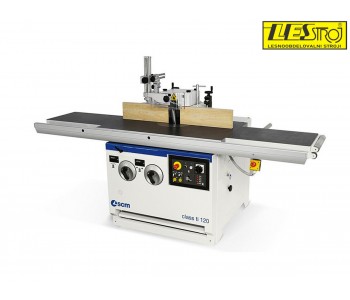

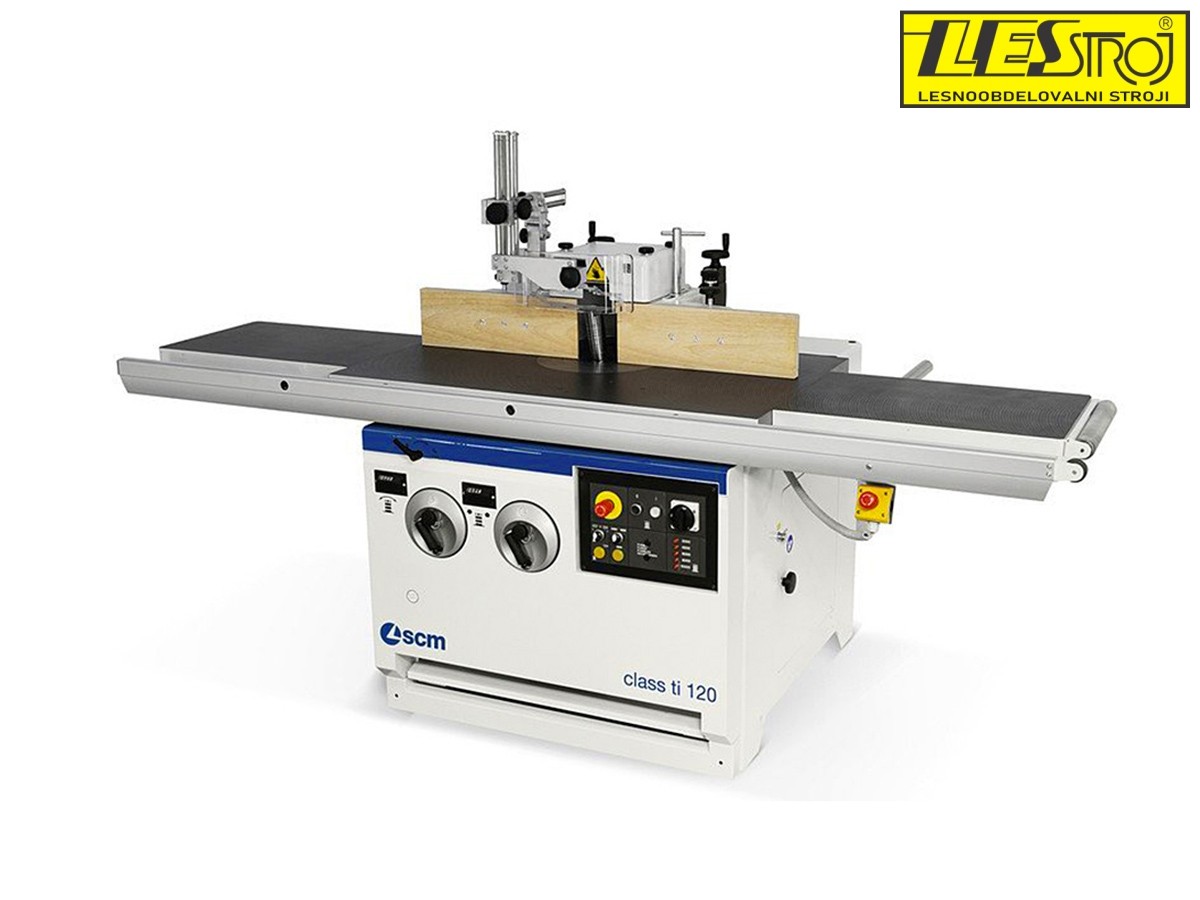

Spindle moulder SCM Ti120 CLASS

The Ti120 CLASS spindle moulder stands out above all for its robustness and ability to adapt to even the most demanding operations. The "Ti" designation means the unit tilts in both directions (+45°/-45°) via strong screw spindles. Numeric indicators are fitted next to the handwheels for moving the unit.

The machine is intended mainly for joiners/companies that use a spindle moulder daily and want a powerful machine suitable for heavier workpieces as well.

The work table of the basic version measures 1200 x 810 mm, with enough space in the upper left corner to mount a power feeder.

STANDARD EQUIPMENT:

· 5.0 kW motor

· Spindle tilting (+45°/-45°)

· Spindle height: 140 mm (180 mm)

· Rotation in both directions (L / R)

· Large guard with extraction

· Speeds: 3000 / 4500 / 6000 / 7000 / 10,000 rpm

· Tool diameter retractable below the table: 320 mm

· Extraction outlets: 2x80 mm on the machine and 1x120 mm on the guard

· Star/delta motor start

· Automatic electronic motor brake

· Machine built to CE standards

AVAILABLE VERSIONS:

· Classic version without table extensions

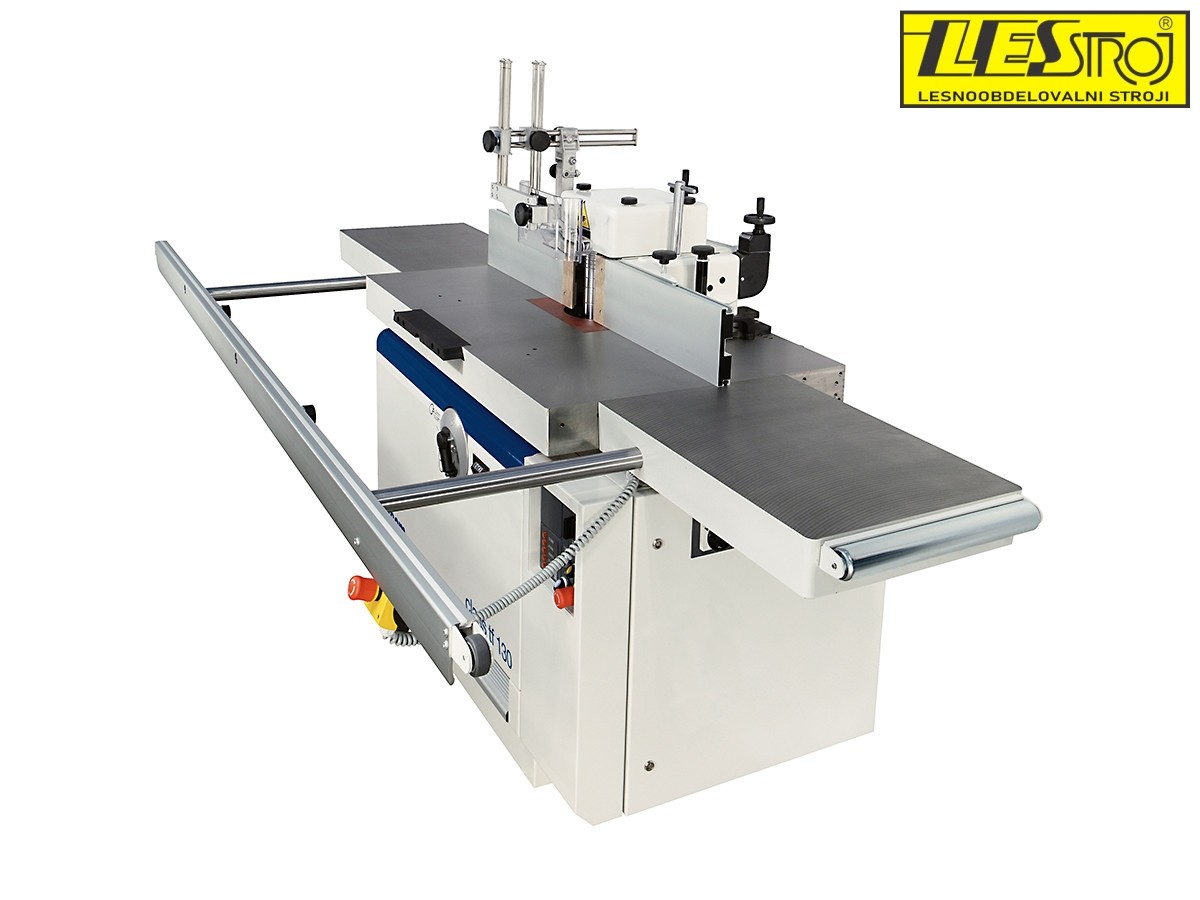

· "LL" version with cast-iron table extensions totalling 2500 mm and a front pull-out arm.

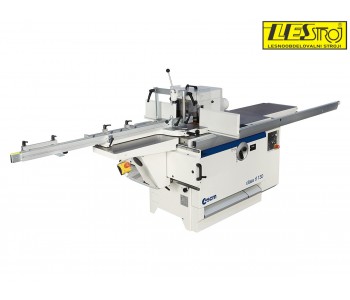

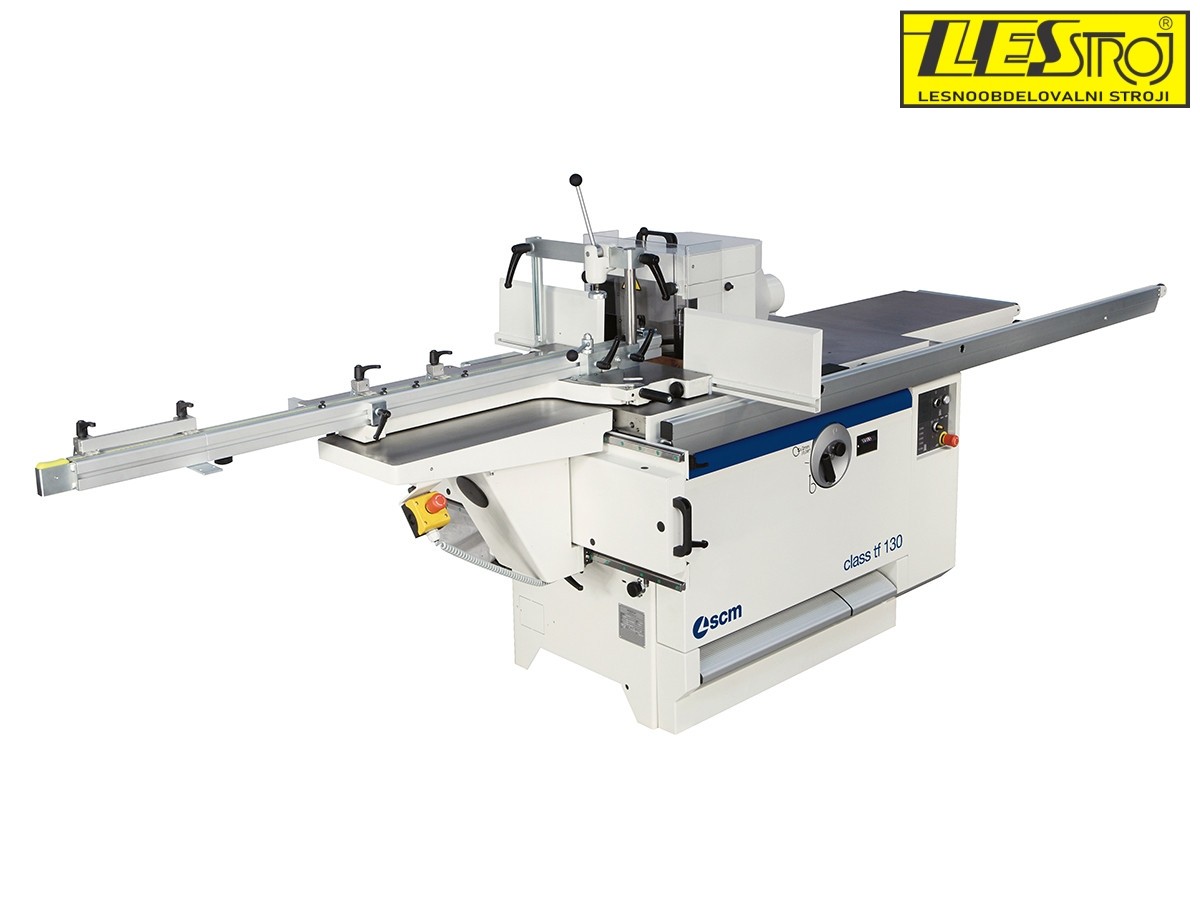

· "TL" version with a table extension on the right and a TENONING CARRIAGE on the left for more demanding tenoning operations.

OPTIONAL EQUIPMENT:

When configuring the equipment, consult our advisors, who will recommend equipment suited to your business and way of working.

- Stronger guard with numeric indicators for easier and more precise fence adjustment

- Aluminium fences instead of wooden ones

- Lower speeds: 1300 / 3000 / 4500 / 6000 / 9000 rpm

- Interchangeable spindle, MK4 type

- Additional 140 mm MK4 spindle (30 / 35 mm diameter)

- Additional 180 mm MK4 spindle (40 / 50 mm diameter)

- "LL" version with extensions

- "TL" version with tenoning carriage

- Smaller tenoning carriage bolted to the work table

- 7.0 kW motor

- 9.0 kW motor
