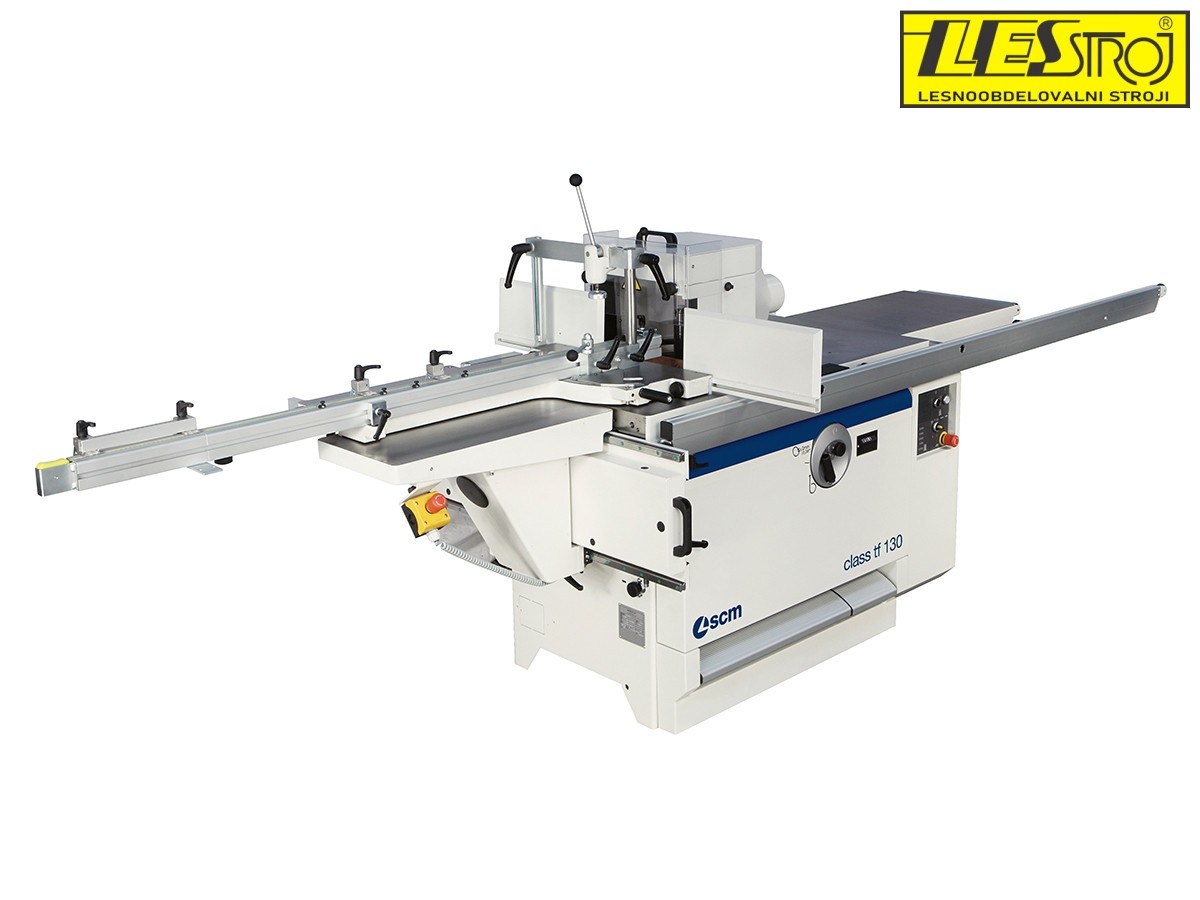

Spindle moulder TF 130 CLASS
Brand:
Data sheet
- Spindle rotation speed (rpm)
- 3000 / 4500 / 6000 / 7000 / 10000
- Spindle height above the table
- 140 (180)
- Max. tool diameter (mm)
- 320 mm
- Machine Version
- Avtomatska / Mehanska
- Worktable dimension (mm)
- 1200 x 810
- Spindle tilt (°)
- +45 (obe smeri)
- Motor power (kW)
- 5.0
- Engine power (opt.)
- Extraction nozzles (mm)
- 2 x 80 mm, 1 x 120 mm
- Weight (kg)
- 590
Related products
€306.66
€322.80
The CMT 692 cutter head set with interchangeable HSS blades is intended for processing solid wood. The cutter head has a diameter of 100 mm, the height of 40 mm and a borehole diameter of 30 mm.
