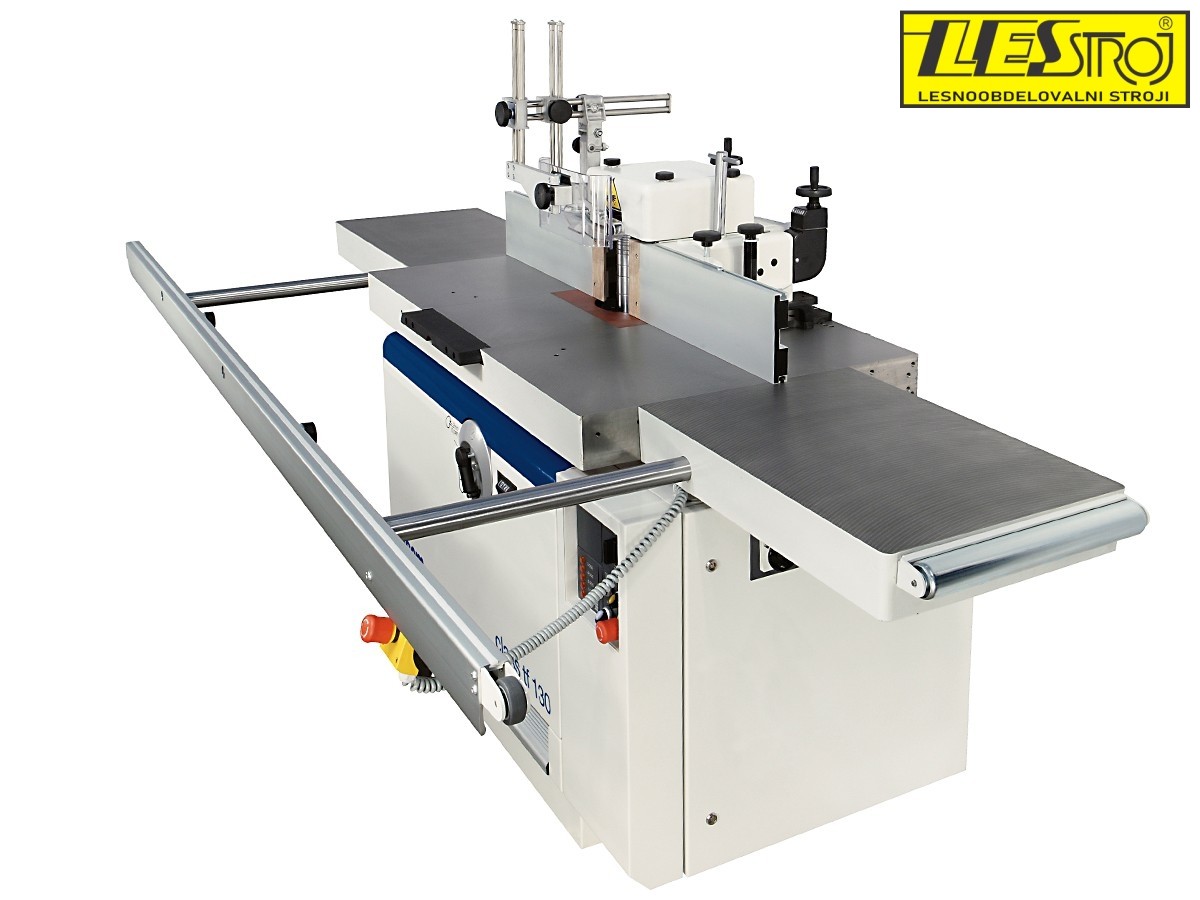

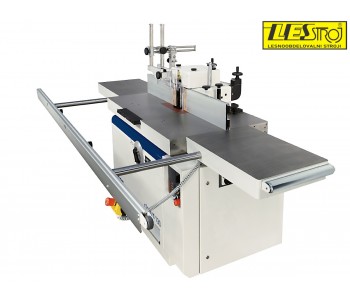

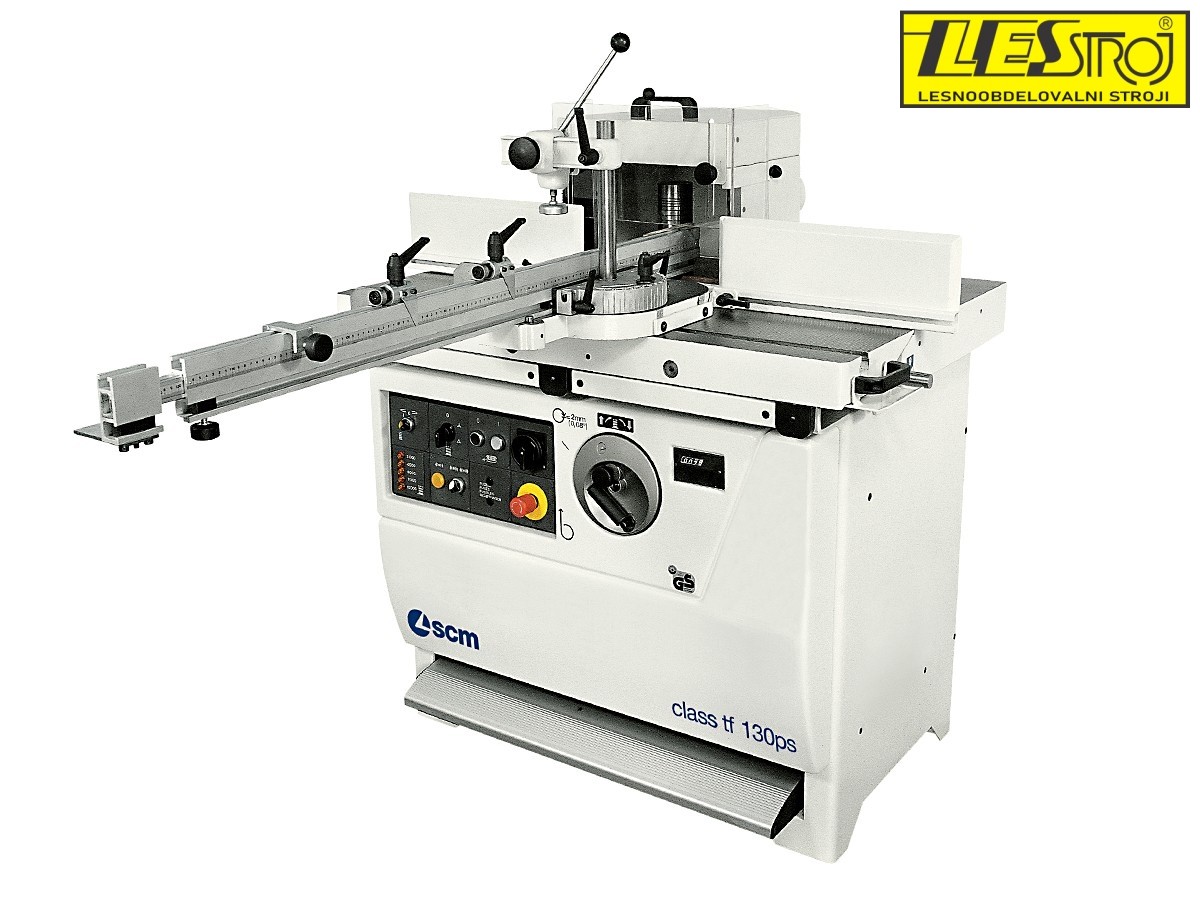

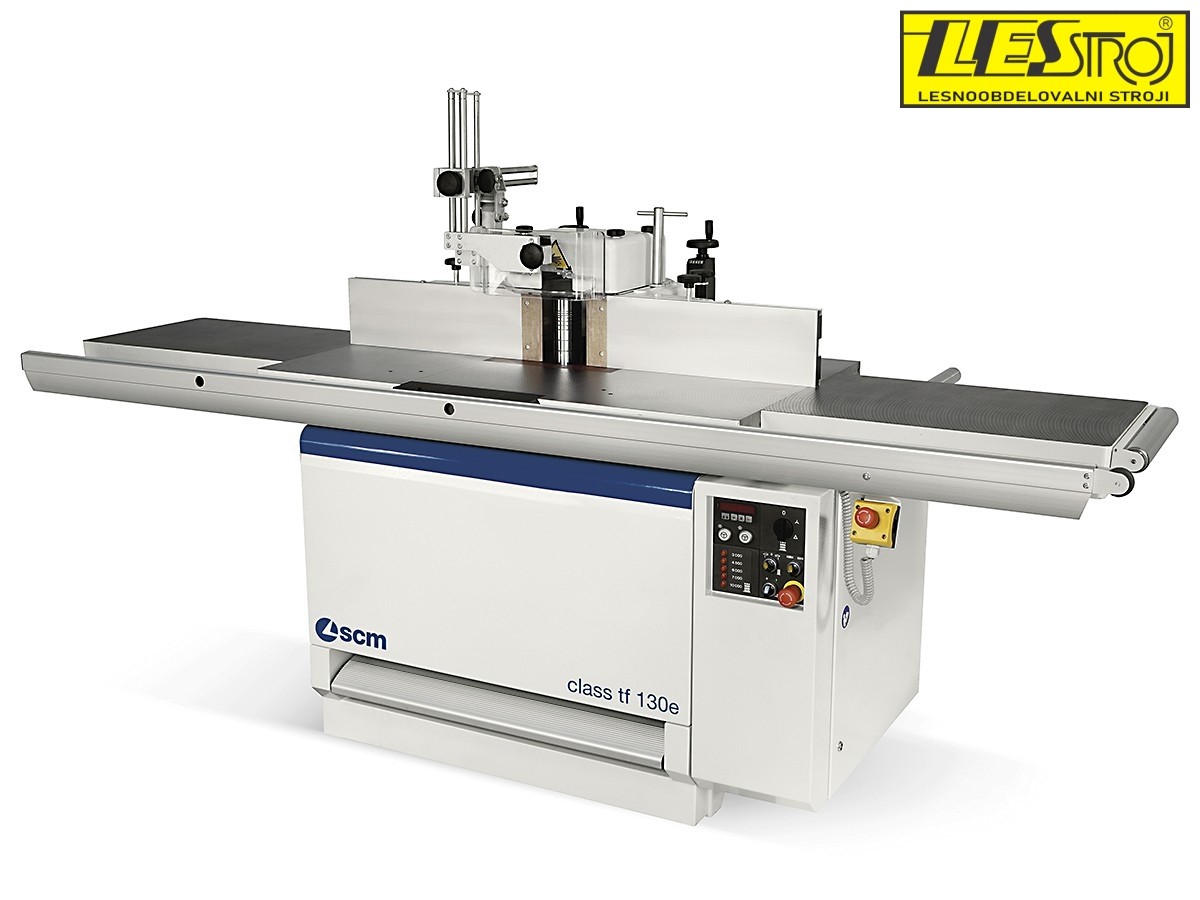

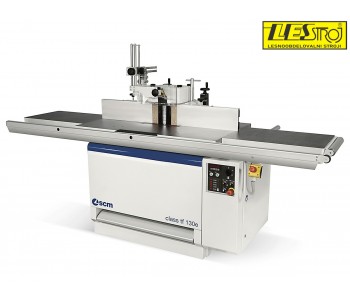

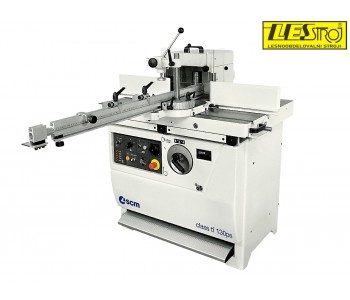

Spindle Moulder SCM TI 120 Class

Data sheet

Spindle rotation speed (rpm)

3000 / 4500 / 6000 / 7000 / 10000

Spindle height above the table

140 (180)

Max. diameter of the under-table tool (mm)

300 mm

Machine Version

Mehanska

Motor power (kW)

7

Engine power (opt.)

9.0

Worktable dimension (mm)

1200 x 730

Spindle tilt (°)

NE

Extraction nozzles (mm)

2 x 120

Weight (kg)

490
