Industrial – dovetail router bits 718 and 918

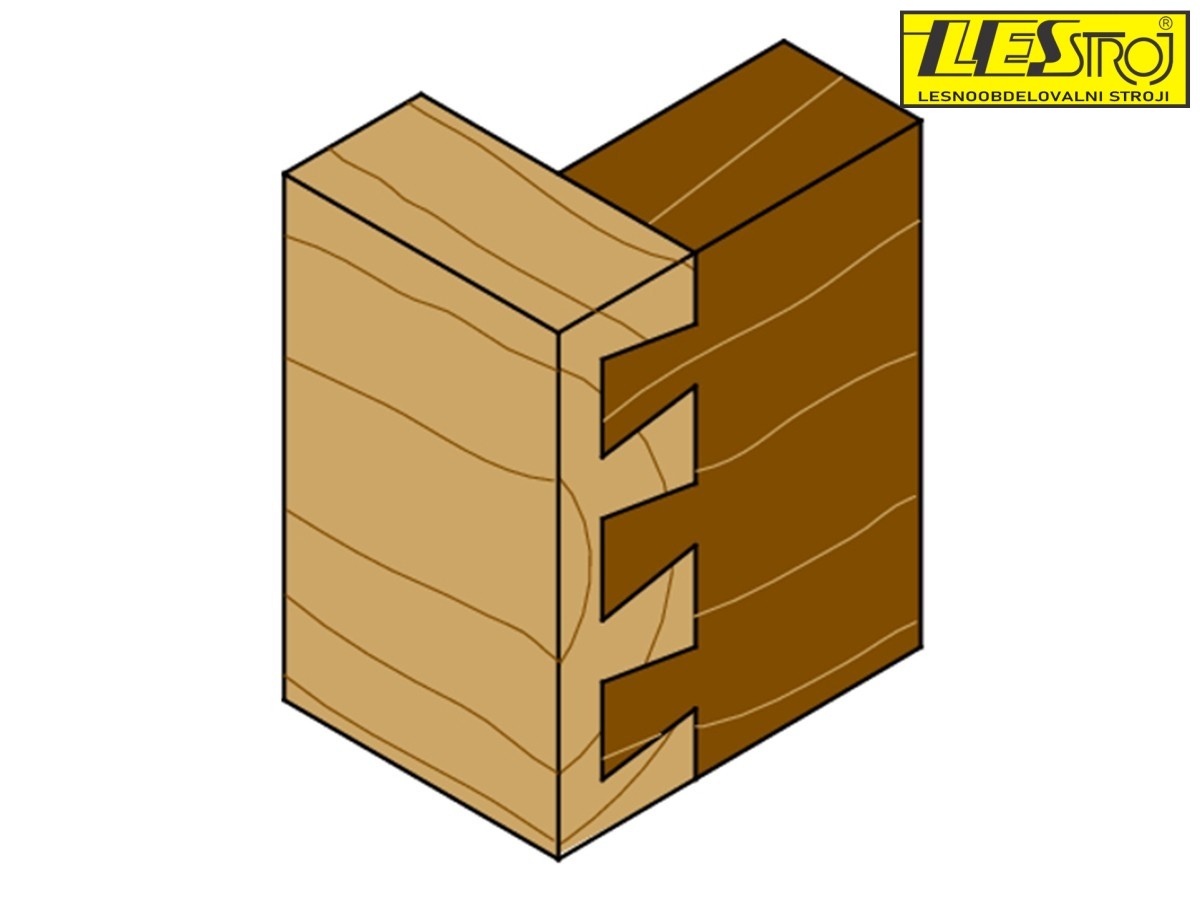

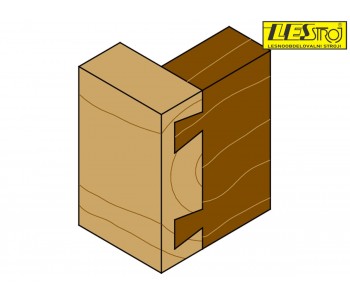

These CMT router bits 718 and 918 are for making dovetail joints. Usage with universal dovetail jig CMT 300 etc.

Limited special offer
€33.72 €35.50 -5%

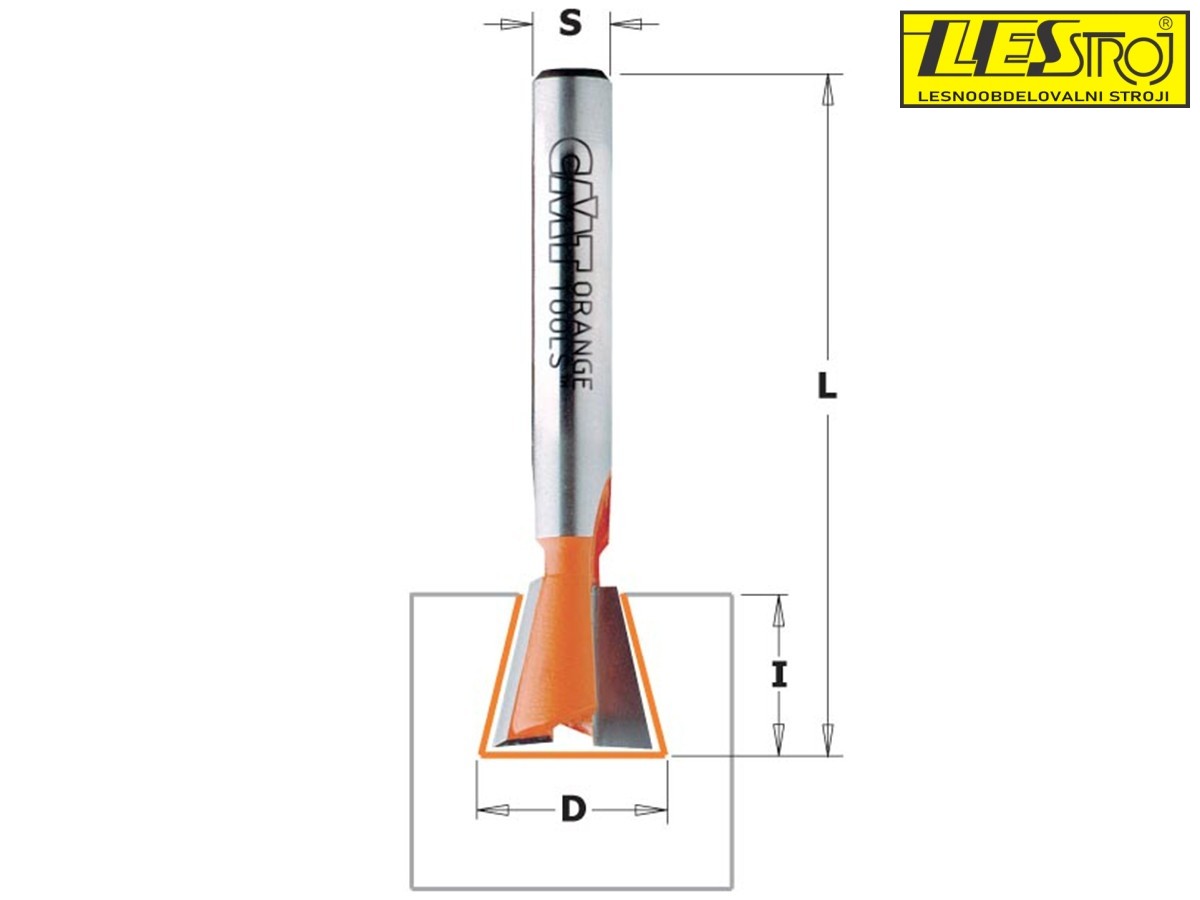

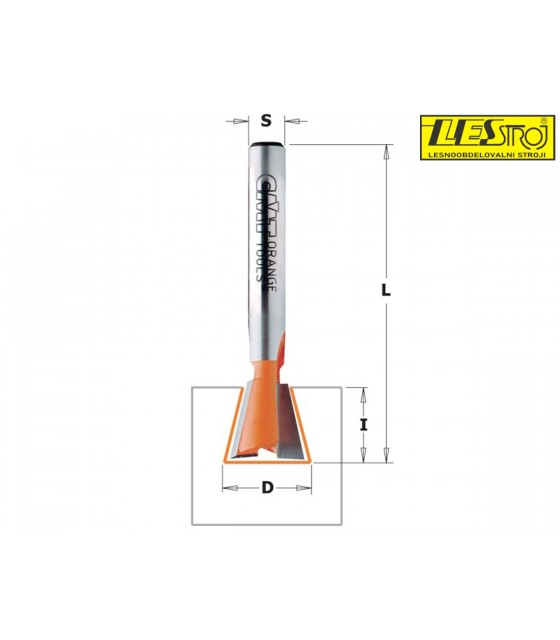

Angle (A)
Diameter (D)
Cutting length (I)
Shank diameter (S)
Total length (L)
In Stock
Reference:
004075
Brand:
Description

Bits are made of quality material and coated with non-stick coating which enables excellent removal of the cut material and less grip on the blade.

Dovetail router bit is most often used for making dovetail joints with universal dovetail jigs CMT300, IGM FD600 ...

Suitable for plunge routers and CNC machines. With the router bits it is possible to process soft and hard solid wood, wood composites, plastic material, laminates and other materials.

Product Details
004075

Specific References

Video

Usage of the router bit 918 with CMT 300 dovetail jig


Other product combination
Model Diameter (D) Cutting length (I) Total length (L) Angle (A) Shank diameter (S) Unit price Buy Avail.
918.127.11 12,7 mm 12,7 mm 52,4 mm 14° 8 mm
€24.40
– 5%
€23.18
718.127.11 12,7 mm 12,7 mm 52,4 mm 14° 6 mm
€24.40
– 5%
€23.18
918.129.11 12,7 mm 20,6 mm 69,8 mm 8 mm
€25.40
– 5%
€24.13
718.158.11 15,8 mm 22 mm 60,3 mm 6 mm
€33.20
– 5%
€31.54
918.158.11 15,8 mm 22 mm 60,3 mm 8 mm
€33.20
– 5%
€31.54
918.658.11 15,8 mm 22 mm 66,7 mm 12 mm
€33.50
– 5%
€31.82
918.167.11 16,7 mm 12,5 mm 49 mm 20° 8 mm
€35.20
– 5%
€33.44
718.060.11 6 mm 8,3 mm 60 mm 7,5° 6 mm
€28.40
– 5%
€26.98
718.079.11 8 mm 6 mm 44 mm 18 6 mm
€31.40
– 5%
€29.83
718.190.11 19 mm 22 mm 60,3 mm 6 mm
€36.50
– 5%
€34.67
918.190.11 19 mm 22 mm 60,3 mm 8 mm
€36.50
– 5%
€34.67
918.690.11 19 mm 22 mm 66,7 mm 12 mm
€36.50
– 5%
€34.67
718.093.11 9,3 mm 7,3 mm 43 mm 19° 6 mm
€31.40
– 5%
€29.83
Call us
718.095.11 9,5 mm 9,5 mm 52,5 mm 6 mm
€31.40
– 5%
€29.83
918.095.11 9,5 mm 9,5 mm 52,5 mm 8 mm
€35.50
– 5%
€33.72
 Product is available
 Product is no longer in stock
 Product is no in stock, but is allowed to be back-ordered
