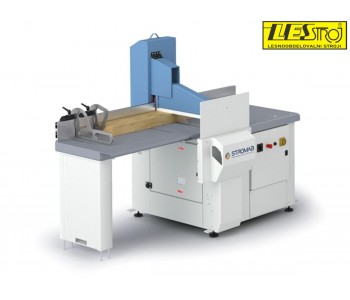

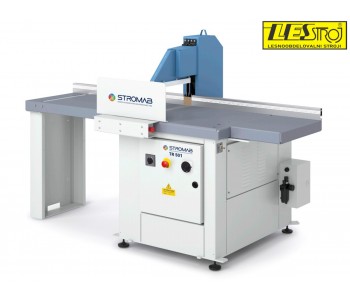

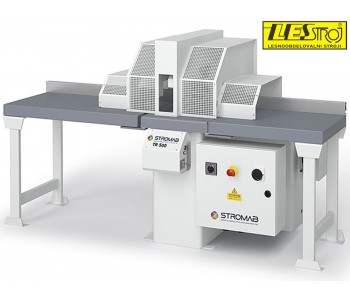

Pneumatic crosscut saw STROMAB TR 500 / TR 501

Brand:

The STROMAB pneumatic crosscut saw has a maximum cutting width of 360 mm for workpieces up to 60 mm thick. The maximum cutting height is 135 mm.

Request for more information

Product inquiry

I want contact by: *

Contact details:

Description

Stromab TR 500 and TR 501 are pneumatic crosscut saws of larger size from the Italian manufacturer Stromab.

The maximum cutting width is 360 mm for workpieces up to 60 mm thick; for thicker workpieces (up to 135 mm) the maximum cutting width is 250 mm.

The saws have a two-hand control for cutting, which provides greater safety for the user during operation.

Advantages of the machine include a mechanical motor brake, safety net, adjustable blade rise speed and 1 m of work surface to the left and right of the blade.

When buying the machine, you can choose the following optional equipment: roller table, manual or pneumatic side stops and laser.

The Stromab pneumatic crosscut saw is a great help to any user who needs a quality, precise and safe crosscut saw.

The machine is very easy to use.

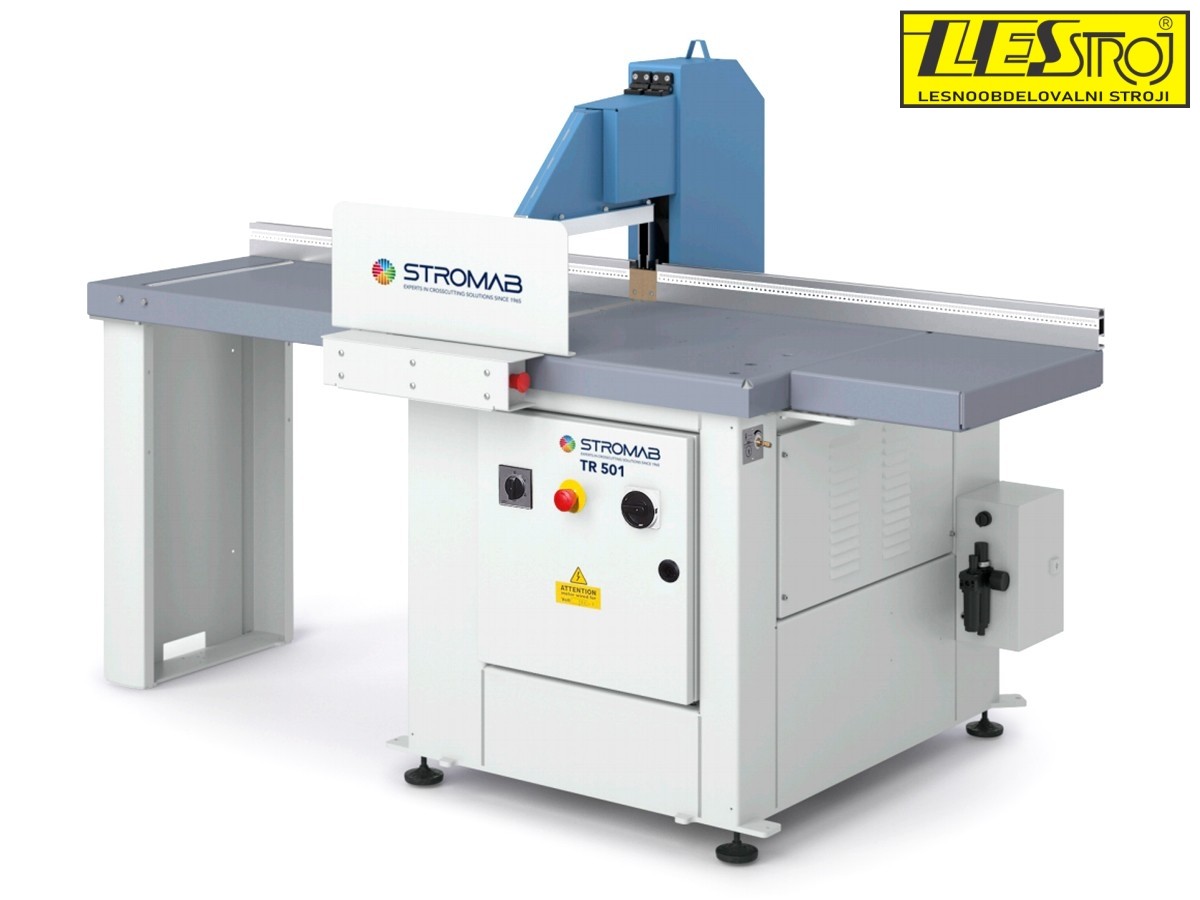

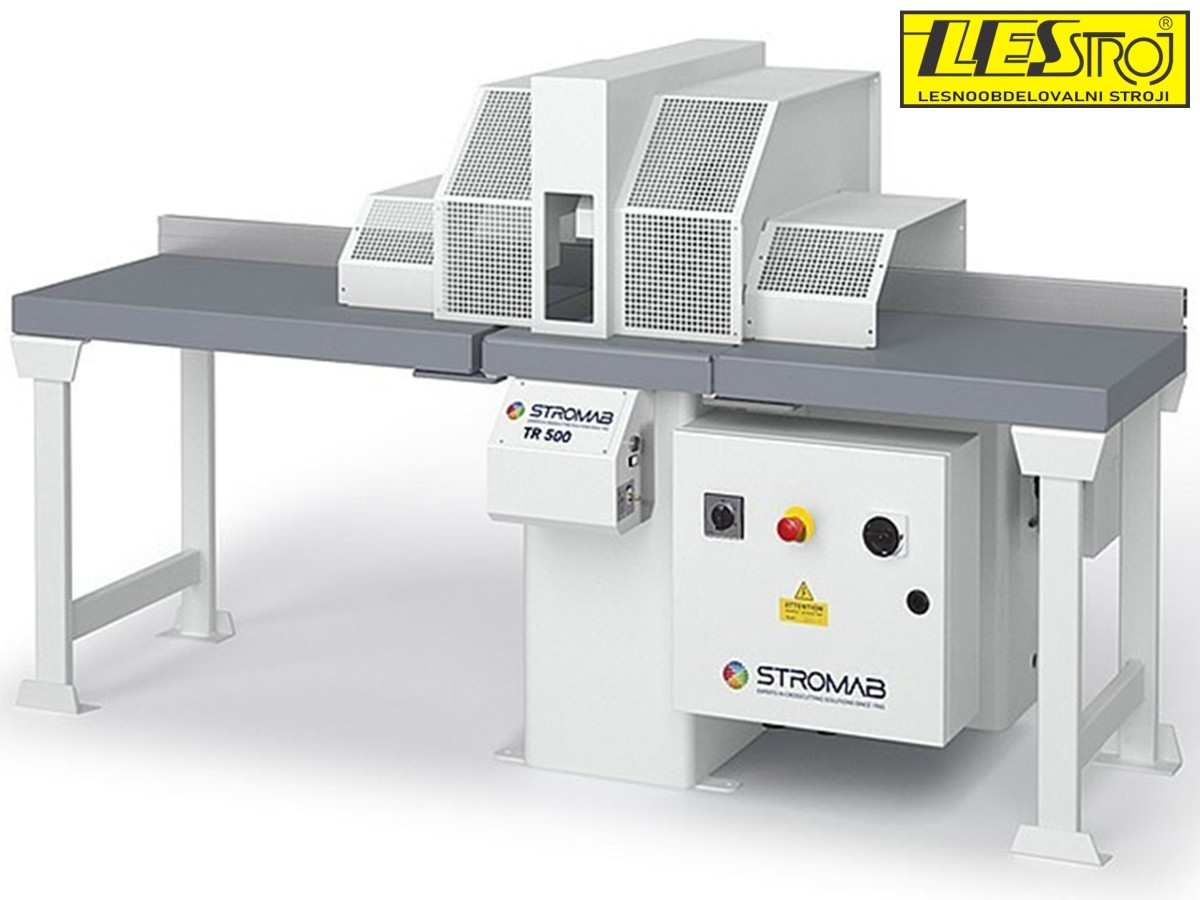

The main difference between the Stromab TR 500 and TR 501 is that workpieces can be inserted into the TR 501 from the front and from the side, while the TR 500 only allows insertion from the side.

Product Details

Data sheet

Saw blade diameter (mm)
500
Cut-off height (mm)
135
Maximum sawing width
360 mm
Motor power (kW)
7,5
Saw rotation speed (rpm)
3000
Max. working pressure
8 bar
Weight (kg)
415
