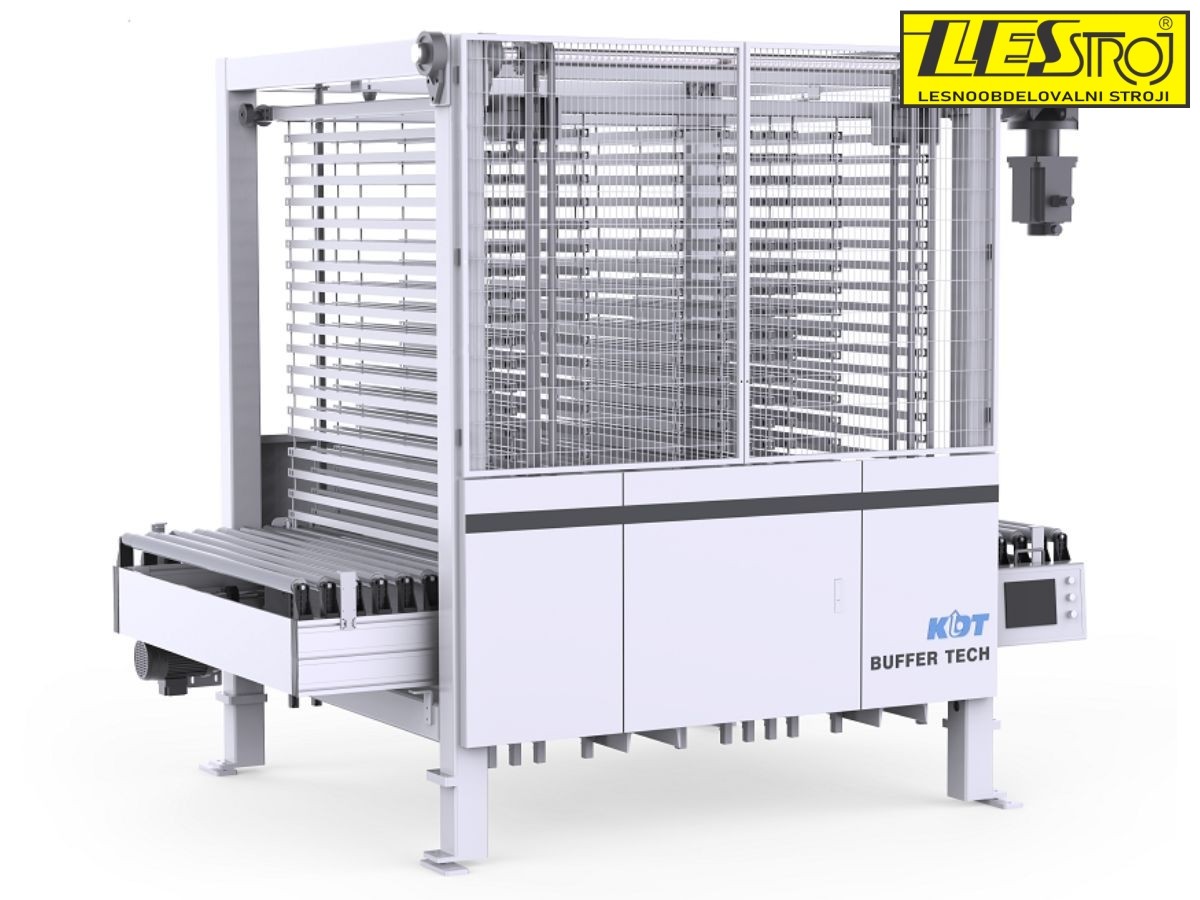

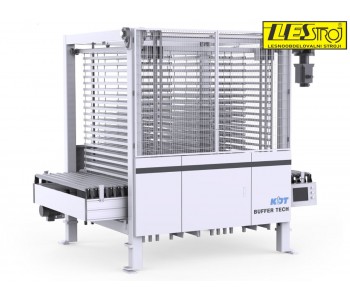

KDT automatic linear buffer loader KHS-330

KDT automatic linear buffer loader KHS-330

The KDT Automatic Linear Buffer Loader KHS-330 is designed for handling panel materials ranging from 200 × 200 mm to 2800 × 1200 mm with a thickness of 10–25 mm, and can accommodate up to 30 pieces, ensuring a high level of automation and throughput. It represents a compact and efficient solution for modern production lines.

Request for more information

Product inquiry

I want contact by: *

Contact details:

Description

KDT automatic linear buffer loader KHS-330

Automation equipment specifications:


Minimum panel size: 200x200 mm
Maximum panel size: 2800x1200 mm
Panel thickness: 10–25 mm
Number of cells/pieces: 30
Power: 3.7 kW
Overall dimensions (LxWxH): 3040x2240x2725 mm

Product Details
