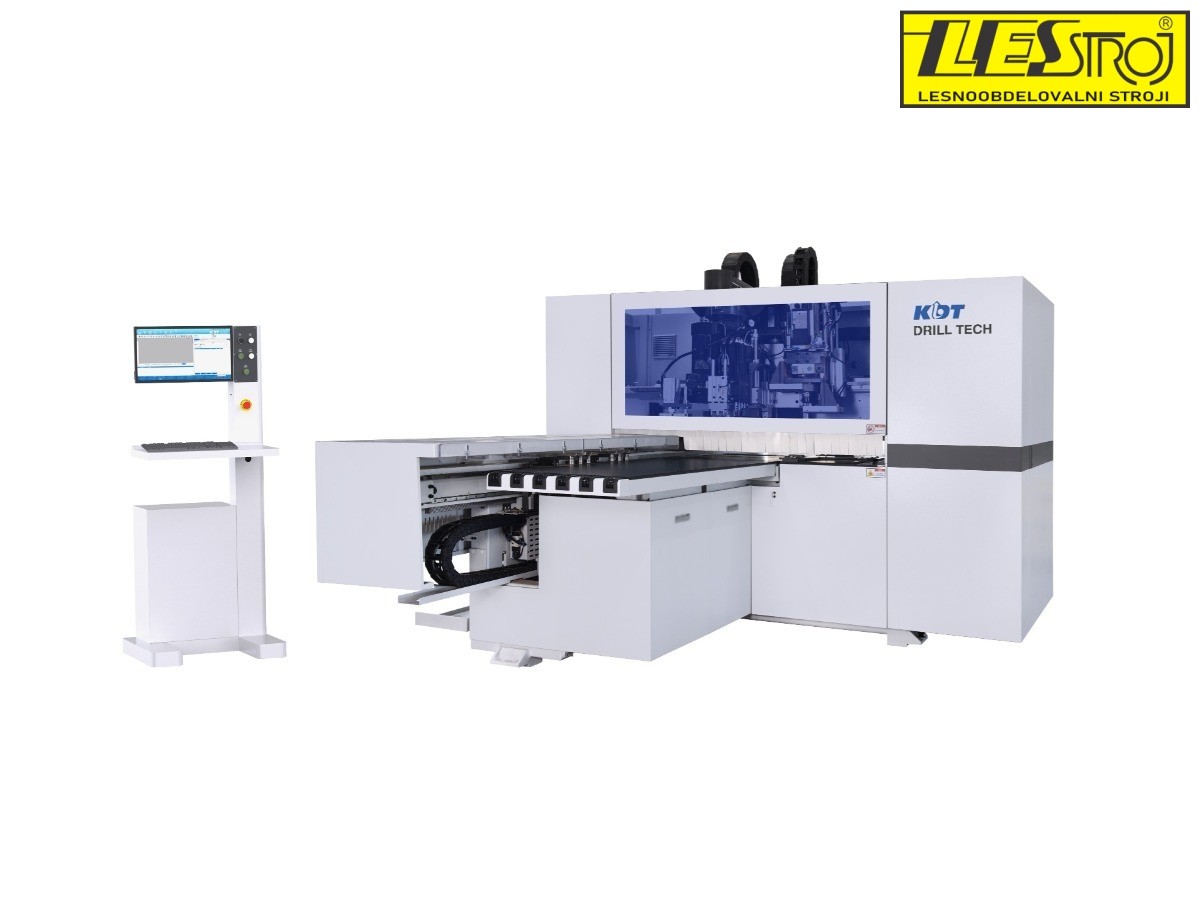

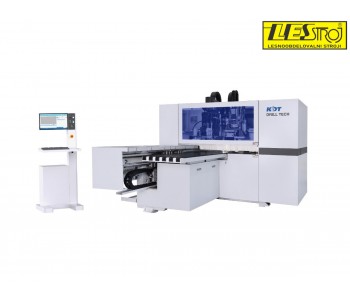

6 sided CNC machine KDT KD-612 KS

Two automatic clamps, which move at a maximum speed of 140 m/min, significantly shorten the work cycle compared to other flow-through CNC machines on the market. Guide lengths of 3900 mm (model 610) or 5600 mm (model 612) greatly reduce the need to re-grip the workpiece, further speeding up the process. KDT’s flow-through CNC machines are thus regarded as some of the fastest on the market. Engaging the clamps via a foot pedal or a mobile console simplifies operation and increases flexibility.

The 5-position tool magazine for automatic tool change also accepts angular heads for machining door wings, side grooves, and other operations enabled by such heads.

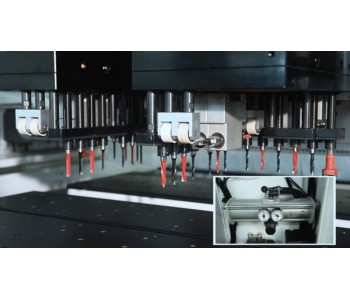

Configuration of working aggregates for maximum flexibility and speed: three independent drilling units with 20 + 20 + 9 spindles (two top, one bottom), two milling aggregates 5.5 kW + 3.5 kW (top and bottom), an integrated grooving saw, and automatic tool change. Six-sided machining allows simultaneous processing of both sides without rotating the workpiece and more efficient through-milling and drilling, without the need for through drills or end mills. This adds great value to six-sided processing for carpenters who want complex or simple operations in a single pass.

The waste conveyor belt is standard on the KDT 612 model. You have two elegant options for handling larger cutouts:
1. Automatic release – set the dimensions of the cutout in the program and the machine releases it onto the conveyor belt automatically.
2. Manual removal – after cutting, the machine briefly pauses the cycle so you can safely remove the piece by hand.
This dual approach is especially useful for large openings (e.g., for a sink), where classic pocketing would take significantly longer and use more tooling. KDT thus saves time, reduces tool wear, and offers flexibility that most other flow-through CNCs, limited to pocketing, simply don’t have.

The KDT WS Drill AI (KDT development) software is an extremely user-friendly tool for fast and intuitive programming of any part that needs to be produced. It provides drilling, milling, and creation of cutouts, roundovers, and circles from all six sides – without flipping the workpiece. The AI-supported algorithm intelligently optimizes clamp movements and grips, tool selection, and calculates optimal machining paths; simultaneous six-sided machining impresses even the most experienced carpenters. The built-in machining simulator serves as precise verification for complex operations and reliably calculates processing times. Via post-processor, the software is compatible with all established furniture design solutions such as MegaTischler, Corpus 3D, Imos, etc. Supported formats DXF, XML, BPP, MPR, CIX, SCX, BAN, and PDX offer significant added value for many production environments. Powerful statistics, regular maintenance communicator, and numerous additional functions increase flexibility, placing KDT WS Drill AI among the best software interfaces and proudly earning the machine the title of hybrid flow-through CNC machine.

The automatic inspection and measurement system for length, width, and thickness of the workpiece significantly reduces the possibility of human error when operating the CNC. When the machine detects the real dimensions of the piece, it can automatically adjust drill positions. The KDT software ensures that all corrections remain within your predefined tolerances. In the case of an unsuitable workpiece, the program automatically rejects the machining.

The upper milling head with automatic tool change features two independent air pressure plates that provide smooth sliding and a stable, firm grip during machining. Simultaneous air-blow clearing continuously removes dust and chips, so even delicate surfaces (matte, high gloss) remain scratch-free.
