STARK rabbeting head PH79FM D50x80

The rabbeting head for cutting rabbets and trimming all types of wood and wood composites. It is intended to be used on CNC machines.

Call for price
Request for more information

Product inquiry

I want contact by: *

Contact details:

There are not enough products in stock
Condition
New product
Reference:
018951
Description

Premium grooving cutter for trimming and grooving on CNC machines.

The cutter features an exceptionally large cutting height of 80 mm.

The grooving head is equipped with standard replaceable HM cutting inserts and scoring inserts.

The grooving cutter has 16 carbide inserts with dimensions 15 × 15 × 2.5 mm and 2 front-facing HM inserts with dimensions 14 × 14 × 1.2 mm.

Spare parts:

– insert: 15 × 15 × 2.5 mm (017725);

– insert: 14 × 14 × 1.2 mm (007441).

Product Details
018951

Data sheet

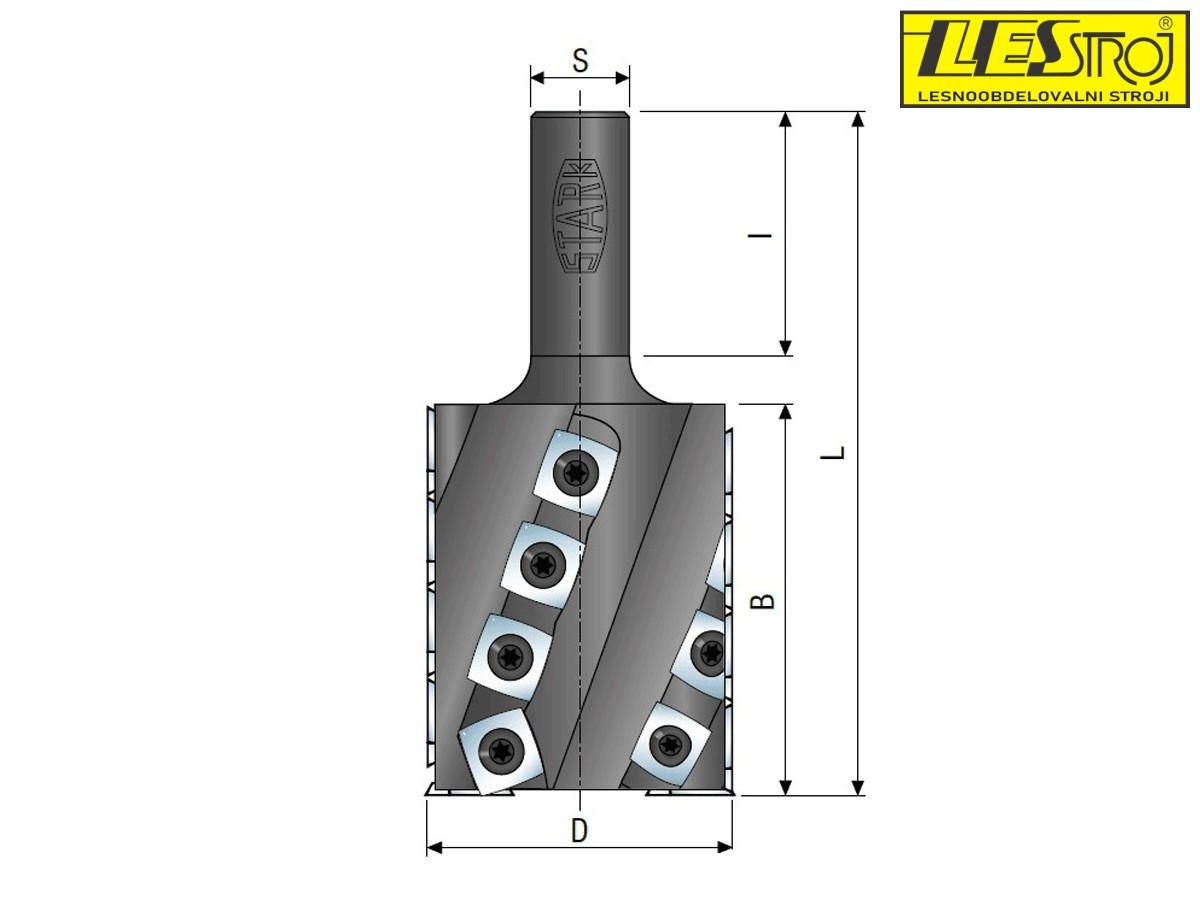

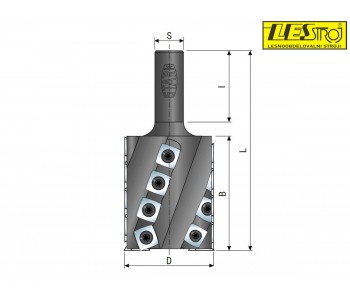

Diameter (mm)
50
Working height (mm)
80
Shank diameter (mm)
20
