Edge bander KE-258
Brand:
The KDT KE-258 is a compact edge bander with diamond pre-milling, an EVA gluing unit and automatic units for fast, precise and high-quality edge banding in a modern joinery workshop.

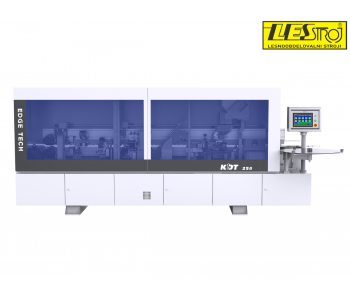

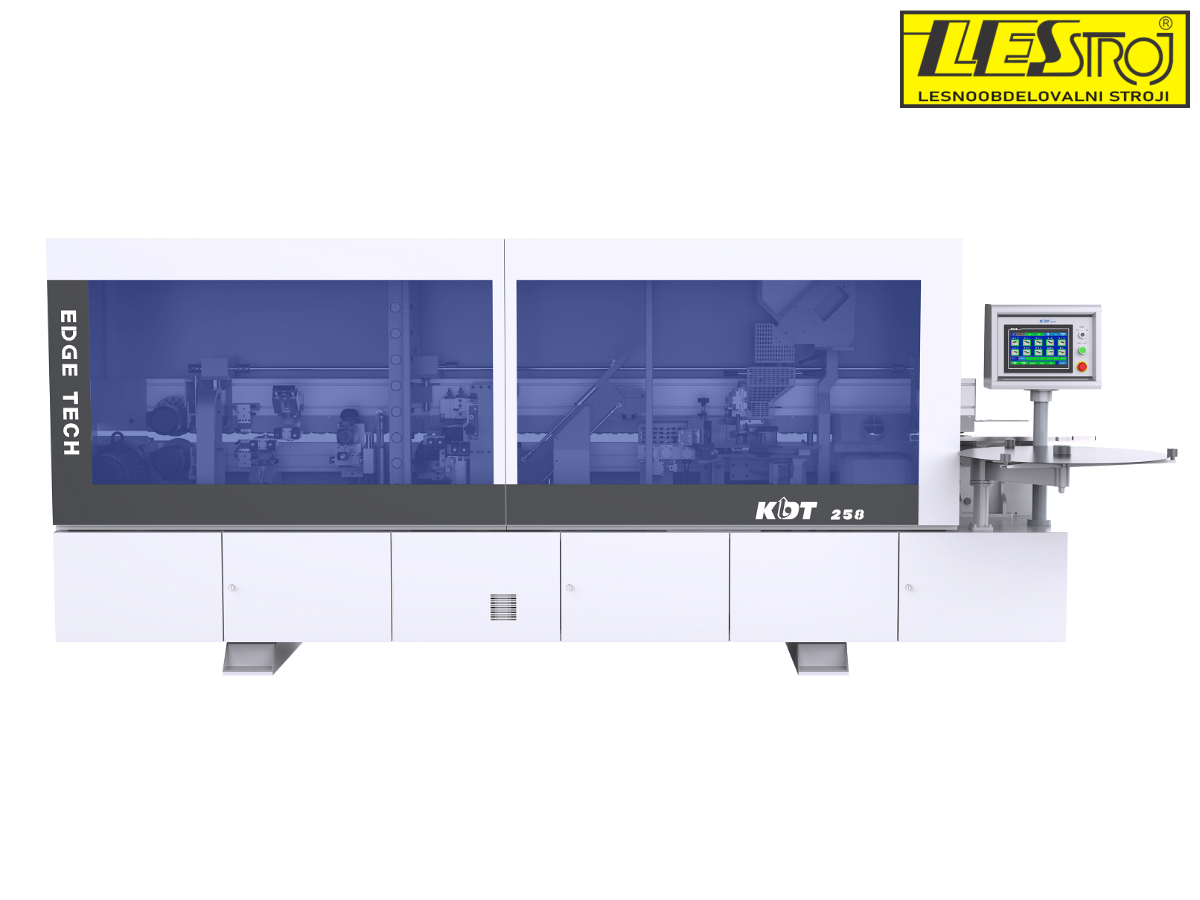

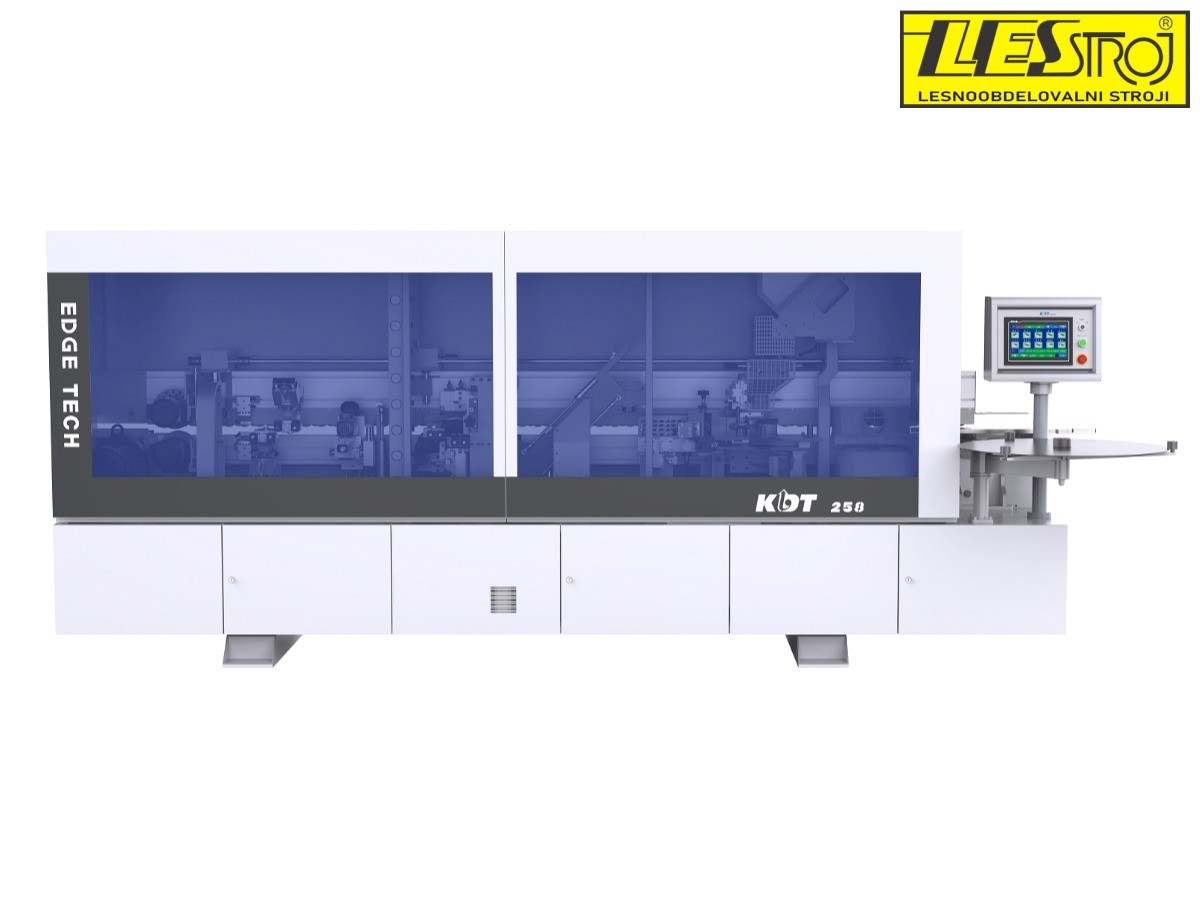

KDT KE-258 Edge Bander
A compact solution for precise and efficient edge banding
The KDT KE-258 is a modern edge bander designed for joinery workshops that need a reliable, precise and compact machine for daily furniture production. Despite being only 3,710 mm long, it is equipped with all the key units for high-quality edge banding – from diamond pre-milling to polishing and cleaning of the workpiece.
Automatic functions reduce machine setup time, improve the quality of the final finish and allow quick adaptation to different materials and edge-band thicknesses.
Machine advantages
- Compact design, suitable even for workshops with limited space.
- The diamond pre-milling unit ensures an optimally prepared surface for high-quality edge-band gluing.

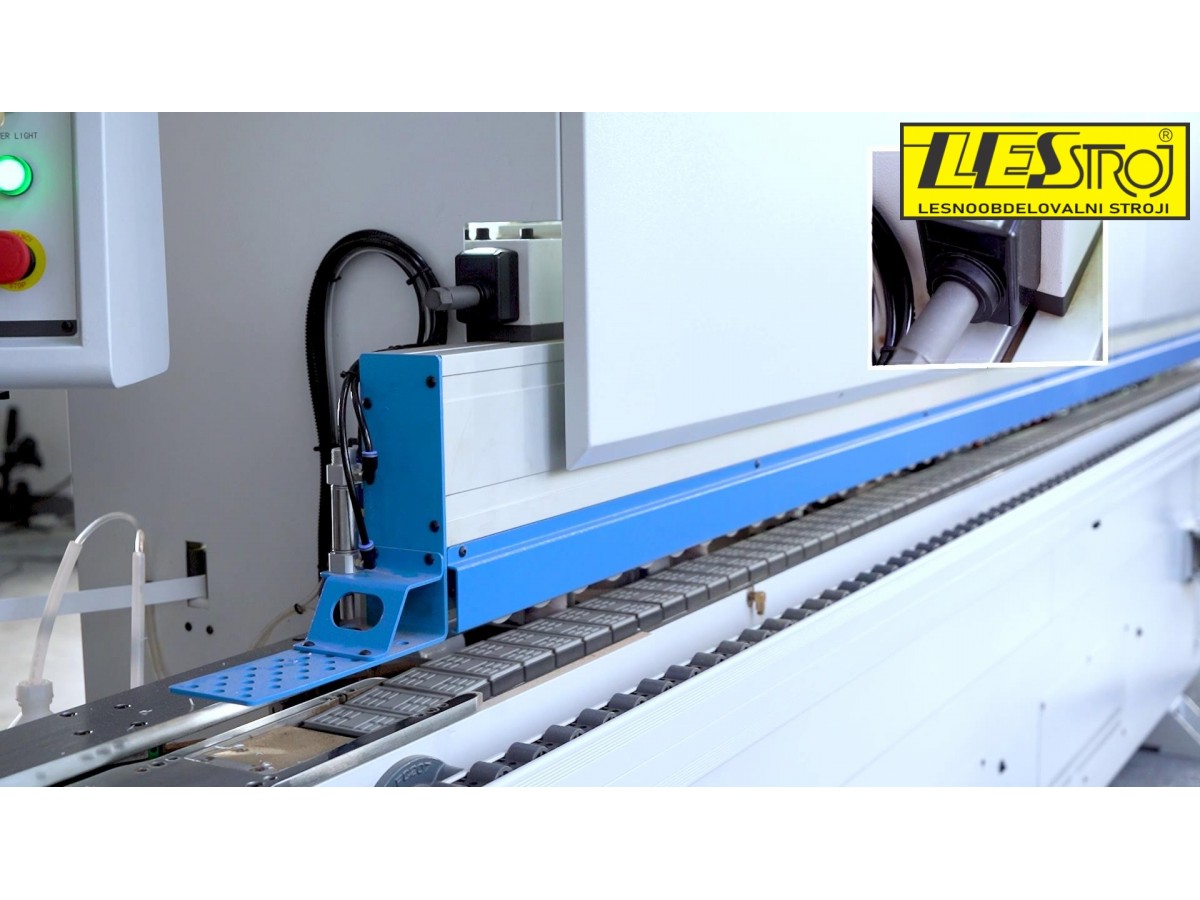

- The electrically adjustable pressure beam allows quick adaptation to different workpiece thicknesses.
- EVA glue pre-melting, automatic glue granule feeding and automatic glue roller cleaning reduce maintenance time.
- Pneumatically controlled units enable quick switching between two edge-band thicknesses.
- The drill-hole avoidance system for furniture hinges enables smooth processing of already drilled elements.
- The polishing and cleaning unit ensures a smooth and clean final edge.

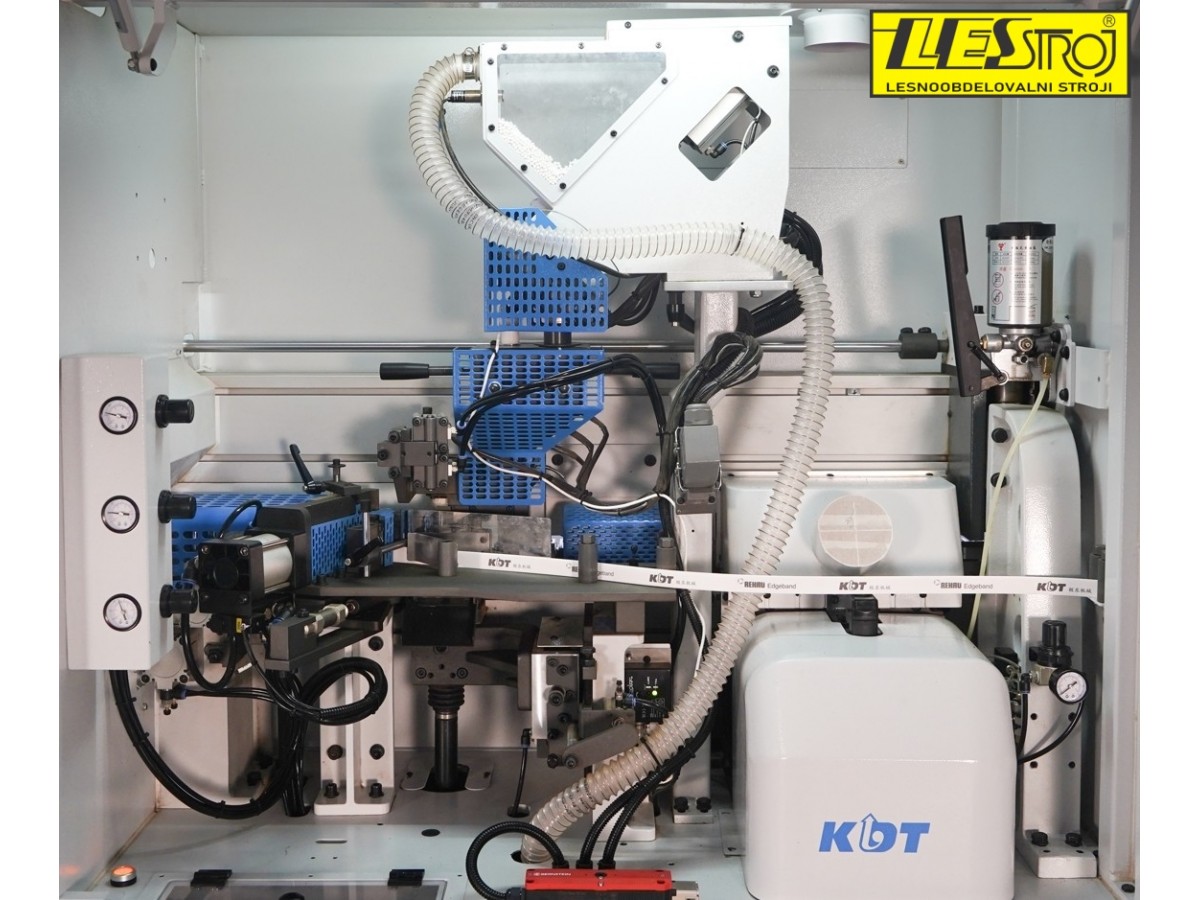

Machine equipment

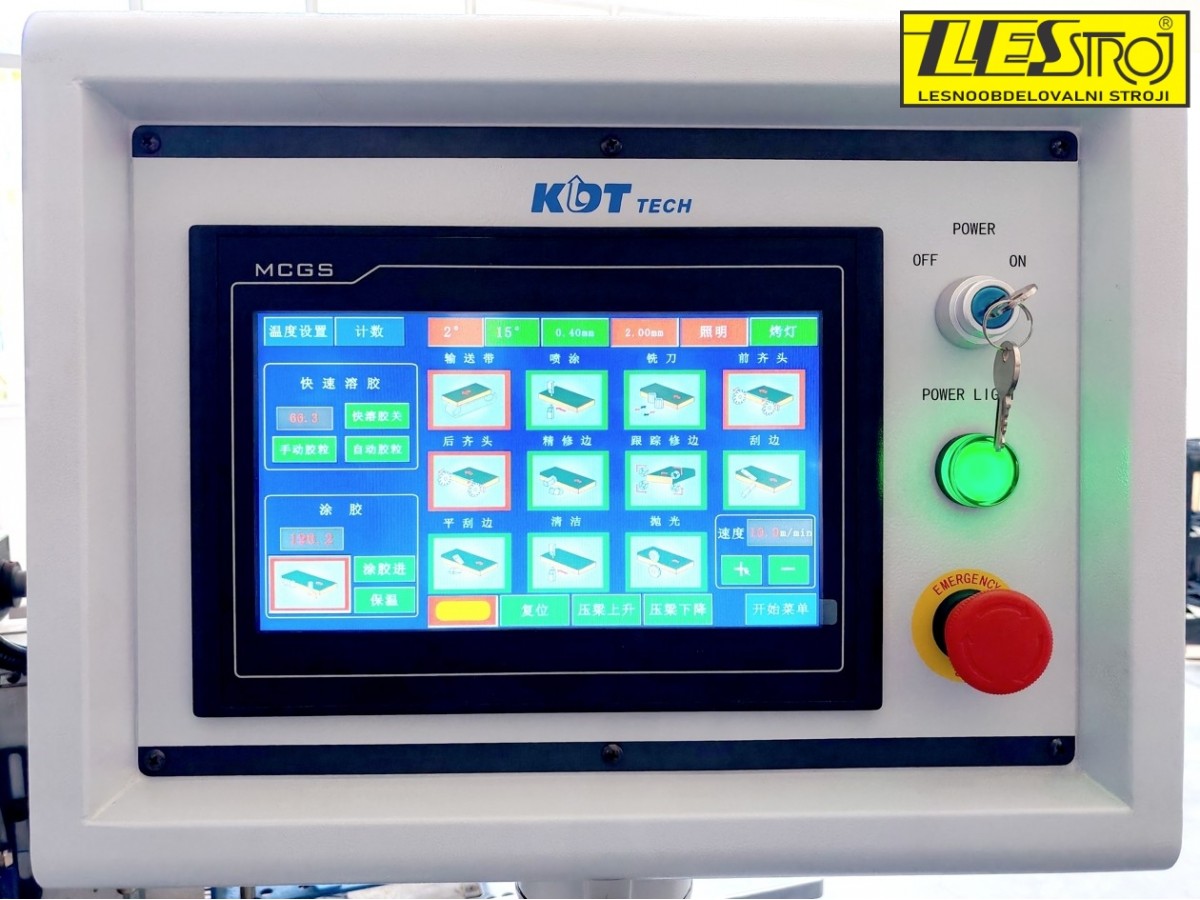

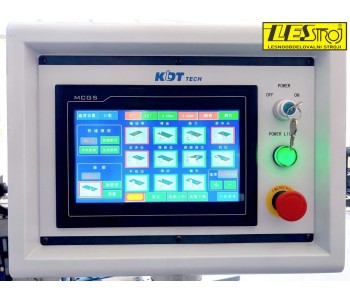

- 10-inch touch screen

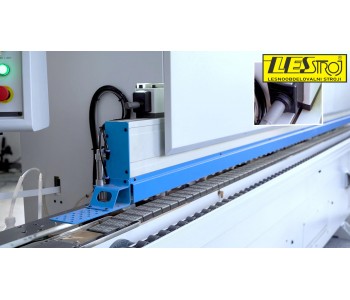

- Electrically adjustable pressure beam

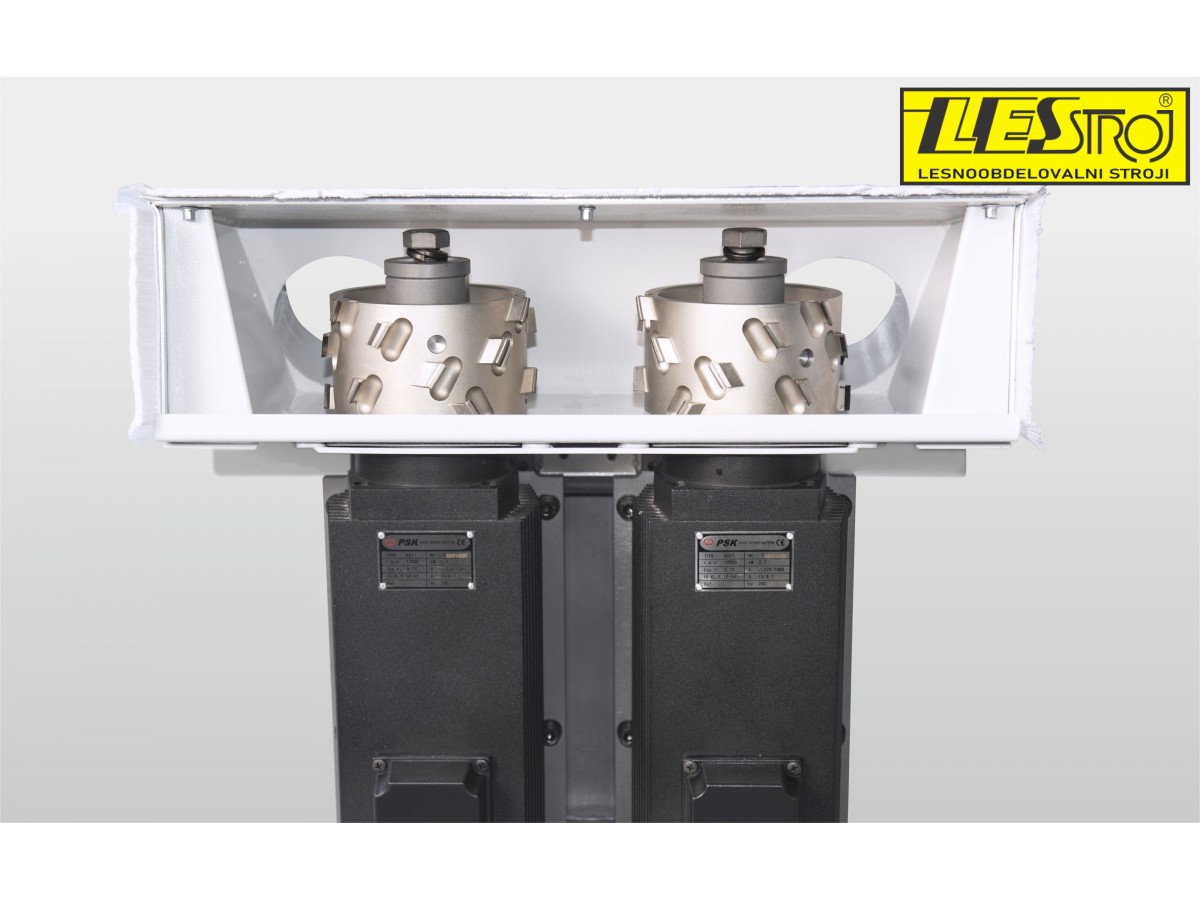

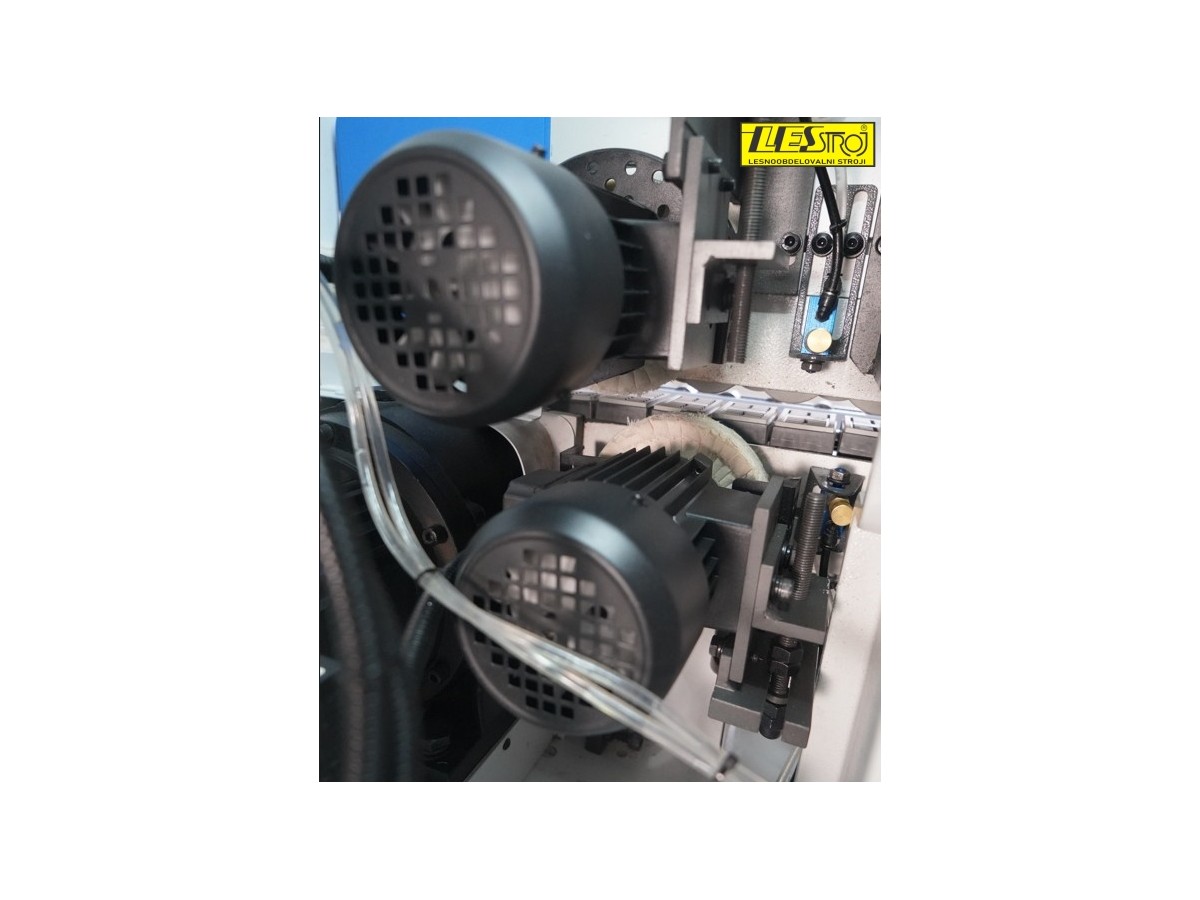

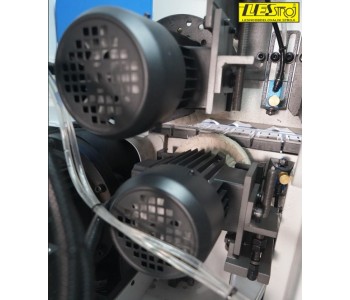

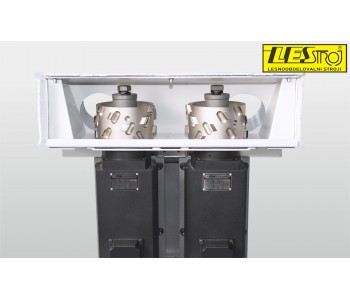

- Pre-milling unit with two diamond cutters and 2 × 2.0 kW motors
- Workpiece pre-heating unit
- Upper EVA gluing unit with glue pre-melting
- Automatic glue granule feeding
- Automatic glue roller cleaning
- Pressure unit with three pressure rollers

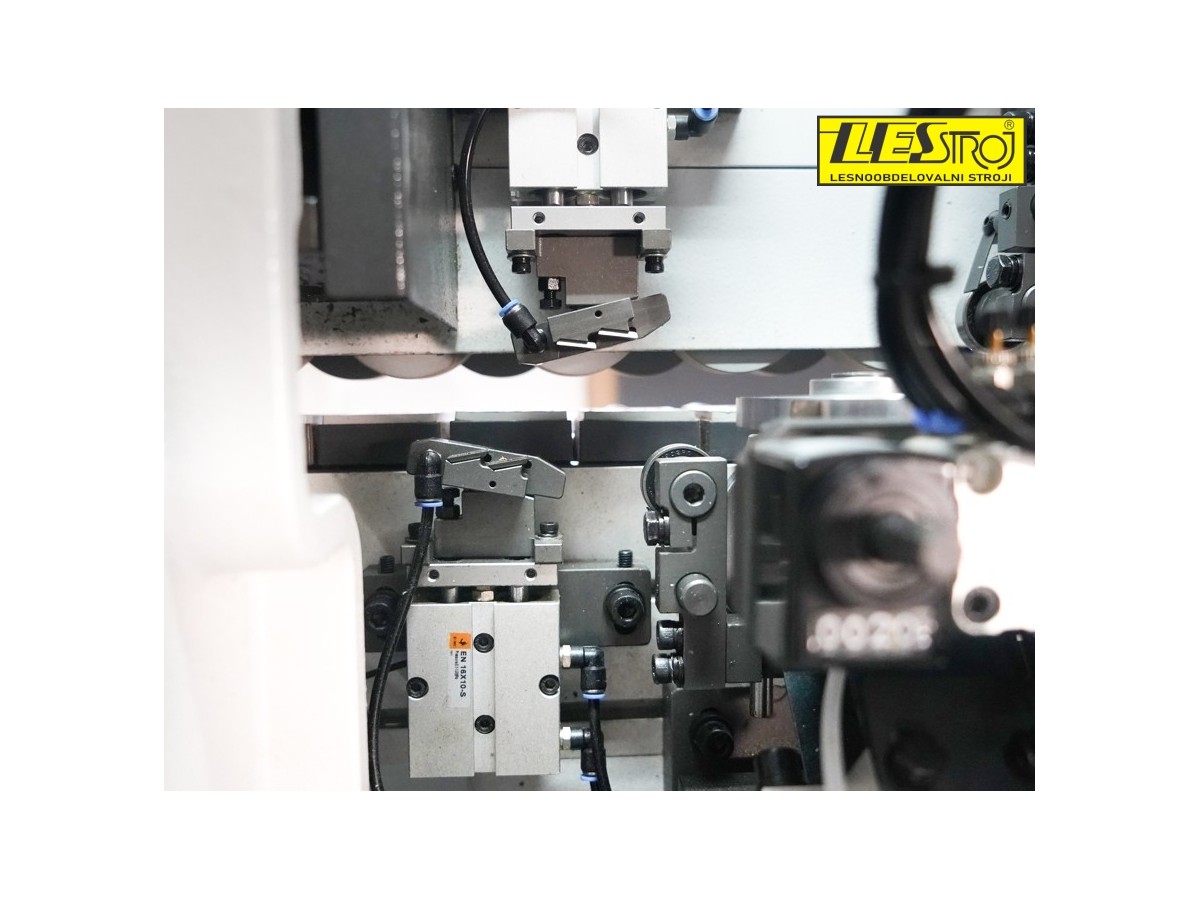

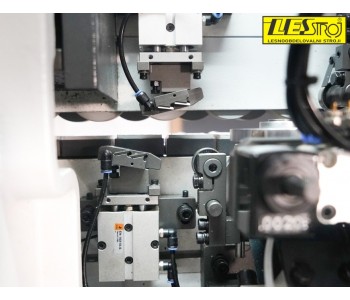

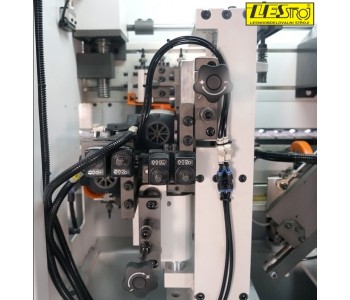

- Pneumatic end-trimming unit with switching between 2° and 15°

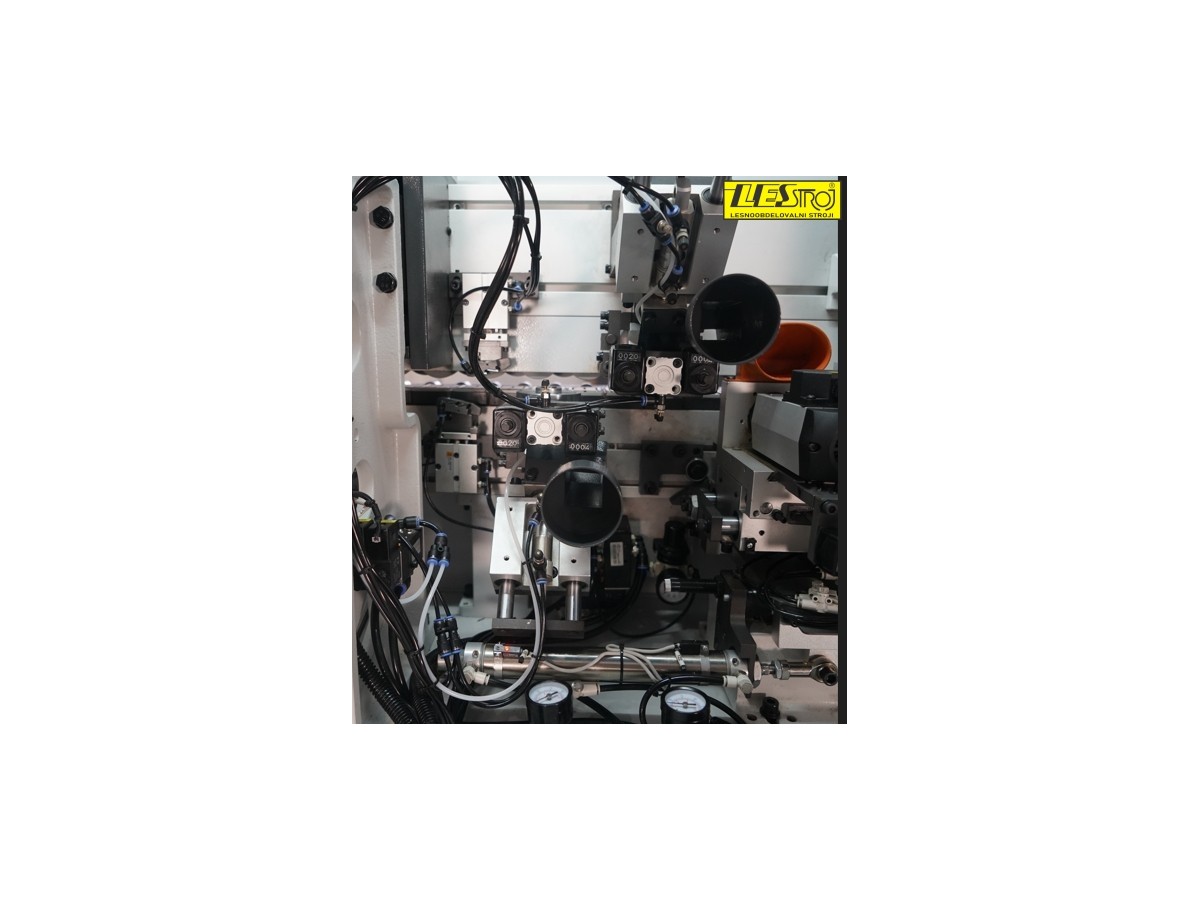

- Pneumatic fine-trimming unit
- Pneumatic scraping unit
- Flexible flat-scraping unit
- Polishing unit
- Release-agent application unit

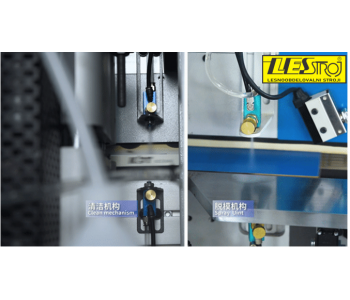

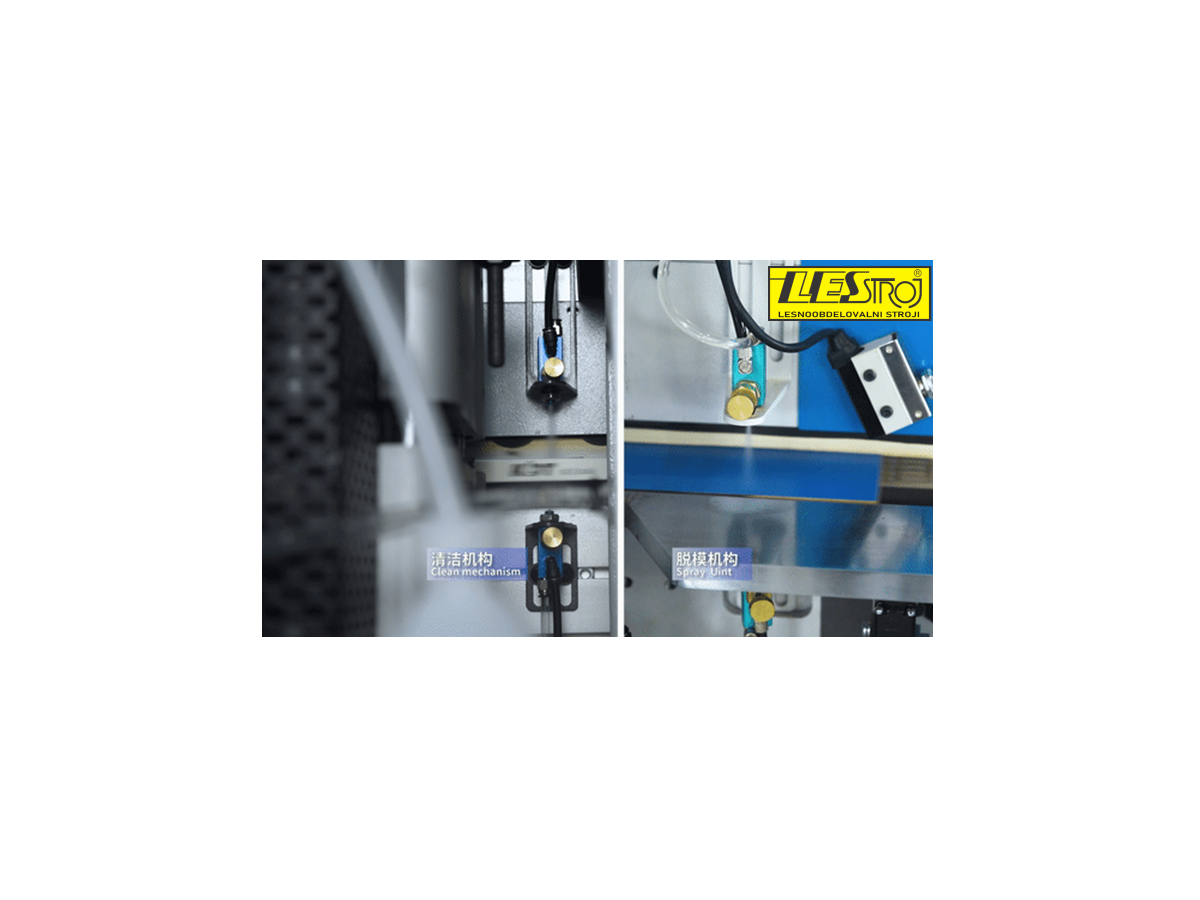

- Cleaning unit for removing glue residue
Technical data
| Feed speed | 8–12 m/min, stepless adjustment |
|---|---|
| Edge-band thickness | 0.4–3 mm |
| Workpiece thickness | 9–60 mm |
| Minimum workpiece dimension | 90 × 120 mm |
| Total connected power | 13.03 kW |
| Working pressure | 0.6 MPa |

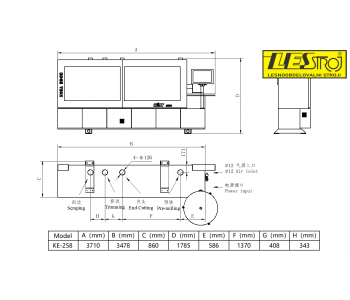

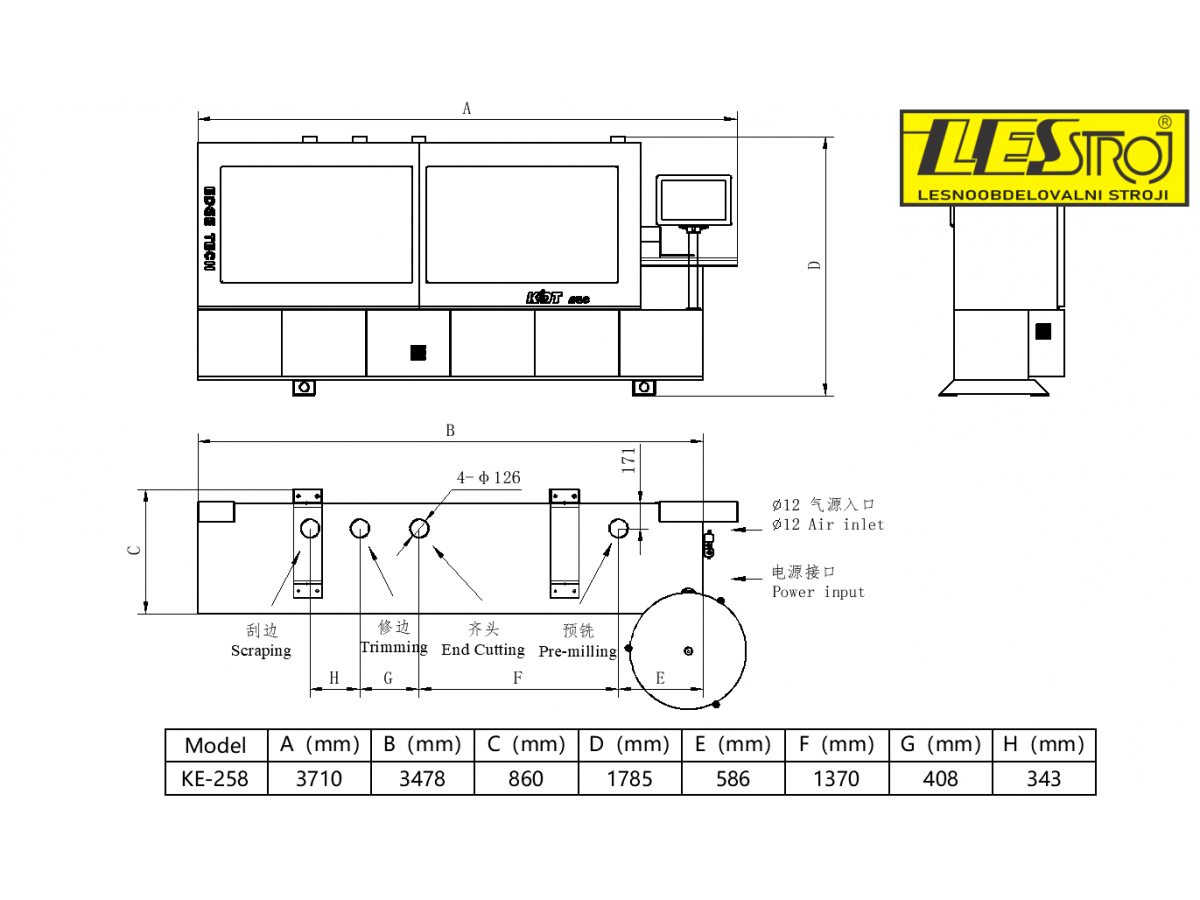

| Machine dimensions | 3,710 × 860 × 1,750 mm |
A reliable choice for modern joinery production
The KE-258 combines compact dimensions, advanced edge-banding technology and simple operation. Thanks to its quality units, automatic settings and well-thought-out design, it is an excellent choice for small and medium-sized joinery workshops that want to achieve high edge-finishing quality, fast machine setup and efficient daily production.
