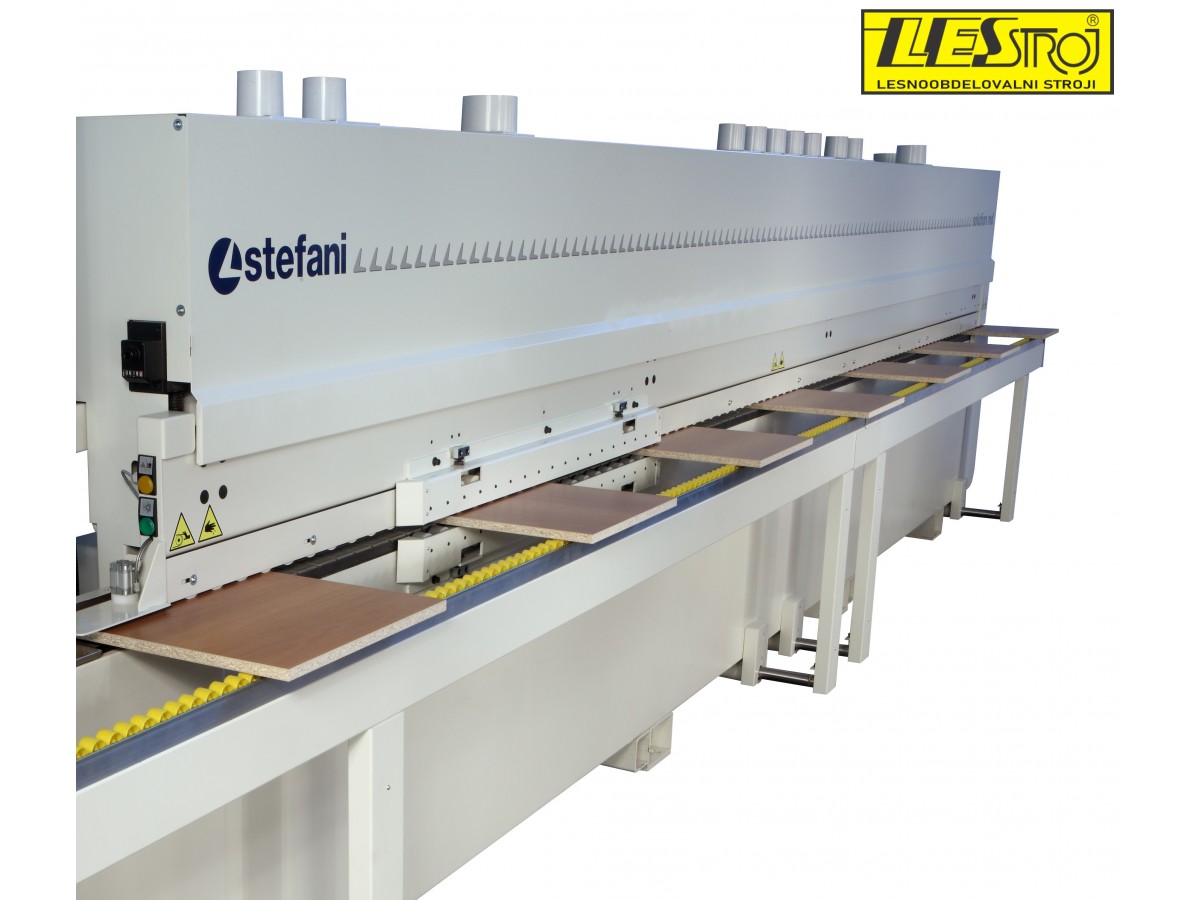

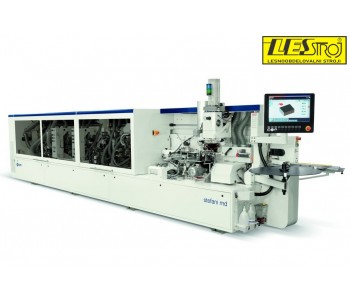

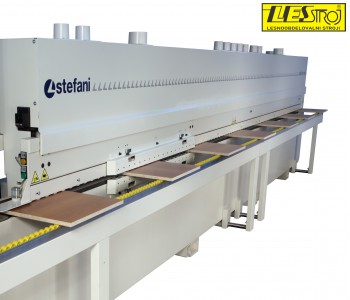

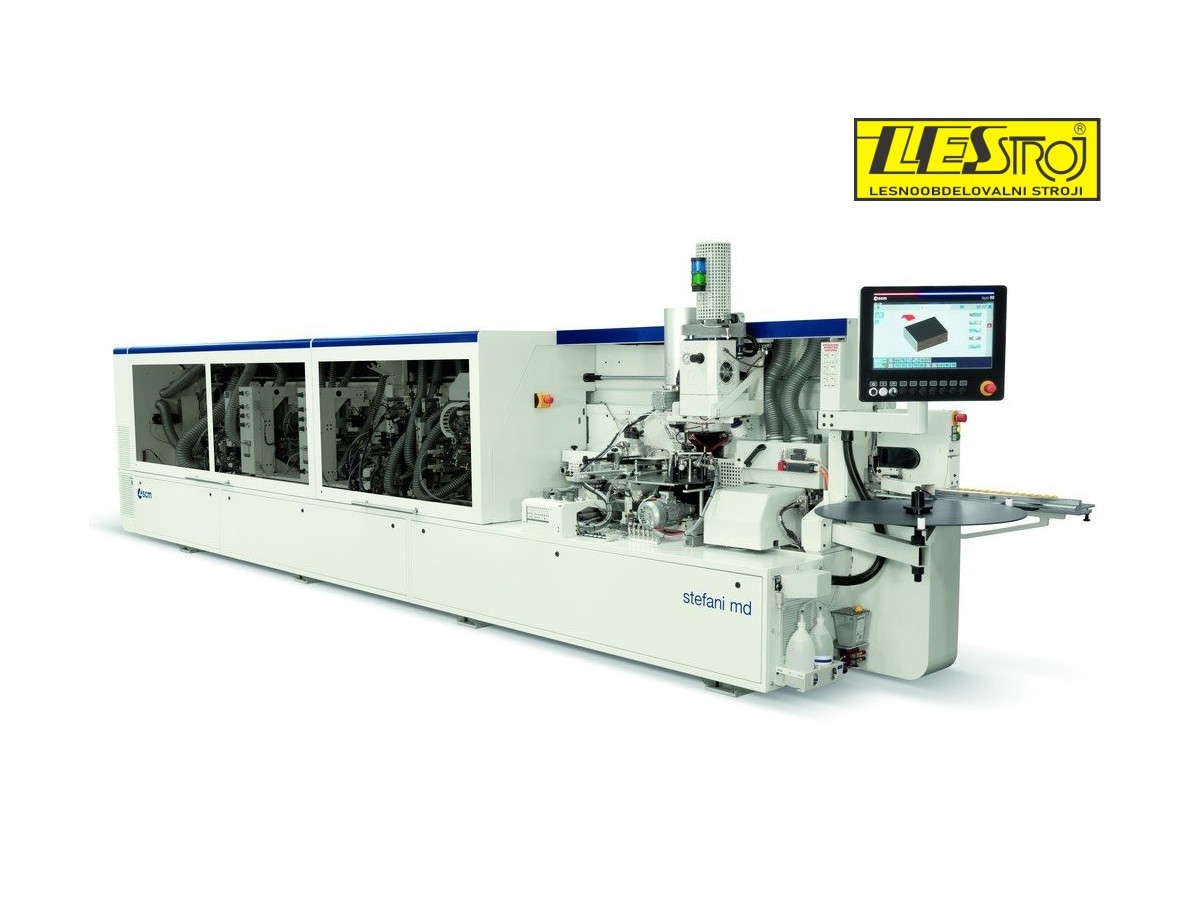

Edge Bander Stefani Solution MD

EDGE BANDING WITH SOLID WOOD UP TO 22 MM

The free entry to the gluing area and wide magazine for the wooden strips (200 mm approximately) allow a simple and functional use of the large dimensioned solid wood edges.

HIGHER VERSATILITY with the possibility to have 2 pre-melting units

The PU BOX L for poliurethane glue and the QMS-P pre-melting unit for EVA glue.

VERSATILE WITH HIGH PRODUCTIVITY

Working speed up to 25 m/min and automatic operating units with the possibility of a continuous production of a large number of panels even though they are all different from one to another.

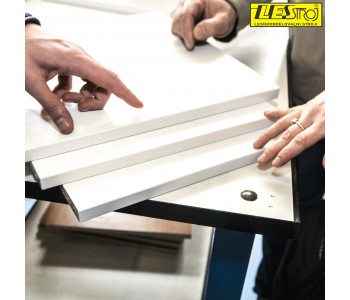

PANELS WITH 3 DIFFERENT RADII

With the use of fully automatic multi-edge operating units that allows error-free rapid set-up amongst the different machining.

Request for more information

Product inquiry

I want contact by: *

Contact details:

Condition
New product
Description
Product Details
Images

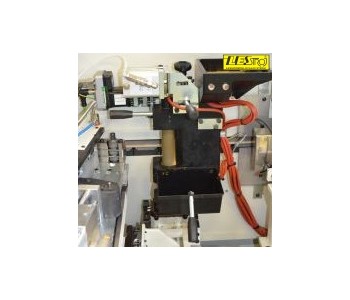

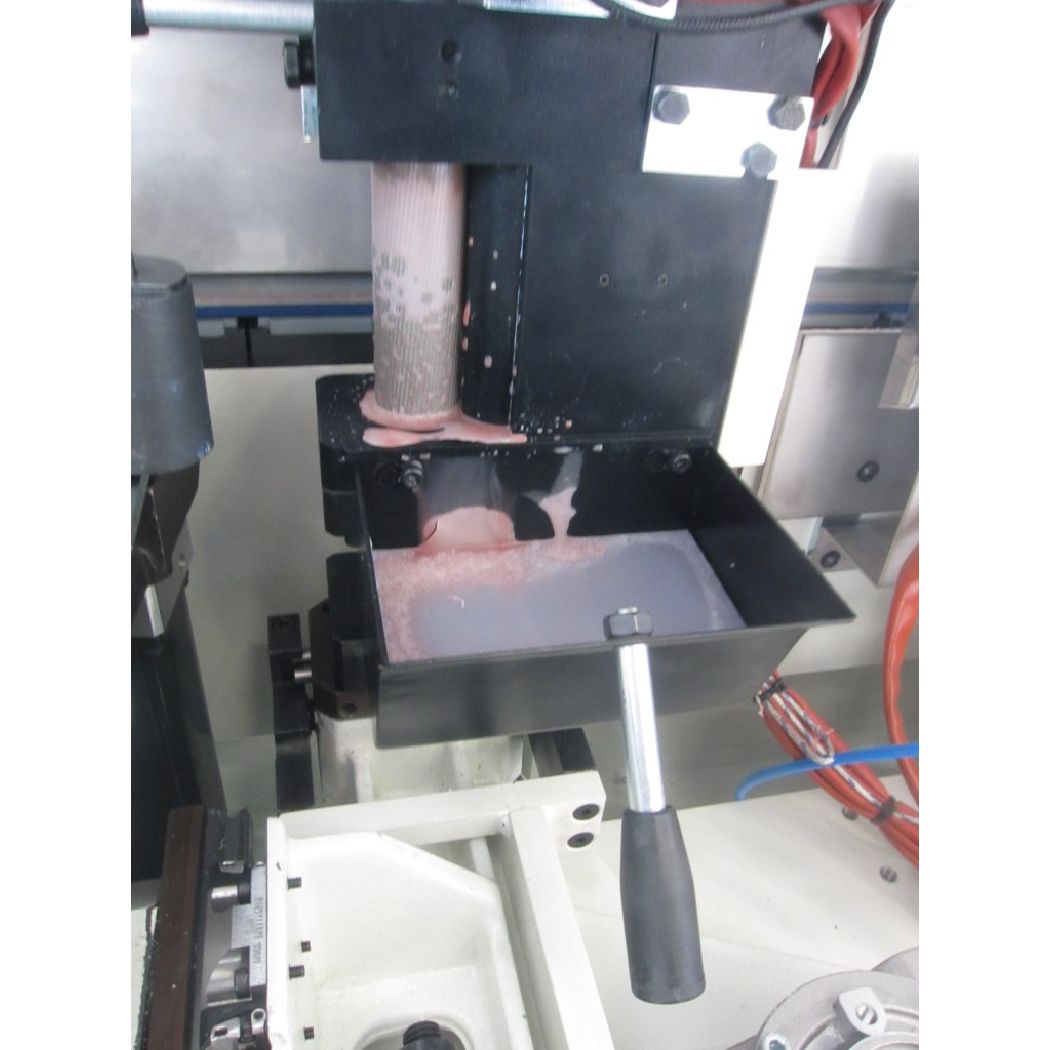

SGP glue system

- Especially unique design reduces the minimum required amount of glue before application in order to keep the glue as fresh as possible. - Spreading roller with improved granulation/profile for ultra-thin bonds. - Improved intangible of the roller with plasma surface processing for easier cleaning of PU glue. - AUTOMATIC cleaning cycle with collecting excess glue in a special container. - Automatic glue blockade. - Patent - NC setting the amount of glue dosing through the computer. - L-D rotation. - The possibility of a fast change of the glue pot. - Quick and easy access to the inside of the glue pot; the glue pot can be completely dismantled. - Faster heating of the glue due to the smaller glue pot. - Double working temperature EVA/PU. Technical characteristics: - Heating time to operating temperature is approximately 8 minutes. - The heating time with preheating of the glue is approximately 5 minutes. - Glue capacity: 0,5 kg. - Installed power 2,05 kW.

PU BOX L - It enables the melting of PU glue from the...

Advantages: - Quick and easy opening of the glue zone – for easier cartridge replacement and cleaning. - Pneumatic pressing device for melting the cartridge by pressing a button. - Heated board for glue melting. - The preheating unit simply moves on horizontal guides. - "CFS" air-cooling system for the melting zone and maintenance of the high glue quality.

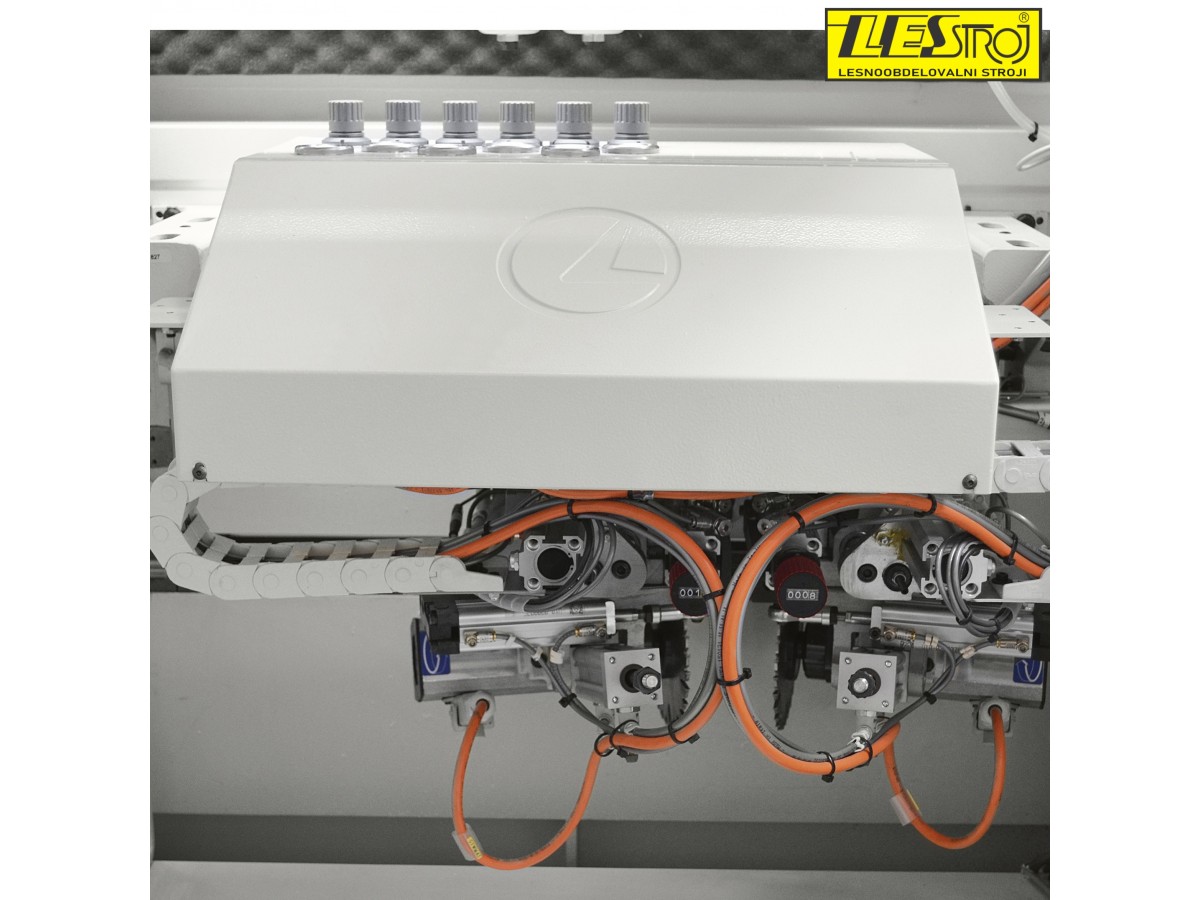

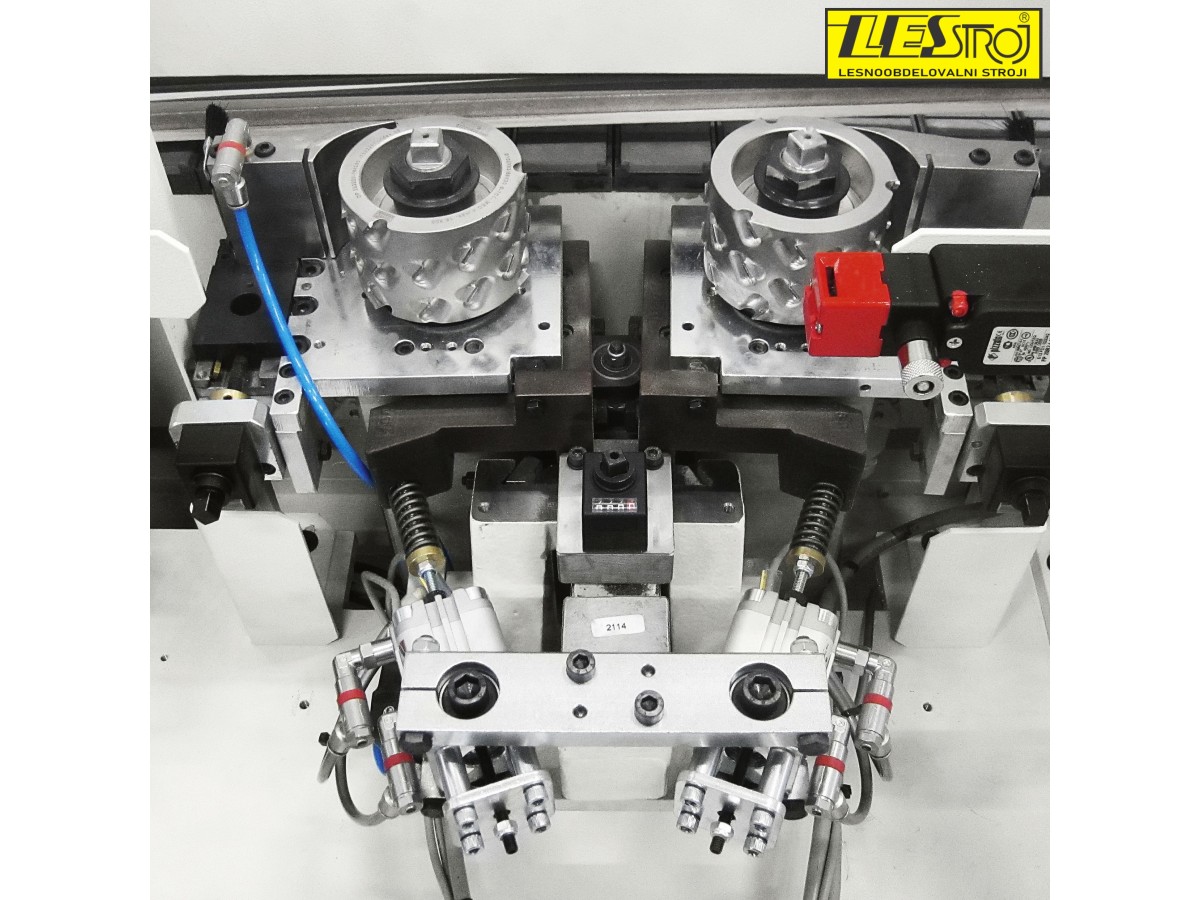

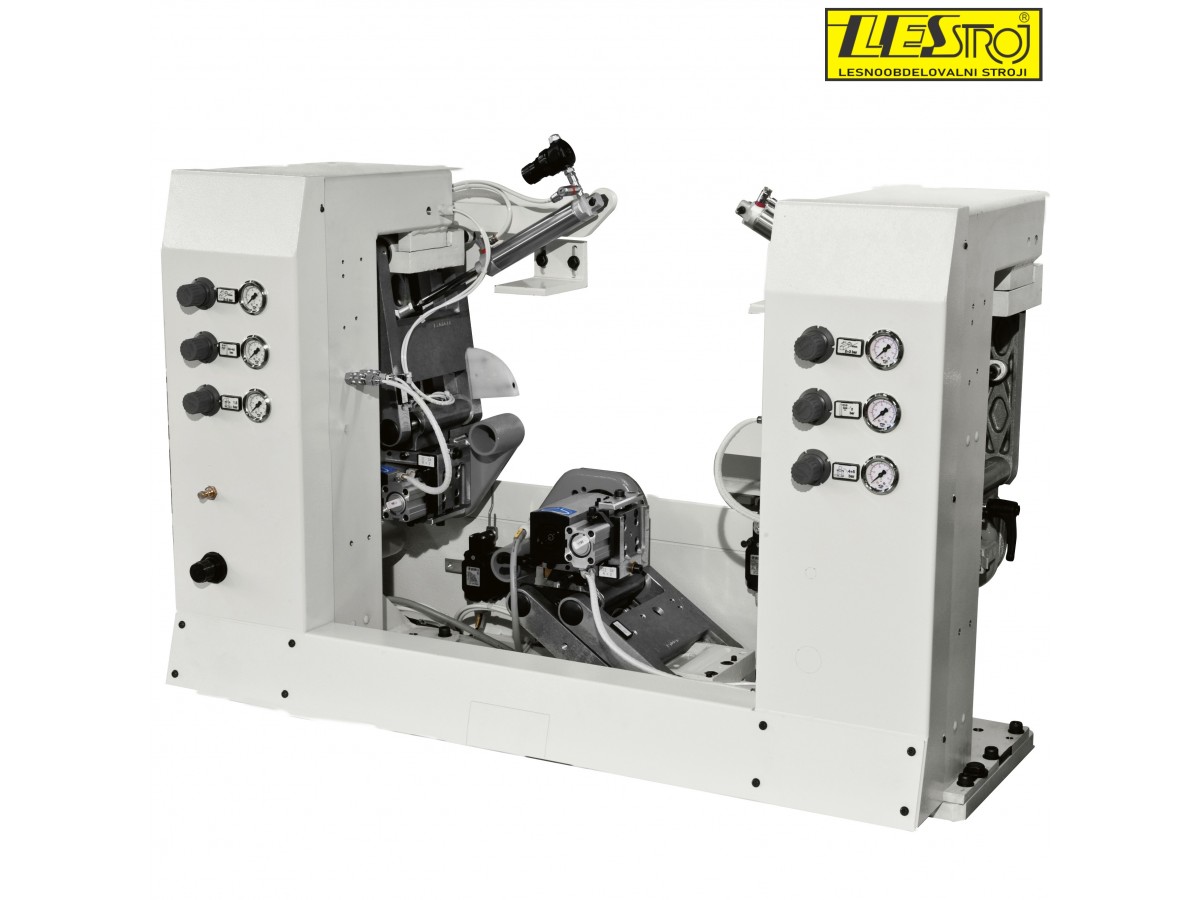

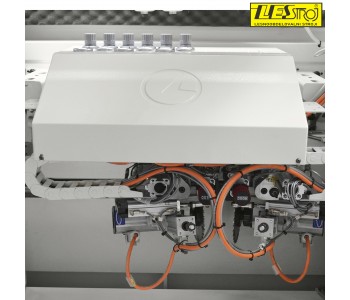

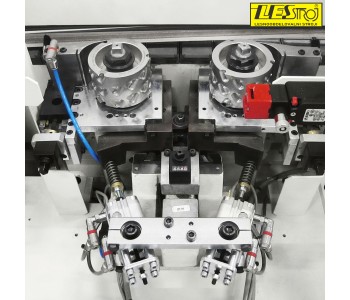

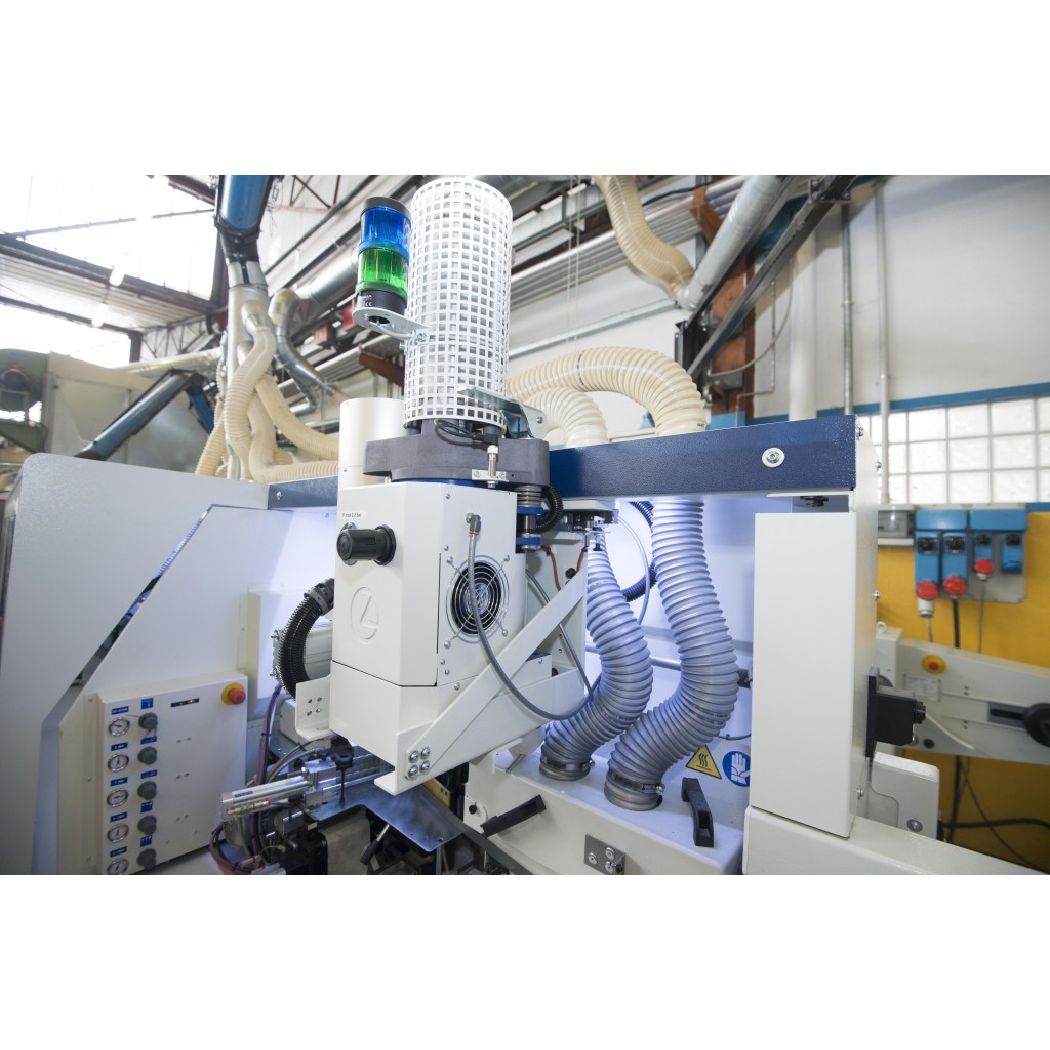

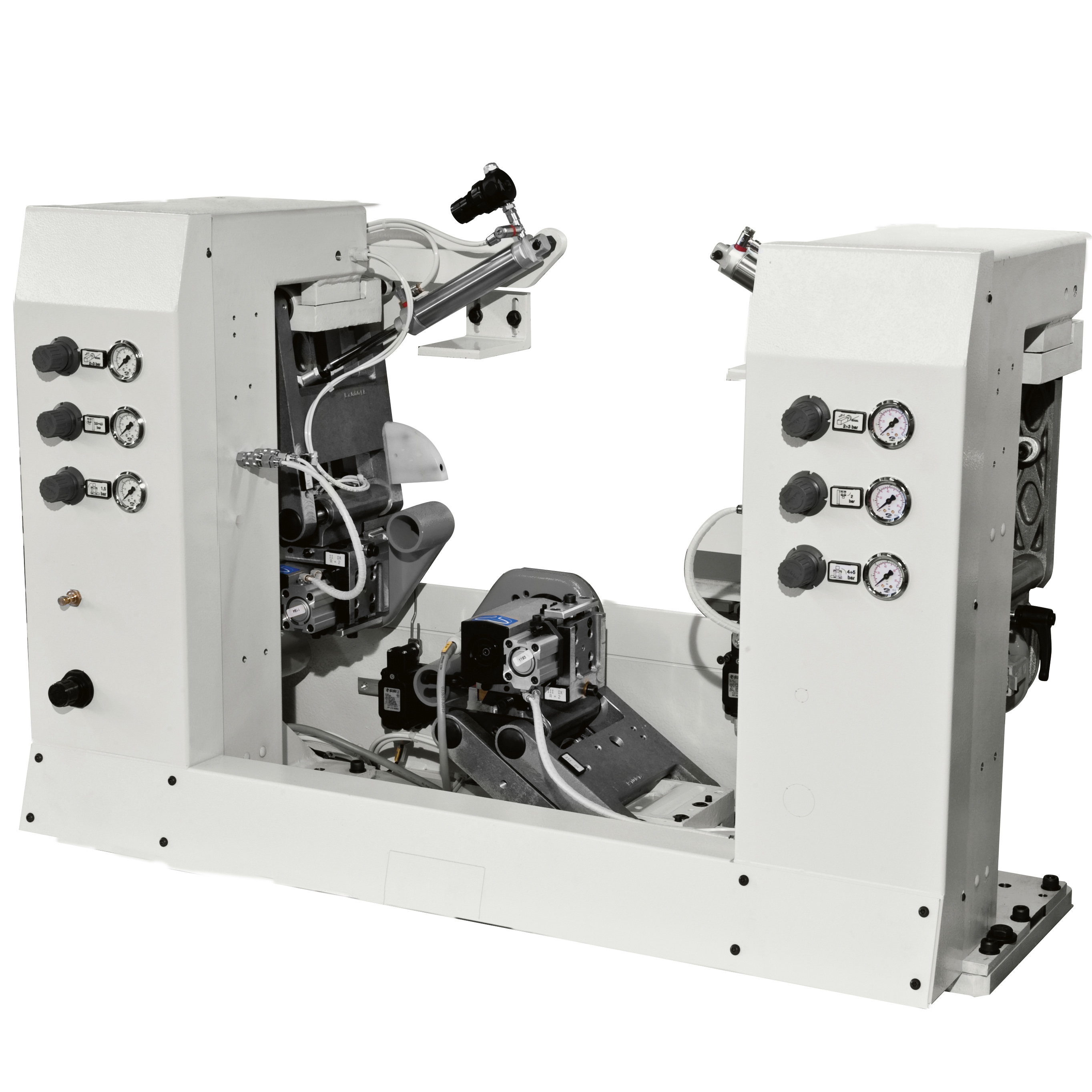

Rounding unit ROUND 4M

The top rounding unit with 4 motors enables moving speed from 22 to 25 m/min.

Possibility of up to 3 different radii over LEUCO tool with NC setting.

Round 4M also provides optimum rounding of already veneered workpieces.

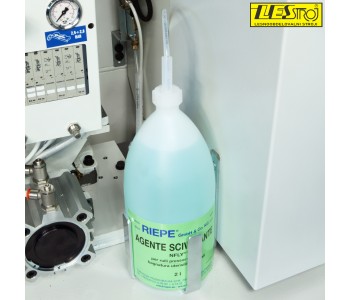

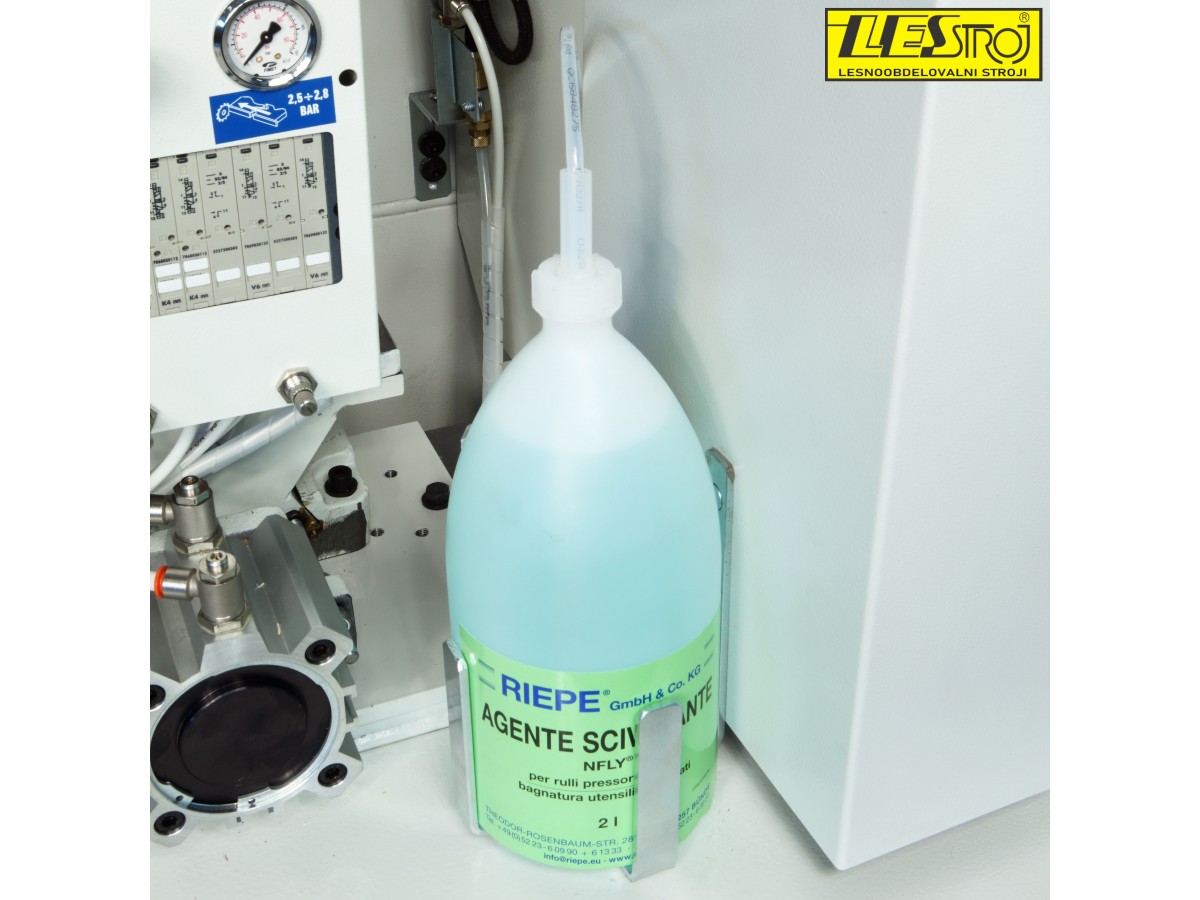

3 units of Riepe liquid application

Anti-adhesive unit in the machine entrance.

Spray-mist device for edge finishing is positioned before the glue scraper and/or brushes.

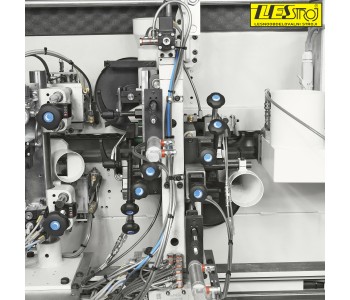

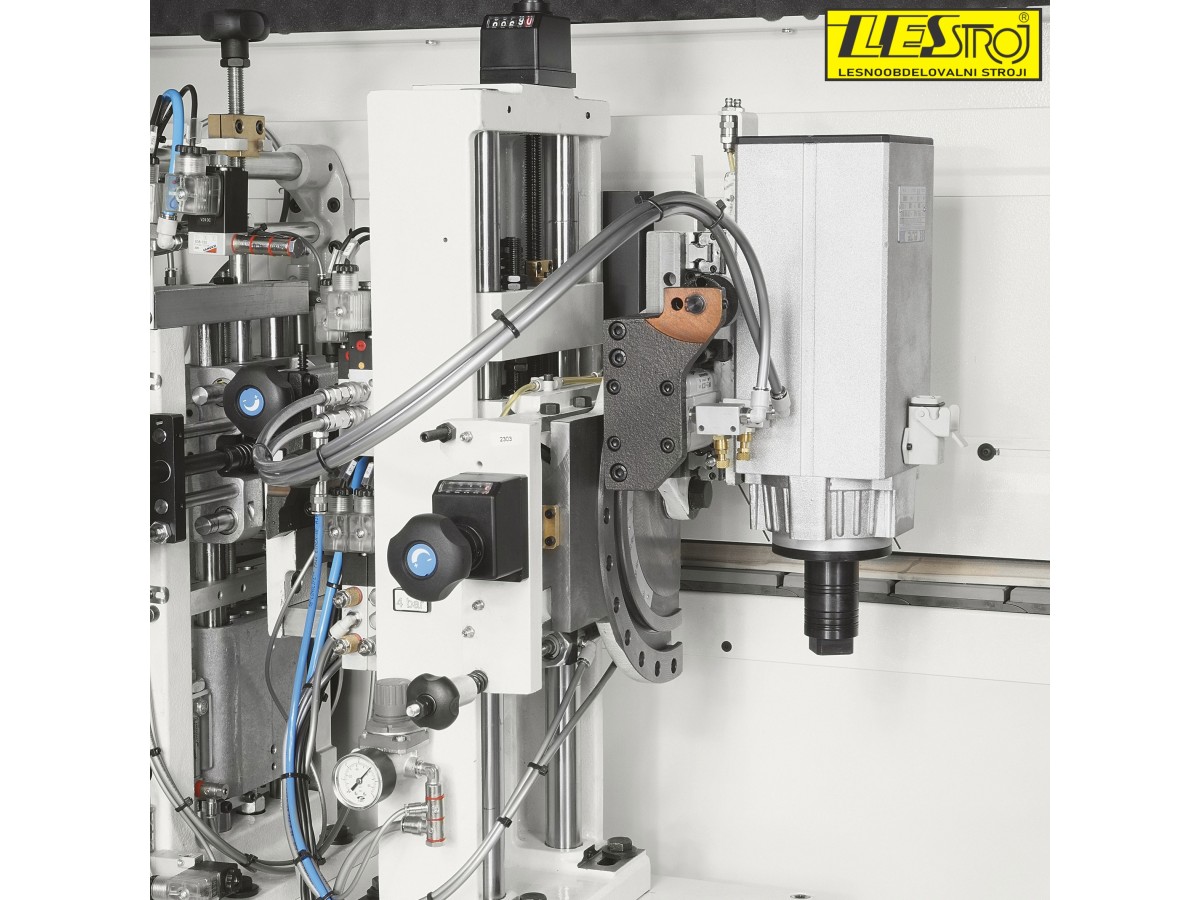

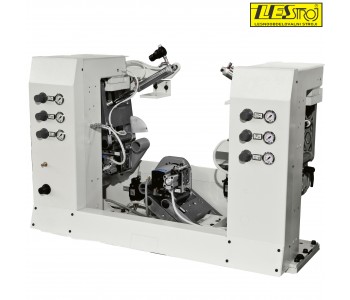

MULTIEDGE device for RI/S trimming unit

Industrial design of the aggregate - fastened on the bridge and on the construction of the machine.

Large precise reels for accurate workpiece guidance.

6-axes NC movement with two or three radios.

ED extraction system.

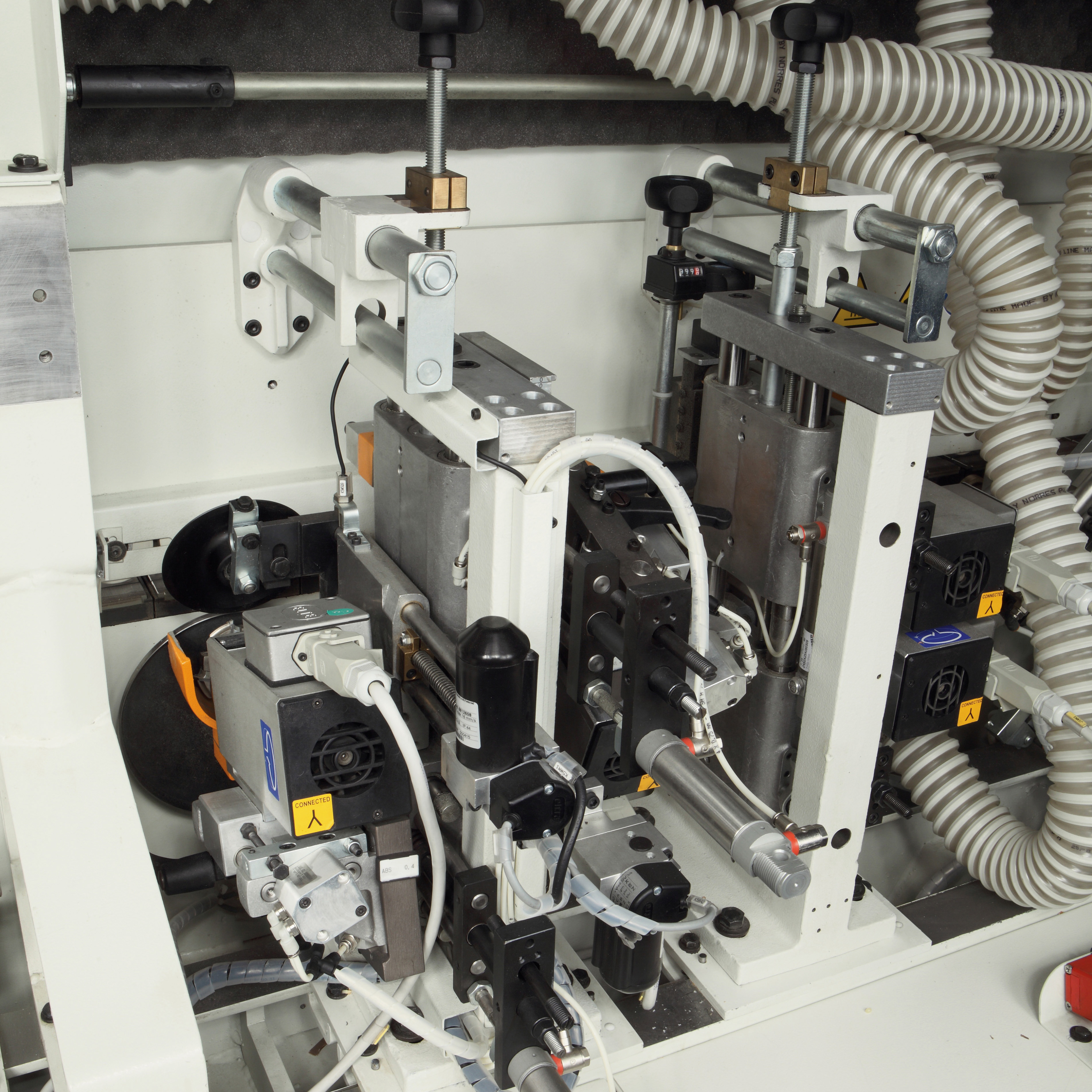

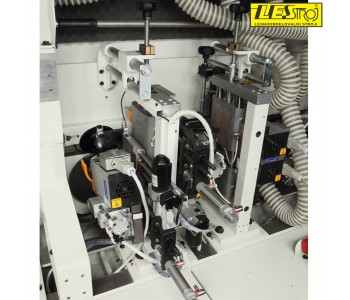

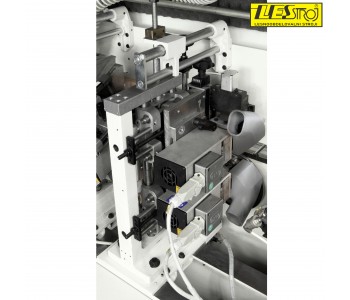

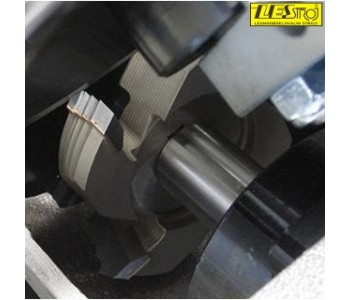

MULTIEDGE 3R/2R edge scraping unit

Industrial scraping unit with 6-axes NC motors and two or three different radios.

An industrial aggregate with double fastening on the bridge and on the construction of the machine ensures a high degree of repeatability of the machining.

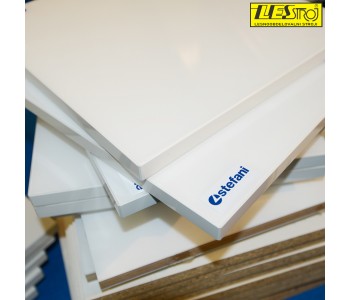

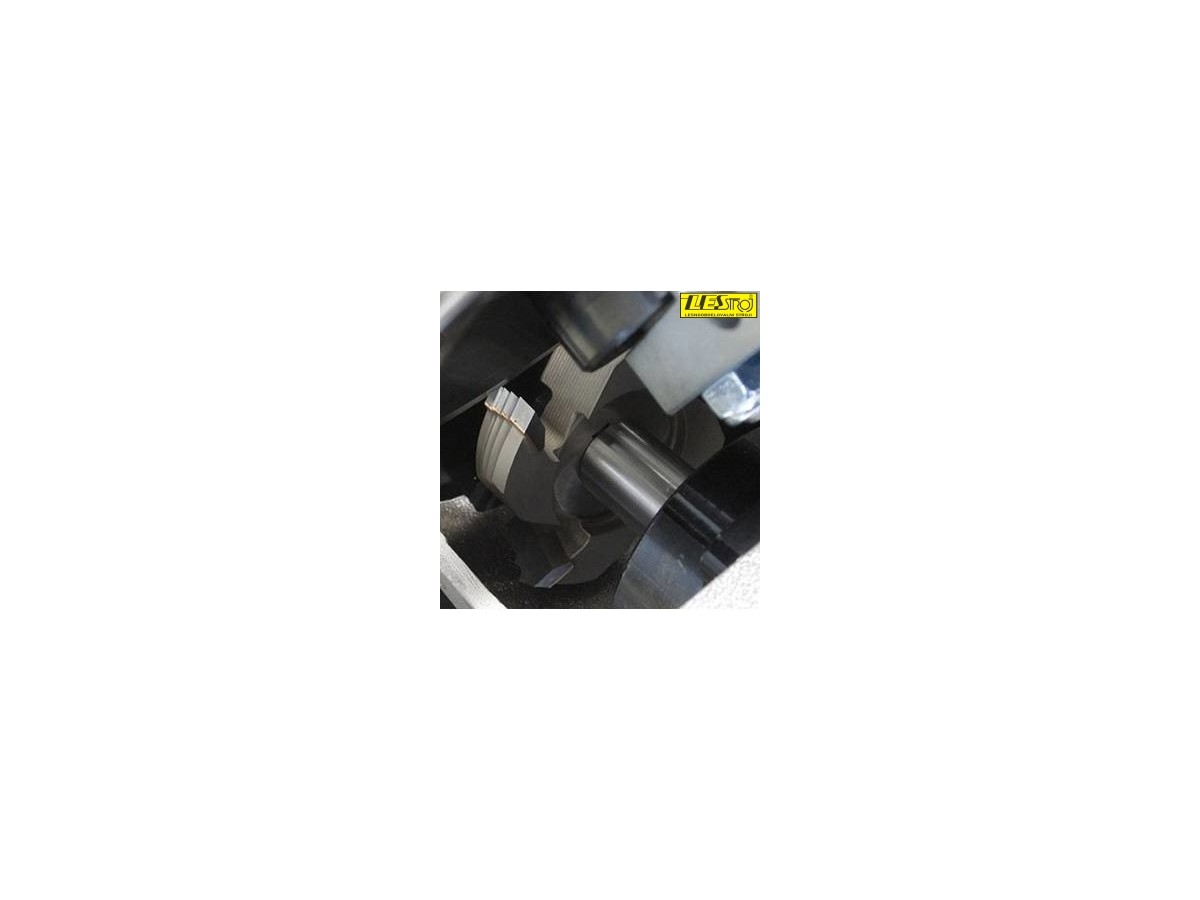

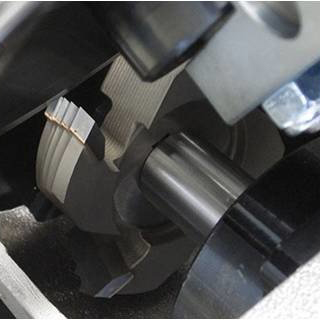

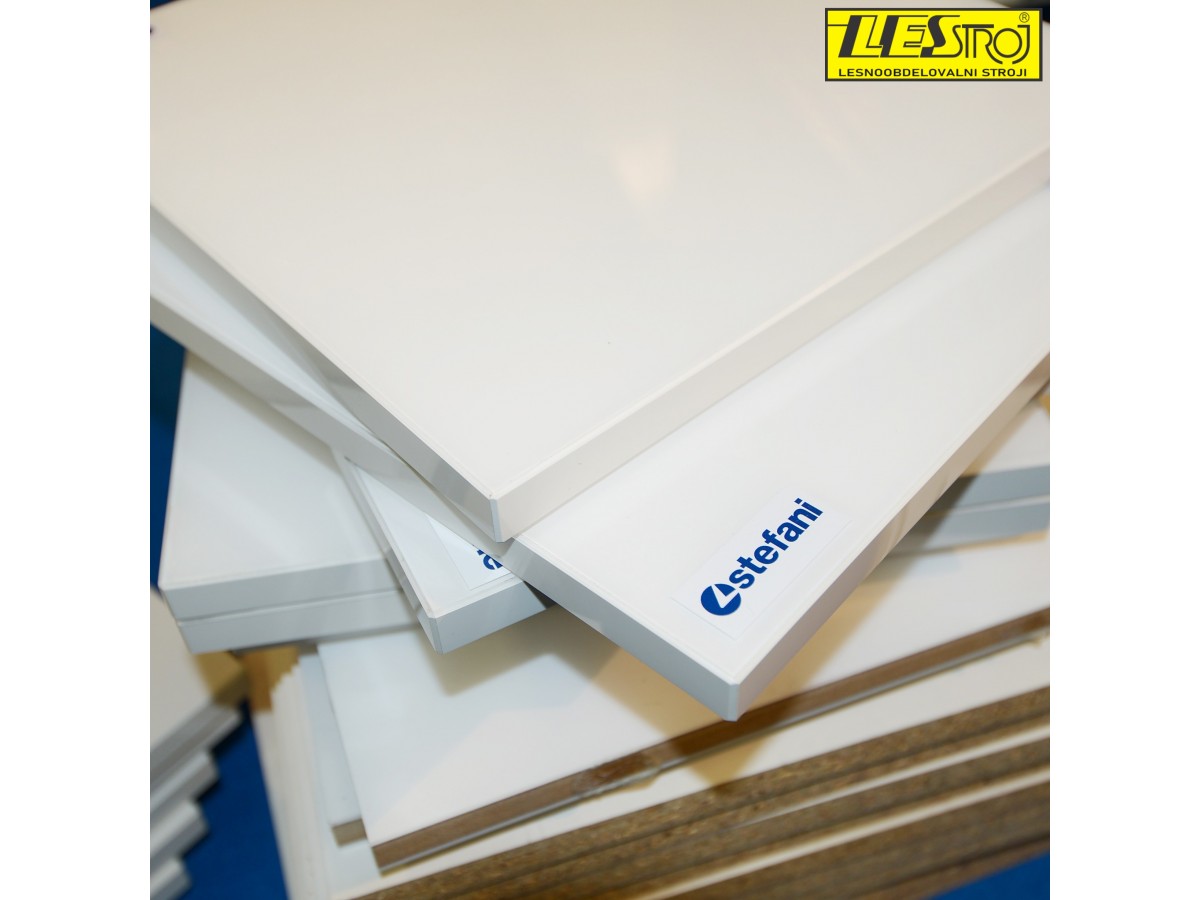

Edges with 3 different radii

Full automatic multi-edge operating units allow a fast and error-free set-up for different machining.

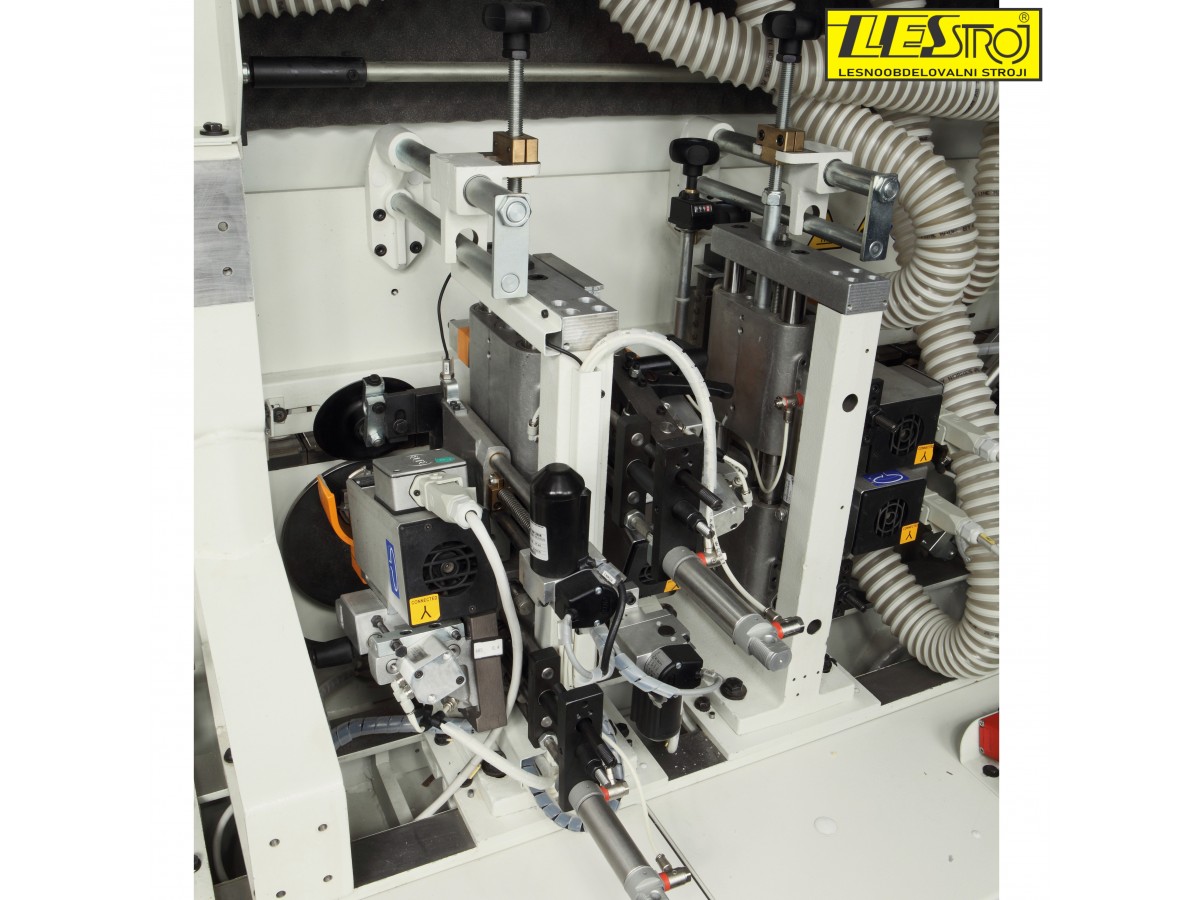

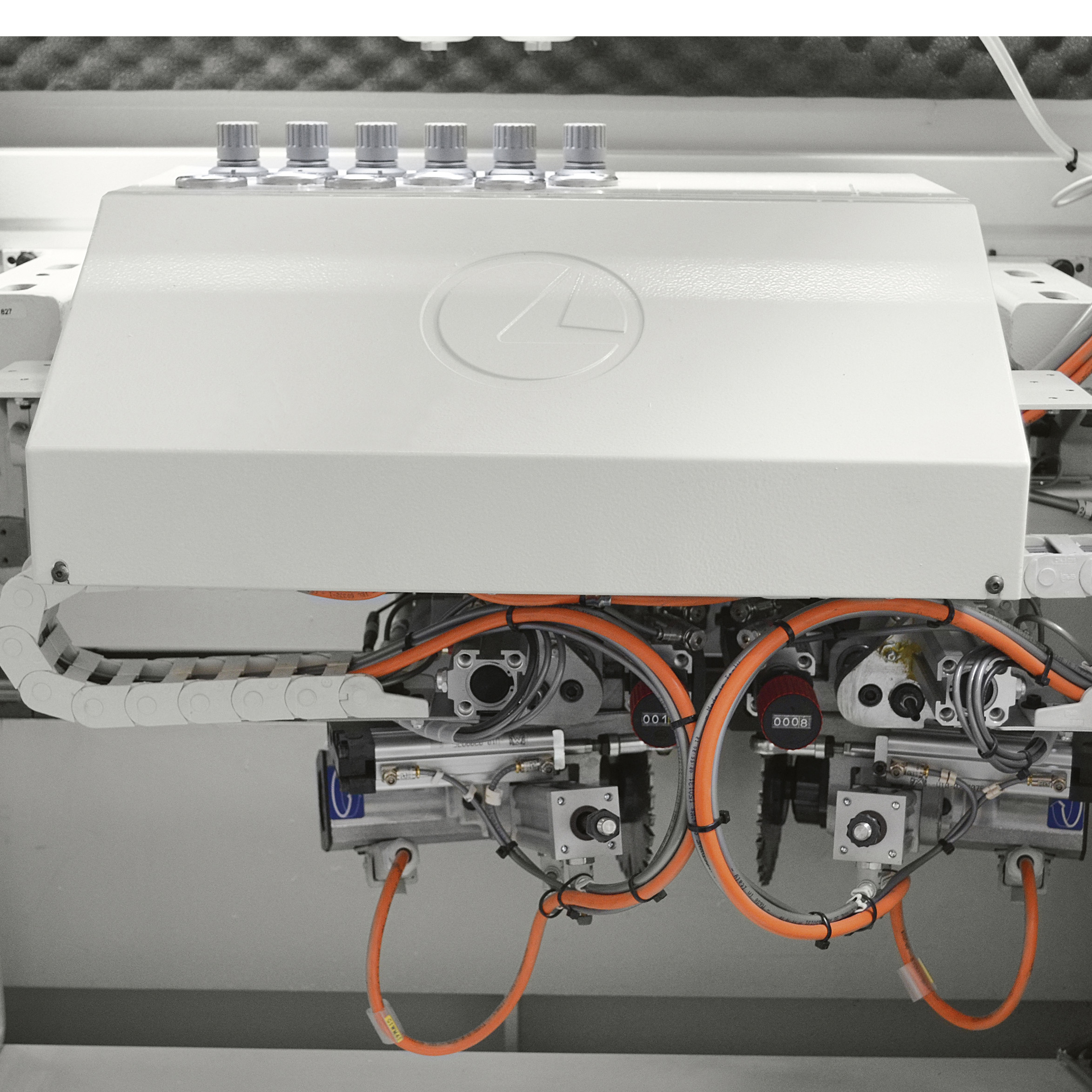

YU/SP750 end cutting unit

It carries out the cutting of the front and rear exceeding edge (also for post/soft formed panels).

The unit is fixed to the top presser.

2 high frequency motors.

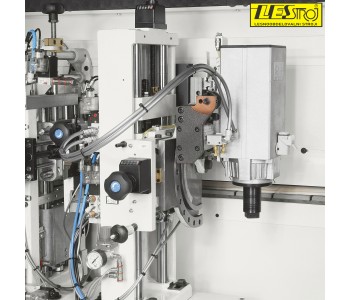

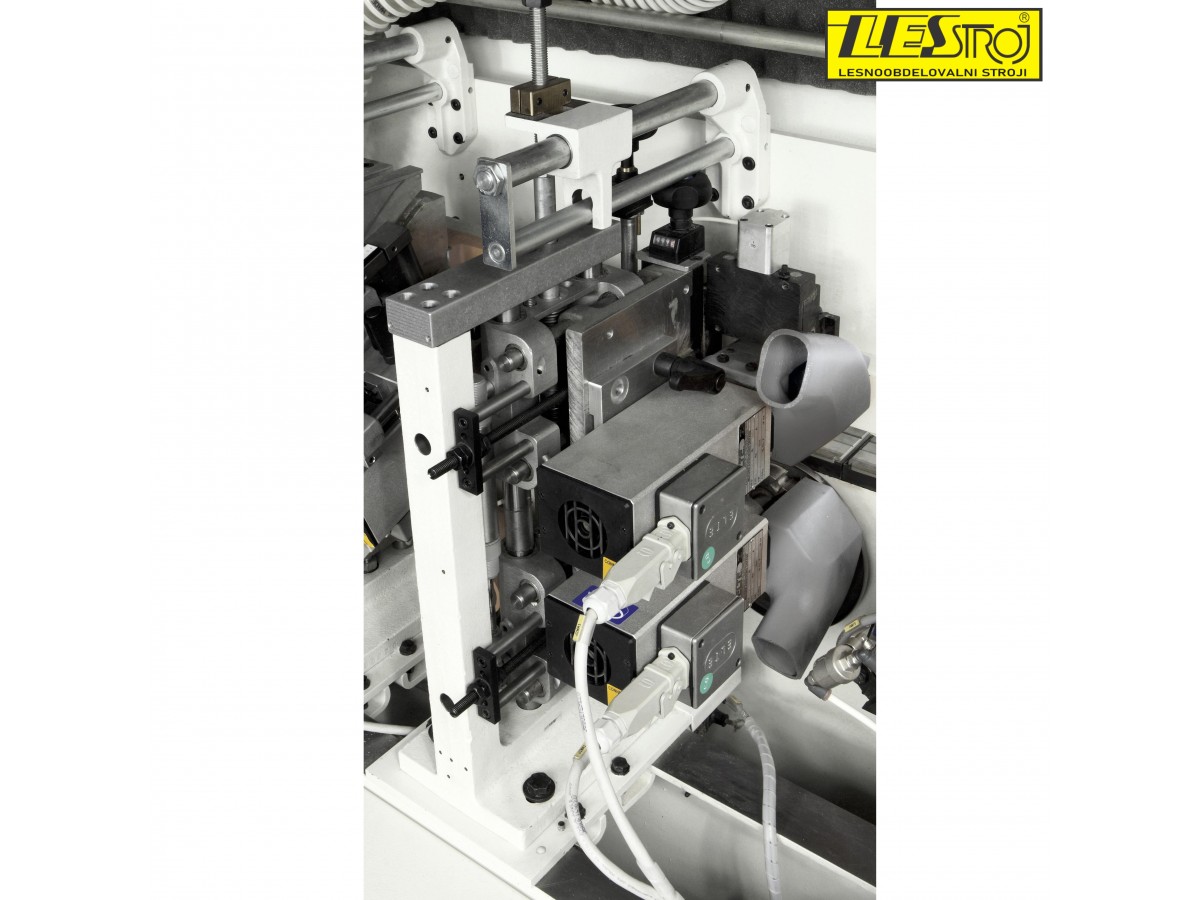

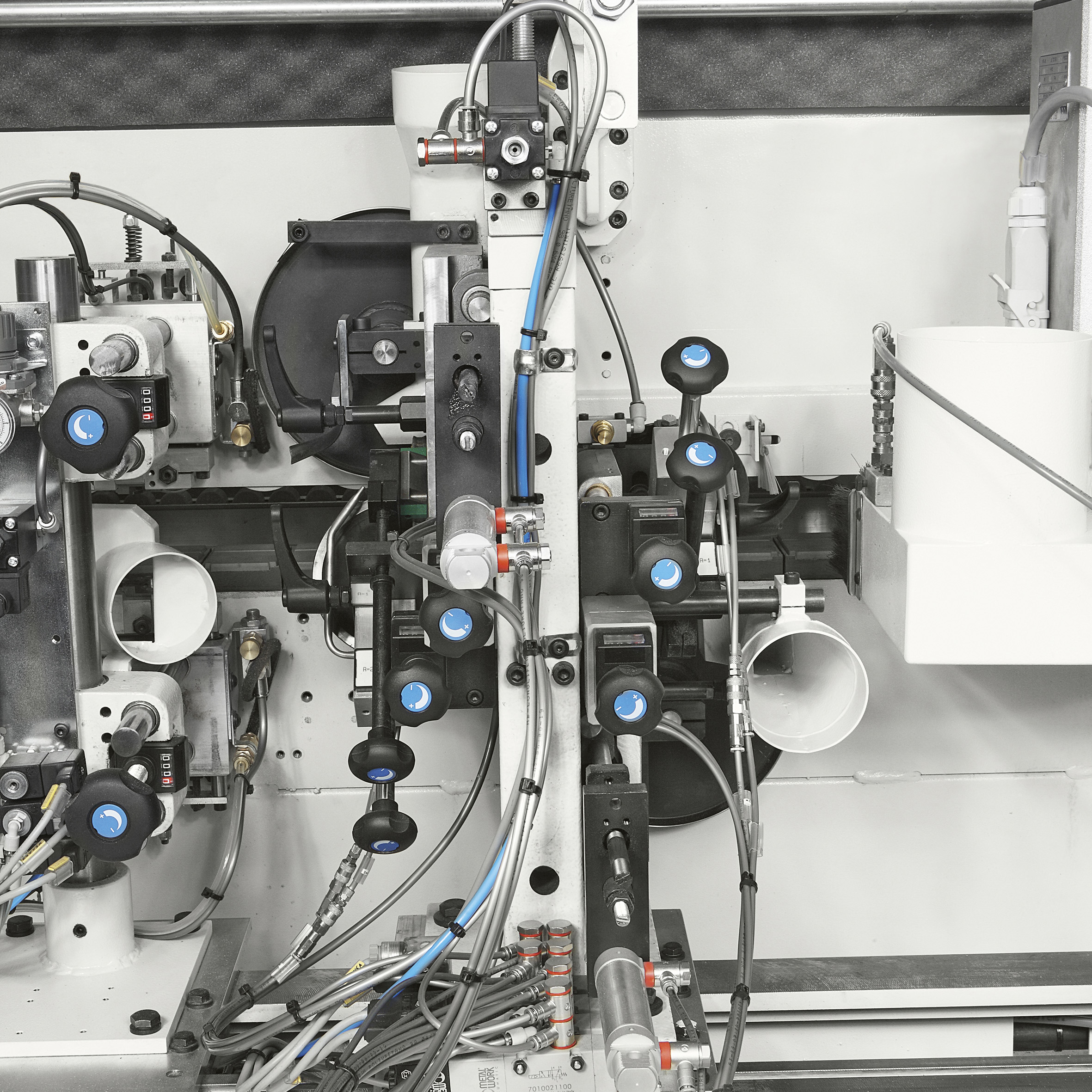

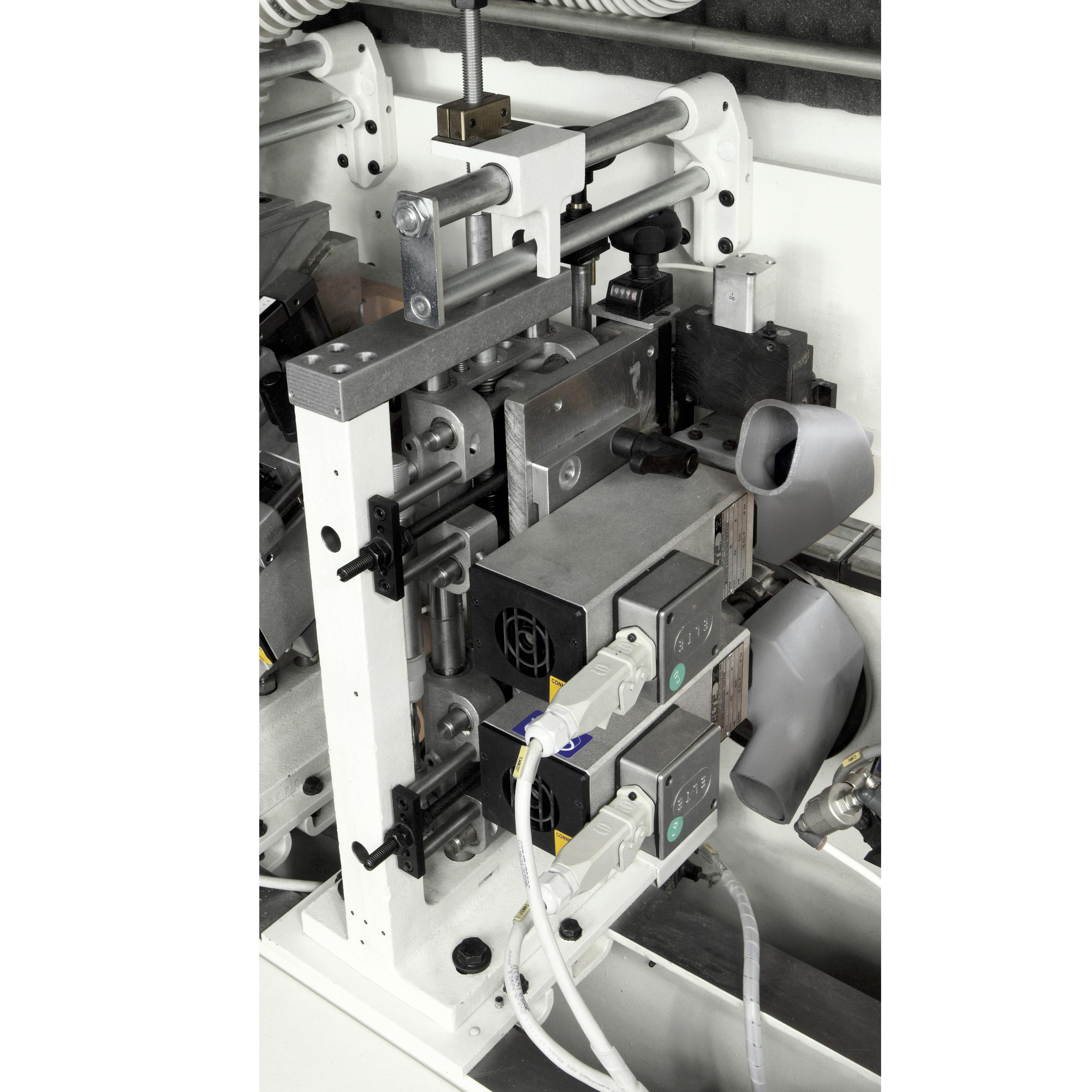

RSP in-line trimming unit

It carries out the trimming of the top and bottom exceeding edge.

2 high frequency motors 1kW - 12.000 rpm.

Large diameter vertical rotating copying discs for an accurate positioning of tools with reference to the working point.

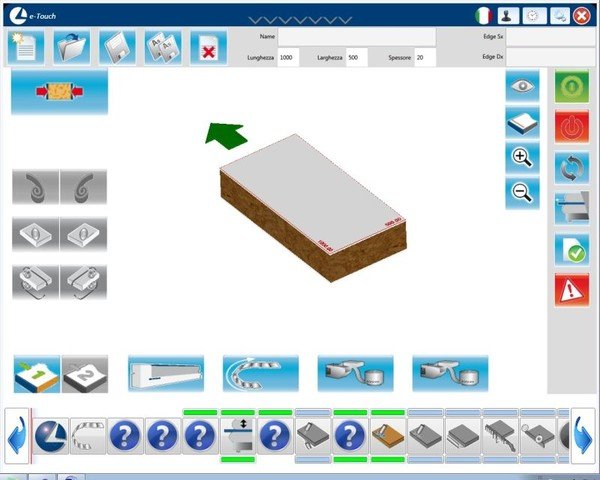

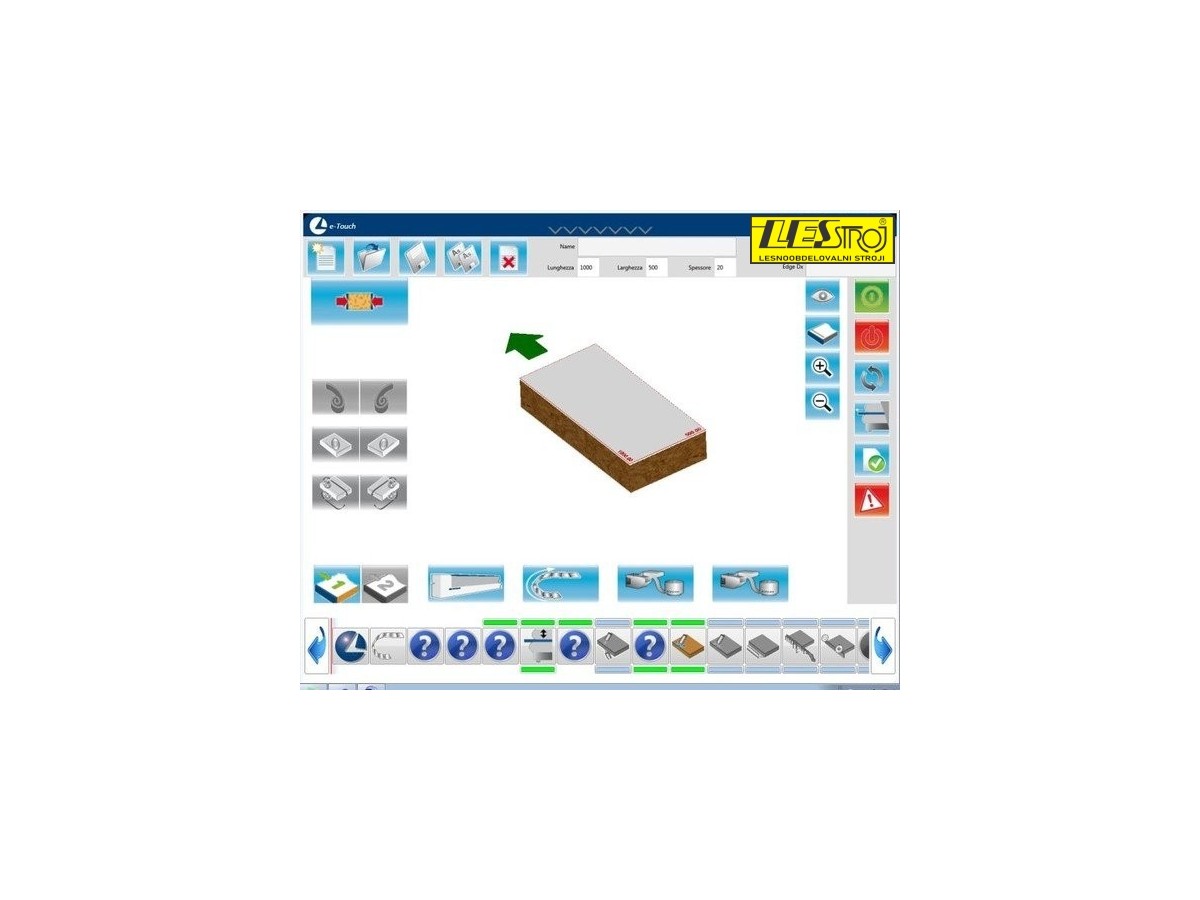

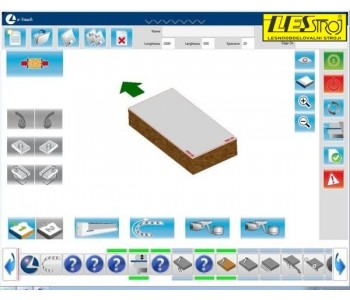

Maestro Pro Edge on new consolle EYE-M

"Just in time" programs.
Connectivity with Industry 4.0.
Multi-touch 21.5-inch display.
3-dimensional virtual overview.
Maestro Pro Edge software, compatible with other Maestro modules. F
or complete control and management of all aggregates and functions, statistics and diagnostics
Designed for industrial conditions (dust protection, grade protection IP53)
