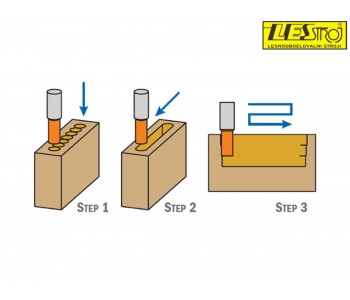

The slot mortising bits with chip-breaker for wood manufactured by CMT are excellent for cutting deep, wide slots, since they make slot cleaning easier due to their geometry.
The slot mortising bit is made of quality HSS steel and has two spiral blades that allow for long use without sharpening the blades. The slot mortising bits with a diameter ranging from 6 to 16 mm with a 16 mm shank and the choice between the left- and right-hand rotation are available.
The slot mortising bits with chip-breaker with a shank diameter of 13 mm are also available.
Model | Diameter (D) | Cutting length (I) | Total length (L) | Shank diameter (S) | Rotation | Unit price | Buy | Avail. |
---|---|---|---|---|---|---|---|---|
161.060.31 | 6 mm | 60 mm | 120 mm | 16 mm | Right-hand |
– 5%
€20.23
|
![]() |
|
161.060.32 | 6 mm | 60 mm | 120 mm | 16 mm | Left-hand |
– 5%
€20.23
|
![]() |
|
161.080.31 | 8 mm | 70 mm | 130 mm | 16 mm | Right-hand |
– 5%
€20.23
|
![]() |
|
161.080.32 | 8 mm | 70 mm | 130 mm | 16 mm | Left-hand |
– 5%
€20.23
|
![]() |
|
161.100.31 | 10 mm | 80 mm | 140 mm | 16 mm | Right-hand |
– 5%
€20.90
|
![]() |
|
161.100.32 | 10 mm | 80 mm | 140 mm | 16 mm | Left-hand |
– 5%
€20.90
|
![]() |
|
161.120.11 | 12 mm | 75 mm | 150 mm | 16x50 mm | Right-hand |
– 5%
€36.67
|
![]() |
|
161.120.12 | 12 mm | 75 mm | 150 mm | 16x50 mm | Left-hand |
– 5%
€36.67
|
![]() |
|
161.120.31 | 12 mm | 90 mm | 150 mm | 16 mm | Right-hand |
– 5%
€21.28
|
![]() |
|
161.120.32 | 12 mm | 90 mm | 150 mm | 16 mm | Left-hand |
– 5%
€21.28
|
![]() |
|
161.140.31 | 14 mm | 100 mm | 160 mm | 16 mm | Right-hand |
– 5%
€22.80
|
![]() |
|
161.140.32 | 14 mm | 100 mm | 160 mm | 16 mm | Left-hand |
– 5%
€22.80
|
![]() |
|
161.160.11 | 16 mm | 95 mm | 170 mm | 16x50 mm | Right-hand |
– 5%
€49.78
|
![]() |
|
161.160.12 | 16 mm | 95 mm | 170 mm | 16x50 mm | Left-hand |
– 5%
€49.78
|
![]() |
|
161.160.31 | 16 mm | 110 mm | 170 mm | 16 mm | Right-hand |
– 5%
€23.94
|
![]() |
|
161.160.32 | 16 mm | 110 mm | 170 mm | 16 mm | Left-hand |
– 5%
€23.94
|
![]() |
