Cutter head for making furniture doors CMT 694.014 D120 mm

The CMT 694.014 cutter head set is used for making cabinet doors with thickness ranging from 22 to 25 mm.

Limited special offer
€255.46 €268.90 -5%
Bore diameter (B/d)
There are not enough products in stock
Reference:
003130
Brand:
Description

The CMT 694.014 cutter head is made of aluminium alloy and it is intended for making cabinet door frames and drawers with thickness ranging from 22 to 25 mm. The cutter head is suitable for machine and manual feeding of workpiece.

The CMT 694.014 cutter head is delivered in a strong plastic case.

The set includes:
⎻    cutter head,
⎻    two HWM blades of type A, 40 × 24.5 × 2 mm (695.014A).
⎻    blade changing tool.

Technical data:
⎻    cutter diameter: 120 mm;
⎻    working height: 40 mm;
⎻    maximum working depth: 12 mm;
⎻    borehole diameter: 30 and 35 mm.

Optional accessories (option to buy):

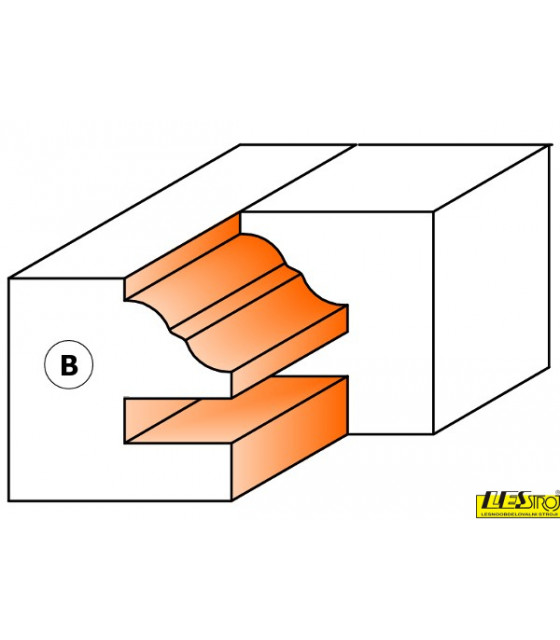

⎻    two HWM blades of type B, 40 × 24.5 × 2 mm (695.014B),
⎻    two HWM blades of type C, 40 × 24.5 × 2 mm (695.014C),
⎻    two HWM blades of type C, 40 × 24.5 × 2 mm (695.014D).

Product Details
003130

Data sheet

Working height (mm)
40 mm
Rotational speed (rpm)
6400-10500 vrtljajev na minuto
Diameter (mm)
120 mm

Specific References

Other product combination
Model Bore diameter (B/d) Unit price Buy Avail.
694.014.30 30 mm
€268.90
– 5%
€255.46
Call us
694.014.35 35 mm
€268.90
– 5%
€255.46
Call us
