Cutter head set without limiters with 13 pairs of HSS knives 692.013.03
The CMT 692 cutter head set with interchangeable HSS blades is intended for processing solid wood. The cutter head has a diameter of 100 mm, the height of 40 mm and a borehole diameter of 35 mm.
The CMT 692 cutter head set is made of lightweight aluminium alloy with interchangeable HSS blades. The set includes a head with pins which enable the automatic adjustment of knives, two straight profile knives and 12 additional profile knives. The knives with height of 50 mm may also be used on the cutter head. It is intended for cutting in hard and soft solid wood. The cutter head diameter without the inserted knives is 100 mm, while the diameter with inserted knives is approximately 140 mm.
The cutter head is suitable for use on conventional table router machines and allows the shank diameters of 35 mm.

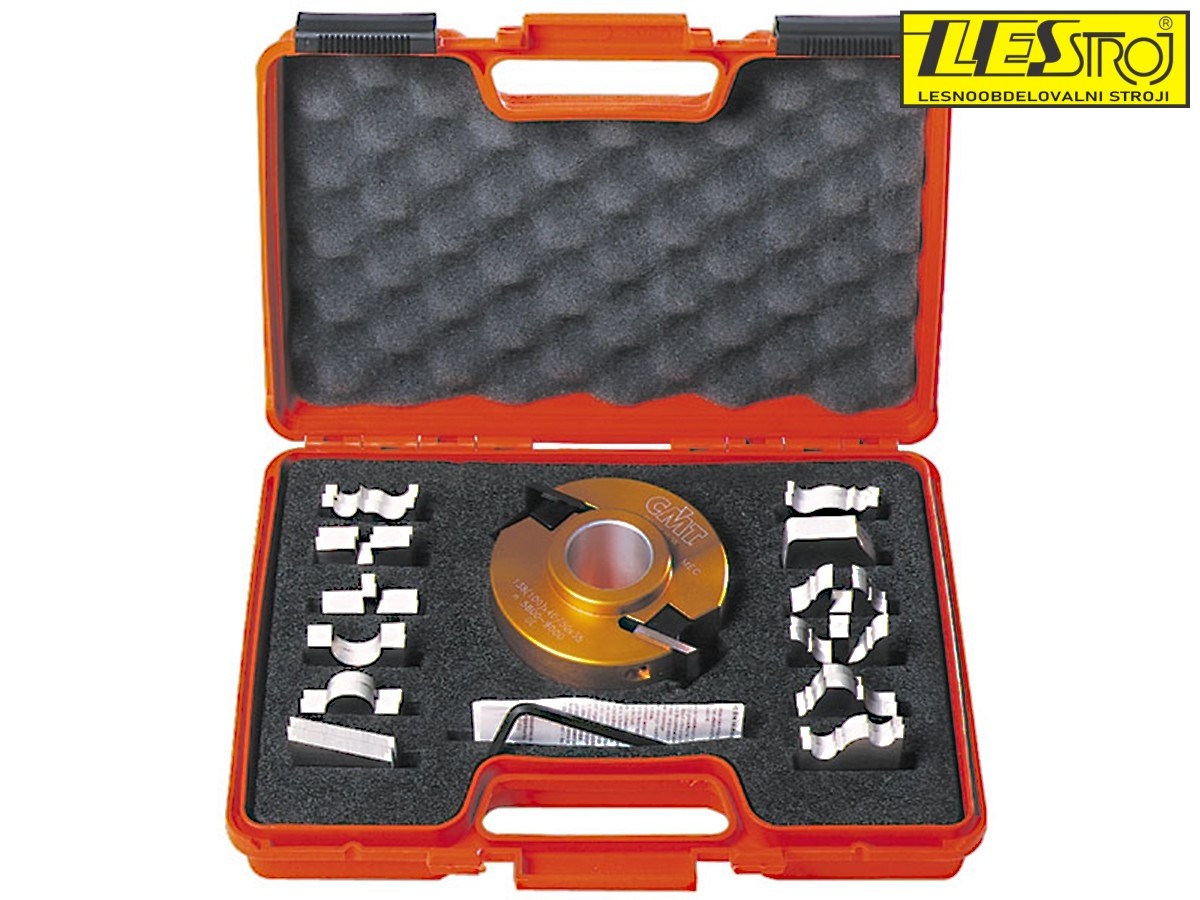

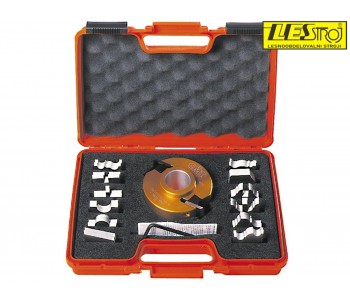

The cutter head is delivered in a strong plastic case with additional compartments for the blades.
The set includes:
⎻ aluminium cutter head,
⎻ 13 blades 40 mm,
⎻ two wedges (692.999.01),
⎻ blade changing tool (991.064.00).
⎻ cutter diameter: 100 mm;
⎻ working height: 40 mm;
⎻ borehole diameter: 35 mm.
Additional HSS blades (option to buy):
⎻ blades (order number 690).
