Cutter head without limiters CMT with interchangeable HSS knives 692.100

The CMT cutter head with interchangeable HSS blades is used for processing solid wood. The cutter head has a diameter of 100 mm, the height of 40 mm and a borehole diameter of 30 or 35 mm.

Limited special offer
€143.36 €150.90 -5%
Bore diameter (B/d)
In Stock
Condition
New product
Reference:
003726
Brand:
Description

The CMT 693.100 cutter head is made of lightweight aluminium alloy with interchangeable HSS blades. It is intended for cutting in hard and soft solid wood. The cutter head diameter without the inserted knives is 100 mm, while the diameter with inserted knives is 138 mm.

The cutter head is suitable for use on conventional table router machines and allows the shank diameters of 30 and 35 mm.

The cutter head is delivered in a strong plastic case with additional compartments for the blades.

The set includes:
⎻    aluminium cutter head,
⎻    two 40 mm blades (690.000),
⎻    two wedges (693.999.01),
⎻    blade changing tool (991.073.00).

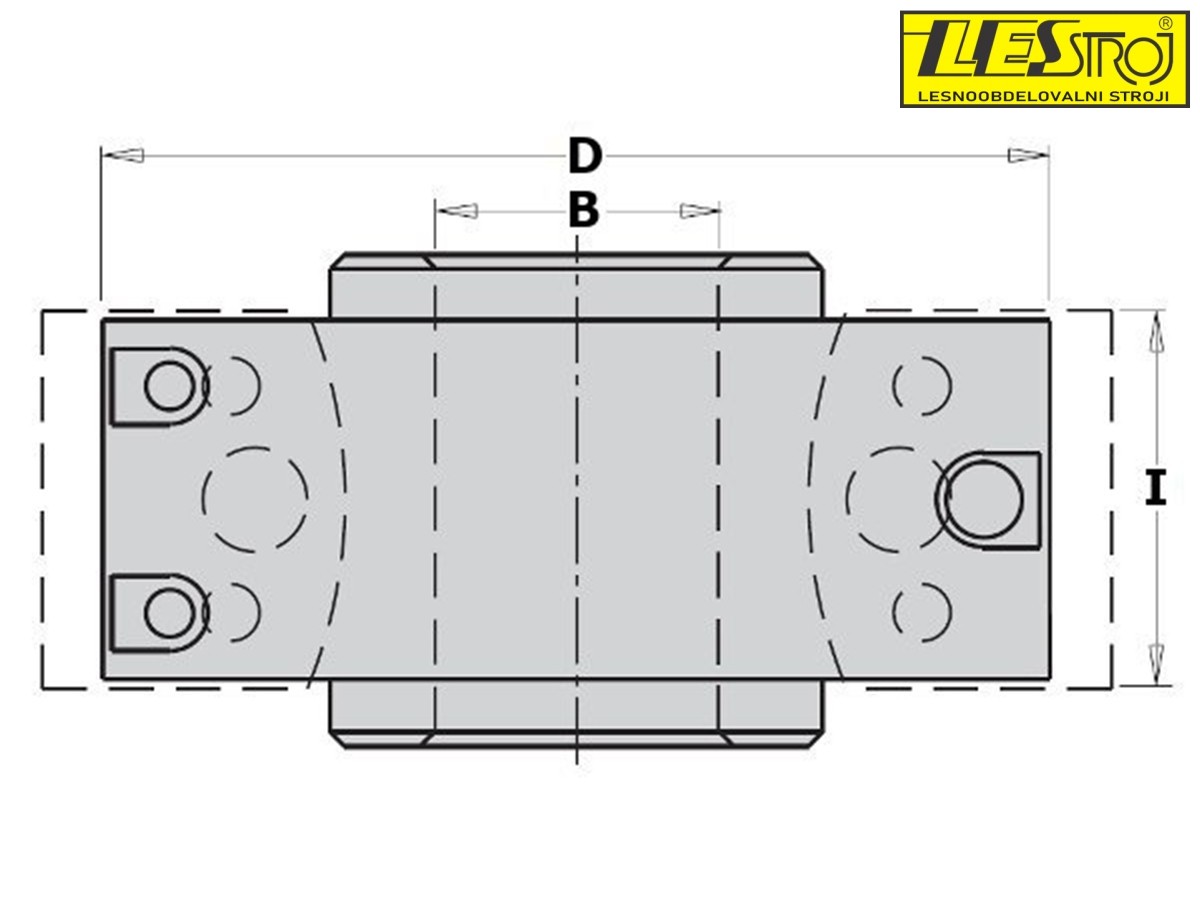

Technical data:
⎻    cutter diameter: 100 mm;
⎻    working height: 40 mm;
⎻    borehole diameter: 30 or 35 mm.

Additional HSS blades (option to buy):
⎻    blades (order number: 690).

Product Details
003726

Data sheet

Working height (mm)
40-50
Diameter (mm)
100
Rotational speed (rpm)
5500-8400

Specific References

UPC
2340
Other product combination
Model Bore diameter (B/d) Unit price Buy Avail.
692.100.30 30 mm
€150.90
– 5%
€143.36
692.100.35 35 mm
€150.90
– 5%
€143.36
 Product is available
 Product is no longer in stock
 Product is no in stock, but is allowed to be back-ordered
