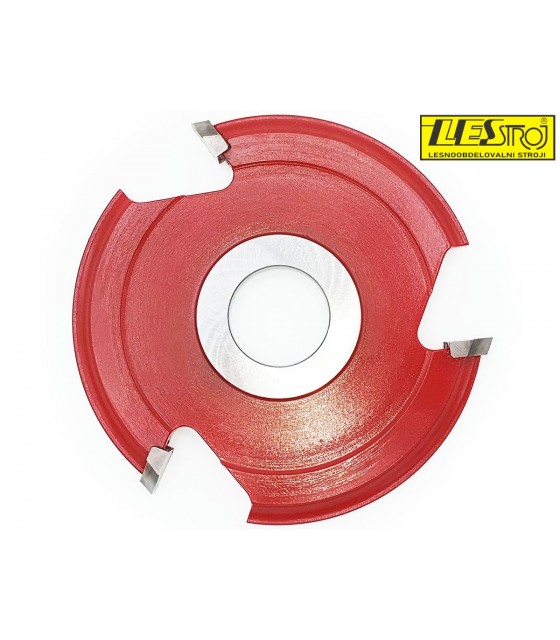

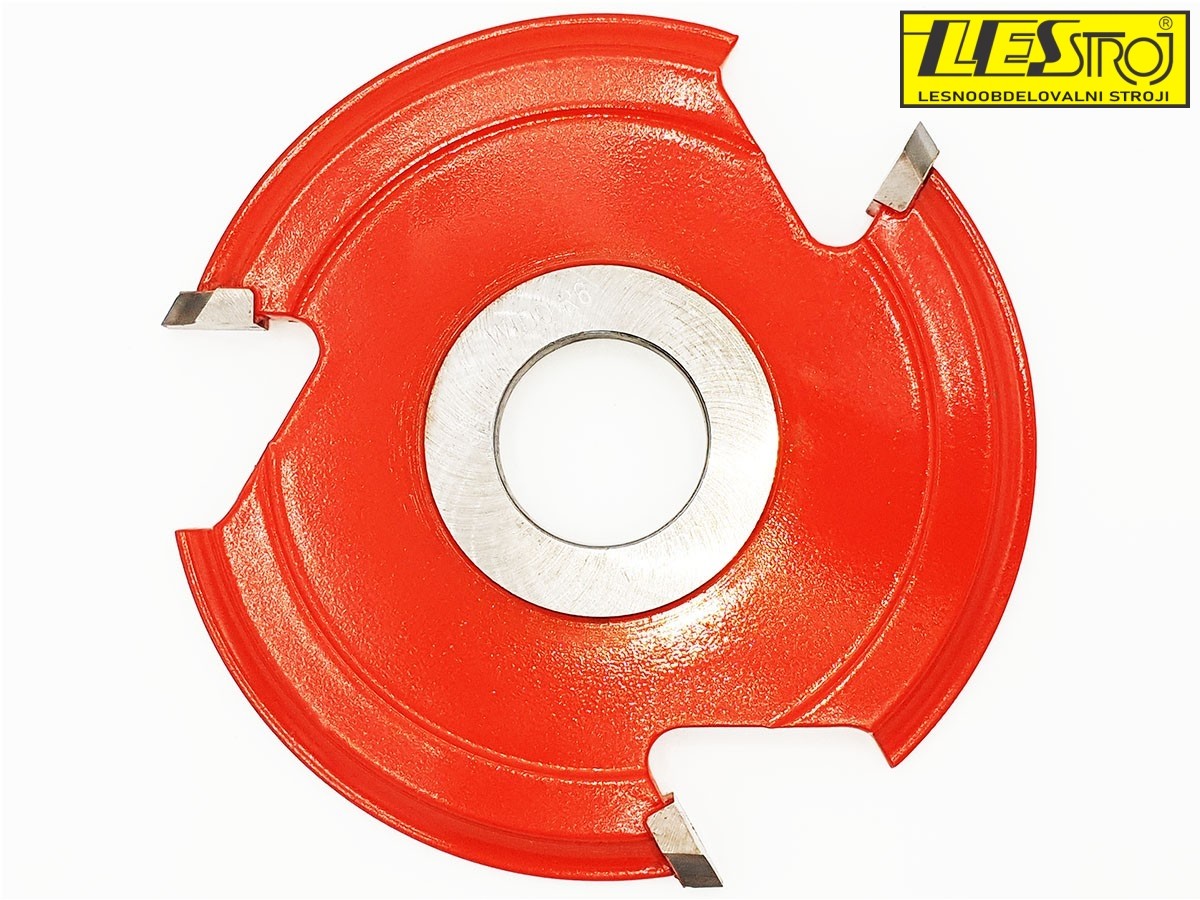

Cutter head with external radius – a quarter of circle

The cutter head has brazed HW blades, which are sharpened at an external angle and intended for processing solid wood and wood composite materials. The cutter has a borehole diameter of 30 or 35 mm.

Limited special offer
€87.40 €92.00 -5%
Radius (R)
Diameter (D)
Bore diameter (B/d)
No. of cutting edges (Z)
In Stock
Reference:
007847
Description

The cutter head is intended for operations where we want to make a workpiece with a rounded shape. There are different radiuses available ranging from R 2 mm to R 40 mm. The cutter head is suitable for use on conventional router machines, CNC machines and multi-spindle moulders, while the clamping boreholes are available in the dimensions ranging from 30 to 35 mm.



When ordering, we ask you to add the diameter of the borehole, in this case, 30 or 35 mm.

Product Details
007847

Specific References

Other product combination
Model Diameter (D) Radius (R) Bore diameter (B/d) No. of cutting edges (Z) Unit price Buy Avail.
REZKAR R3 120 mm 3 mm 30/35 mm 3
€92.00
– 5%
€87.40
REZKAR R2 120 mm 2 mm 30/35 mm 3
€92.00
– 5%
€87.40
REZKAR R5 120 mm 5 mm 30/35 mm 3
€90.00
– 5%
€85.50
REZKAR R6 120 mm 6 mm 30/35 mm 3
€105.00
– 5%
€99.75
REZKAR R10 130 mm 10 mm 30/35 mm 3
€134.00
– 5%
€127.30
REZKAR R12 130 mm 12 mm 30/35 mm 3
€120.00
– 5%
€114.00
Call us
REZKAR R15 130 mm 15 mm 30/35 mm 3
€151.30
– 5%
€143.73
REZKAR R8 130 mm 8 mm 30/35 mm 3
€107.40
– 5%
€102.03
Call us
REZKAR R20 Z2 140 mm 20 mm 30/35 mm 2
€161.00
– 5%
€152.95
Call us
REZKAR R25 Z4 140 mm 25 mm 30/35 mm 4
€280.00
– 5%
€266.00
