Thicknesser/Planer SCM Linvincibile FS 7

TOP-END machine!!!

Request for more information

Product inquiry

I want contact by: *

Contact details:

Condition
New product
Brand:
Description

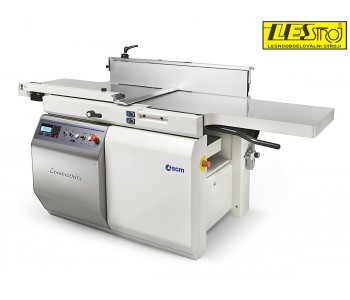

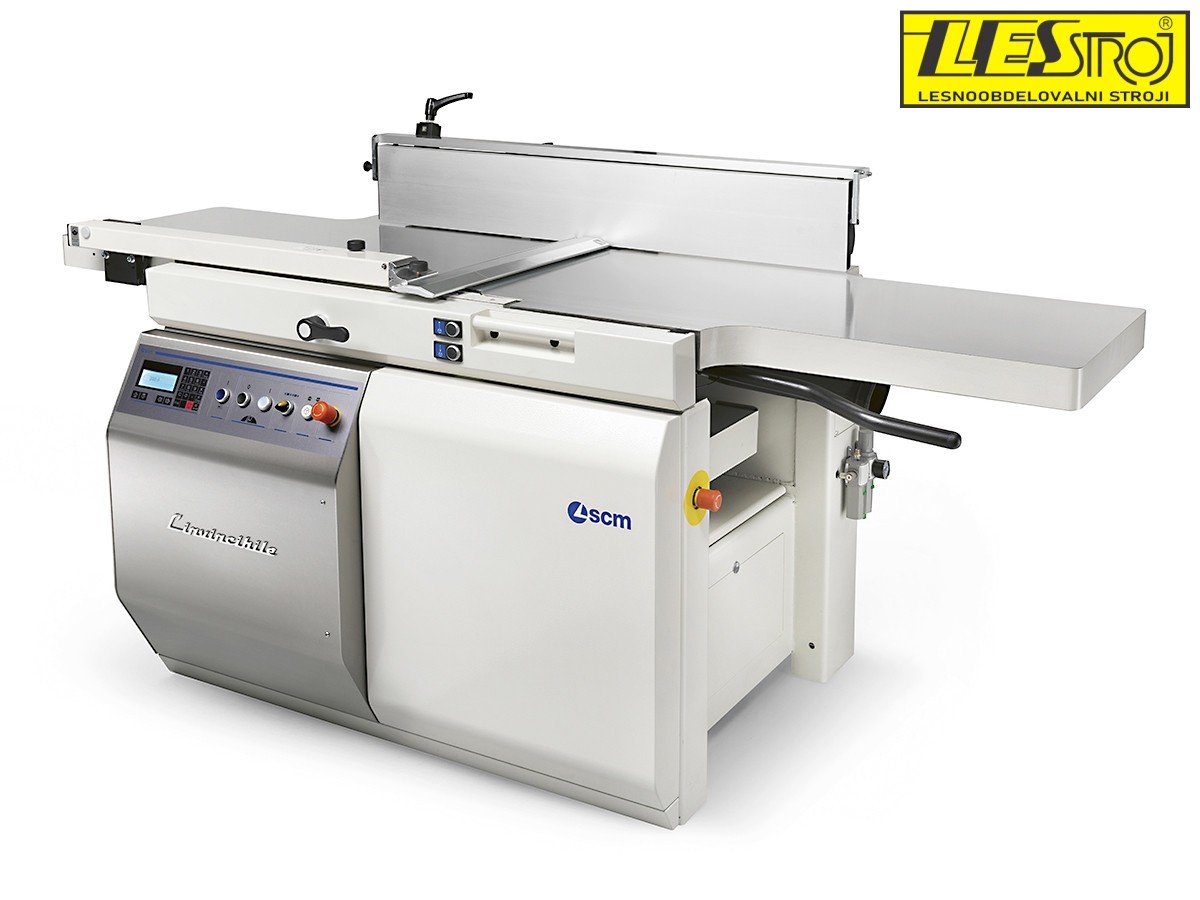

Planer/Thicknesser Linvincibile FS 7

Industrial quality of planing and thicknessing in one, high-class, combined machine.

Buying a L'invincibile class machine means you get the best of the best. Thanks to SCMs experiance, technical research and Italian creativity, we can offer the best machines for the best prices.

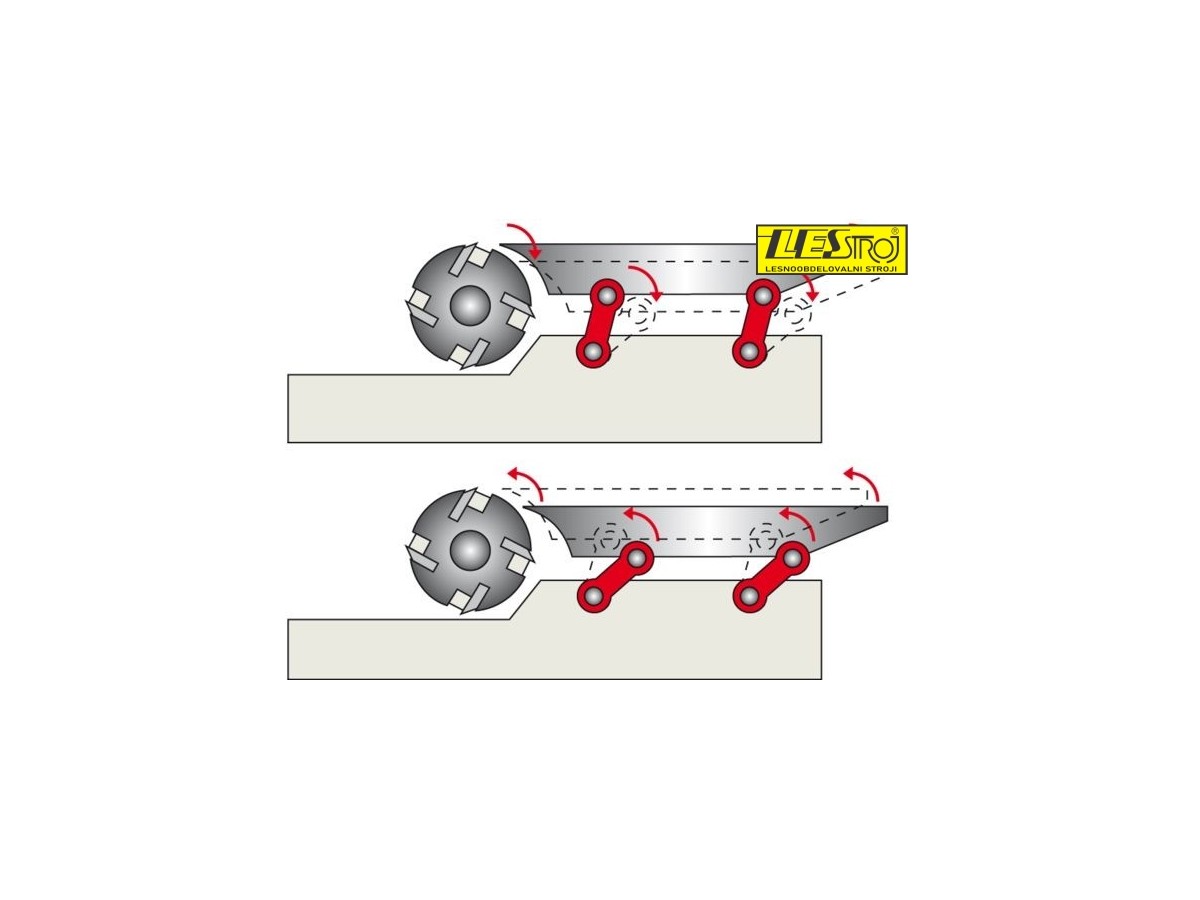

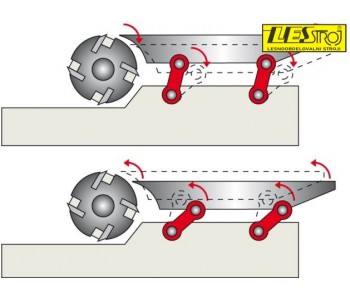

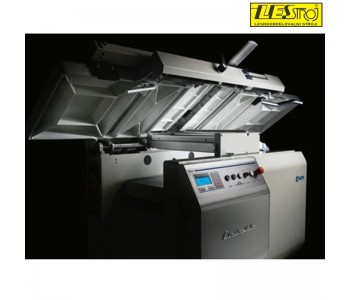

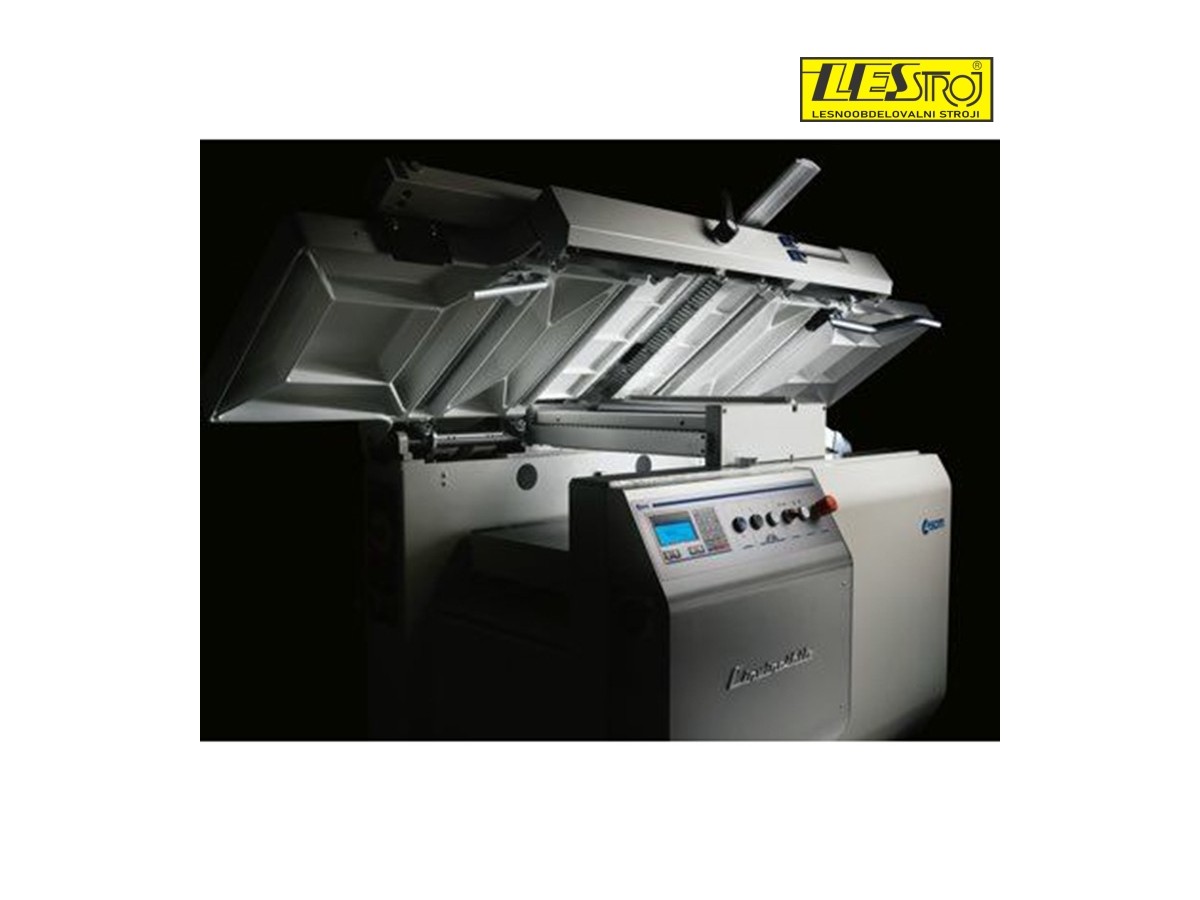

Check out the video below! It will show you how the automatic lift of planing table works.

Product Details

Data sheet

Working width
520
Worktable length
2310
Feed speed
5 / 8 / 12 / 18
Spindle rotation speed (rpm)
5000
Guide frame tilt (°)
90 - 45
Min./max. working height
3 - 250
Planer head diameter (no. of knives)
120 mm ( 4 )
Motor power (kW)
9.0
Extraction nozzles (mm)
120
Images

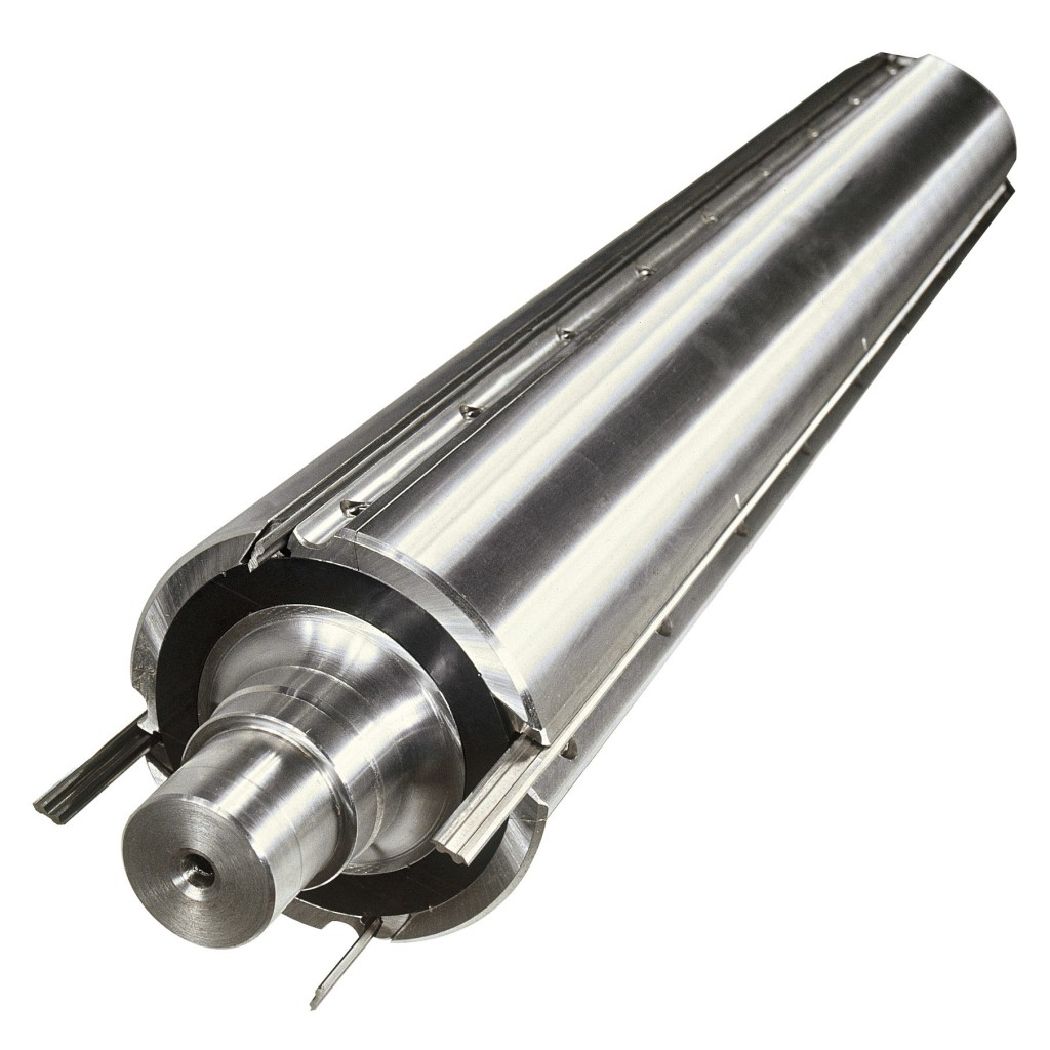

TERSA sistem s premerom glave 120 mm!! - opc.

100% natančnost obdelave. Hitra in enostavna menjava rezil brez uporabe orodja.

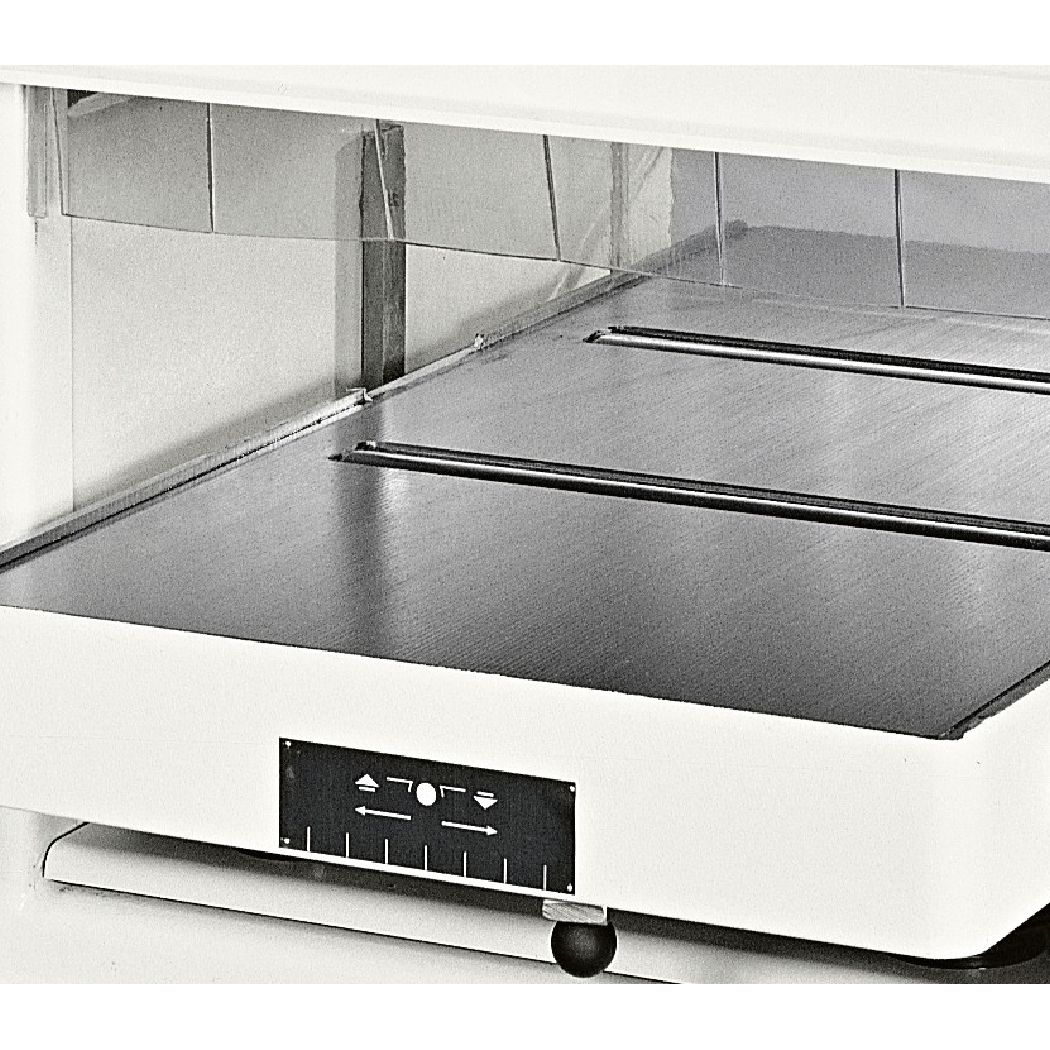

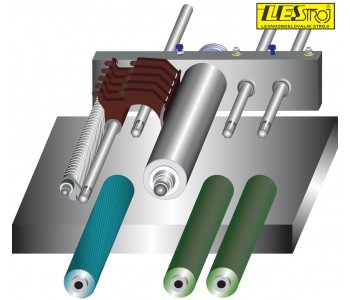

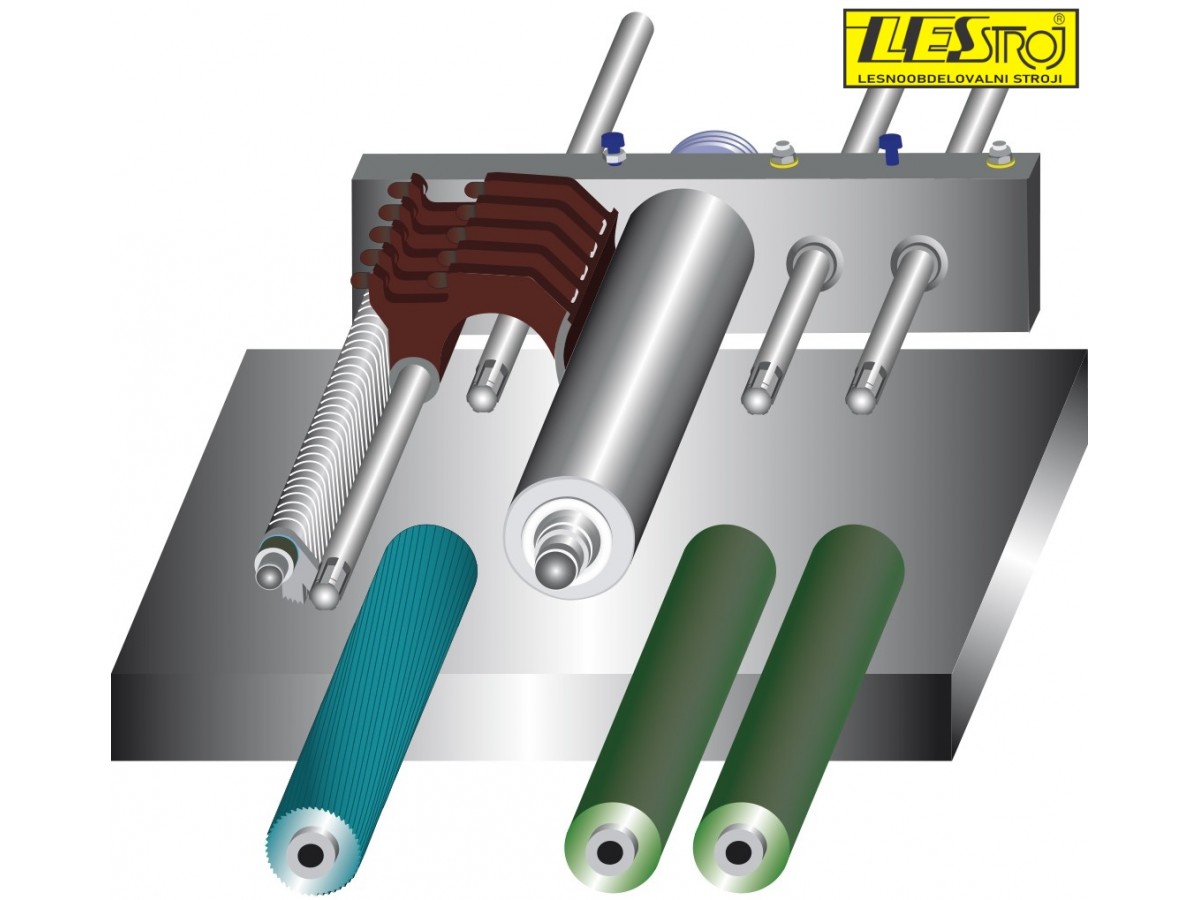

Možnost dveh dodatnih valjev v delovni mizi debelinke -opc.

Omogočajo lahek prehod zelo težkih obdelovancev (lege). Uporabno tudi pri skobljanju vlažnega lesa.

''SCM XYLENT'' spiralna glava!!!

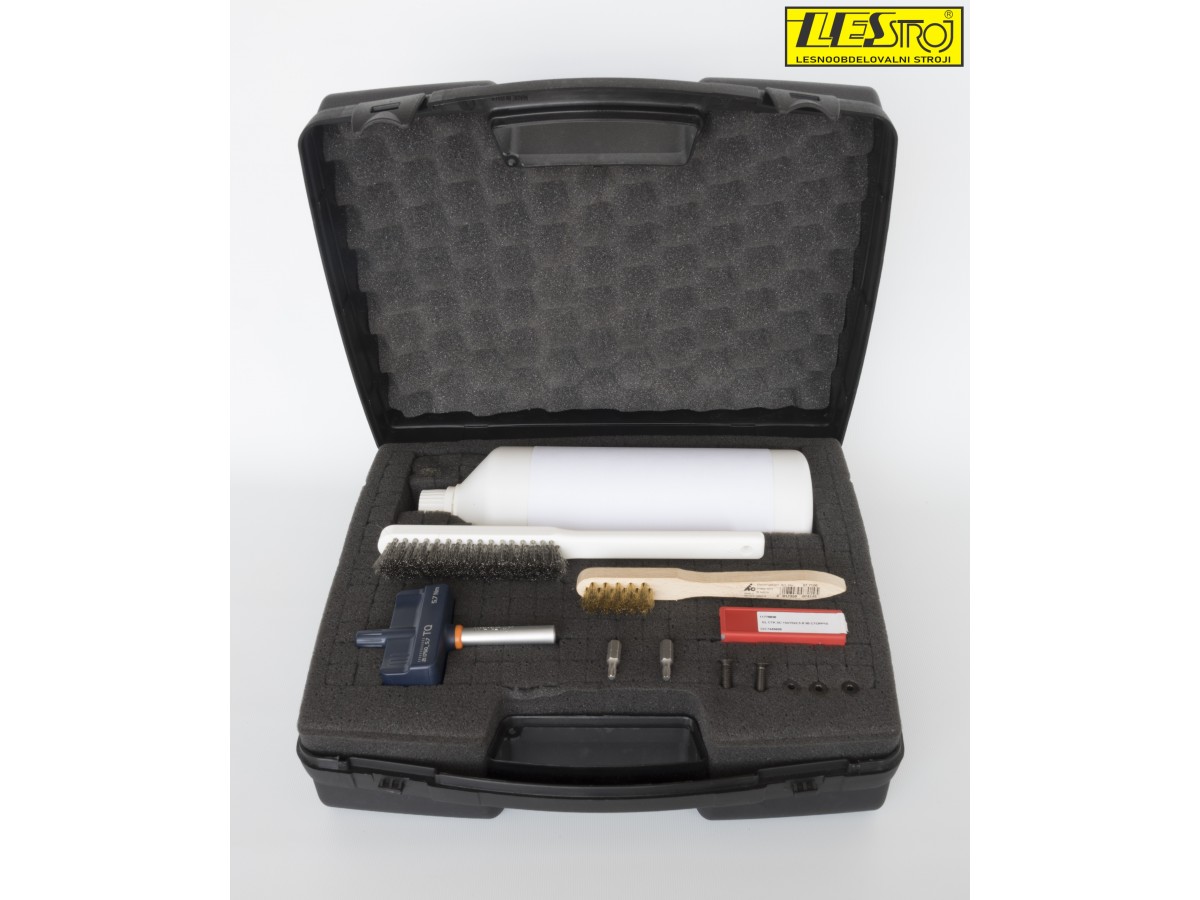

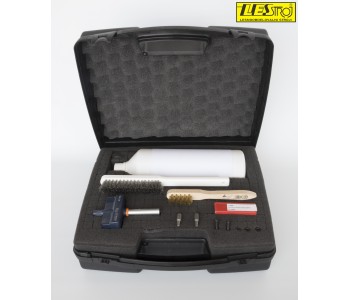

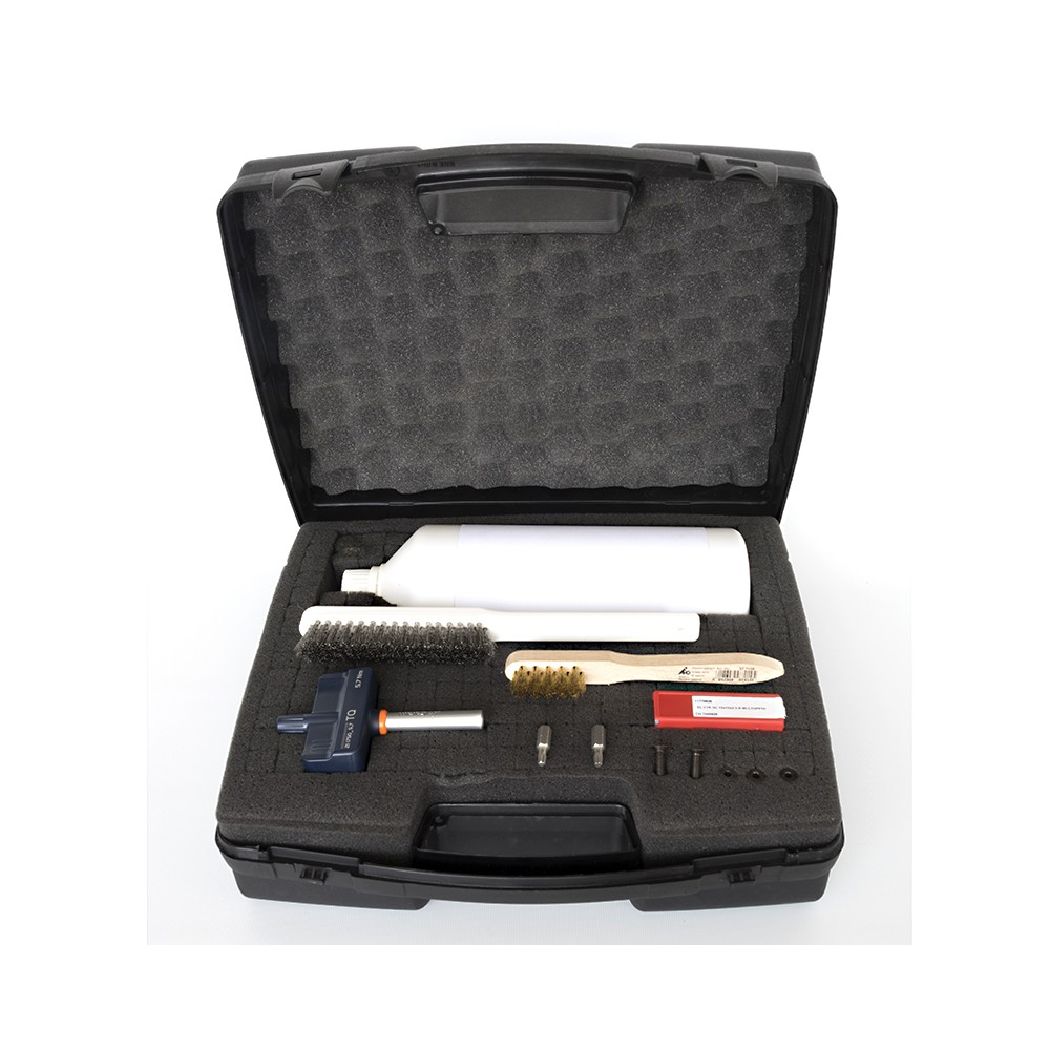

Orodje za menjavo ''XYLENT'' skobeljnih nožev




Videos

Poravnalka debelinka skobeljni stroj video predstavitev
