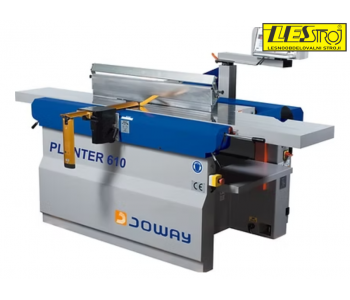

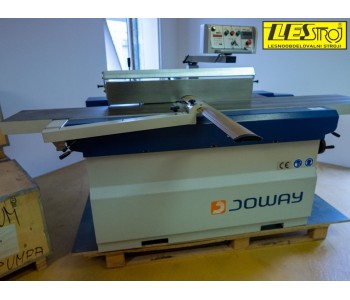

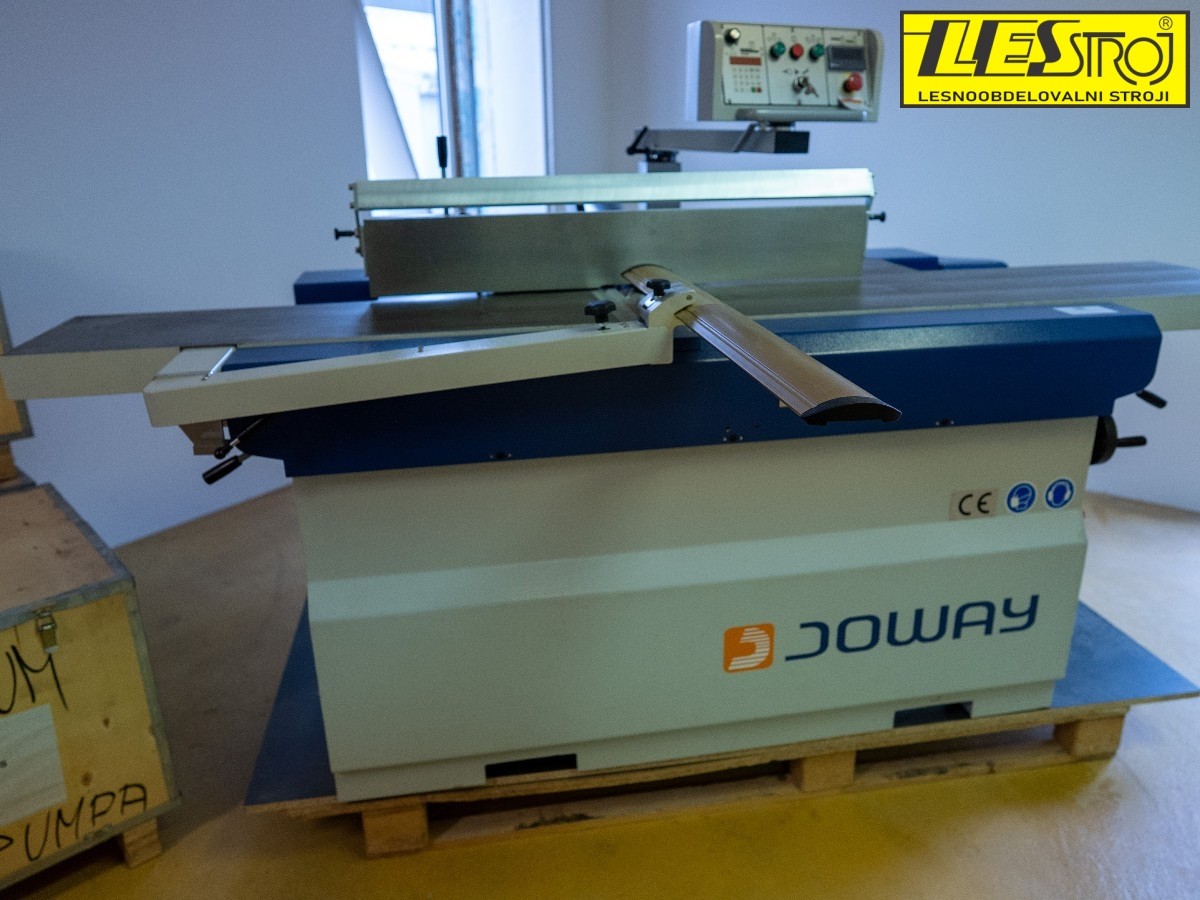

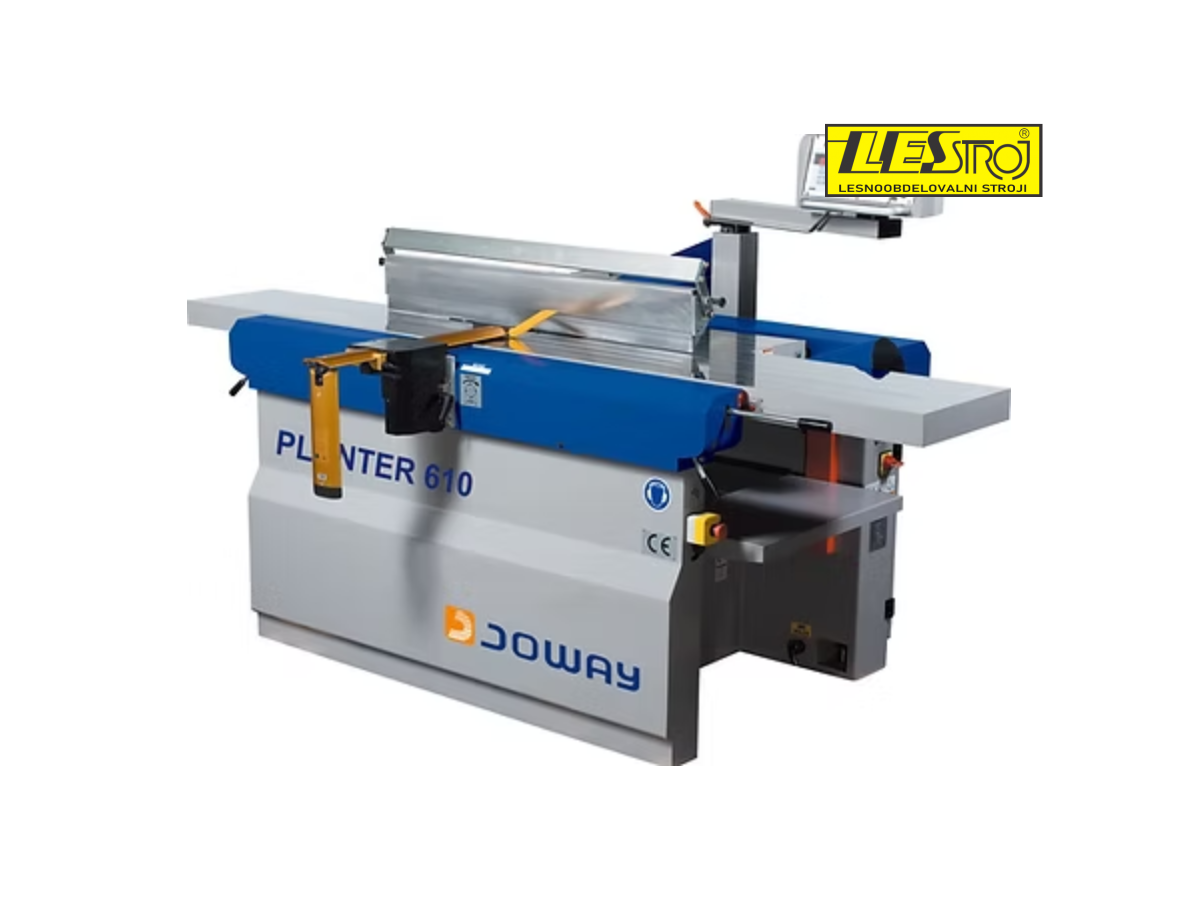

PLANTER 610 Jointer/Thickness Planer

PLANTER 610 jointer/thickness planer is equipped with a digital drive for thickness table height adjustment, enabling precise setup with 10 programmable positions.

Key advantages:

- No switching between functions – instant transition between jointing and thickness planing.

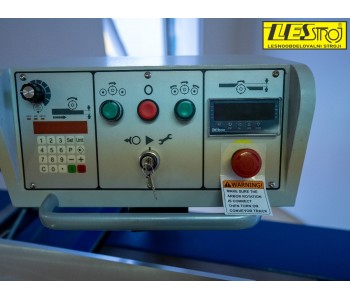

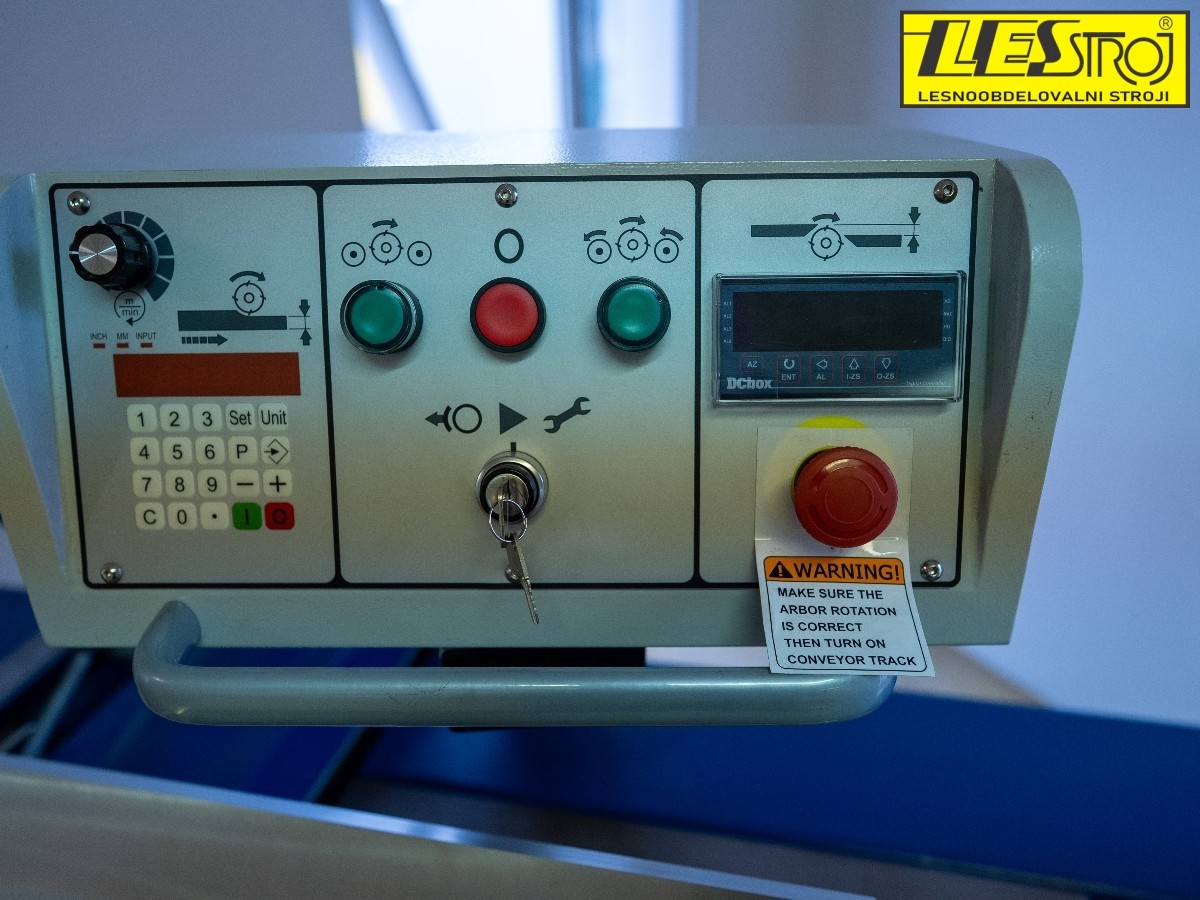

- Advanced digital control – easy thickness table height adjustment for repeatable and precise results.

- Powerful 10 HP motor (model 610).

- High cutterhead speed – 5000 RPM for clean and smooth cuts.

- Efficient chip extraction system – 150 mm dust extraction outlet.

- Stable working surface – thickness table dimensions 630 x 1600 mm provide optimal support during processing.

- Variable feed speed 8–18 m/min – adjustable feed speed for complete control during machining.

- Efficient thicknessing system – table with two rollers (0–0.5 mm) ensures smooth material feeding.

- Rubber outfeed roller – provides even workpiece output without damaging the surface.

With its robust construction, advanced technology, and ease of use, the PLANTER 610 is the ideal choice for professional woodworking workshops that demand precision, speed, and reliability in wood processing.

Technical specifications:

Jointer

- Working width 630 mm

- Total jointer table length 2500 mm

- High-speed cutterhead (5000 RPM)

- Jointer fence tilting (0–45°)

- Motor power – 10 HP

- 150 mm dust extraction outlet

Thickness Planer

- Working width 630 mm

- Thickness table dimensions 630 x 1600 mm

- Variable feed speed 8–18 m/min

- Minimum working height 5 mm

- Maximum working height 250 mm

- Table with two rollers

- Electronic table height adjustment

- Rubber outfeed roller
