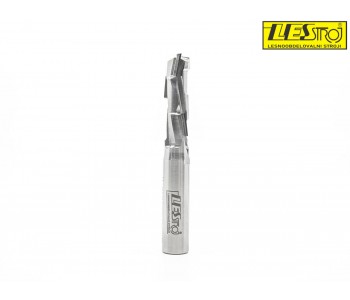

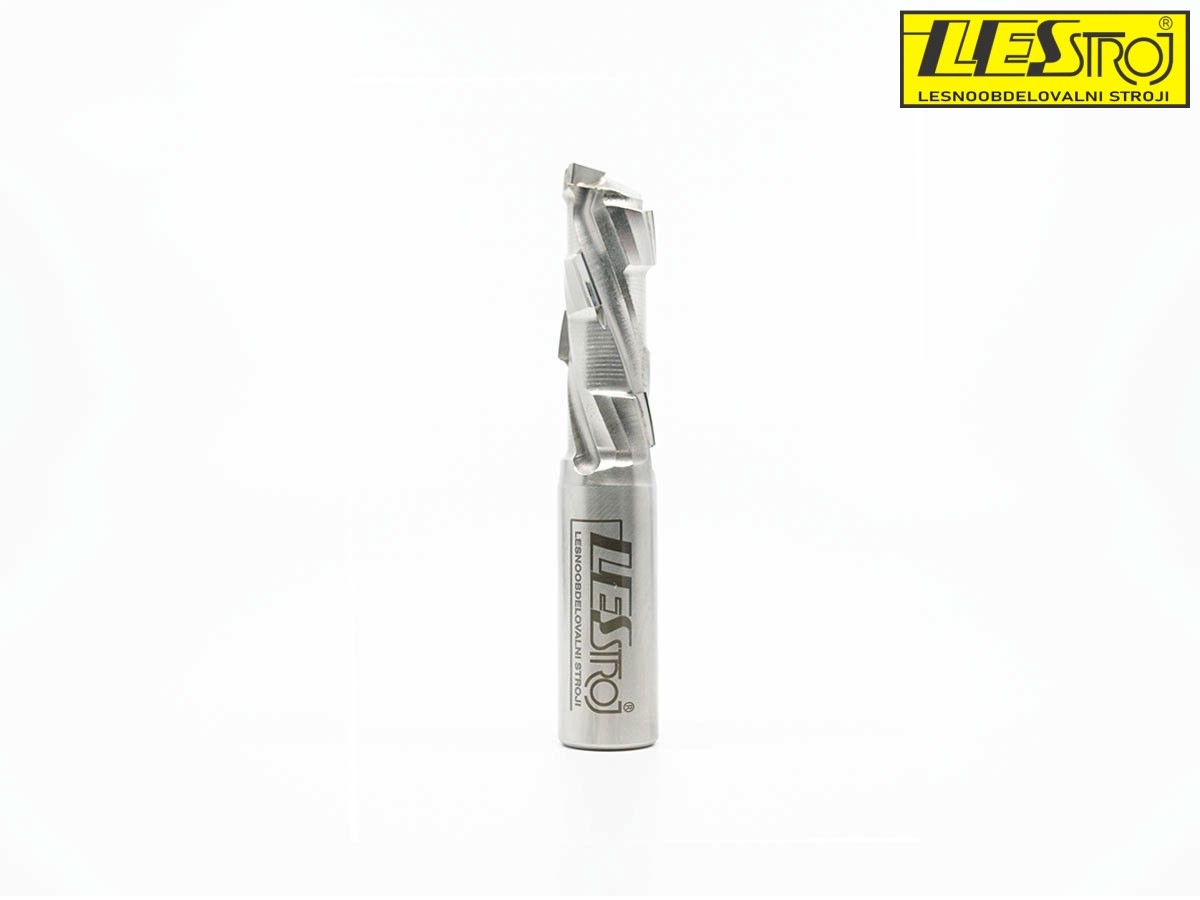

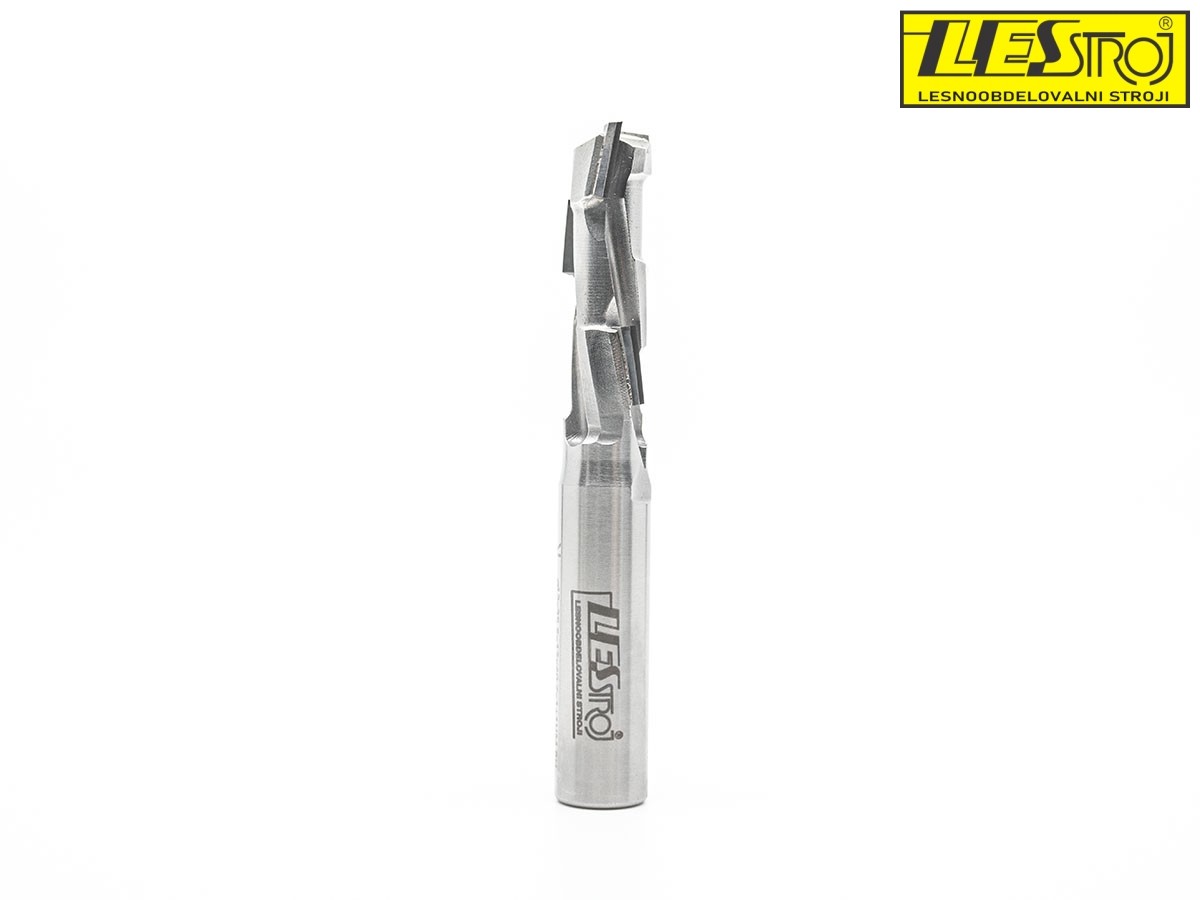

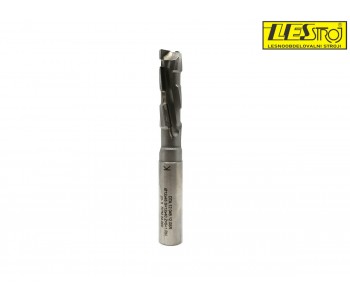

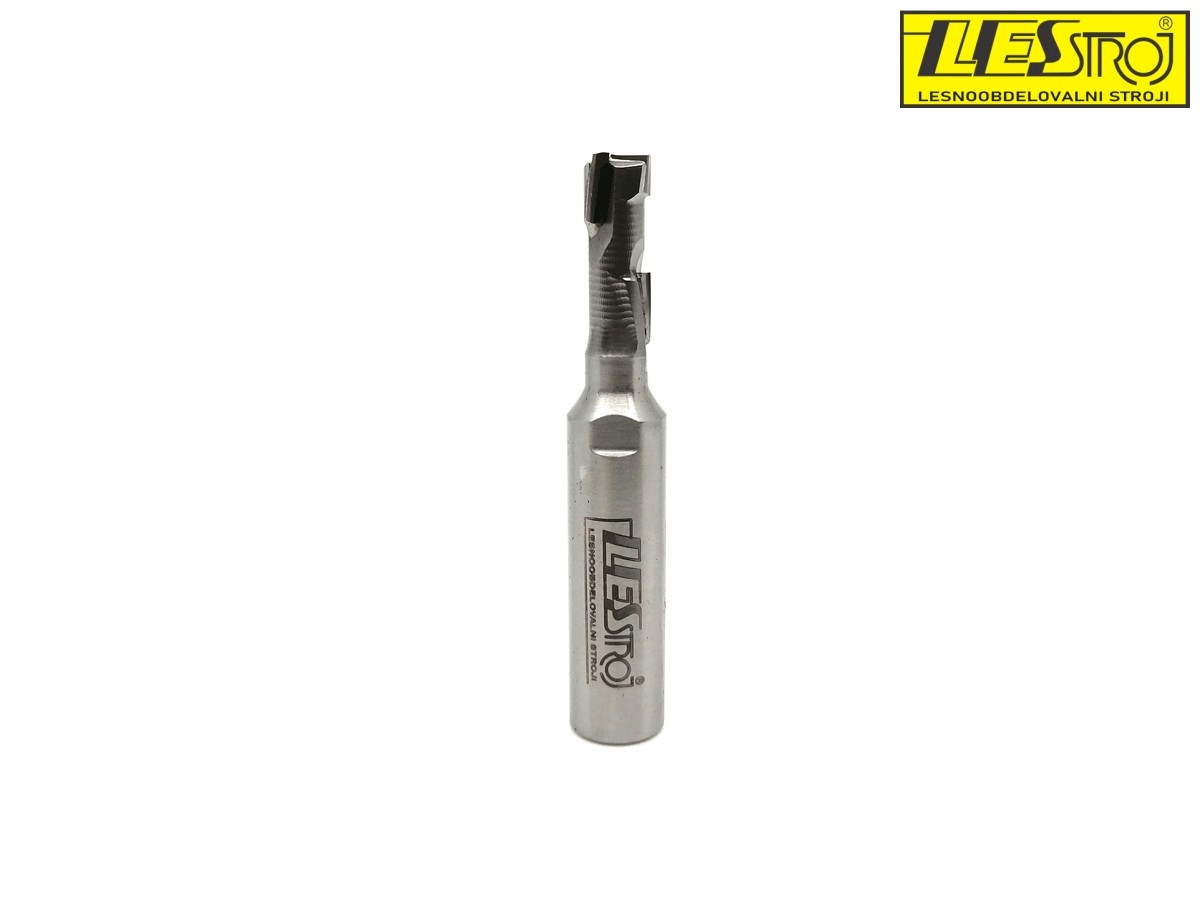

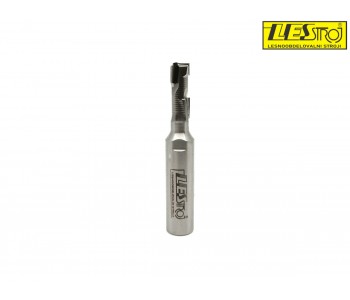

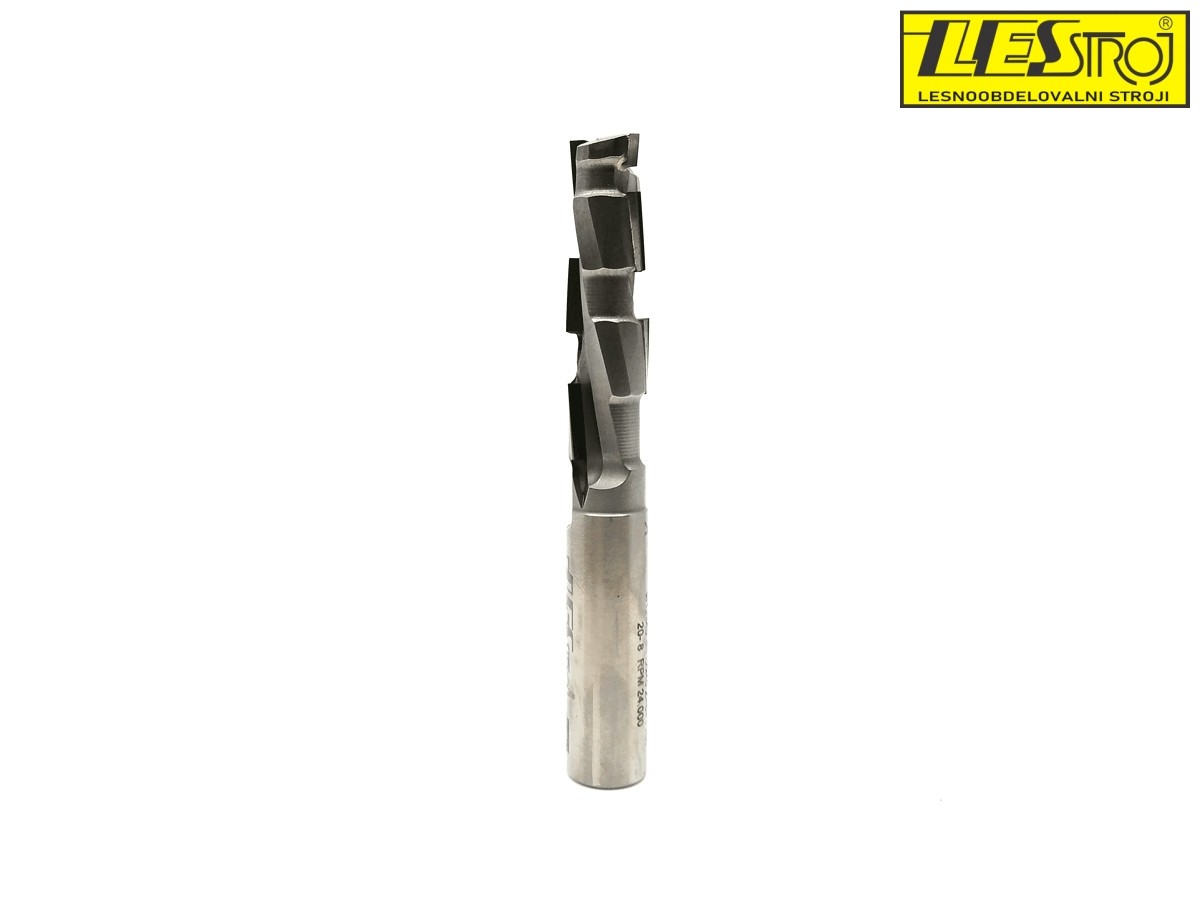

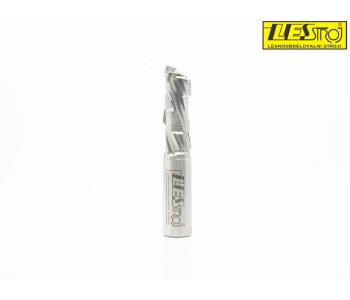

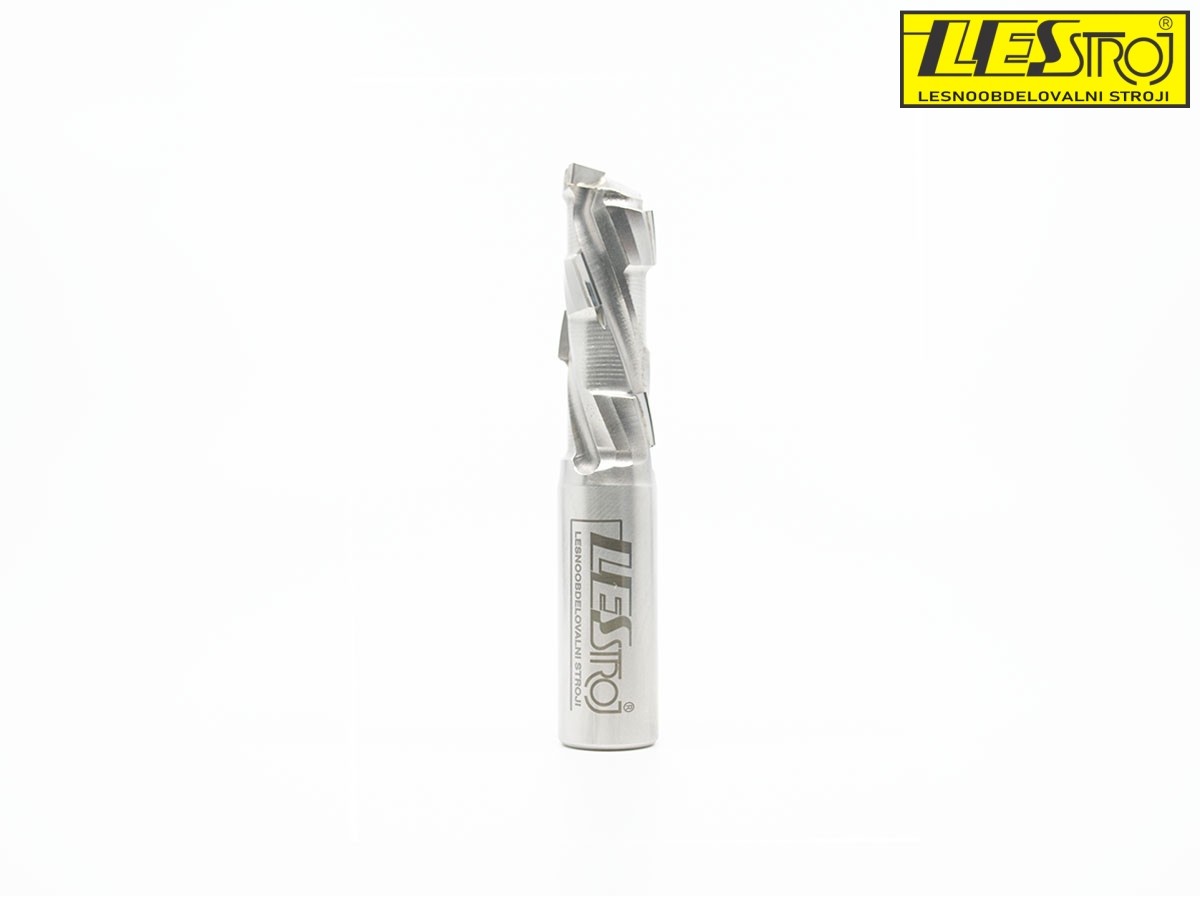

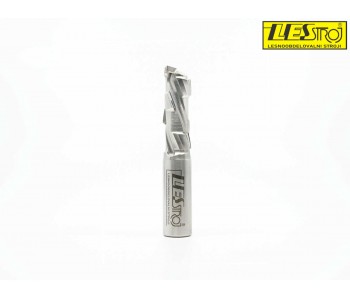

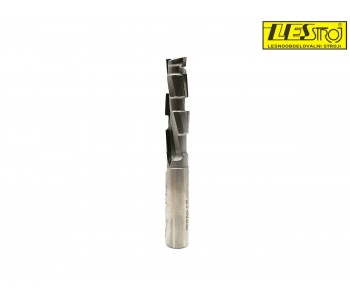

The diamond router bit enables excellent cutting results and perfectly discharges the cut material.
The additional lower blade contributes to an easier, cleaner entry of the router bit perpendicularly into the material.
The width of the diamond blade is 2 mm, which allows us to grind the diamond up to 3x.
The main advantage of router bits LESTROJ is that the edges of the supporting body are rounded, whereby the forces are better distributed during processing, which means there is lower probability of router bit breakage.
The sharpening of diamond router bits takes place with laser machines which enable a more precise removal of material with minimum tool warming.
General technical information of diamond router bits:
- Three diamond blade spirals
- Supporting body made of carbide and steel alloy
- Low tolerance – H6 tolerance (+0mm, -0.009mm)
- Width of the diamond blade H2.5 (2-3 x grinding)
- Diamond or carbide front blade
- Fast feed rate
- Good cut quality
- Silent operation
Model | Diameter (D) | Cutting length (I) | Total length (L) | No. of cutting edges (Z) | Shank diameter (S) | Unit price | Buy | Avail. |
---|---|---|---|---|---|---|---|---|
ITL DTA.08.021.12.0SR | 8 mm | 20 mm | 69 mm | 1+1 | 12 mm |
– 5%
€59.38
|
![]() |
|
ITL DTA.10.025.12.0SR | 10 mm | 25 mm | 76 mm | 1+1 | 12x40 |
– 5%
€55.67
|
![]() |
|
ITL DTA.12.025.12.0SR | 12 mm | 25 mm | 90 mm | 1+1 | 12x50 mm |
– 5%
€55.67
|
![]() |
|
ITL DTA.12.035.12.0SR | 12 mm | 35 mm | 88 mm | 1+1 | 12x40 |
– 5%
€74.29
|
![]() |
|

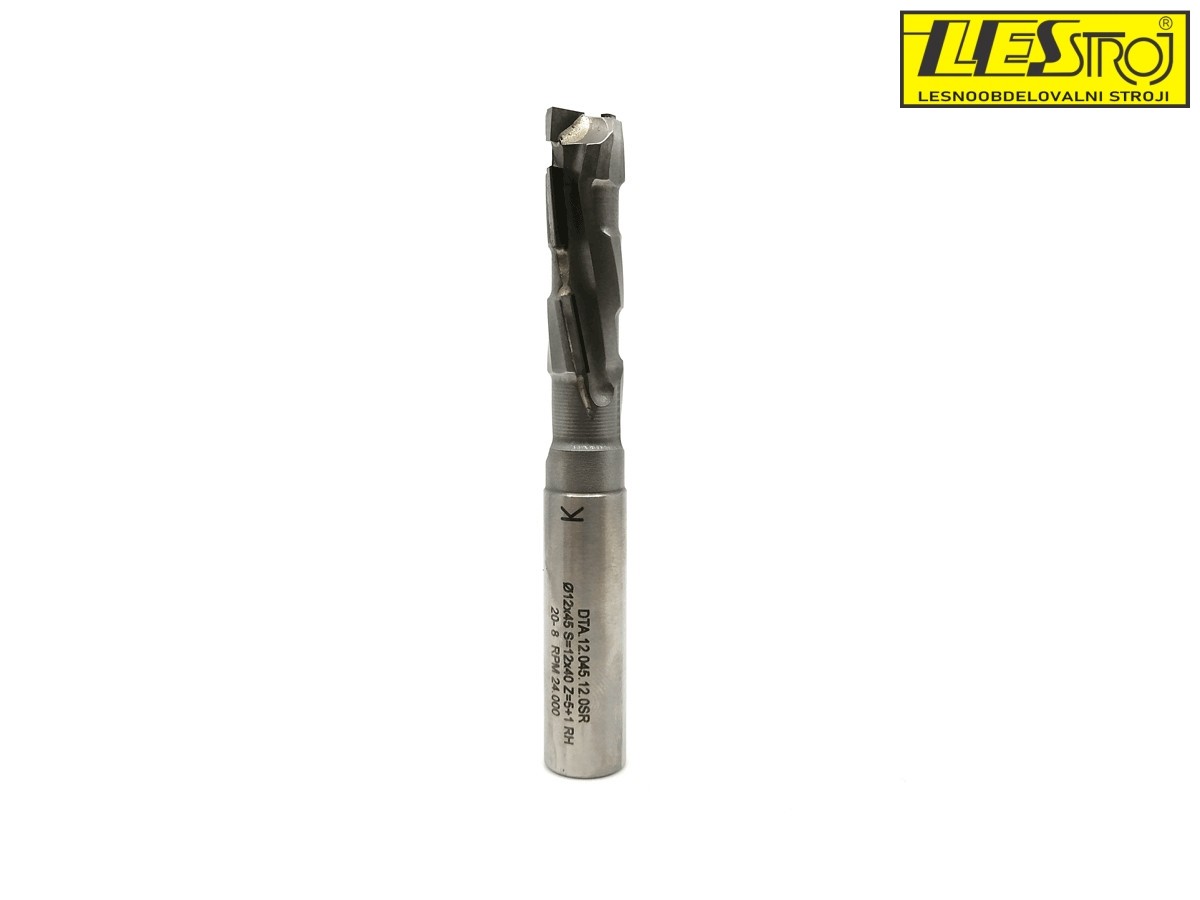

ITL DTA.12.045.012.0SR | 12 mm | 45 mm | 93 mm | 1+1 | 12 mm |
– 5%
€92.72
|
![]() |
|
ITL DTA.18.025.20.0SR | 18 mm | 25 mm | 80 mm | 1+1 | 20x50 mm |
– 5%
€58.90
|
![]() |
|
ITL DTA.18.035.20.0SR | 18 mm | 35 mm | 98 mm | 1+1 | 20x50 mm |
– 5%
€74.29
|
![]() |
|
ITL DTA.18.045.20.0SR | 18 mm | 45 mm | 108 mm | 1+1 | 20x50 mm |
– 5%
€92.91
|
![]() |
|
ITL DTA.20.055.20.0SR | 20 mm | 55 mm | 114 mm | 1+1 | 20x50 mm |
– 5%
€111.53
|
![]() |
