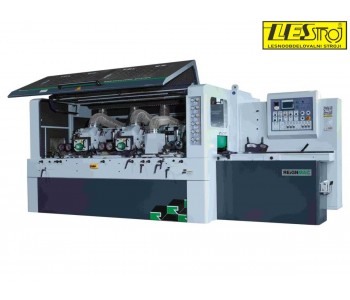

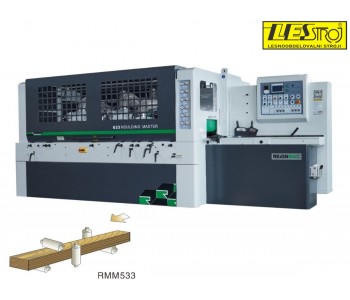

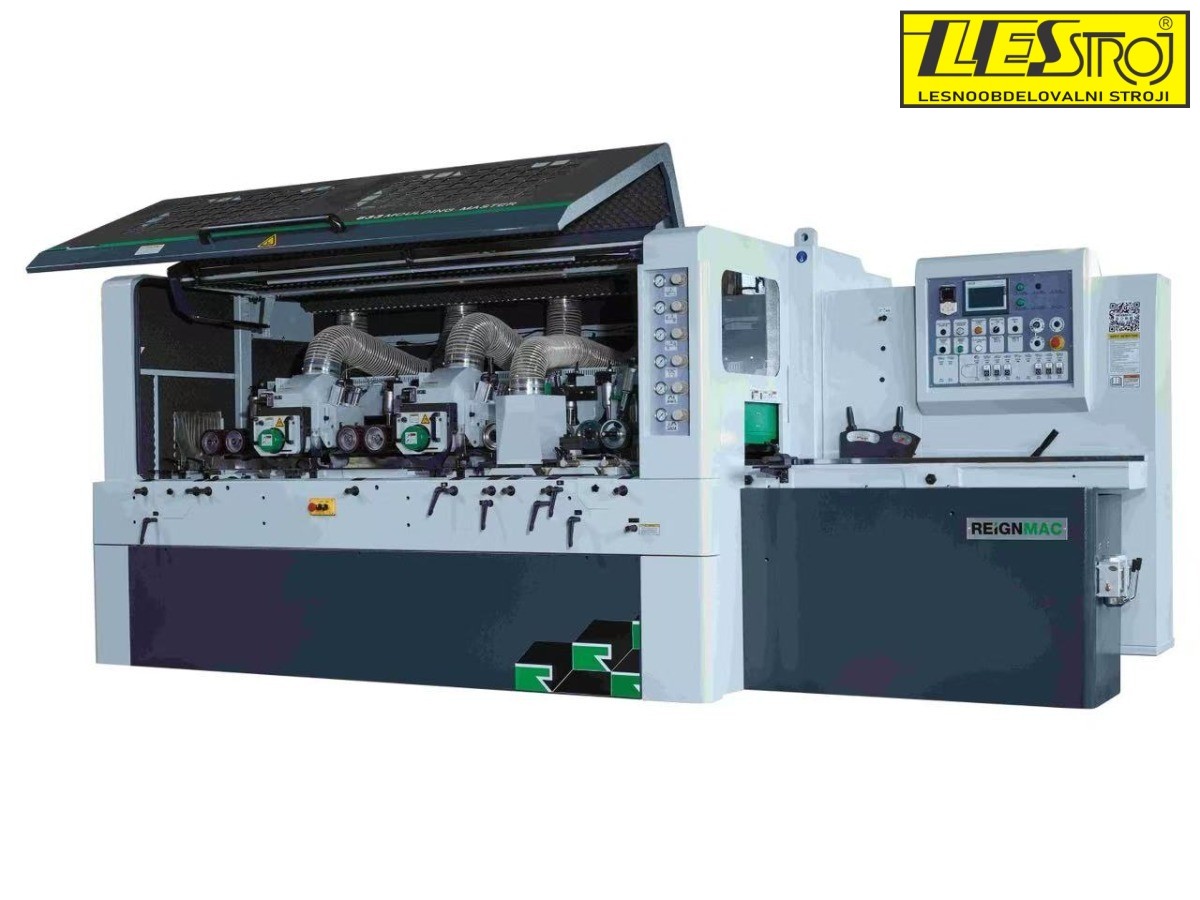

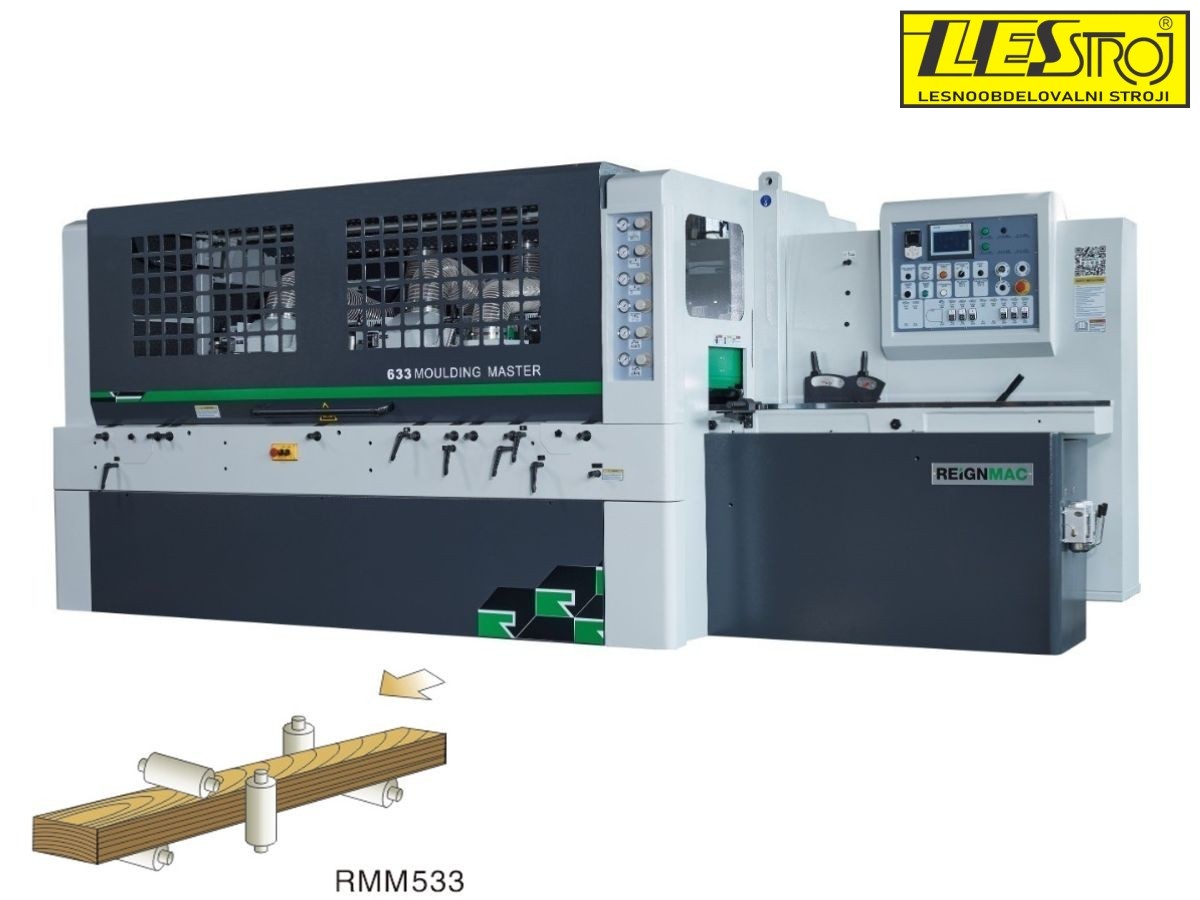

Four-sided planer REIGNMAC RMM 533

The machine is characterized by outstanding robustness, weighing 6,500 kg depending on the model and the number of spindles. All shafts on the machine have a diameter of 50 mm for increased rigidity and precision. All horizontal spindles are also supported on the outer side, which ensures precise operation even at larger widths. To facilitate the movement of workpieces, the working tables are chrome-plated, which also reduces friction and minimizes wear on the table. The machine is standardly equipped with pneumatic pressure on the infeed and outfeed shoes for the top spindle, and pneumatic pressure on the infeed shoe for the left spindle. For easier handling of larger workpieces, the machine has a driven spiral roller in the working table, adjustable via a pneumatic cylinder.

The machine is also standardly equipped with motorized lifting and lowering of the top spindle with a touchscreen display. The bridge (pressure rollers) is controlled in the same way. Optional control is also available for the left spindle. The standard version comes with a SIEMENS touchscreen with memory function.
