LEADERMAC Planermac Four-Sided Planer Moulders – Top-Quality Taiwanese Manufacturing

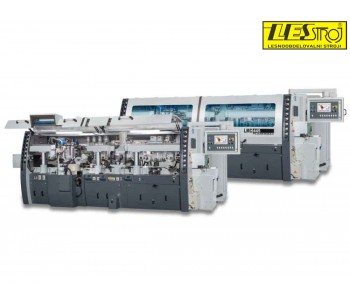

Leadermac PLANERMAC – Precision and Productivity in a Single Machine!
Reliable 4- to 8-spindle planer-moulder with a robust construction, individually driven spindles, and intelligent feeding systems for fast, precise, and safe woodworking. Discover all the features that take your production to the next level!

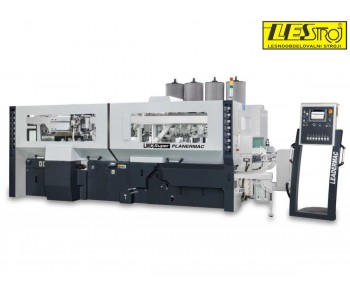

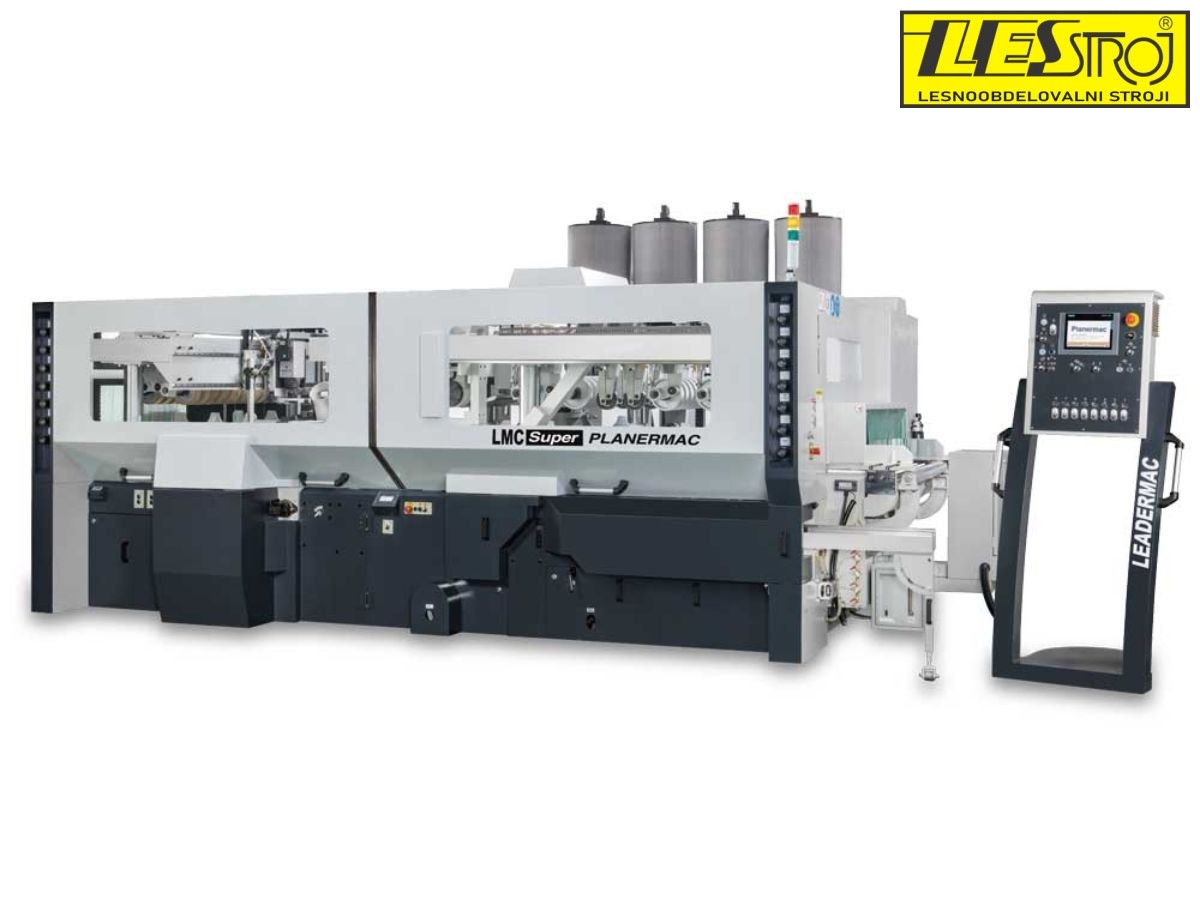

PLANERMAC – 4 to 8 Spindles
Planermac is a premium manufacturer of woodworking machines, designed for carpenters who seek the highest quality and the best machines on the market. The manufacturer comes from Taiwan and has been operating since 1972. It is known as one of the most recognized and top manufacturers, as its machines meet the highest standards of quality and precision.

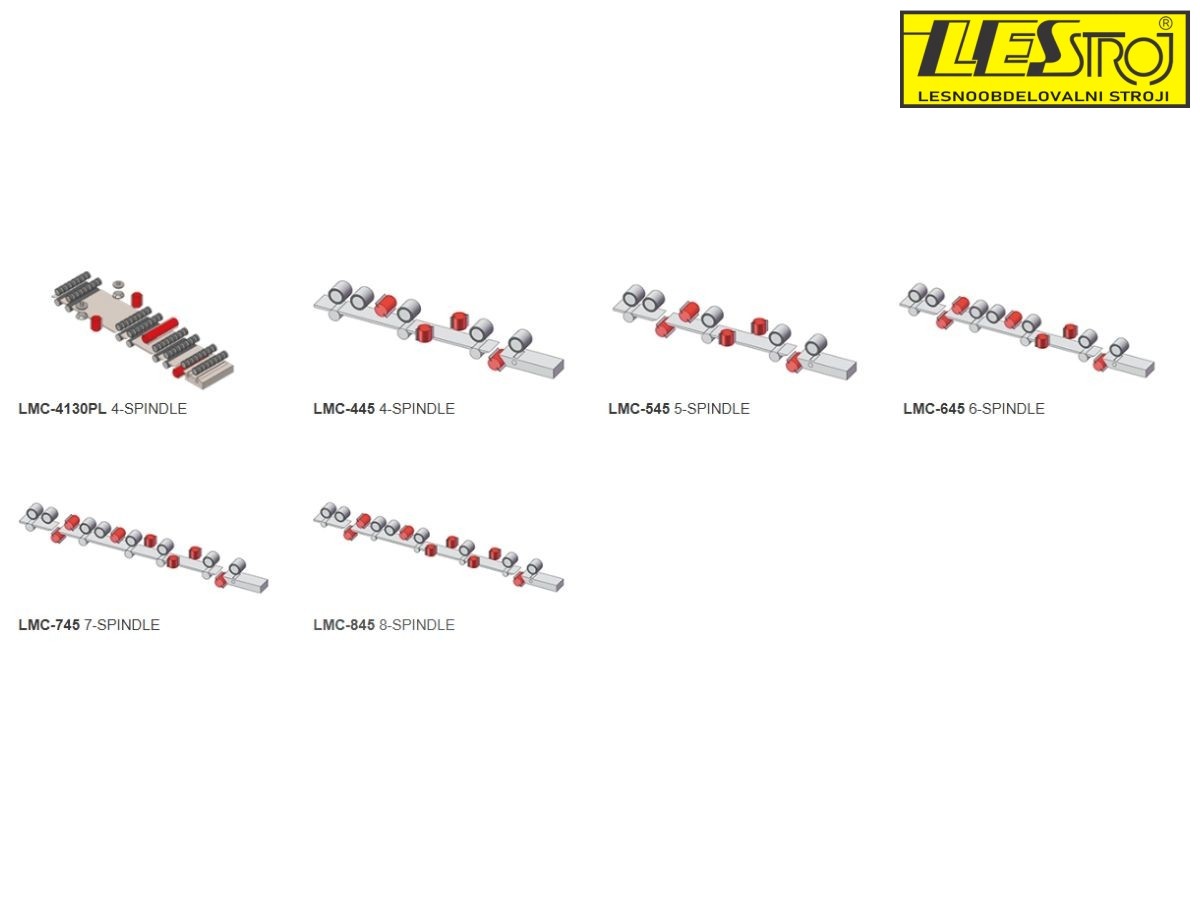

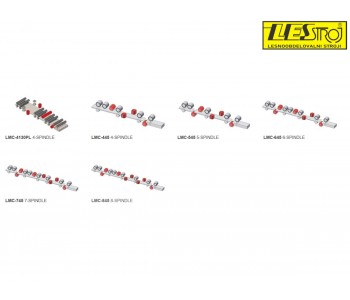

Model selection: LMC-445 (4), LMC-545 (5), LMC-645 (6), LMC-745 (7), LMC-845 (8)
Main Features:
Safety and sound enclosure for reduced noise and increased safety
Solid chrome infeed table for longer durability
Pneumatic feeding rollers with 3-stage pressure (max. 6 bar)

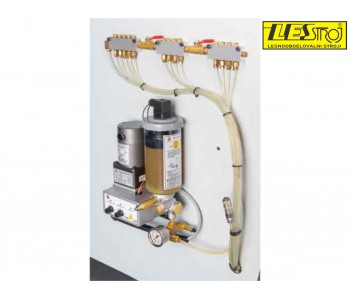

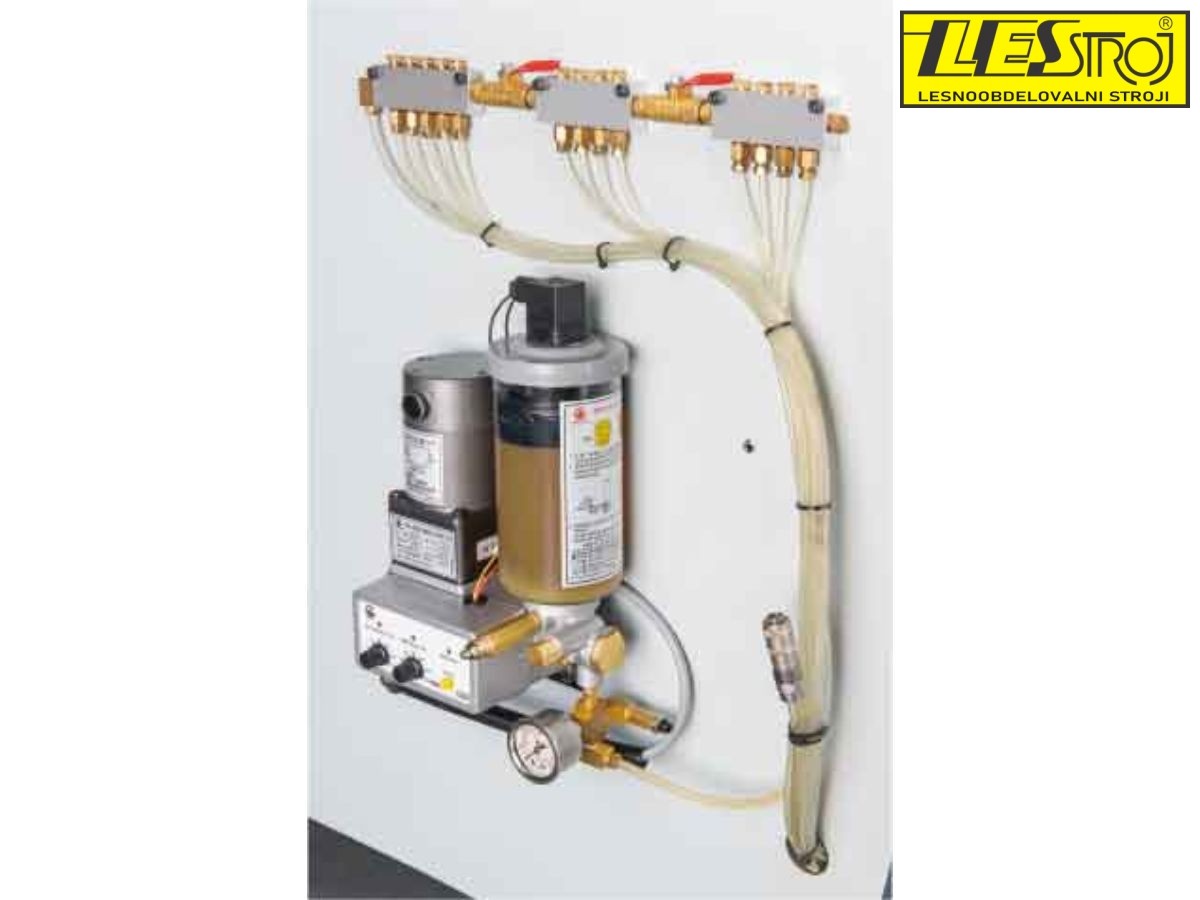

Automatic lubrication of the infeed table
Infeed table length: 1.4 m, adjustable up to 10 mm
Robust steel frame
Motor-driven top and bottom rollers for efficient wood feeding
External bearing support for horizontal spindle
| Specification | Standard Equipment | Optional |
|---|---|---|
| Number of spindles | 2 – 11 | Special configurations on request |
| Working width | 15 – 450 mm | 500 mm, 600 mm, 700 mm, 1300 mm |
| Working thickness | 10 – 200 mm | Up to 250 mm, 300 mm or 350 mm |
| Spindle motor power | 11 kW (15 HP) | Up to 75 kW (100 HP) |
| Spindle speed | 5500 rpm | 6000 or 7200 rpm |
| Spindle diameter | 50 mm | 1 13/16" or 2 1/8" |
| Cutting circle – bottom spindle | 125 – 180 mm | - |
| Cutting circle – vertical spindles | 125 – 200 mm | Up to 250 mm |
| Cutting circle – horizontal spindles | 125 – 200 mm | Up to 250 mm |
| Feeding motor | 3.7 kW (5 HP) with inverter | Up to 15 kW (25 HP) |
| Feed speed | 6 – 24 m/min | 36, 48, 60 or 90 m/min |
| Top feeding roller diameter | 200 mm | - |
| Top feeding roller width | 4 × 50 mm | - |
| Pneumatic feeding pressure | max. 6 bar | - |
| Infeed table adjustment | 10 mm | - |
| Vertical spindle adjustment | 40 mm | - |
| Horizontal spindle adjustment | 20 mm | - |
| Infeed table length | 1.4 m | 1 m, 2 m, 2.5 m, 3 m |
| Mechanical digital readouts | Included | - |
| Sound and safety enclosure | Included | Additional insulation with metal interior |
| Motorized vertical adjustment of feed carrier | Included | - |
| Pneumatic side pressure system | Included | - |
| Cardan drive without chain | Included | - |
| Quick Set cutterhead adjustments | Included | Optional on all axes with SmartSet control |
Optional:
Chamfering Heads for material edges
Straight &/or Profile Jointers
Tilting Side Heads
Split Pressure Shoes
Directly Opposed Side Heads
Rip Saw Section
Left Hand Feed
Inverter motor for cutterhead brakes
Hydro-Loc support for side axes (300 mm or 350 mm)
Cutterhead Lift Off Crane
Quick Set adjustments for any spindle
Longer infeed table (1.4 m to 3 m)

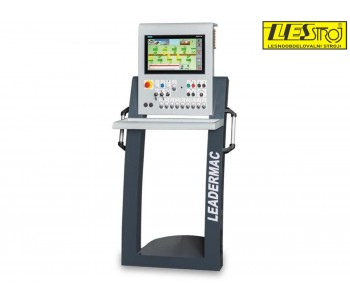

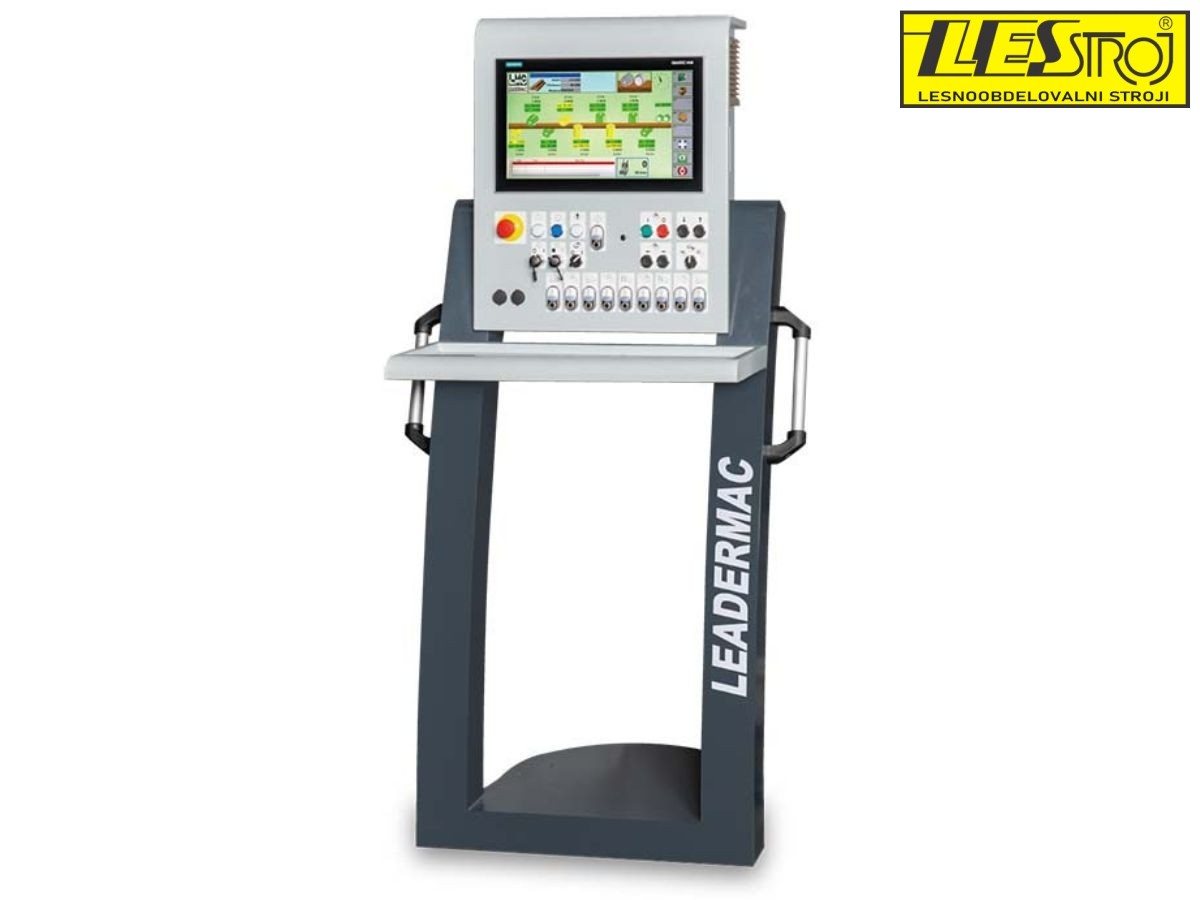

Computerized spindle positioning (SmartSet control)
Feed speed up to 90 m/min (depending on configuration)
