Through-feed CNC machine KDT KD‑610TH

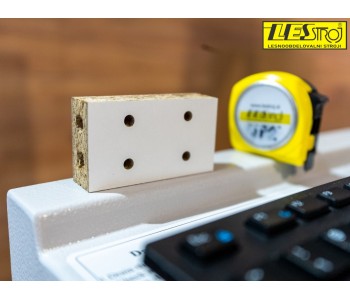

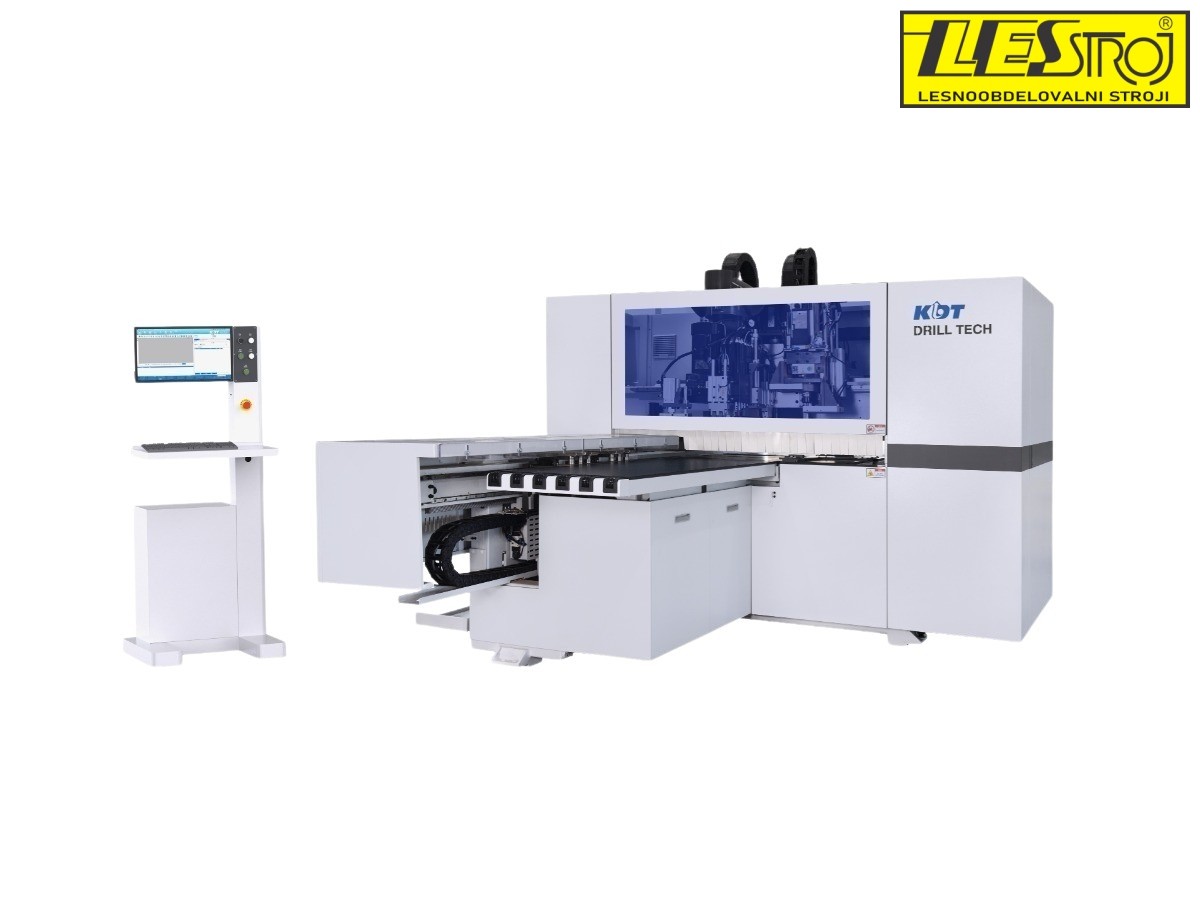

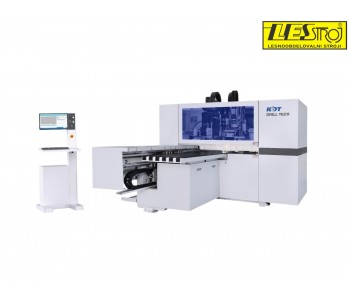

KDT KD-612TH Through-Feed CNC Machine The 6-sided through-feed hybrid CNC KDT 612TH is an upgraded version of the 610 model, enabling woodworkers to achieve faster and more efficient production. With the ability to process two workpieces simultaneously, it reduces production cycles by up to 40%, minimizes operator dependency, and increases productivity by up to 3× compared to conventional CNC machines. Four synchronized drilling units (26V + 18H + 1S top, 18V bottom), a 5.5 kW upper spindle (optional ATC), and a 3.5 kW lower spindle ensure industrial-level performance and precision. It is also affordably priced, making it accessible to smaller woodworking workshops. Working width up to 1000 mm, length up to 2850 mm. The minimum workpiece size is 70 × 35 mm.
6-Sided Through-Feed CNC KDT 612TH(Z)
Key Machine Features
Working Area
- Working width: 1000 mm
- Working length: up to 2850 mm
Productivity
- Processing two workpieces simultaneously (up to 40% faster)
- Vertical drilling: 9–30 mm
- Horizontal drilling: 9–22 mm
Drilling and Milling Units

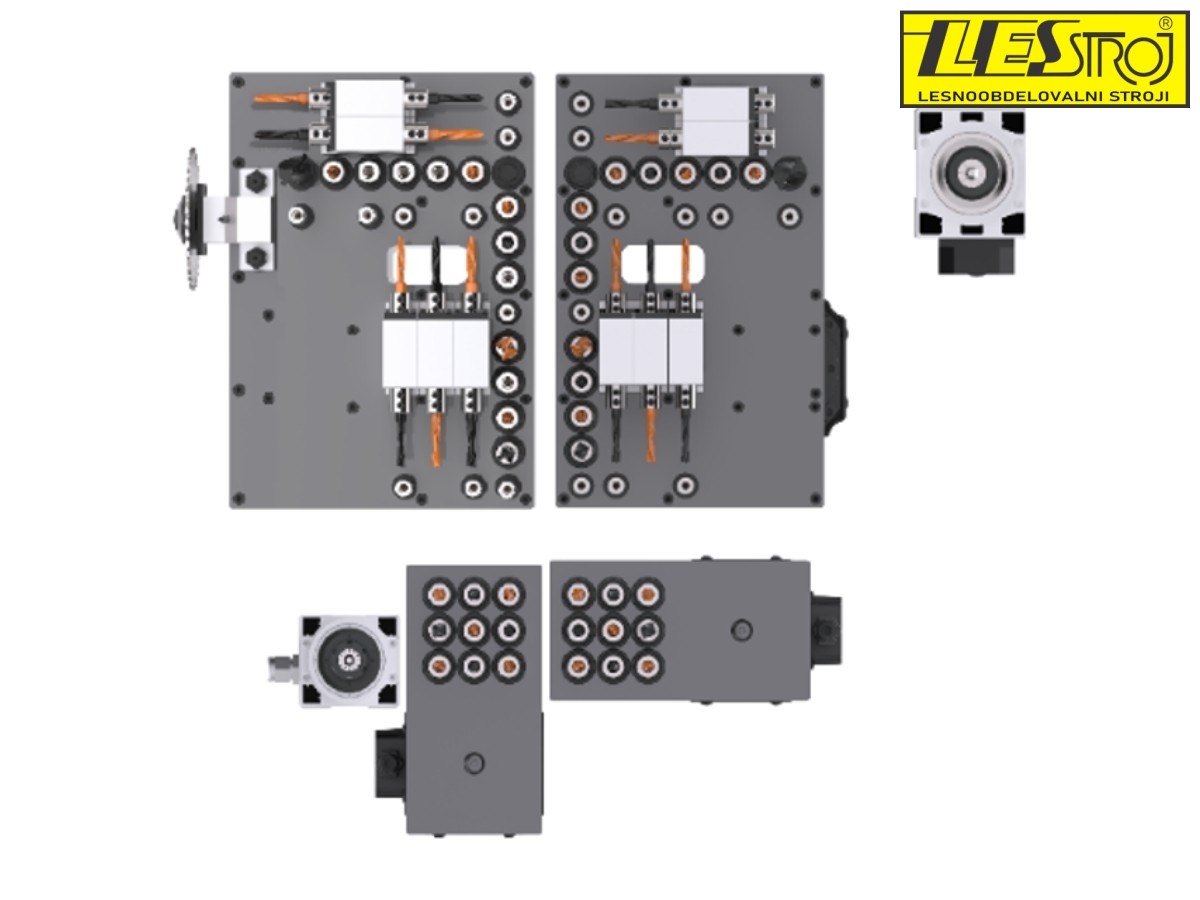

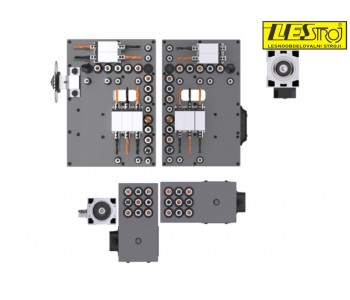

- Four synchronized drilling units (top: 26V + 18H + 1S; bottom: 18V)

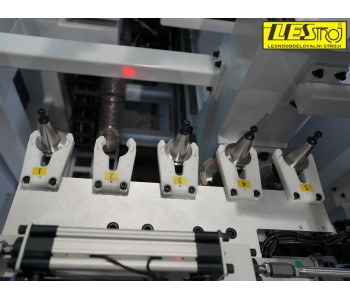

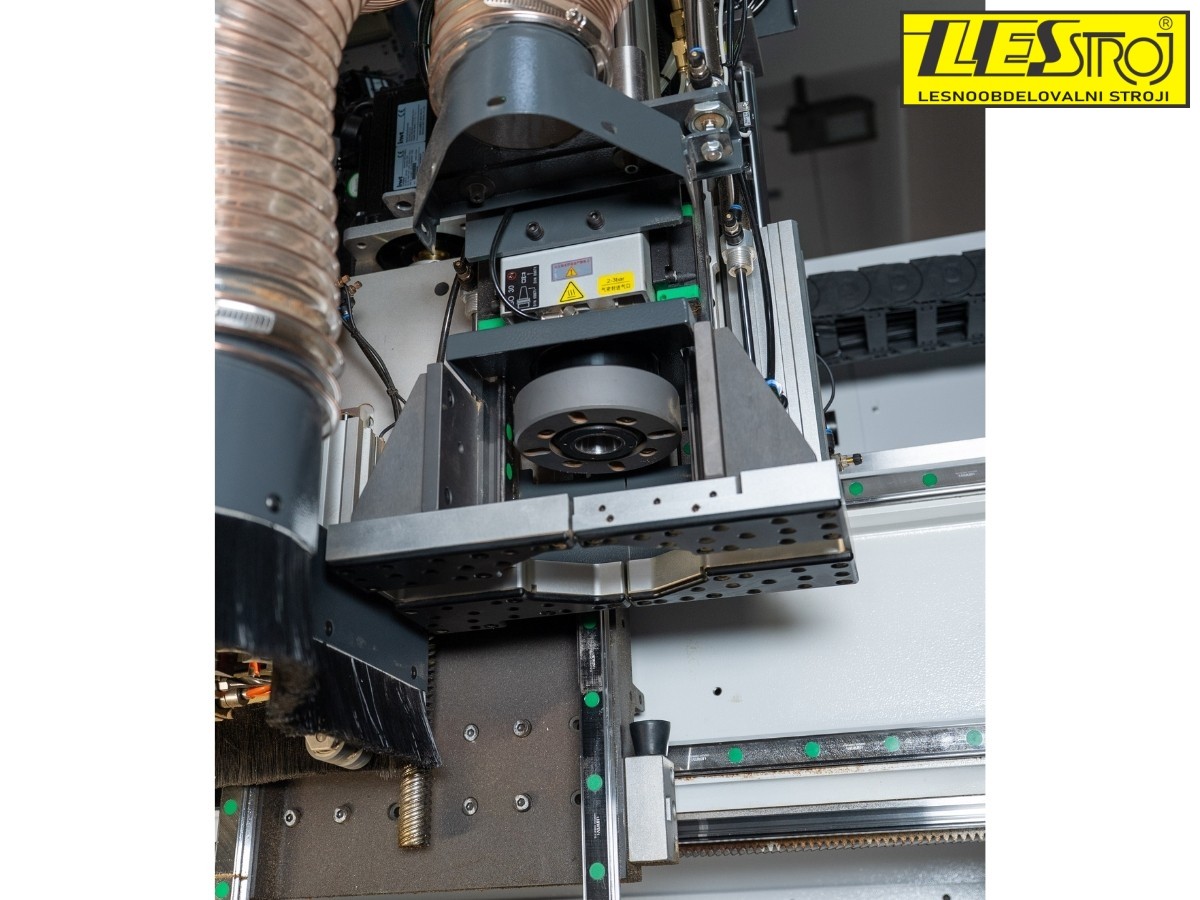

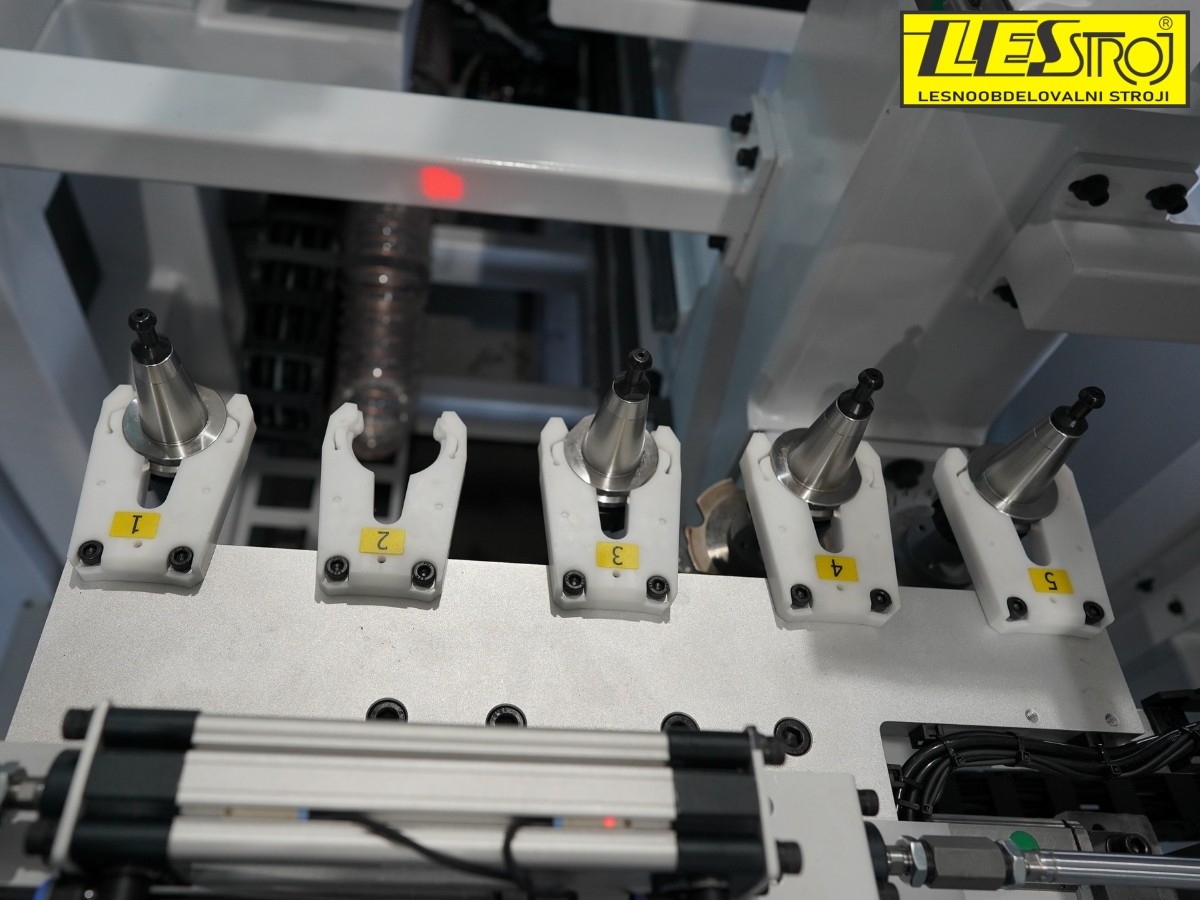

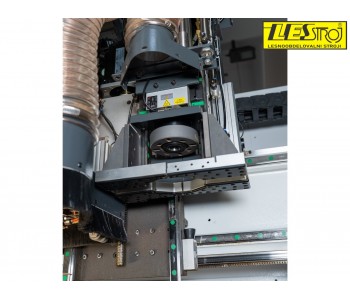

- Upper spindle: 5.5 kW (optional ATC)
- Lower spindle: 3.5 kW
Accuracy and Reliability
- Automatic thickness measurement with automatic Z-axis compensation
- Blowing system with automatic cleaning

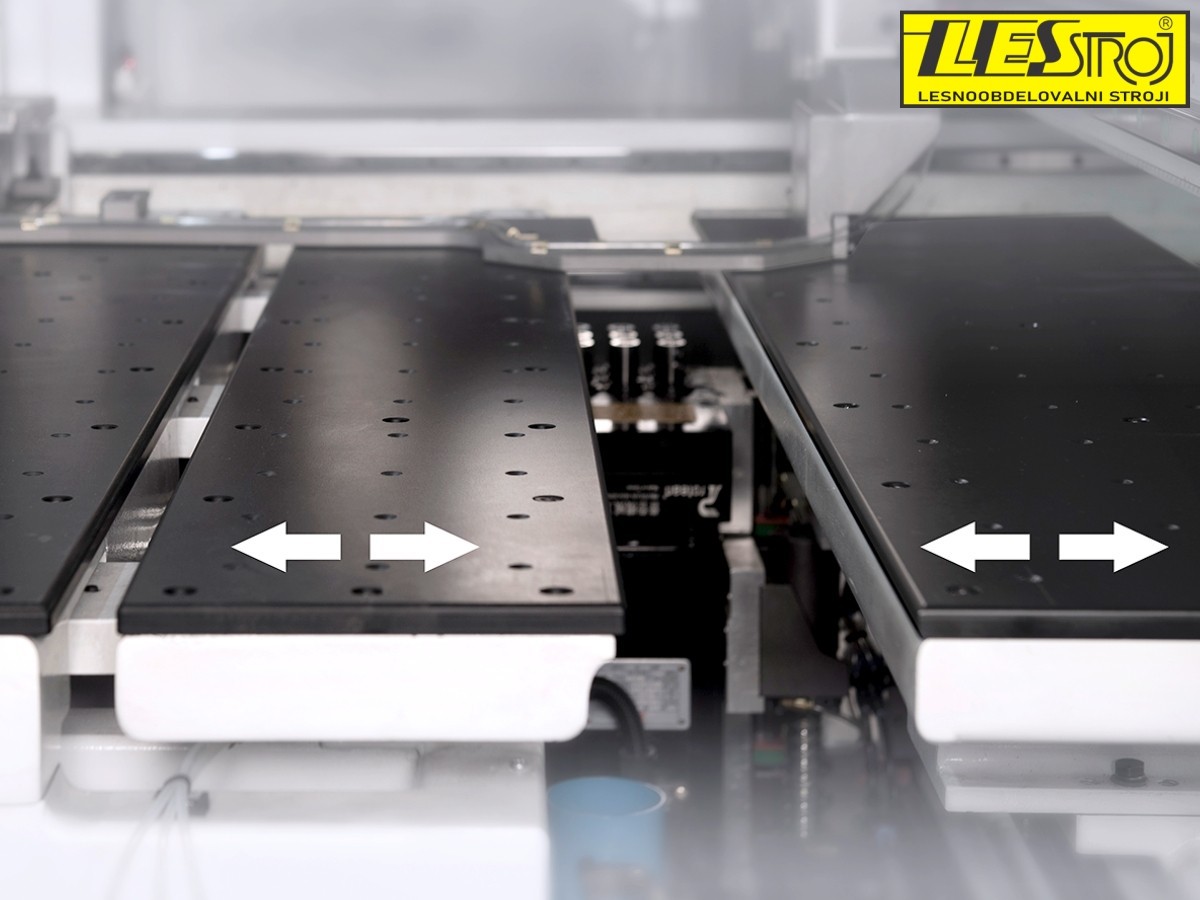

- Air table for workpiece protection

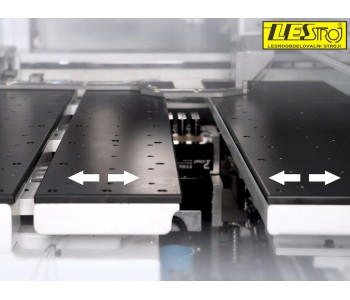

- Dual independent clamps (X up to 140 m/min; Y/Z: 90/50 m/min)
Software and Connectivity
- CAD/CAM KDT WS for programming, simulation, and control
- Compatible with: MegaTISCHLER, Corpus 3D, Imos, LestrojBOX, Cabinet Vision, Swood

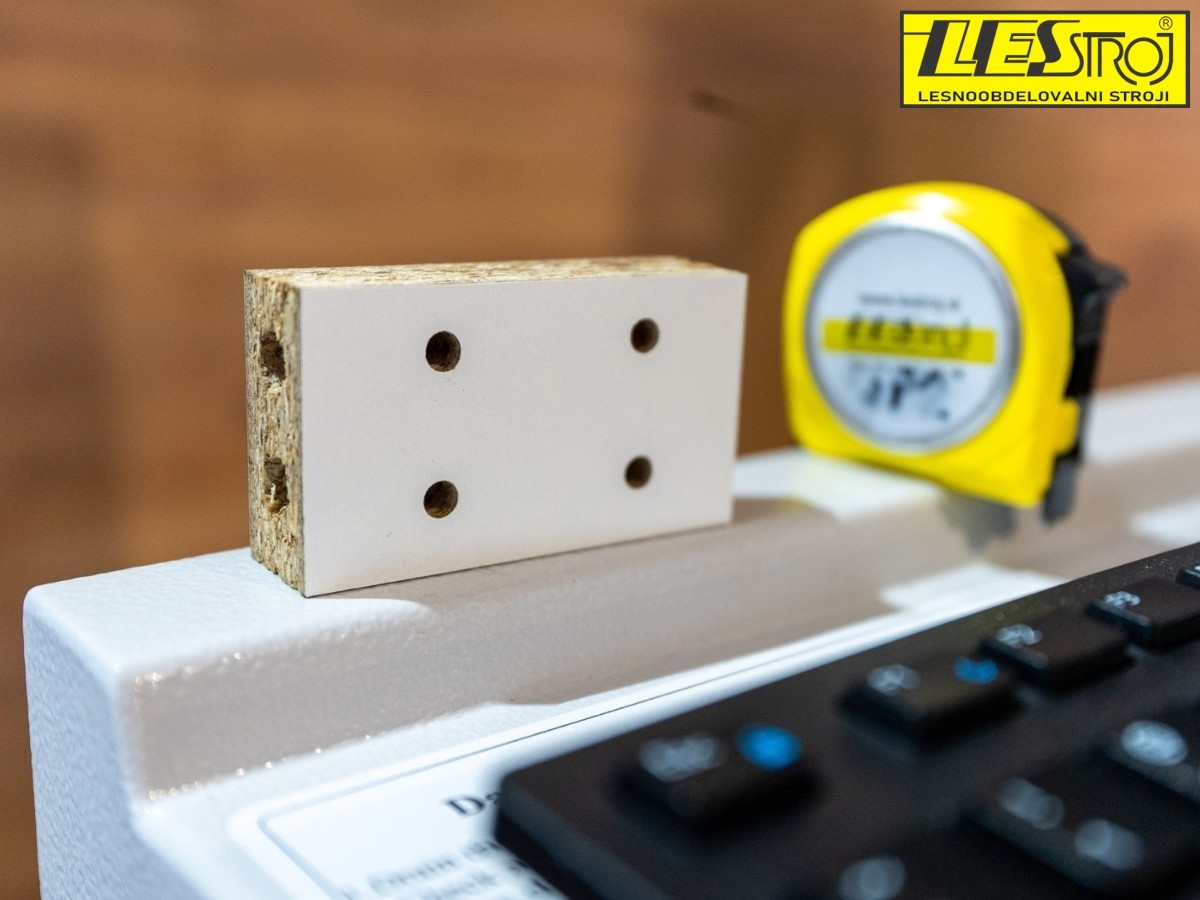

- Barcode scanner for automated operation
Technical Data

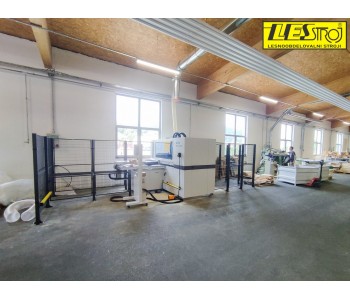

- Dimensions with safety fence: approx. 7088 × 2660 mm
- CE certified
- Robust industrial construction, weight approx. 3000 kg
Why Choose KDT?
High build quality – robust construction and long machine lifespan.
Reliable and precise operation – consistent results even in serial production.
Advanced technology – modern solutions for higher productivity and automation.
Excellent price-performance ratio – maximum value for your investment.
Trusted brand – a reliable choice in the woodworking industry.
Invest smart. Invest in KDT.
Over 100 satisfied woodworkers using KDT machines.
