copy of Through-feed CNC machine KDT KD‑610 NHZ
Brand:
KDT 610 Six‑Sided Through‑Feed Hybrid CNC is the best‑selling CNC in Slovenia, having cut production cycles, reduced operator dependency, and tripled productivity compared with a conventional CNC.
Industrial‑grade features at a price small workshops can afford.

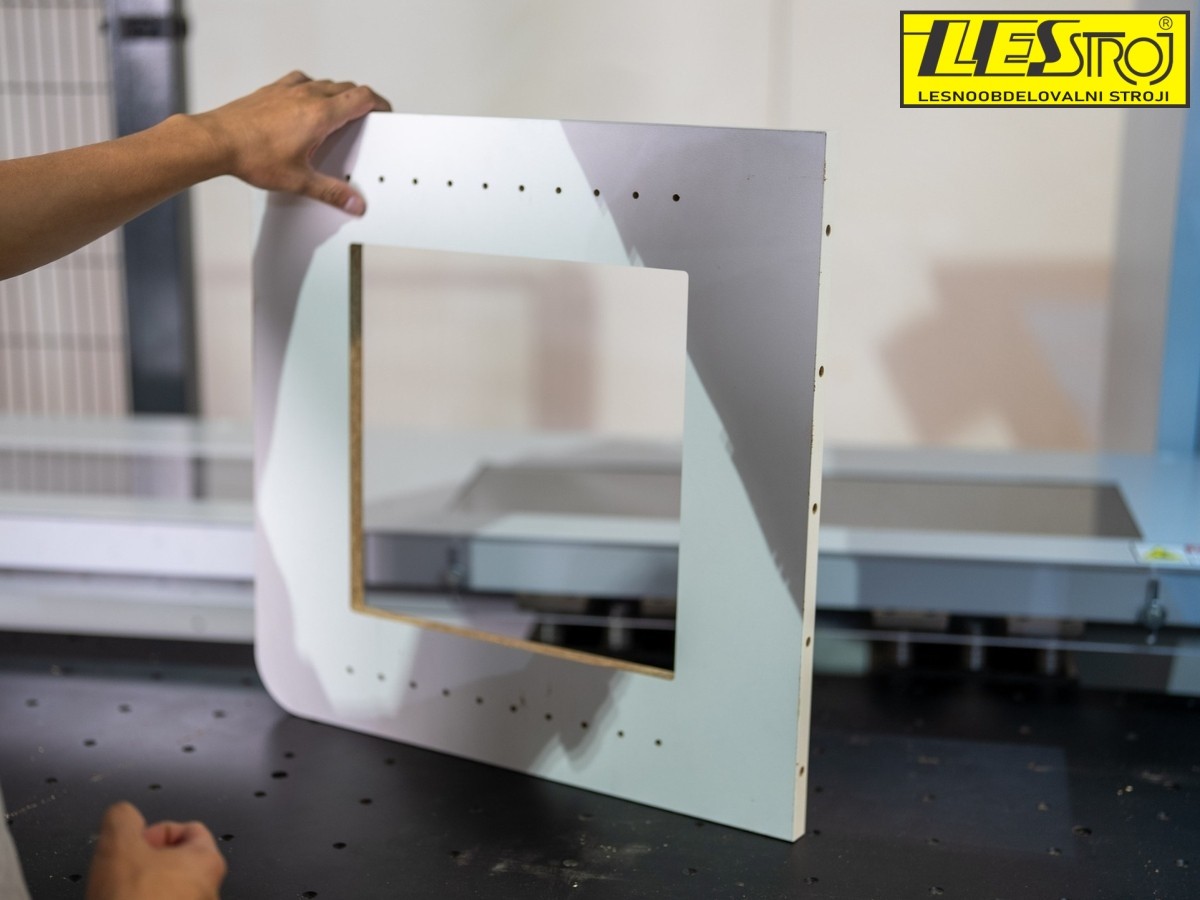

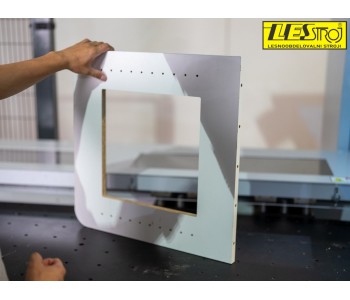

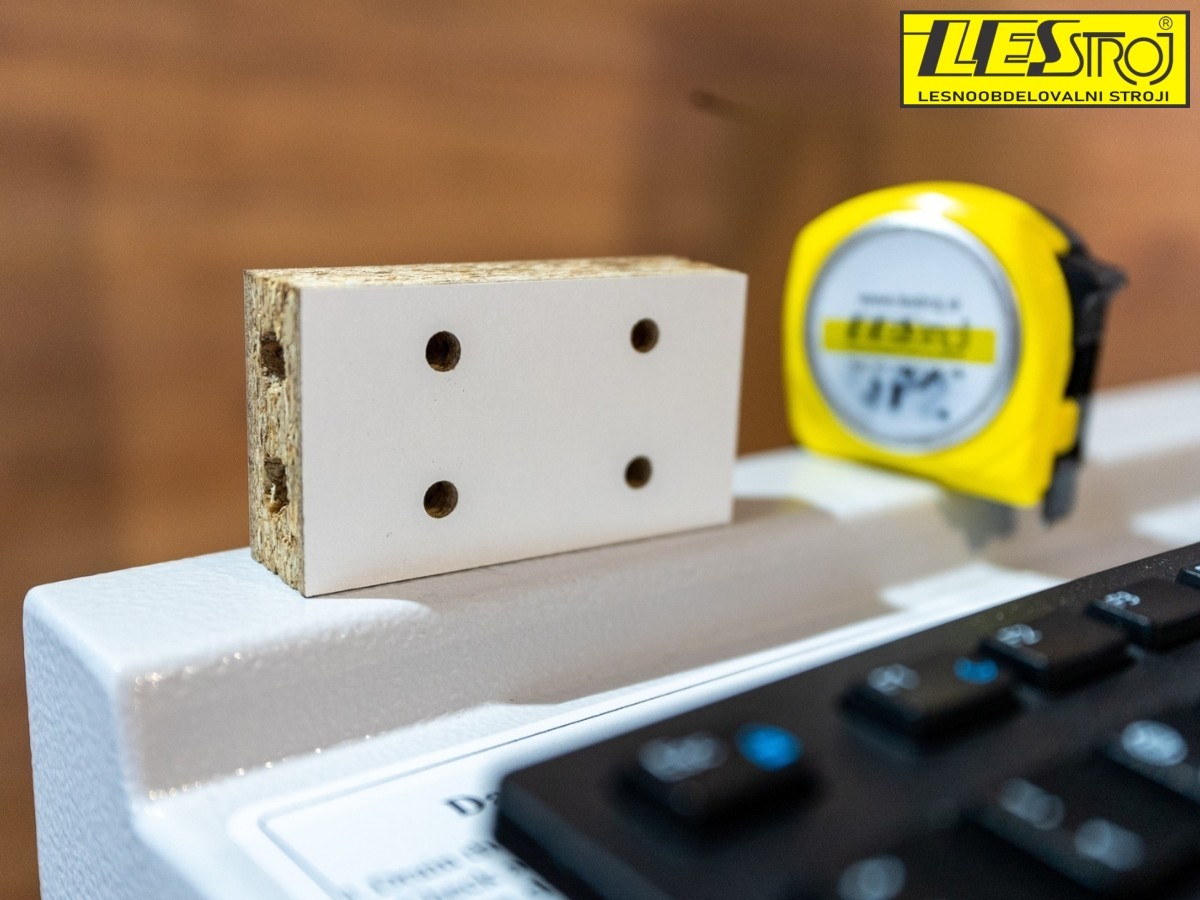

Working width up to 1000 mm and length up to 2850 mm. The smallest workpiece it can process is 70 × 35 mm.

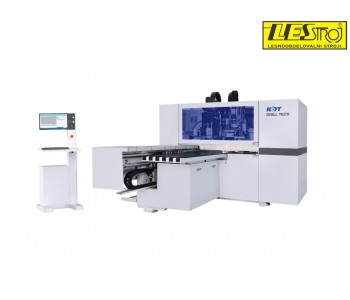

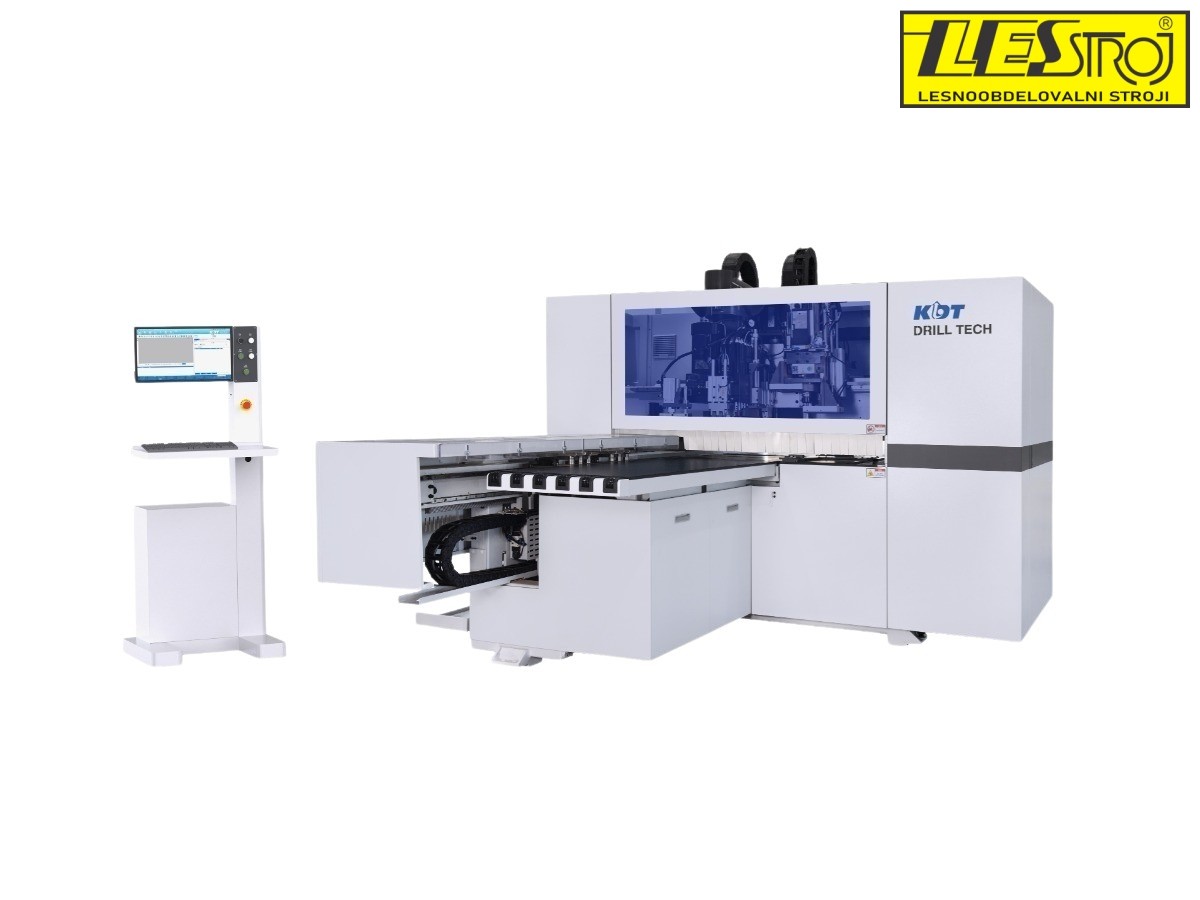

KDT 610NHZ Six‑Sided Through‑Feed CNC
Key machine features
- Working width up to 1000 mm, working length up to 2850 mm.

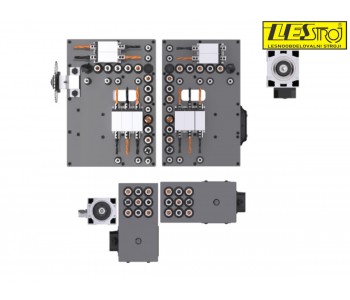

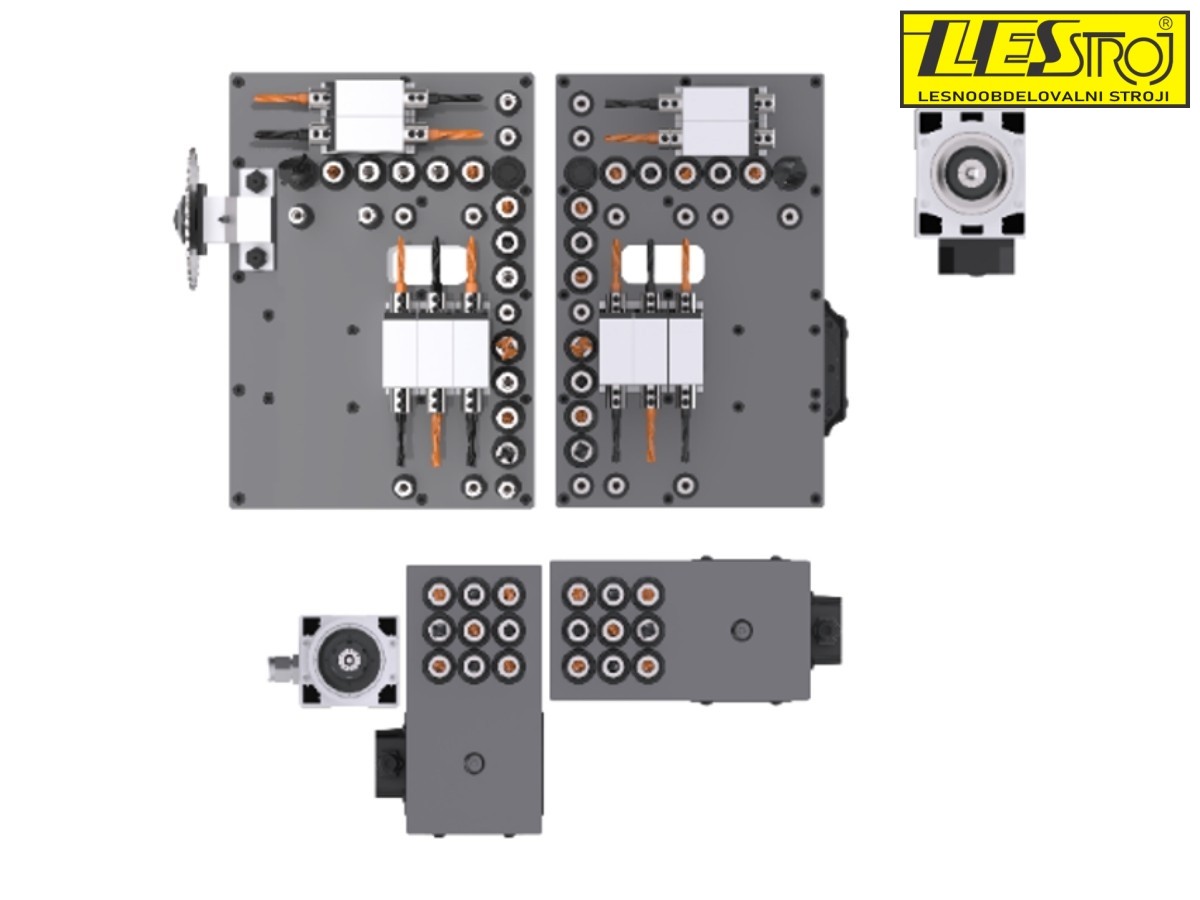

- 2 drilling units
• Upper: 12 vertical + 8 horizontal spindles
• Lower: 9 vertical spindles

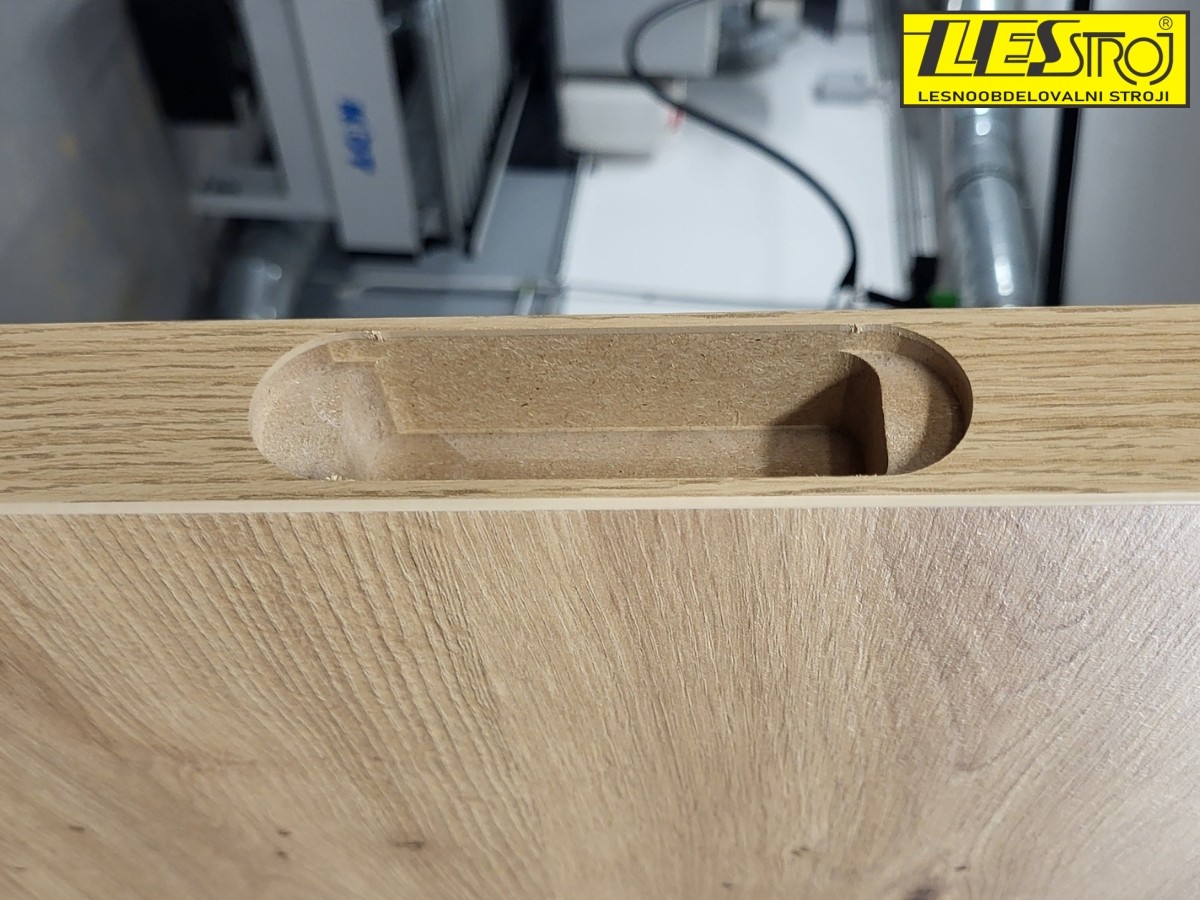

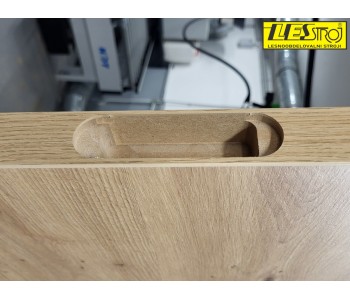

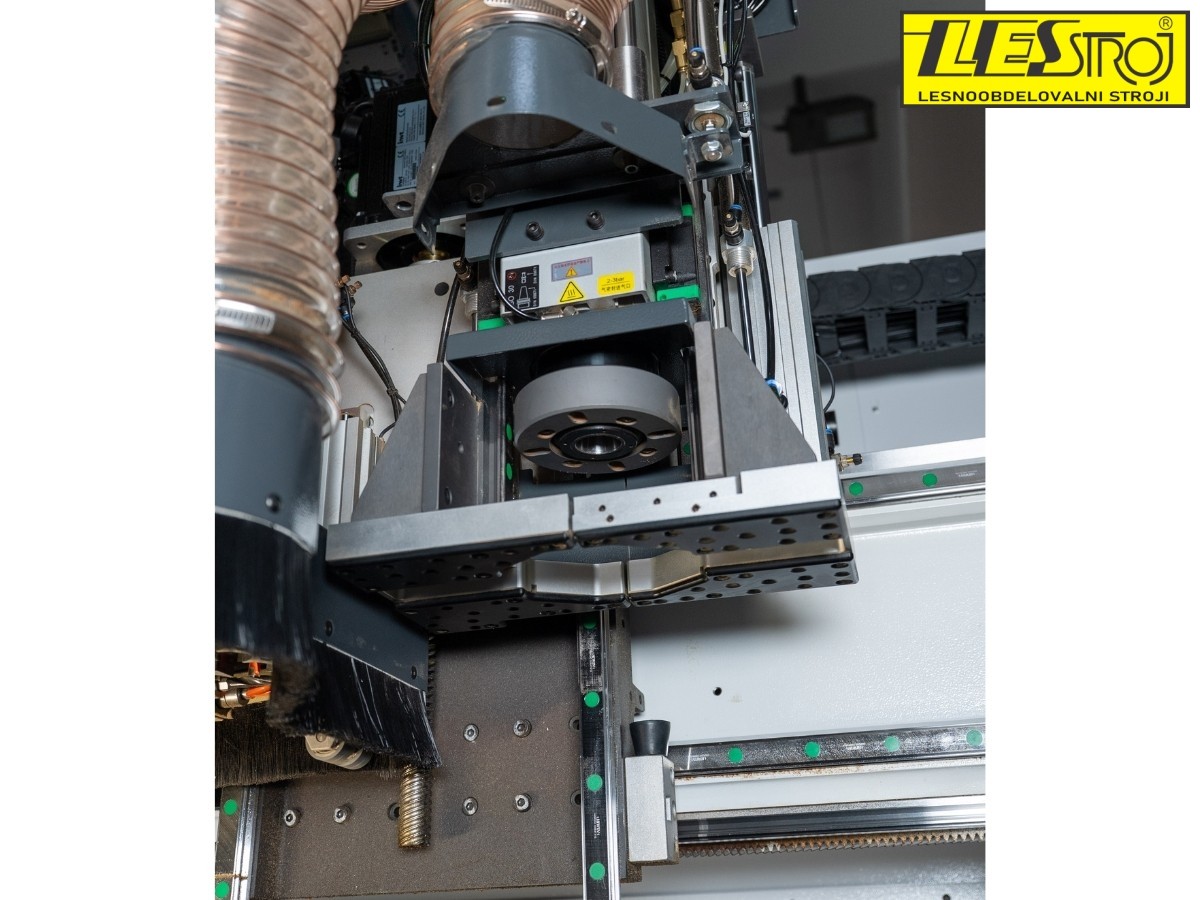

• Integrated grooving saw Ø 120 mm. - 2 routing heads

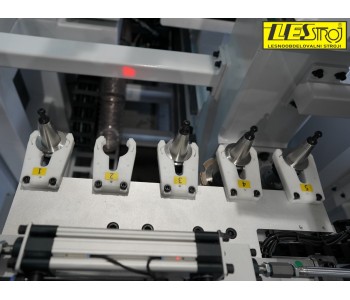

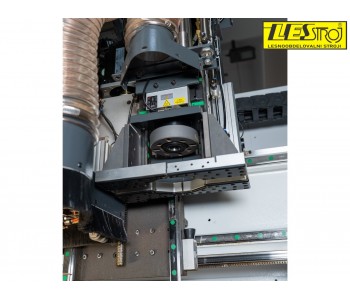

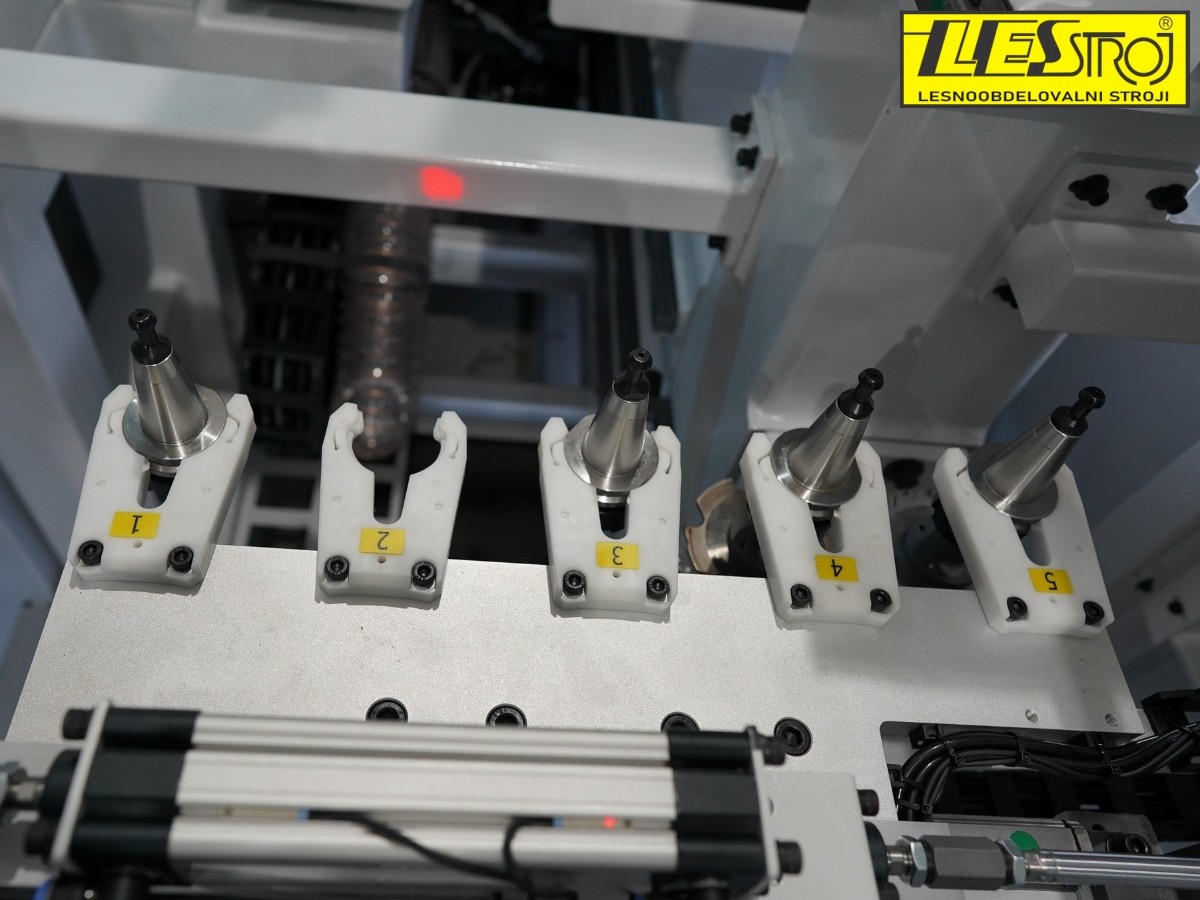

• Upper spindle 5.5 kW with 5‑position automatic tool‑changer

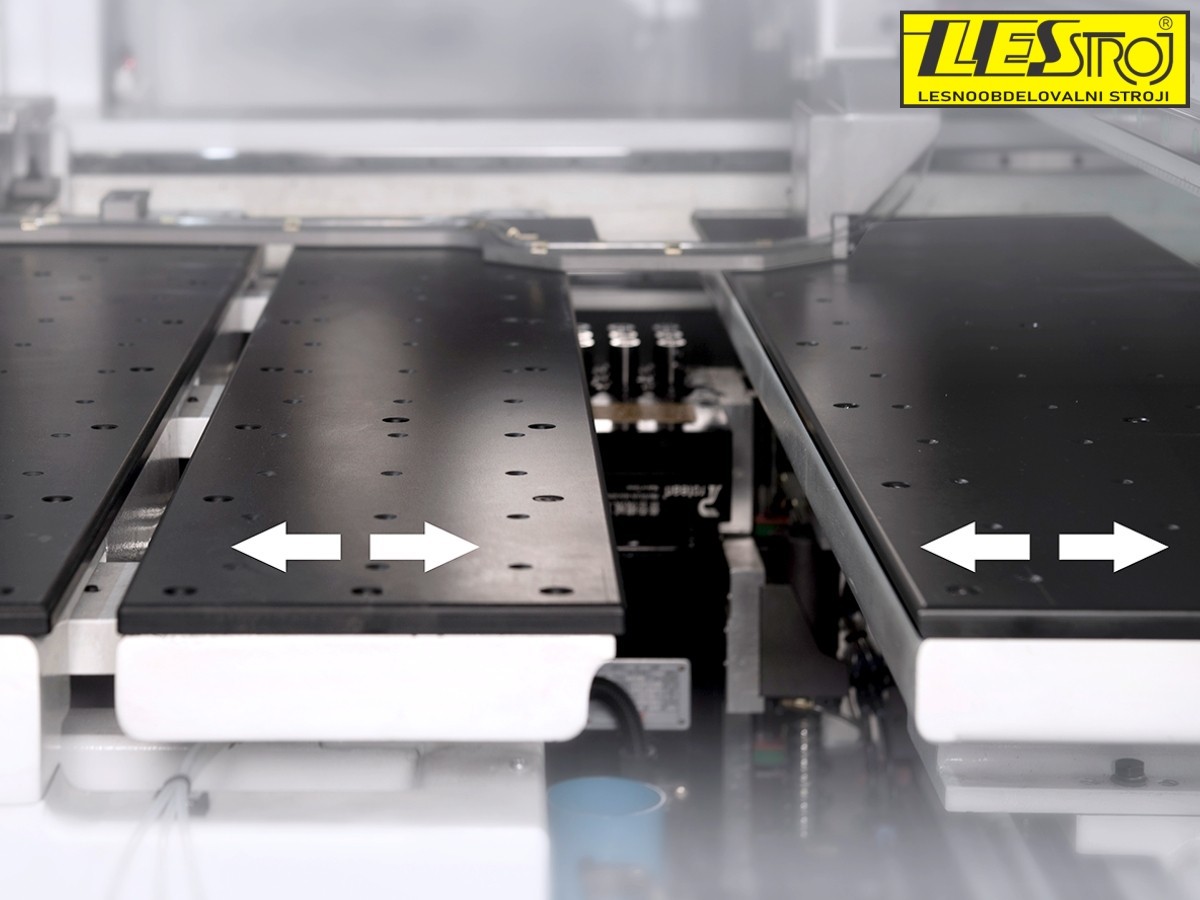

• Lower spindle 3.5 kW. - Air‑cushion table for easy panel handling and scratch‑free movement.
- Dual independent grippers for precise clamping and faster throughput;
X‑axis feed speed up to 140 m/min (Y/Z axes 90 / 50 m/min). - KDT WS CAD/CAM interface for quick programming, simulation and machine control.
- Compatible with major furniture design software: MegaTISCHLER, Corpus 3D, Imos, LestrojBOX, Cabinet Vision, Swood and others.
- Barcode reader for automated operation.

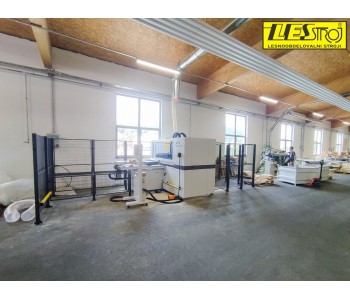

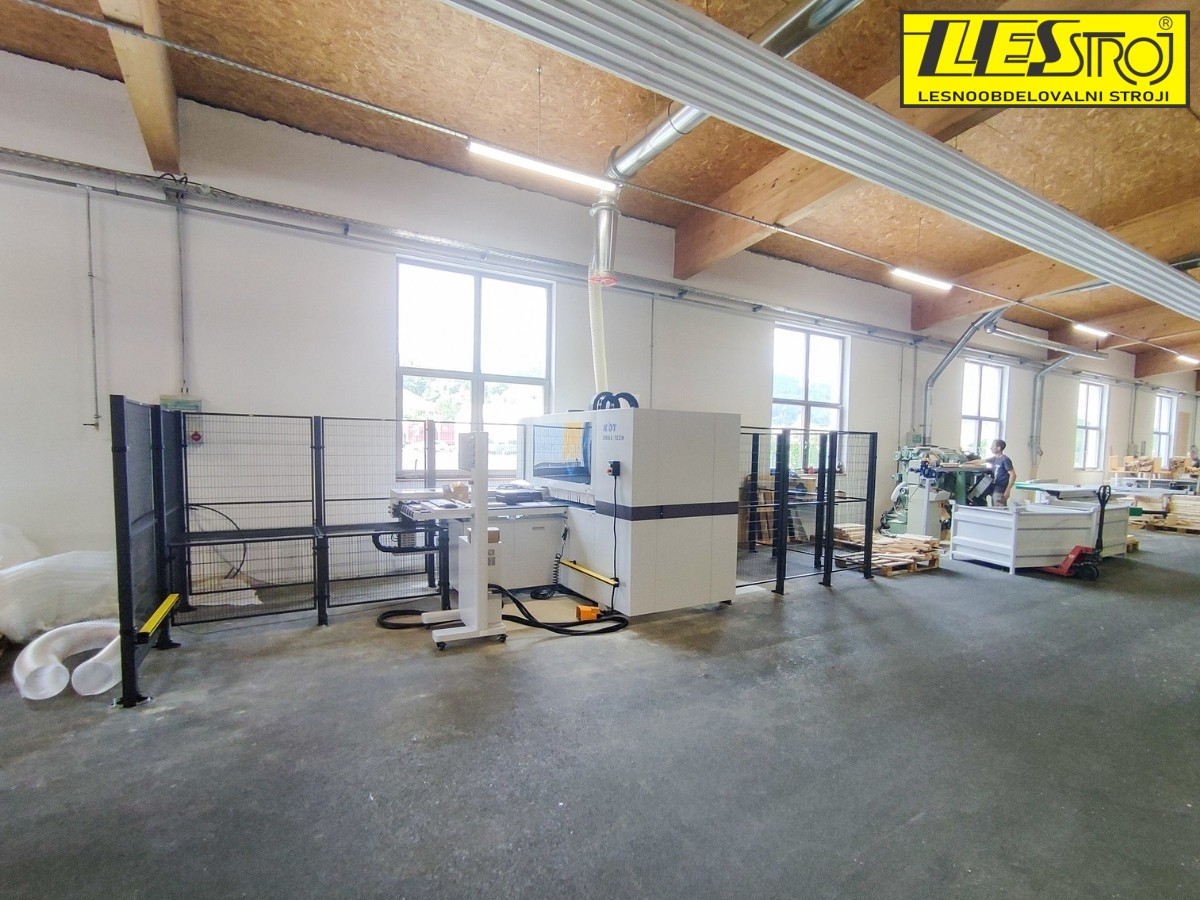

- Machine footprint with safety fence and light curtains: approx. 7088 × 2660 mm (may vary by configuration).
- Complies with CE safety standards.
- Robust industrial build, weight approx. 3000 kg (may vary by configuration).
More than 50 satisfied carpenters use KDT through‑feed CNC machines.
