CNC KDT machine for processing door wings KHM-660
CNC machine KDT KHM-660 – speed, precision, uncompromising efficiency.
Expertly processes door panels: lock, handle, and hardware slots in a single pass.

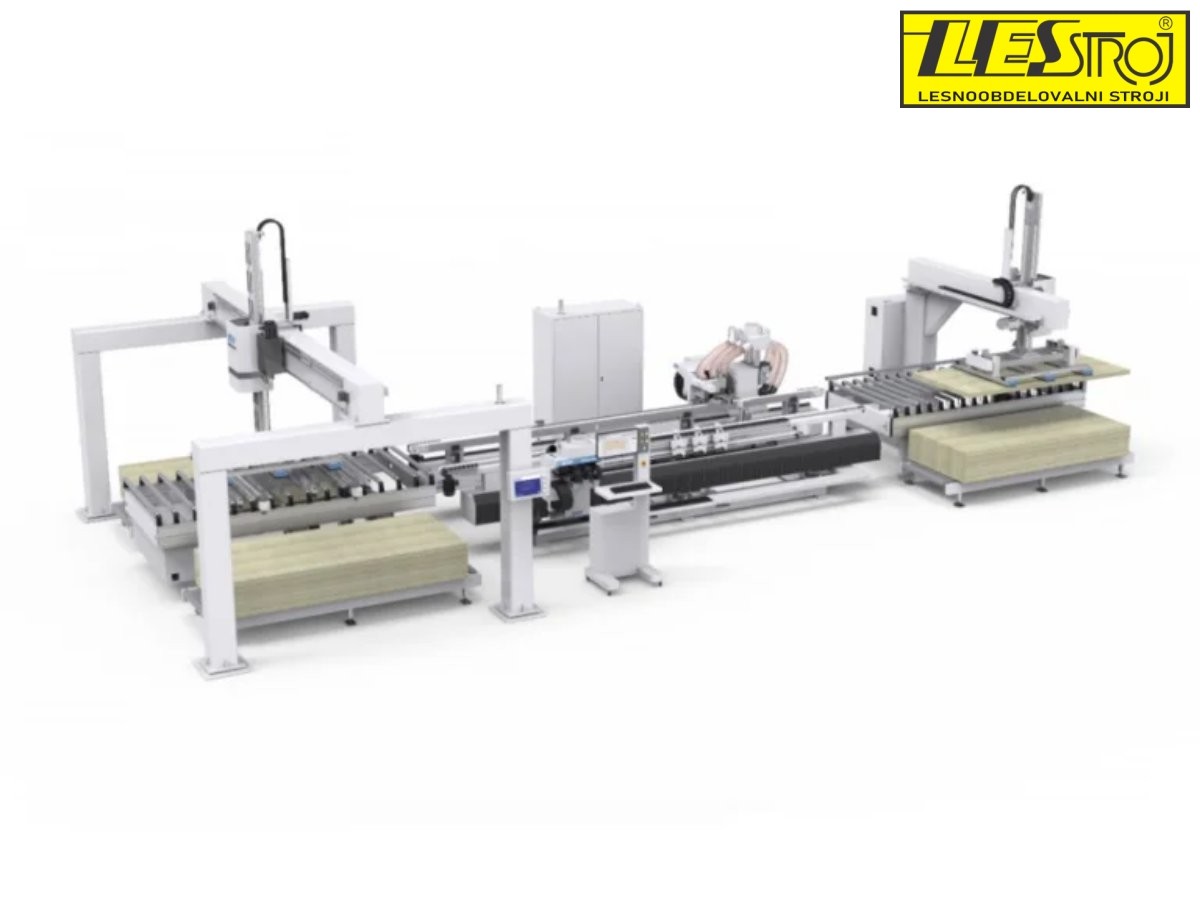

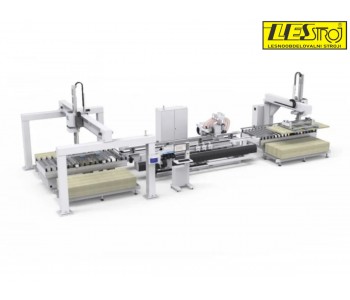

With automatic loading, unloading, and the option for in-line integration, it ensures a fully continuous workflow.

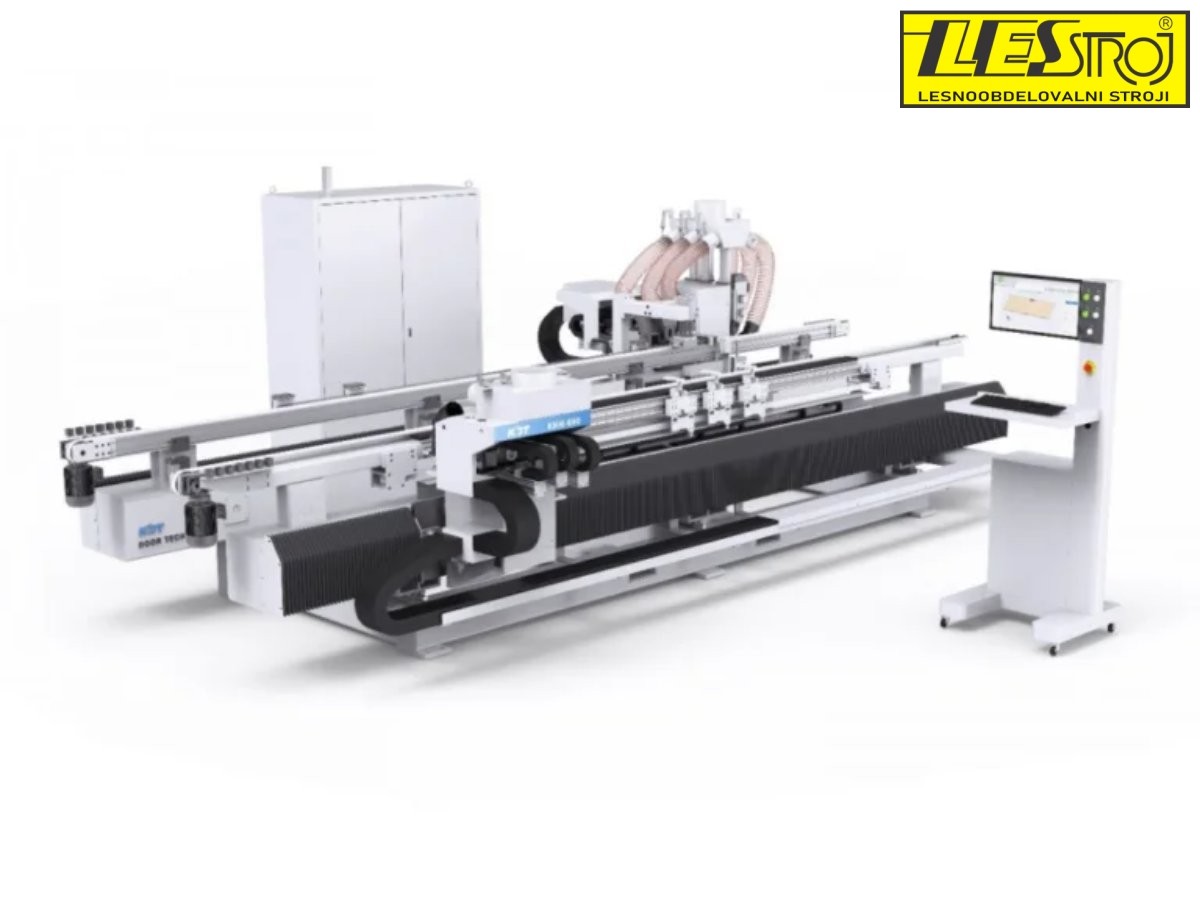

CNC machine for door processing KDT KHM-660

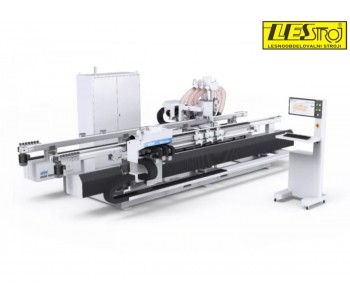

KDT KHM-660 is an advanced CNC machine designed for precise and fast processing of interior door panels. Suitable for both serial and custom production, it enables automatic adjustment to door dimensions and simultaneous double-sided processing.
Advantages:
- automatic width and thickness measurement
- automatic adjustment of the working table
- simultaneous processing from both sides
- shorter production time and reduced need for manual labor
Key features:
- spindle motors: 6 kW + 1.5 kW + 0.75 kW

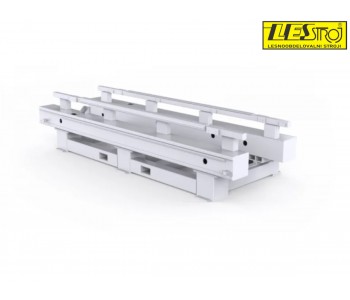

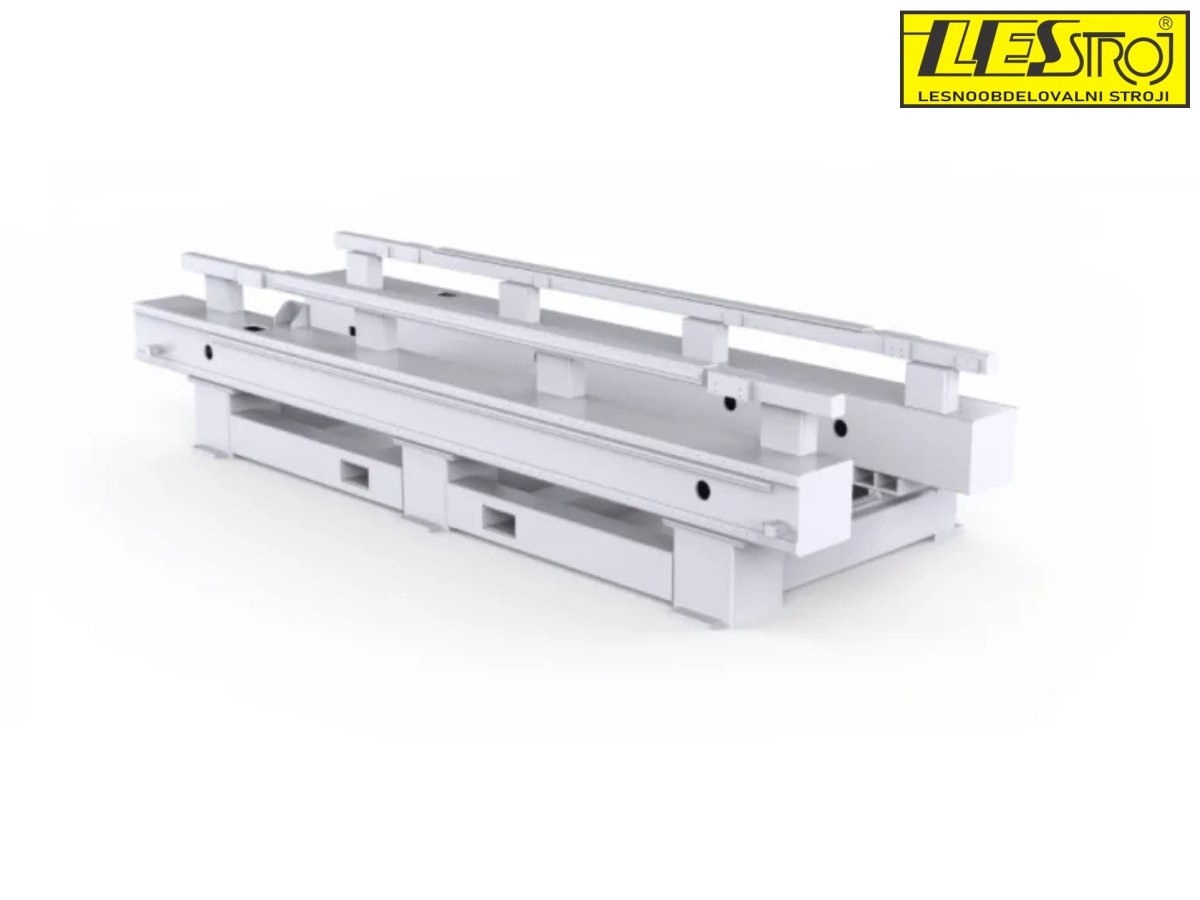

- robust steel frame for stable operation

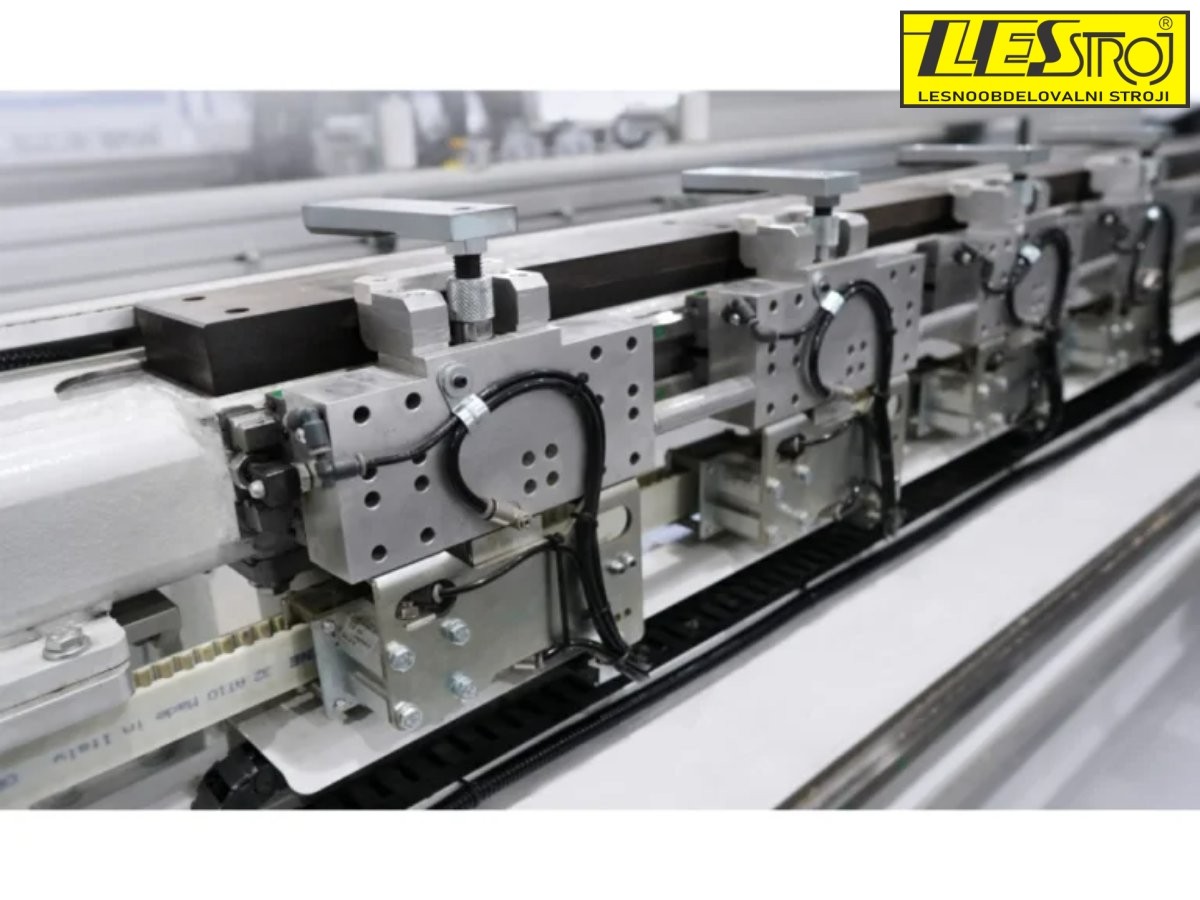

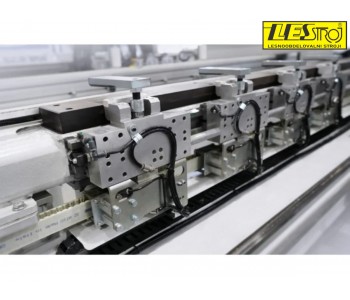

- automatic positioning clamps

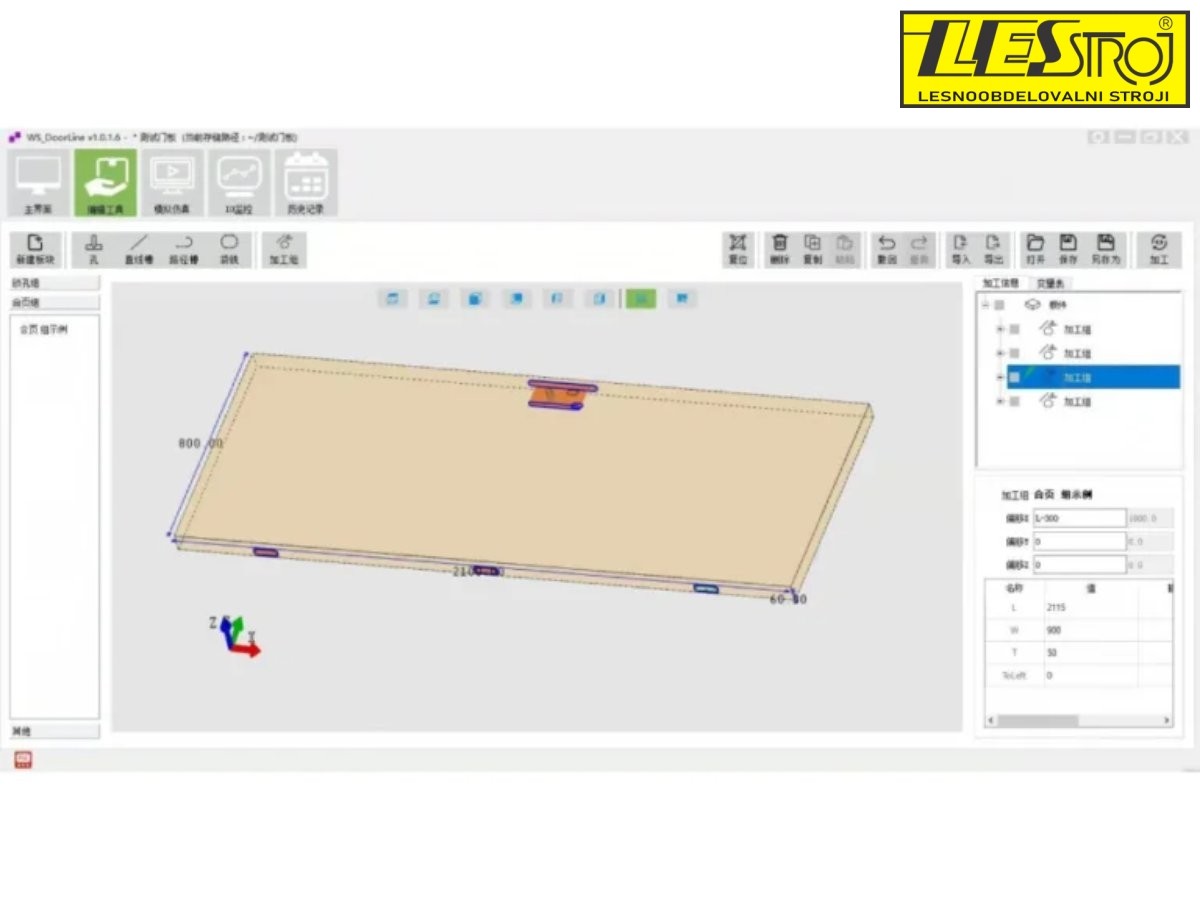

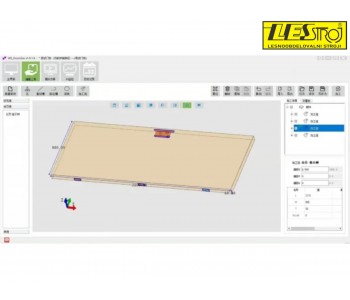

- visual software interface

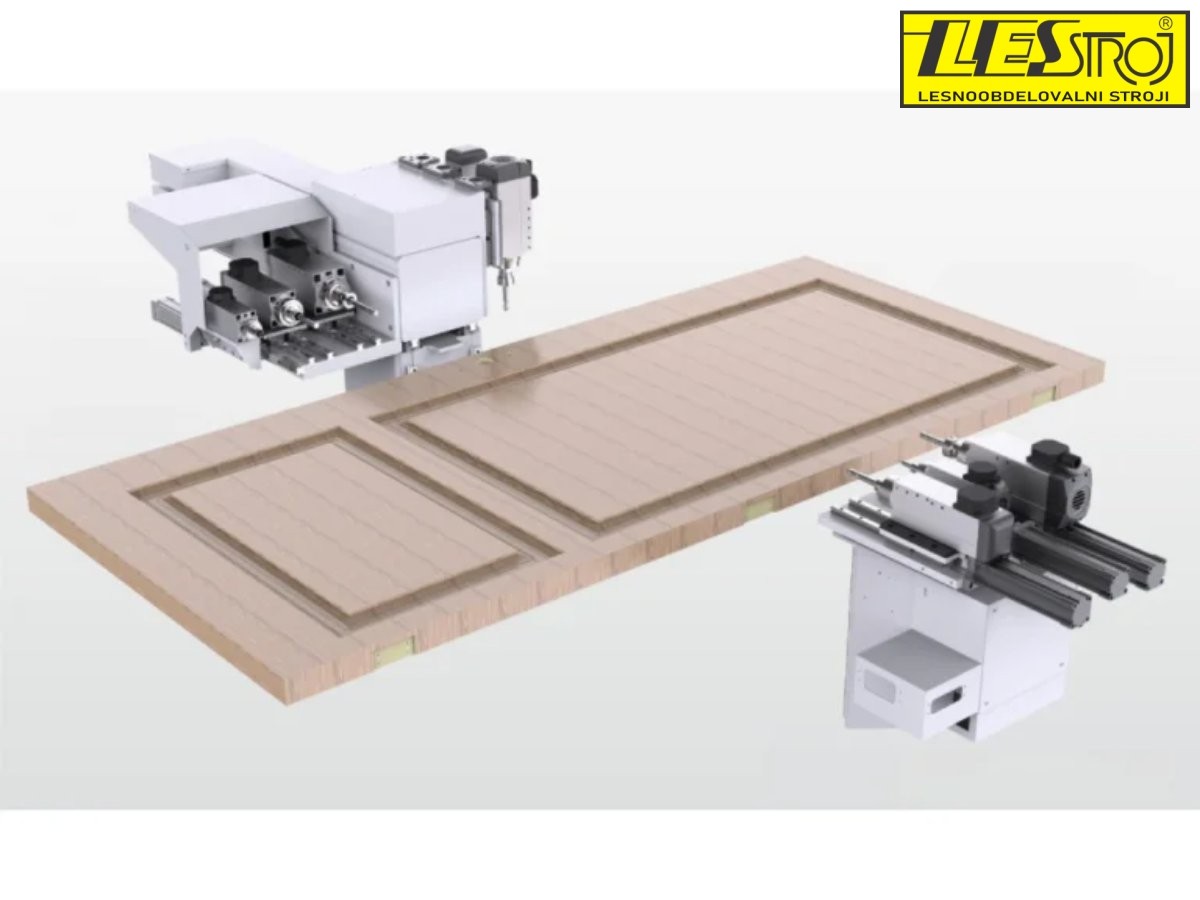

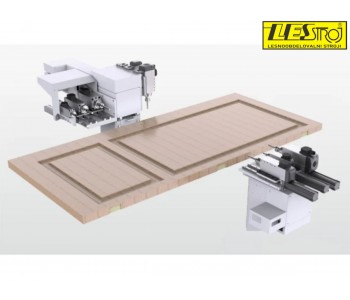

- simultaneous lock and hinge machining capability
Technical specifications:
- feed speed: 60 m/min
- door dimensions: 1800 × 400 mm to 3000 × 1100 mm
- door thickness: 30–60 mm
- servo motors X/Y/Z axis: 1.5 kW
- vertical units: 6 kW (ER32), 1.5 kW (ER20), 0.75 kW (ER20)
- horizontal units: 6 kW (ER32), 0.75 kW (ER20)
- total connected power: 36.8 kW
- machine dimensions: 5700 × 2300 × 2300 mm
- weight: 4600 kg
