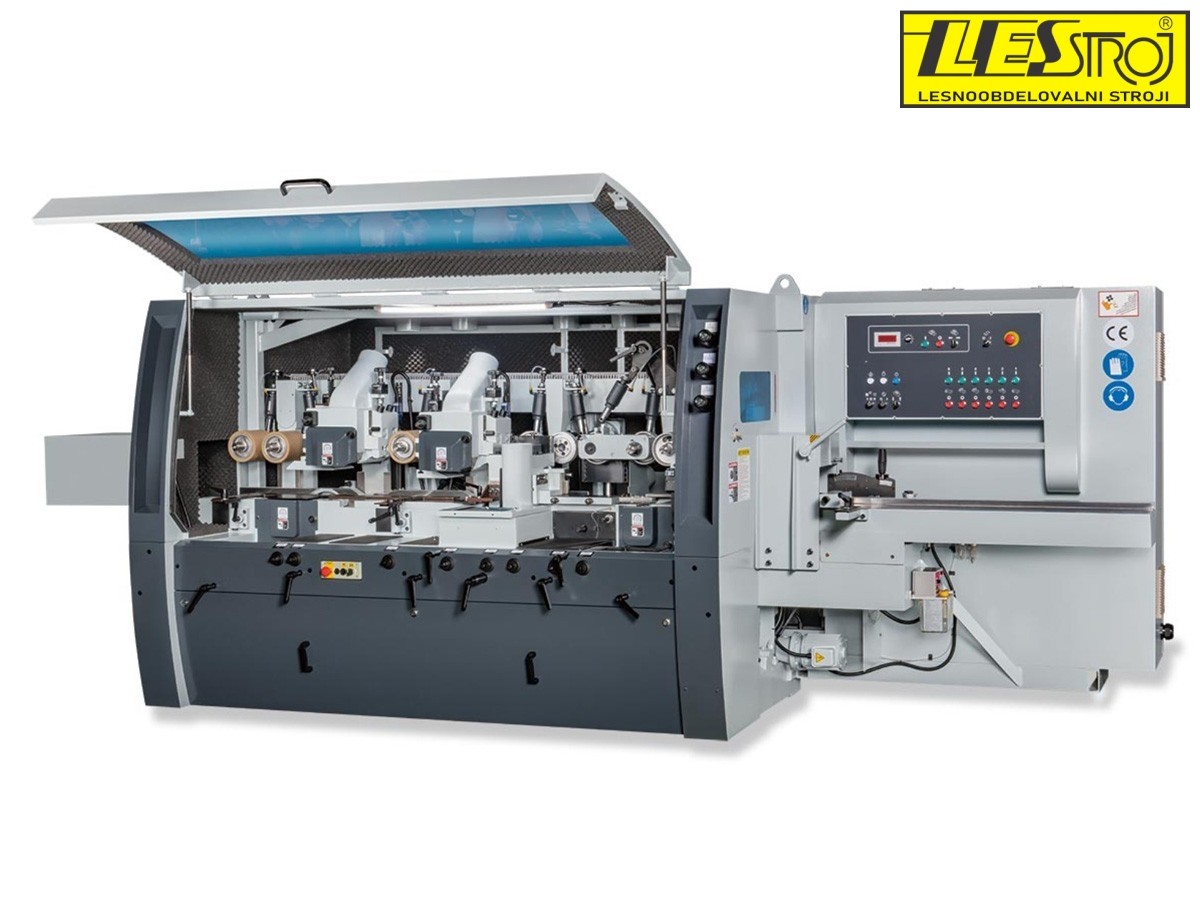

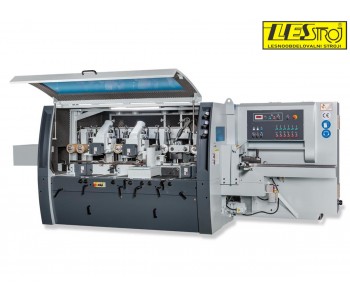

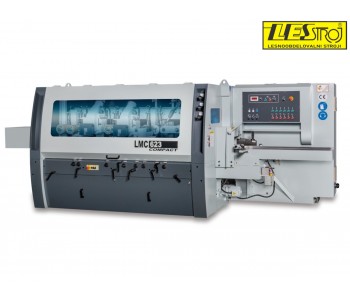

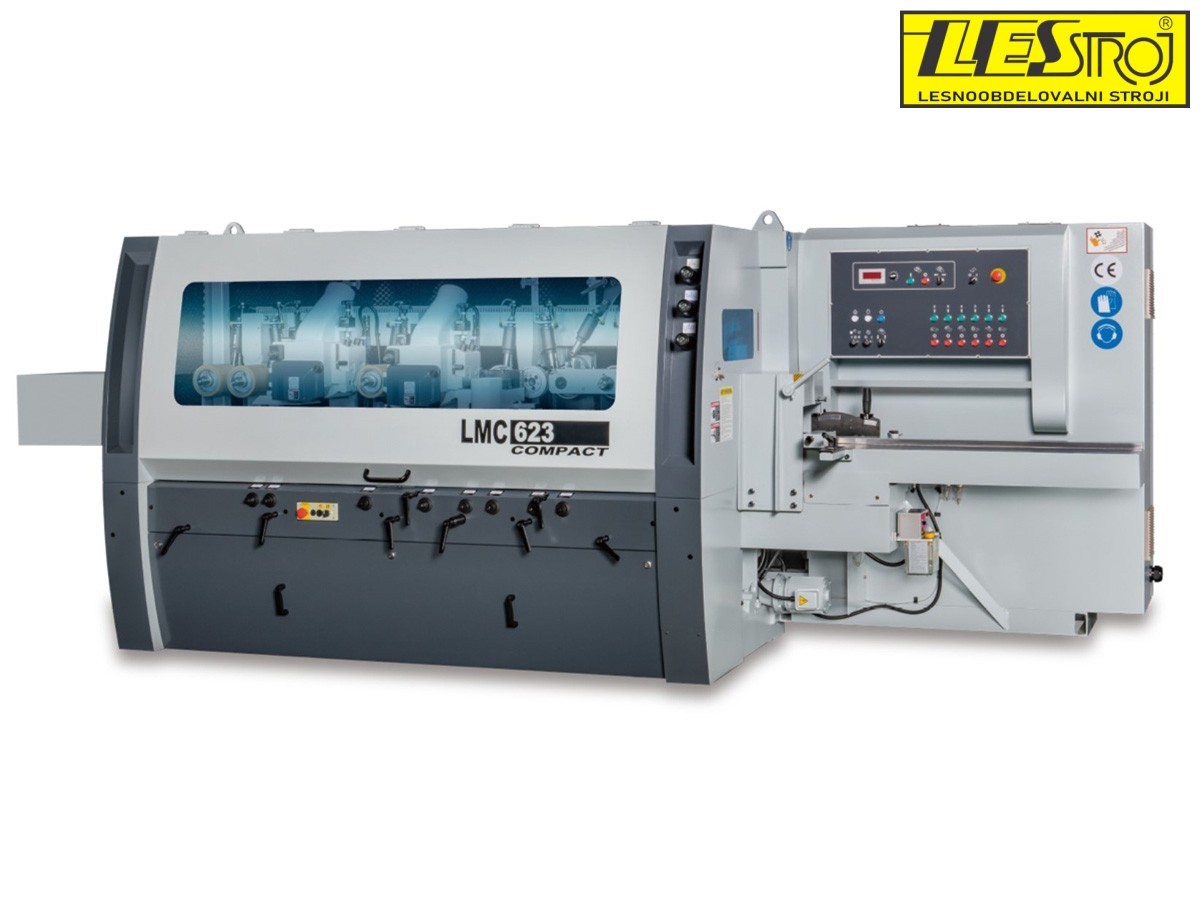

LEADERMAC Compact Series – Powerful and reliable four-sided planer

LEADERMAC’s various four-sided planers incorporate the latest technology to maximize productivity. These robust planers are designed for fast feed rates and high precision.

Request for more information

Description

LEADERMAC Compact Four-Sided Planers – Taiwanese Production, Top Quality

Description

LeaderMac Compact four-sided planers from Taiwan stand out for their exceptional robustness, precision, and long service life, putting them ahead of many European and Asian competitors. With over 50 years of experience and production since 1972, LeaderMac is recognized as a premium Taiwanese brand, offering outstanding stability, reliability, and consistent results even under intensive use. Their machines feature precise processing and easy operation, providing users with better efficiency and high-quality finished products.

Features of LMC Compact

Standard C.E. certification
One-piece cast iron machine frame, specially heat-treated for maximum stability and rigidity
Feed rates up to 24 m/min (option 36 m/min)

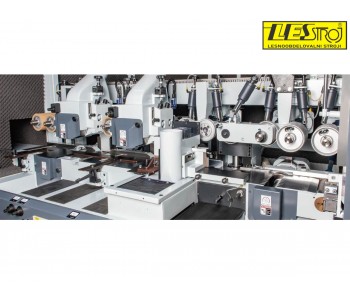

Each spindle can be easily adjusted using front adjustment handles
Each spindle is driven by an individual motor

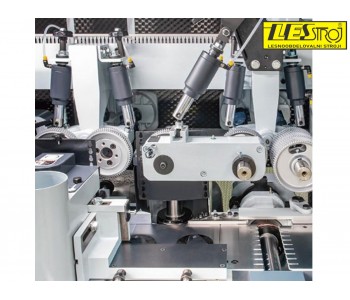

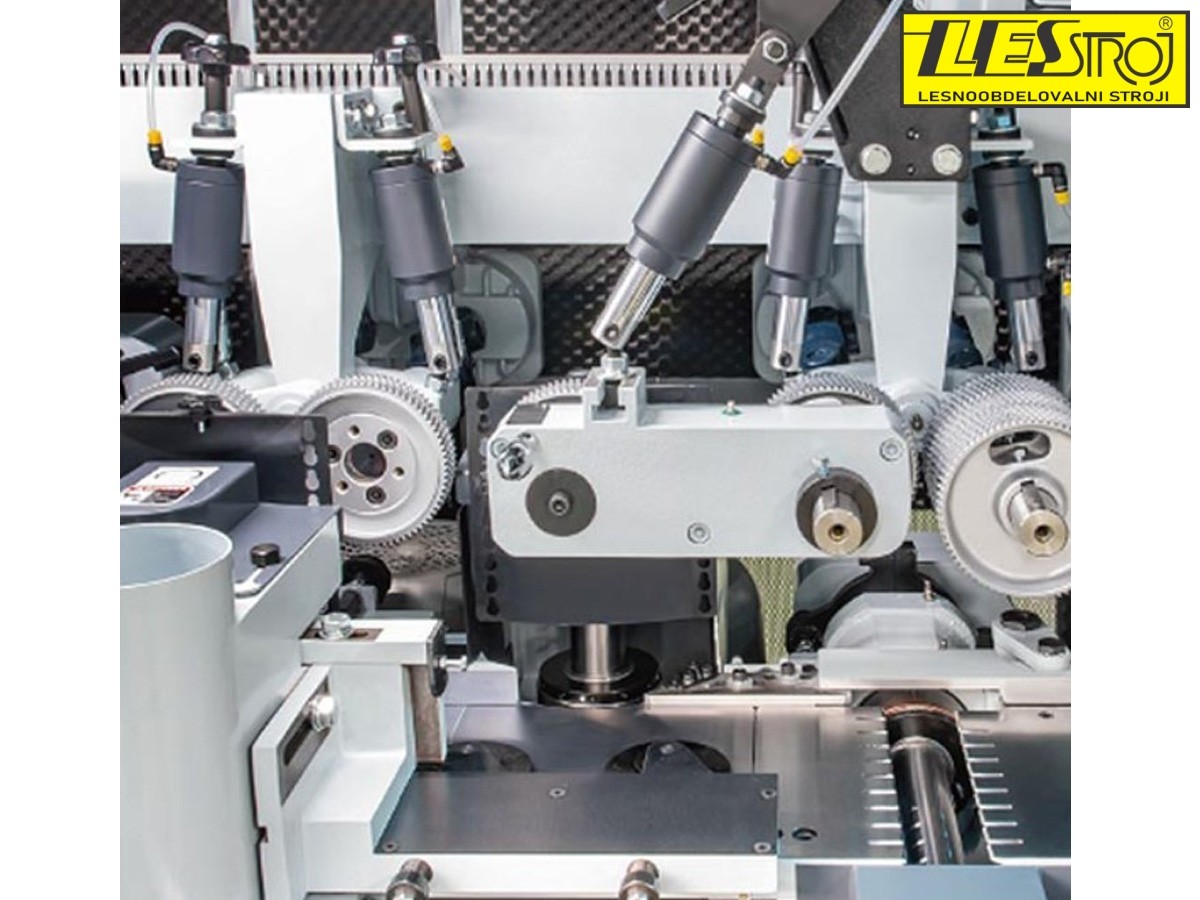

Pneumatic pressure of the upper feed rollers is easily adjustable
Table surfaces are hard chrome-plated for wear resistance
All manually adjustable rotating parts are mounted in durable grease-lubricated bearings
Safety housing protects against dust and chips, and helps reduce noise

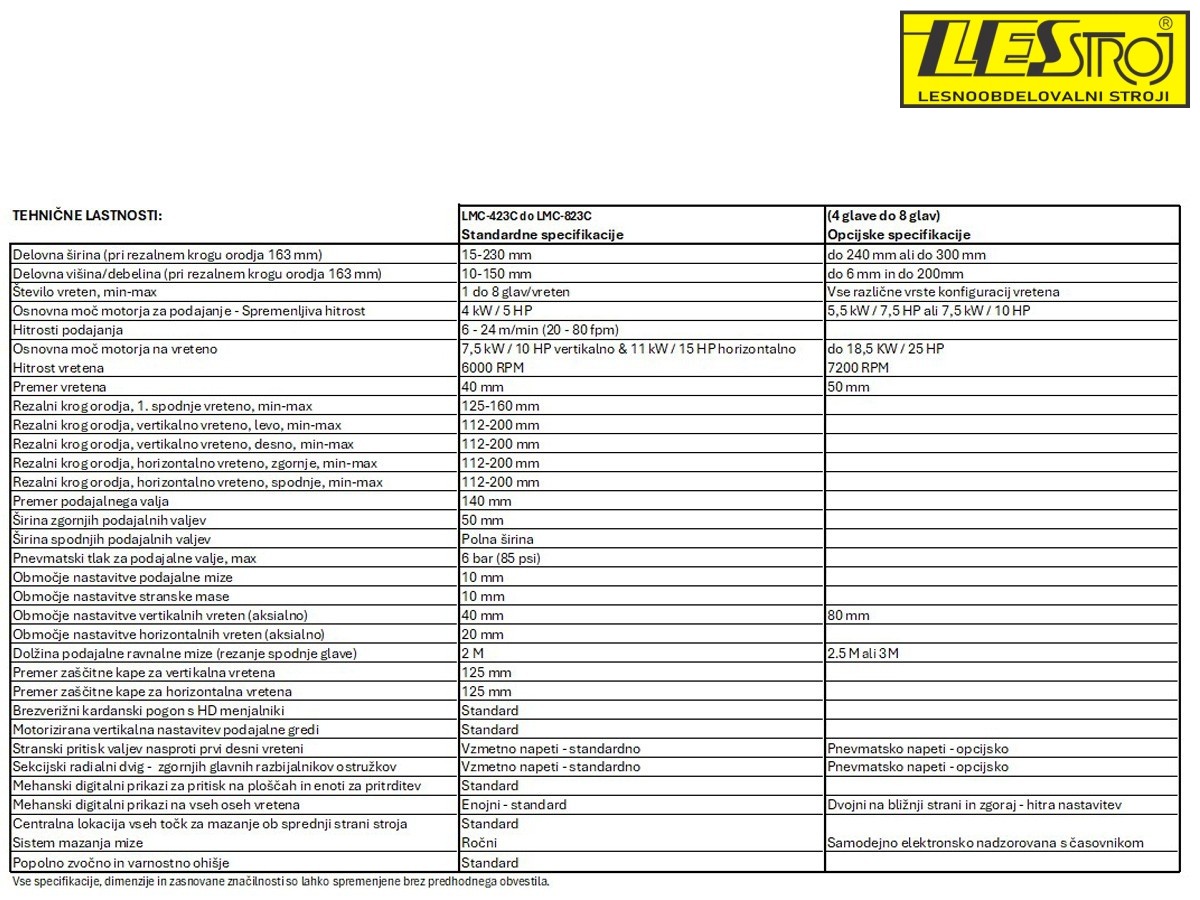

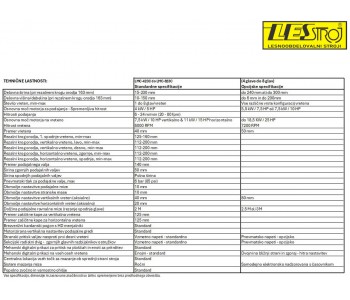

Technical Specifications

Feature	LMC-423C to LMC-823C	Optional Specs
Working width (with 163 mm cutter head)	15-230 mm	Up to 240 mm or 300 mm
Working height/thickness (with 163 mm cutter head)	10-150 mm	Up to 6 mm and up to 200 mm

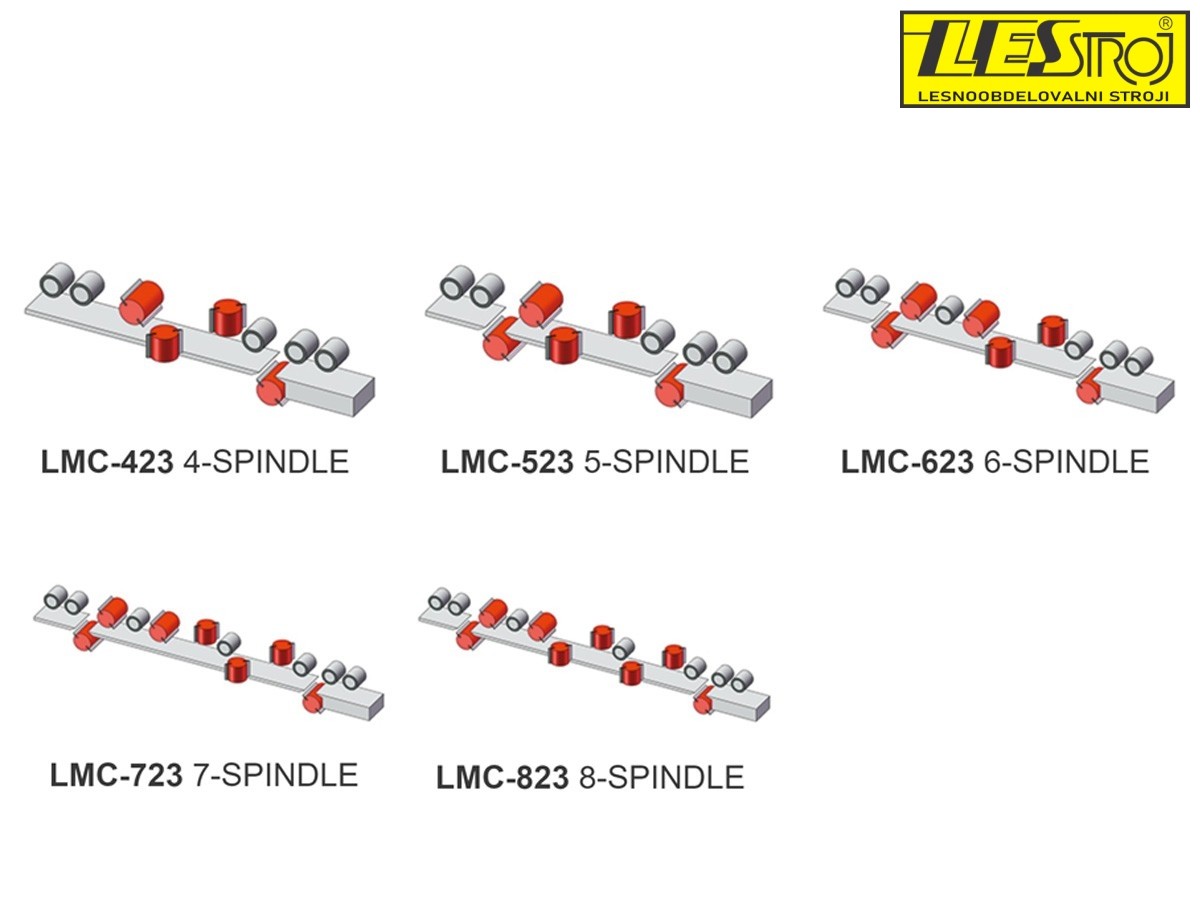

Number of spindles	1 to 8	All spindle configurations
Main feed motor power – variable speed	4 kW / 5 HP	5.5 kW / 7.5 HP or 7.5 kW / 10 HP
Feed rate	6–24 m/min (20–80 fpm)
Motor power per spindle	7.5 kW / 10 HP vertical & 11 kW / 15 HP horizontal	Up to 18.5 kW / 25 HP
Spindle speed	6000 RPM	7200 RPM
Spindle diameter	40 mm	50 mm
Cutter head diameter, 1st lower spindle	125–160 mm
Vertical spindle, left cutter head diameter	112–200 mm
Vertical spindle, right cutter head diameter	112–200 mm
Horizontal spindle, upper cutter head diameter	112–200 mm
Horizontal spindle, lower cutter head diameter	112–200 mm
Feed roller diameter	140 mm
Upper feed roller width	50 mm
Lower feed roller width	Full width – first spiral
Max pneumatic pressure for feed rollers	6 bar (85 psi)
Feed table adjustment range	10 mm
Sideboard adjustment range	10 mm
Vertical spindle adjustment range (axial)	40 mm	80 mm
Horizontal spindle adjustment range (axial)	20 mm
Feed leveling table length (lower head cutting)	2000 mm	2.5 m or 3 m
Vertical spindle safety cap diameter	125 mm
Horizontal spindle safety cap diameter	125 mm
Chainless cardan drive with HD gearbox	Standard
Motorized vertical adjustment of feed shaft	Standard
Side roller pressure opposite first right spindle	Spring-loaded – standard	Pneumatically adjustable – optional
Sectional radial lift – upper main chip breakers	Spring-loaded – standard	Pneumatically adjustable – optional
Mechanical digital display for pressure on plates and clamp unit	Standard
Mechanical digital display on all spindle axes	Single – standard	Double near side and top – fast adjustment
Central lubrication points along front of machine	Standard
Table lubrication system	Manual	Automatically controlled with timer
Full sound and safety housing	Standard
