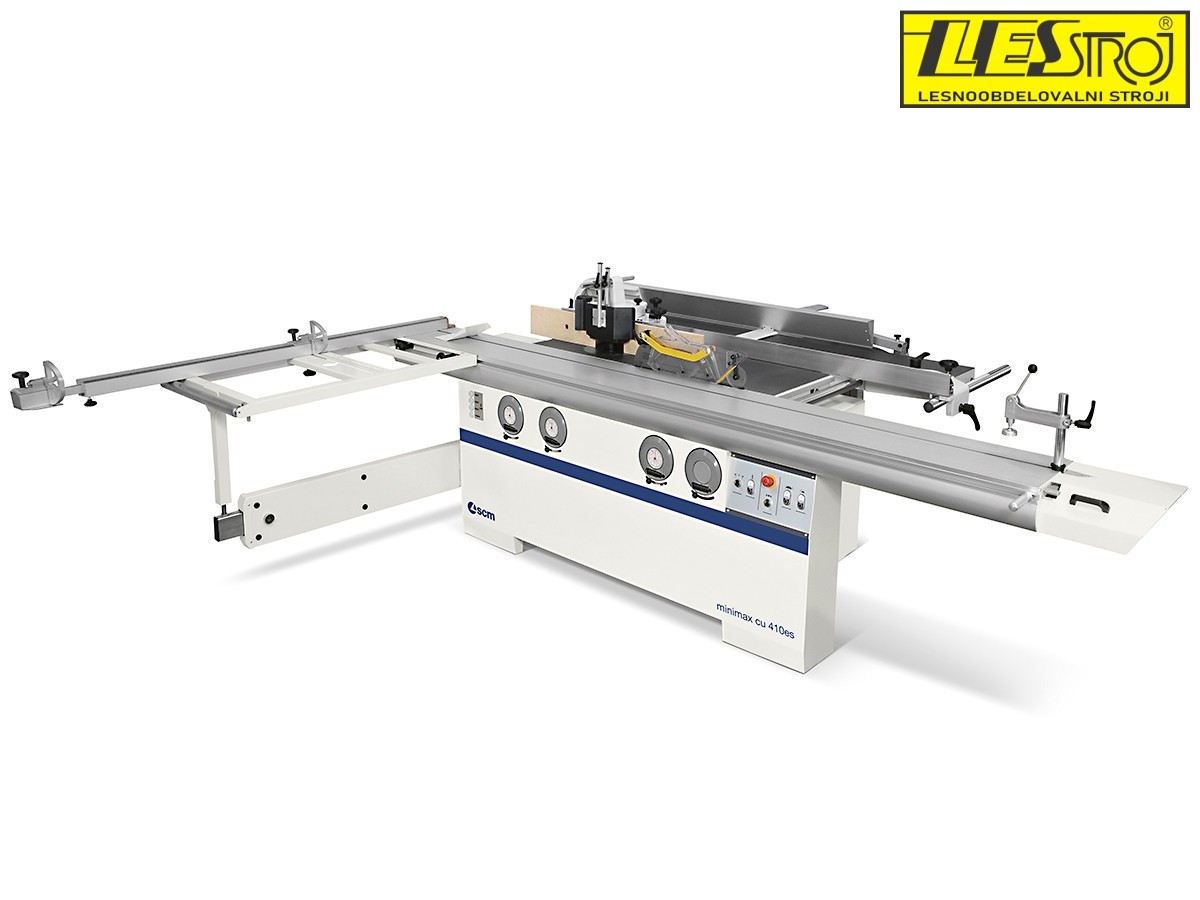

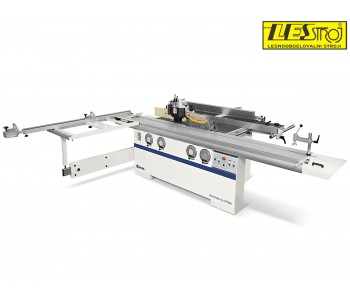

Universal Combined Machine MiniMax CU 410 ELITE S



This is surely the best combined machine on the market! Unbeatable performances and technology in an universal combined machine, for precise woodworking.



ADVANTAGES:

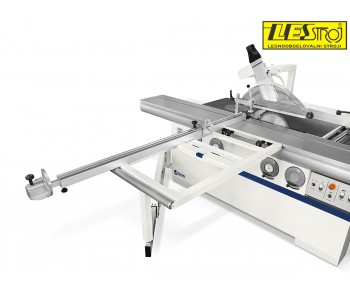

Top performance on all tcast iron saw unit, scoring unit with independent motor and 95 mm diam. planer spindle with 4 knives. Best support in all machinings, thanks to the 330 mm width sliding table and and 2200 mm long surfacing tables. Great versatility with the spindle moulder with 4 speeds available in fixed or tilting version. Maximum comfort and precision with the handwheels for lifting and tilting of saw and spindle moulder units on the front side of the machine.



Product Details

Data sheet

Saw carriage length
2200-2600-3200
Working width
410
Worktable length
775x410
Length of alignment plates
2200
Cutter rotation speed (rpm)
3500-6000-8000-10000
Max. saw blade diameter (mm)
350
Saw blade diameter (mm)
350
Maximum drill diameter
230 mm / 275 mm (pri čepilni glavi)
Max. working height
230
Cut-off height (mm)
118
Min. working height (mm)
3
Max. cut-off
90° = 118
SURFACE PLANER:
THICKNESSER
SPINDLE MOULDER:
Engines
3 x 5,5 KM ( 4 kW ) opc. 5,5 kW
Guide frame tilt (°)
90-45
No. of blades in the planer head
4
Max. material removal
5
Spindle length (mm)
125
Pre-cutter - engine power
0,55
Blade tilt (°)
90° - 45°
Scoring saw blade (mm)
120
Saw rotation speed (rpm)
4200
Weight (kg)
1365
