The diamond scoring saw blades are made of two (main) parts and metal spacers used for setting the desired thickness of the cut.
Adjustable scoring saw blades
Brand:

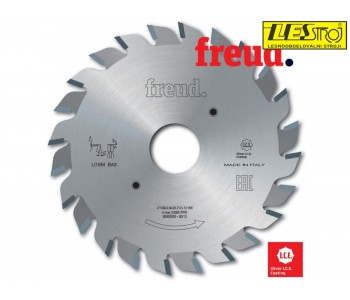

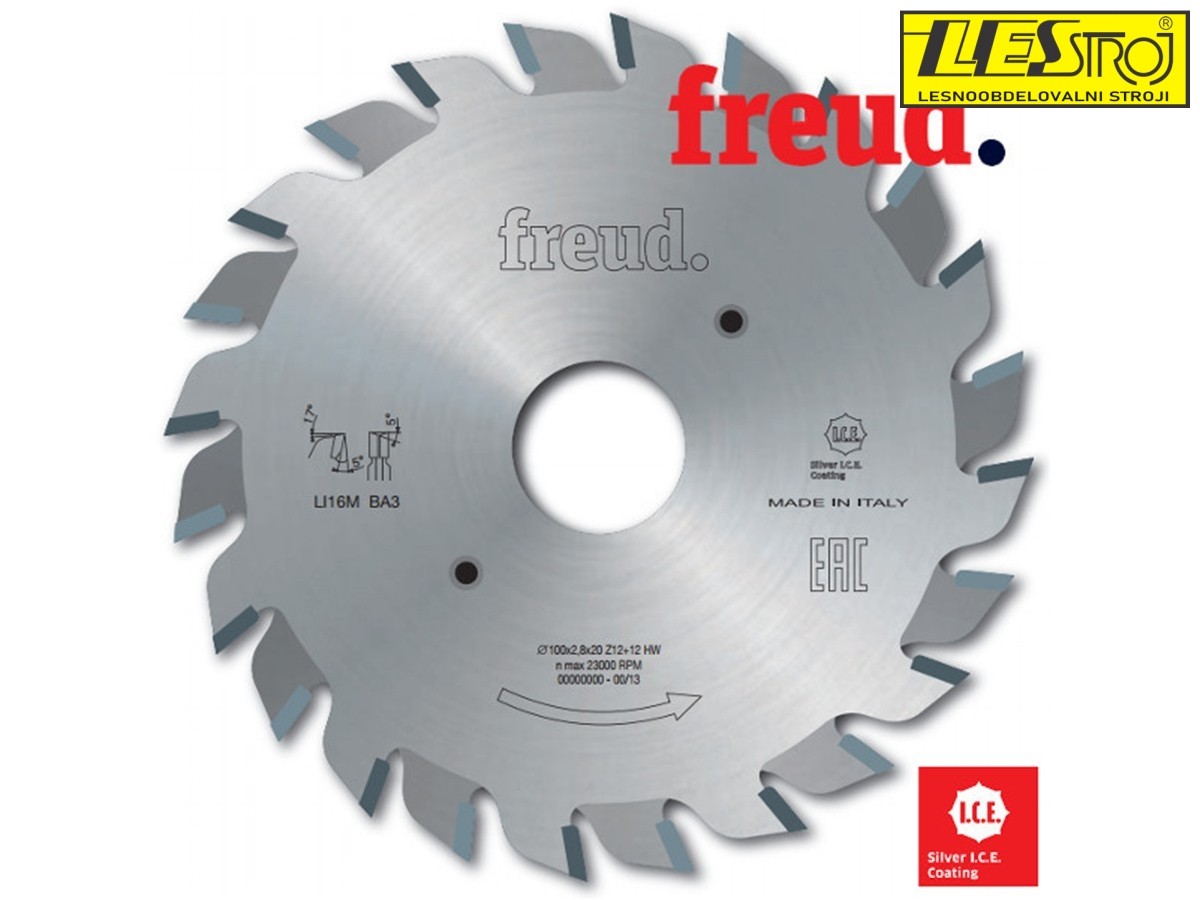

The adjustable scoring saw blades are made of two (main) parts and metal shims used for setting the desired thickness of the cut. The diameters of saw blades range from 80 to 200 mm, while the kerf thickness can be set from 2.8 to 3.6 mm or, in the case of the largest scoring saw blade, from 4 to 5.2 mm.
€86.00
Reference:
007173
The adjustable scoring saw blades are intended for the users who have different thicknesses of saw blades for cutting the surfaced wood boards, since they can use spacers to precisely set the scoring saw blade thickness, so that it is appropriate to the thickness of the main saw blade.
If the wood boards are not completely flat, the adjustable scoring saw blades provide better results than the conical saw blades. Saw blades are made of high-quality steel and excellent hard metal, the teeth are inclined forward (positive rake angle) and sharpened alternately left/right, which provides excellent cutting results.
Saw blades are used in all the machines with the possibility to attach a scoring saw blade.
Other product combination
| Model | Diameter (D-mm) | Bore dia. (B/d-mm) | No. of cutt. edg. (Z) | Kerf thickness (K/B-mm) | Unit price | Buy | |
|---|---|---|---|---|---|---|---|
| STARK I2012028024A | 120 | 20 | 12+12 | 2,8/3,6 |
€53.50
|
Call us
|
|
| FREUD LI16M AA3 | 120 | 20 | 12+12 | 2,8/3,6 |
€86.00
|
|
|
| FREUD LI16M AB3 | 120 | 22 | 12+12 | 2,8/3,6 |
€86.00
|
|
|
| FREUD LI16M BA3 | 100 | 20 | 12+12 | 2,8/3,6 |
€86.00
|
|
|
| FREUD LI16M BB3 | 100 | 22 | 12+12 | 2,8/3,6 |
€86.00
|
Call us
|
|
| FREUD LI16M FA3 | 125 | 20 | 12+12 | 2,8/3,6 |
€86.00
|
|
|
| FREUD LI16M GA3 | 80 | 20 | 12+12 | 2,8/3,6 |
€86.00
|
|
|
| FREUD LI16M OF3 | 200 | 50 | 28+28 | 4,0/5,2 |
€160.00
|
Call us
|
|
| FREUD LI16M PF3 | 120 | 50 | 12+12 | 2,8/3,6 |
€88.90
|
|
Related products
€46.10
The flat tooth scoring saw blades are intended to be used with main saw blades of the same width as the scoring saw blade. The diameter of the scoring saw blade is 120 mm, and the thickness is 3.2 mm.
€44.50
With the conical scoring saw blades, we can set the kerf width by raising and lowering the blade. The diameters of saw blades range from 80 to 200 mm, while the kerf thickness can be set from 3.1 to 4.3 mm or, in the...
€78.66
€87.40
The saw blades with trapezoidal teeth are used for high-quality cutting of wood composite materials when also using the scoring saw blade.
